brand. Use of unleaded fuel will
extend spark plug life and reduce
maintenance costs.EAU13445

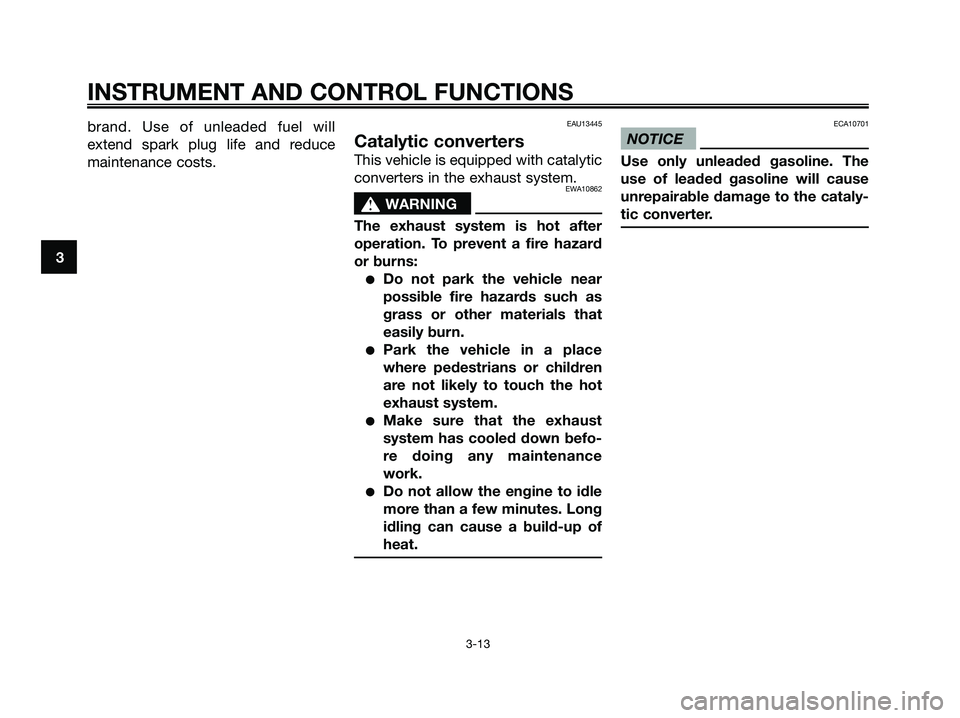

Catalytic converters
This vehicle is equipped with catalytic
converters in the exhaust system.
EWA10862
s s
WARNING
The exhaust system is hot after
operation. To prevent a fire hazard
or burns:
●Do not park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.
●Park the vehicle in a place
where pedestrians or children
are not likely to touch the hot
exhaust system.
●Make sure that the exhaust
system has cooled down befo-
re doing any maintenance
work.
●Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up of
heat.
ECA10701
NOTICE
Use only unleaded gasoline. The
use of leaded gasoline will cause
unrepairable damage to the cataly-
tic converter.
INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
1B9-F8199-E3.QXD 21/10/08 13:42 Página 28

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-1
4ITEM CHECKS PAGE
• Check fuel level in fuel tank.
Fuel• Refuel if necessary.3-12
• Check fuel line for leakage.
• Check oil level in engine.
Engine oil• If necessary, add recommended oil to specified level. 6-9
• Check vehicle for oil leakage.
Final transmission oil• Check vehicle for oil leakage. 6-12
• Check coolant level in reservoir.
Coolant• If necessary, add recommended coolant to specified level. 6-13
• Check cooling system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check lever free play.
• Adjust if necessary.
Front brake• Check brake pads for wear. 6-19, 6-20
• Replace if necessary.
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
EAU15596
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the ins-
pection and maintenance procedures and schedules described in the Owner’s Manual.
EWA11151
s s
WARNING
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment dama-
ge. Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures pro-
vided in this manual, have the vehicle inspected by a Yamaha dealer.
Before using this vehicle, check the following points:
1B9-F8199-E3.QXD 21/10/08 13:42 Página 36

EAU17281
Periodic inspection, adjustment, and
lubrication will keep your vehicle in
the safest and most efficient condi-
tion possible. Safety is an obligation
of the vehicle owner/operator. The
most important points of vehicle ins-
pection, adjustment, and lubrication
are explained on the following pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a
general guide under normal riding
conditions. However, depending on
the weather, terrain, geographical
location, and individual use, the main-
tenance intervals may need to be
shortened.
EWA10321
s s
WARNING
Failure to properly maintain the
vehicle or performing maintenance
activities incorrectly may increase
your risk of injury or death during
service or while using the vehicle. If
you are not familiar with vehicle
service, have a Yamaha dealer per-
form service.
EWA15121
s s
WARNING
Turn off the engine when perfor-
ming maintenance unless otherwi-
se specified.
●A running engine has moving
parts that can catch on body
parts or clothing and electrical
parts that can cause shocks or
fires.
●Running the engine while servi-
cing can lead to eye injury,
burns, fire, or carbon monoxide
poisoning – possibly leading to
death. See page 1-1 for more
information about carbon
monoxide.
EWA10330
s s
WARNING
This scooter is designed for use on
paved roads only. If this scooter is
operated in abnormally dusty,
muddy or wet conditions, the air fil-
ter element should be cleaned or
replaced more frequently, otherwi-
se rapid engine wear may result.
Consult a Yamaha dealer for proper
maintenance intervals.
EAU17521
Owner’s tool kit
1. Owner’s tool kit
The owner’s tool kit is located inside
the storage compartment under the
seat. (See page 3-14).
The service information included in
this manual and the tools provided in
the owner’s tool kit are intended to
assist you in the performance of pre-
ventive maintenance and minor
repairs. However, additional tools
such as a torque wrench may be
necessary to perform certain mainte-
nance work correctly.
TIP
If you do not have the tools or expe-
rience required for a particular job, have
a Yamaha dealer perform it for you.
PERIODIC MAINTENANCE AND ADJUSTMENT
6-1
6
1B9-F8199-E3.QXD 21/10/08 13:42 Página 43

PERIODIC MAINTENANCE AND ADJUSTMENT
6-2
6
EAU46870
TIP
●The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK,
a mileage-based maintenance, is performed instead.
●From 30000 km (17500 mi), repeat the maintenance intervals starting from 6000 km (3500 mi).
●Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and
technical skills.
EAU46920
Periodic maintenance chart for the emission control system
ODOMETER READING
CHECK OR ANNUAL
NO. ITEM MAINTENANCE JOB
1000 km 6000 km 12000 km 18000 km 24000 kmCHECK
(600 mi) (3500 mi) (7000 mi) (10500 mi) (14000 mi)
1*Fuel line• Check fuel hoses for cracks
or damage.√√√ √√
2Spark plug• Check condition.
• Clean and regap.√√
• Replace.√√
3*Valves• Check valve clearance.
• Adjust.√√√ √
4*Fuel injection• Check engine idle speed.√√ √√ √ √
5*Muffler and exhaust • Check the screw clamp(s) for
pipelooseness.√√ √√ √
1B9-F8199-E3.QXD 21/10/08 13:42 Página 44

PERIODIC MAINTENANCE AND ADJUSTMENT
6-3
6
ODOMETER READING
CHECK OR ANNUAL
NO. ITEM MAINTENANCE JOB
1000 km 6000 km 12000 km 18000 km 24000 kmCHECK
(600 mi) (3500 mi) (7000 mi) (10500 mi) (14000 mi)
1*Air filter element• Replace.√√
2V-belt case air filter
element• Clean.√√√ √
• Check operation, fluid level
3*Front brakeand vehicle for fluid leakage.√√ √√ √ √
• Replace brake pads. Whenever worn to the limit
• Check operation, fluid level
4*Rear brakeand vehicle for fluid leakage.√√ √√ √ √
• Replace brake pads. Whenever worn to the limit
5*Brake hoses• Check for cracks or damage.√√√ √√• Replace. Every 4 years
6*Wheels• Check runout and for damage.√√√ √
• Check tread depth and for
damage.
7*Tires• Replace if necessary.√√√ √√
• Check air pressure.
• Correct if necessary.
8*Wheel bearings• Check bearing for looseness
or damage.√√√ √
• Check bearing play and steering
9*Steering bearingsfor roughness.√√ √√ √
• Lubricate with lithium-soap-
based grease.Every 24000 km (14000 mi)
EAU17716

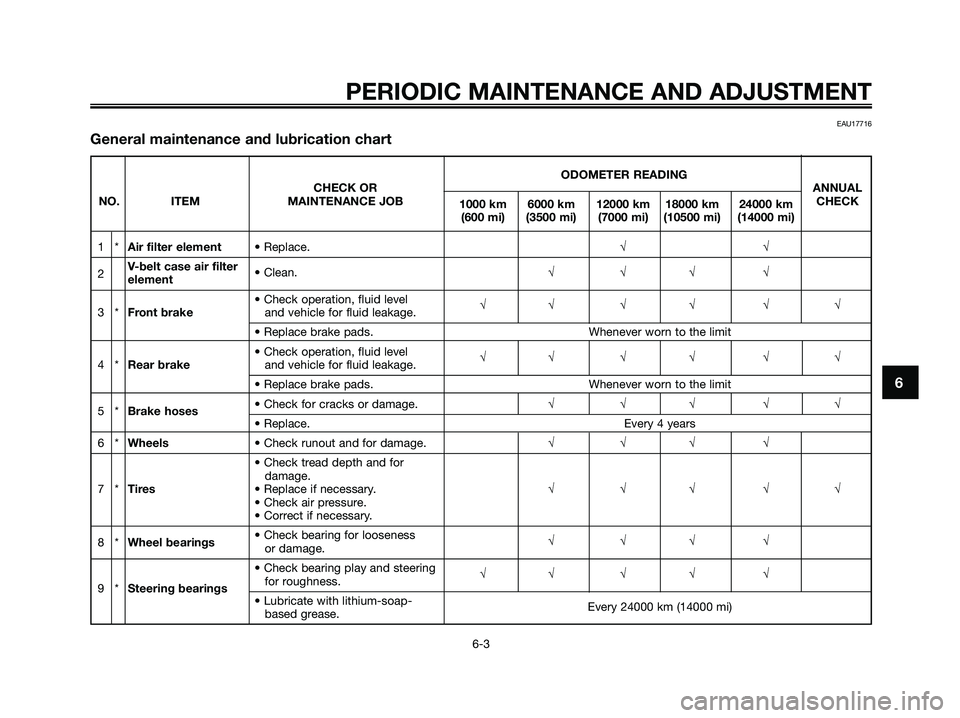

General maintenance and lubrication chart
1B9-F8199-E3.QXD 21/10/08 13:42 Página 45

PERIODIC MAINTENANCE AND ADJUSTMENT
6-4
6
ODOMETER READING
CHECK OR ANNUAL
NO. ITEM MAINTENANCE JOB 1000 km 6000 km 12000 km 18000 km 24000 kmCHECK
(600 mi) (3500 mi) (7000 mi) (10500 mi) (14000 mi)
10 * Chassis fasteners • Make sure that all nuts, bolts and
screws are properly tightened. √√√ √√
11 Front brake lever
pivot shaft • Lubricate with silicone grease.
√√√ √√
12 Rear brake lever
pivot shaft • Lubricate with silicone grease.
√√√ √√
13 Sidestand,
• Check operation.
centerstand• Lubricate. √√√ √√
14 *
Sidestand switch • Check operation. √√ √√ √ √
15 * Front fork • Check operation and for
oil leakage. √√√ √
16 * Shock absorber
• Check operation and shock
assemblies absorbers for oil leakage. √√√ √
When the oil change indicator light comes on
• Change. (See page 6-9 ). √[5000 km (3000 mi) after the initial 1000 km (600 mi)
17Engine oil and every 6000 km (3500 mi) thereafter]
• Check oil level and vehicle for
oil leakage. Every 3000 km (1800 mi)
√
18 Engine oil filter
element • Replace.
√√ √
• Check coolant level and vehicle
19 * Cooling system for coolant leakage. √√√ √√
• Change. Every 3 years
20
Final transmission
• Check vehicle for oil leakage.
√√ √
oil • Change. √√ √
1B9-F819D-E3.QXD 23/10/08 07:12 Página 46

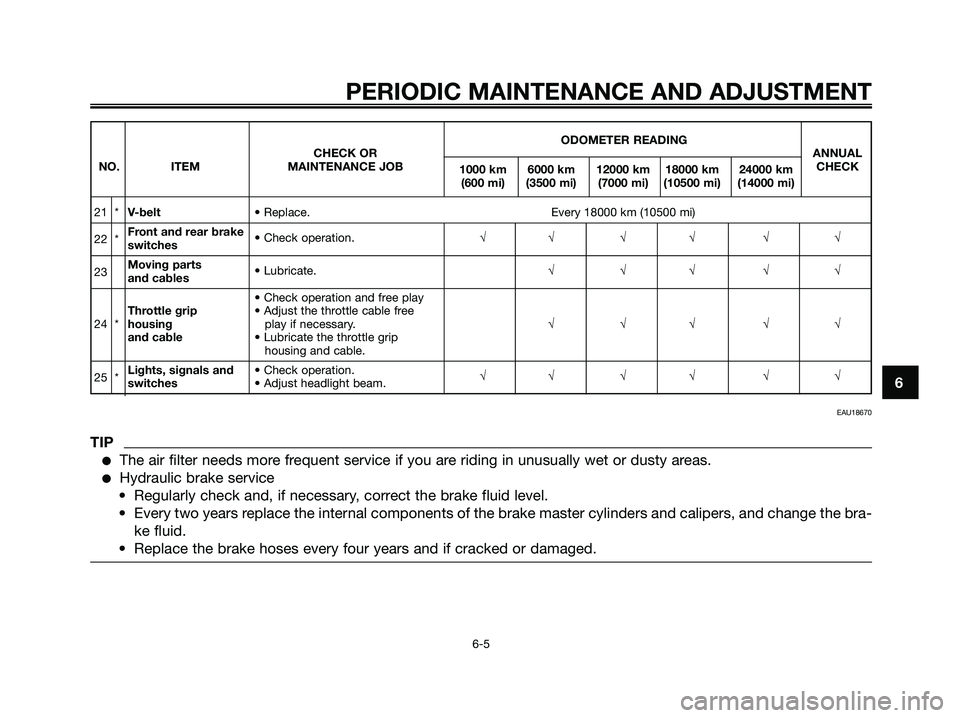

PERIODIC MAINTENANCE AND ADJUSTMENT
6-5
6
ODOMETER READING
CHECK OR ANNUAL
NO. ITEM MAINTENANCE JOB
1000 km 6000 km 12000 km 18000 km 24000 kmCHECK
(600 mi) (3500 mi) (7000 mi) (10500 mi) (14000 mi)
21 *V-belt• Replace. Every 18000 km (10500 mi)
22 *Front and rear brake
switches• Check operation.√√ √√ √ √
23Moving parts
and cables• Lubricate.√√√ √√
• Check operation and free play
Throttle grip • Adjust the throttle cable free
24 *housing play if necessary.√√√ √√
and cable• Lubricate the throttle grip
housing and cable.
25 *Lights, signals and • Check operation.
switches• Adjust headlight beam.√√ √√ √ √
EAU18670
TIP
●The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
●Hydraulic brake service
• Regularly check and, if necessary, correct the brake fluid level.
• Every two years replace the internal components of the brake master cylinders and calipers, and change the bra-
ke fluid.
• Replace the brake hoses every four years and if cracked or damaged.
1B9-F8199-E3.QXD 21/10/08 13:42 Página 47
