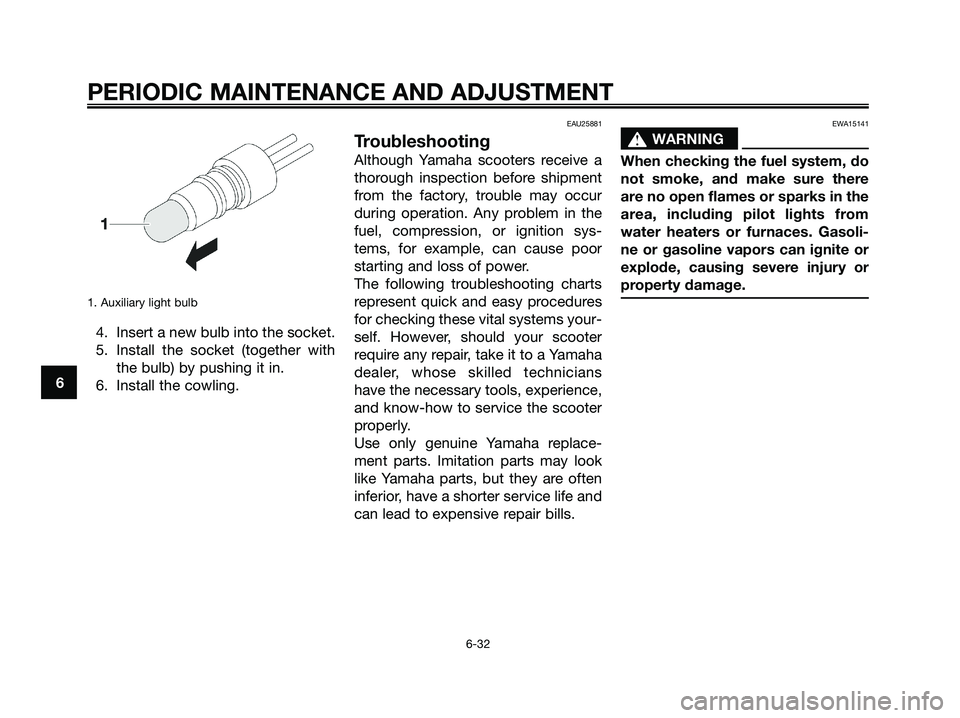

1. Auxiliary light bulb
4. Insert a new bulb into the socket.
5. Install the socket (together with
the bulb) by pushing it in.
6. Install the cowling.
EAU25881
Troubleshooting
Although Yamaha scooters receive a
thorough inspection before shipment
from the factory, trouble may occur
during operation. Any problem in the
fuel, compression, or ignition sys-
tems, for example, can cause poor
starting and loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your scooter
require any repair, take it to a Yamaha
dealer, whose skilled technicians
have the necessary tools, experience,
and know-how to service the scooter
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look
like Yamaha parts, but they are often
inferior, have a shorter service life and
can lead to expensive repair bills.
EWA15141
s s
WARNING
When checking the fuel system, do
not smoke, and make sure there
are no open flames or sparks in the
area, including pilot lights from
water heaters or furnaces. Gasoli-
ne or gasoline vapors can ignite or
explode, causing severe injury or
property damage.
PERIODIC MAINTENANCE AND ADJUSTMENT
6-32
6
1B9-F8199-E3.QXD 21/10/08 13:43 Página 74
Dimensions:Overall length:
2210 mm (87.0 in)
Overall width:
790 mm (31.1 in)
Overall height:
1380 mm (54.3 in)
Seat height:
785 mm (30.9 in)
Wheelbase:
1545 mm (60.8 in)
Ground clearance:
112 mm (4.44 in)
Minimum turning radius:
3650 mm (143.7 in)
Weight:With oil and fuel:
166 kg (366 lb)
Engine:Engine type:
Liquid cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
124.6 cm
3
Bore x stroke:
52.0 x 58.6 mm (2.05 x 2.31 in)
Compression ratio:
11.20 :1
Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Type:
SAE 10W-30, SAE 10W-40, SAE 15W-40,
SAE 20W-40 or SAE 20W-50
Recommended engine oil grade:
API service SG type or higher, JASO
standard MA
Engine oil quantity:
Without oil filter cartridge replacement:
1.40 L (1.48 US qt) (1.23 Imp.qt)
With oil filter element replacement:
1.50 L (1.59 US qt) (1.32 Imp.qt)
Final transmission oil:Type:
SAE 10W-30 type SE motor oil
Quantity:
0.21 L (0.22 US qt) (0.18 Imp.qt)
Cooling system:Coolant reservoir capacity (up to the
maximum level mark):
0.26 L (0.27 US qt) (0.23 Imp.qt)
Radiator capacity (including all routes):
1.40 L (1.48 US qt) (1.23 Imp.qt)
Air filter:Air filter element:
Oil-coated paper element
Fuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
12.5 L (3.30 US gal) (2.75 Imp.gal)
Fuel reserve amount:
2 L (0.53 US gal) (0.44 Imp.gal)
Throttle body:Type/quantity:
EFI (1B9) / 1
Manufacturer:
AISAN
Spark plug (s):Manufacturer/model:
NGK/ CPR 9EA-9
Spark plug gap:
0.8-0.9 mm (0.031-0.035 in)
Clutch:Clutch type:
Dry, centrifugal automatic
Transmission:Primary reduction system:
Helical gear
Primary reduction ratio:
41/14 (2.929)
Secondary reduction system:
Helical gear
Secondary reduction ratio:
44/13 (3.384)
Transmission type:
V-belt automatic
SPECIFICATIONS
8-1
8
