INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU11003
Indicator and warning lights
EAU11030
Turn signal indicator lights“”
and“”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
EAU11060
Neutral indicator light“”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light“”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11121
Oil level warning light“”
This warning light comes on if the en-
gine oil level is low.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.TIPEven if the oil level is sufficient, the
warning light may flicker when riding on
a slope or during sudden acceleration
or deceleration, but this is not a mal-function.
EAU11532
Engine trouble warning light“”
This warning light comes on or flashes
if a problem is detected in the electrical
circuit monitoring the engine. If this oc-curs, have a Yamaha dealer check the
self-diagnosis system. (See page 3-7
for an explanation of the self-diagnosis
device.)
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
EAU38621
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
1. Left turn signal indicator light“”
2. Engine trouble warning light“”
3. Neutral indicator light“”
4. Oil level warning light“”
5. High beam indicator light“”
6. Right turn signal indicator light“”
7. Immobilizer system indicator lightU5WME6E0.book Page 4 Wednesday, August 20, 2008 3:23 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
EAU43247
Multi-function display
WARNING
EWA12312
Be sure to stop the vehicle before
making any setting changes to the
multi-function display. Changing
settings while riding can distract the
operator and increase the risk of anaccident.
The multi-function display is equipped
with the following:

an odometer (which shows the to-
tal distance traveled)


two tripmeters (which show the
distance traveled since they were
last set to zero)


a fuel reserve tripmeter (which
shows the distance traveled on the
fuel reserve)


a fuel meter


a clock


a self-diagnosis device


a display, speedometer, and ta-
chometer brightness control mode
TIPBe sure to turn the key to “ON” before
using the select and reset buttons, ex-
cept for setting the display, speedome-
ter and tachometer brightness controlmode.Odometer and tripmeter modes
Pushing the select button switches the
display between the odometer mode
“ODO” and the tripmeter modes “TRIP
1” and “TRIP 2” in the following order:
ODO → TRIP 1 → TRIP 2 → ODO
When approximately 4.5 L (1.19 US
gal, 0.99 Imp.gal) of fuel remains in the
fuel tank, the display will automatically
change to the fuel reserve tripmeter
mode “TRIP F” and start counting the
distance traveled from that point. In that
case, pushing the select button switch-
es the display between the various trip-
meter and odometer modes in the
following order:
TRIP F → ODO → TRIP 1 → TRIP 2 →
TRIP F
1. Clock
2. Fuel meter
3. Odometer/tripmeter/fuel reserve tripmeter
4. Reset button
5. Select button
1. Odometer/tripmeter/fuel reserve tripmeter
U5WME6E0.book Page 6 Wednesday, August 20, 2008 3:23 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
EAU12331

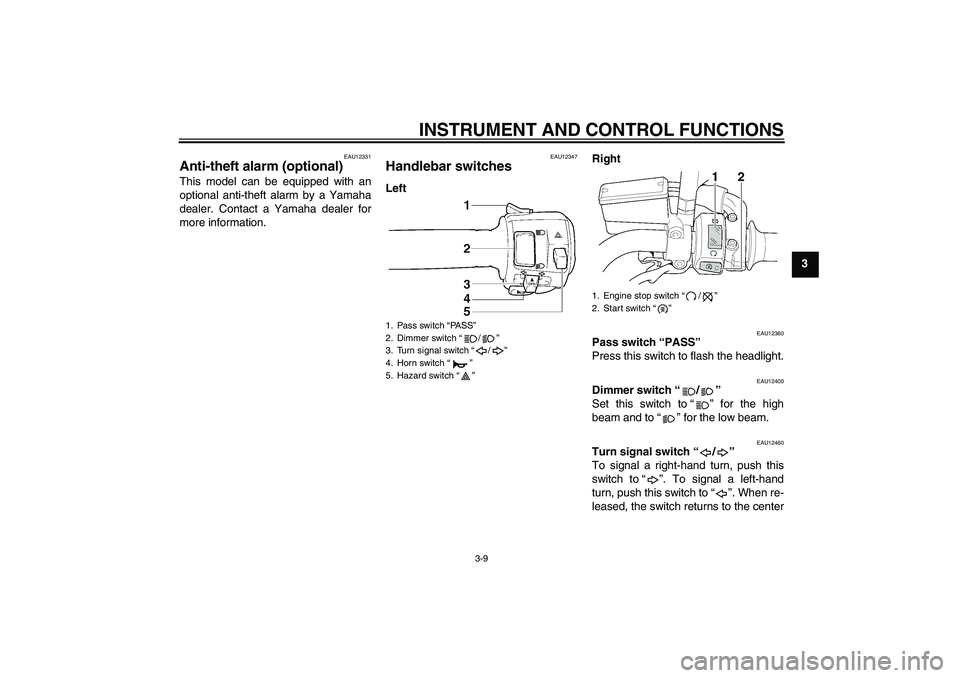

Anti-theft alarm (optional) This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
EAU12347
Handlebar switches LeftRight
EAU12360
Pass switch “PASS”
Press this switch to flash the headlight.
EAU12400
Dimmer switch“/”
Set this switch to“” for the high
beam and to“” for the low beam.
EAU12460
Turn signal switch“/”
To signal a right-hand turn, push this
switch to“”. To signal a left-hand
turn, push this switch to“”. When re-
leased, the switch returns to the center
1. Pass switch “PA S S”
2. Dimmer switch“/”
3. Turn signal switch“/”
4. Horn switch“”
5. Hazard switch“”
1. Engine stop switch“/”
2. Start switch“”
U5WME6E0.book Page 9 Wednesday, August 20, 2008 3:23 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-10
3position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch“”
Press this switch to sound the horn.
EAU12660
Engine stop switch“/”
Set this switch to“” before starting
the engine. Set this switch to“” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12711
Start switch“”
Push this switch to crank the engine
with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
EAU41700
The engine trouble warning light will
come on when the key is turned to “ON”
and the start switch is pushed, but this
does not indicate a malfunction.
EAU12733
Hazard switch“”
With the key in the “ON” or“” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.NOTICE
ECA10061
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-tery may discharge.
EAU12830
Clutch lever The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.1. Clutch lever
U5WME6E0.book Page 10 Wednesday, August 20, 2008 3:23 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-24
3
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to “
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The system is OK. The motorcycle can be ridden.
YES NO YES NO YES NO
The neutral switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The clutch switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.The sidestand switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.• The vehicle must be placed on the center-
stand during this inspection.• If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
”.
U5WME6E0.book Page 24 Wednesday, August 20, 2008 3:23 PM

OPERATION AND IMPORTANT RIDING POINTS
5-1
5
EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10271
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accidentor injury.
EAU45310
TIPThis model is equipped with a lean an-
gle sensor to stop the engine in case of
a turnover. To start the engine after a
turnover, be sure to turn the main
switch to “OFF” and then to “ON”. Fail-
ing to do so will prevent the engine from
starting even though the engine willcrank when pushing the start switch.
EAU32954
Starting the engine In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:

The transmission is in the neutral
position.


The transmission is in gear with
the clutch lever pulled and the sid-
estand up.
See page 3-23 for more informa-
tion.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to“”.
The following warning lights and
indicator light should come on for a
few seconds, then go off.

Oil level warning light


Engine trouble warning light


Immobilizer system indicator
light
NOTICE
ECA11831
If a warning or indicator light does
not go off, see page 3-4 for the corre-
sponding warning and indicatorlight circuit check.
U5WME6E0.book Page 1 Wednesday, August 20, 2008 3:23 PM

INDEXAAir filter element and check hose,
replacing and cleaning........................ 6-11
Anti-theft alarm (optional)........................ 3-9
Auxiliary light bulb, replacing ................ 6-30BBattery................................................... 6-25
Brake and clutch fluid levels,
checking ............................................. 6-17
Brake and clutch fluids, changing ......... 6-18
Brake and clutch levers, checking and
lubricating ........................................... 6-22
Brake and shift pedals, checking and
lubricating ........................................... 6-21
Brake lever ............................................ 3-11
Brake pedal ........................................... 3-12CCables, checking and lubricating .......... 6-20
Care ........................................................ 7-1
Catalytic converters .............................. 3-15
Centerstand and sidestand, checking
and lubricating .................................... 6-22
Clutch lever .................................. 3-10, 6-16DDimmer switch ........................................ 3-9
Drive chain, cleaning and lubricating .... 6-20
Drive chain slack ................................... 6-19EEngine break-in ....................................... 5-3
Engine oil and oil filter element ............... 6-8
Engine stop switch ................................ 3-10
Engine trouble warning light.................... 3-4
EXUP system ........................................ 3-22
FFront and rear brake pads, checking .... 6-16
Front fork, adjusting .............................. 3-17
Front fork, checking .............................. 6-23
Fuel....................................................... 3-13
Fuel consumption, tips for reducing........ 5-3
Fuel tank breather hose........................ 3-14
Fuel tank cap ........................................ 3-12
Fuses, replacing ................................... 6-26HHandlebar switches ................................ 3-9
Hazard switch ....................................... 3-10
Headlight bulb, replacing ...................... 6-27
Helmet holder ....................................... 3-16
High beam indicator light ........................ 3-4
Horn switch ........................................... 3-10IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-23
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-4
Indicator and warning lights .................... 3-4KKey identification number ....................... 9-1LLicense plate light bulb, replacing ........ 6-29
Luggage strap holders .......................... 3-21MMain switch/steering lock........................ 3-2
Matte color, caution ................................ 7-1
Model label ............................................. 9-2
Multi-function display .............................. 3-6NNeutral indicator light .............................. 3-4
OOil level warning light .............................. 3-4PPanels, removing and installing .............. 6-6
Parking .................................................... 5-4
Part locations .......................................... 2-1
Pass switch ............................................. 3-9
Periodic maintenance and lubrication
chart ...................................................... 6-2RRear brake light switch, adjusting ......... 6-16SSafety information ................................... 1-1
Seat ....................................................... 3-15
Shifting .................................................... 5-2
Shift pedal ............................................. 3-11
Shock absorber assemblies,
adjusting ............................................. 3-19
Sidestand .............................................. 3-22
Spark plugs, checking ............................. 6-7
Specifications .......................................... 8-1
Speedometer........................................... 3-5
Starting the engine .................................. 5-1
Start switch............................................ 3-10
Steering, checking................................. 6-24
Storage.................................................... 7-3
Storage compartment............................ 3-16
Swingarm pivots, lubricating ................. 6-23TTachometer ............................................. 3-5
Tail/brake light ....................................... 6-28
Throttle cable free play, checking ......... 6-12
Throttle grip and cable, checking and
lubricating ........................................... 6-21
U5WME6E0.book Page 1 Wednesday, August 20, 2008 3:23 PM
