PERIODIC MAINTENANCE AND ADJUSTMENT
6-7
2
3
4
5
67
8
9

EAU18771
Removing and installing
panels
The panels shown need to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time a panel needs to
be removed and installed.
EAU45131
Panel A
To remove the panel
1. Remove the seat. (See
page 3-14.)2. Remove the bolts and collars.
3. Pull the front part of the panel out-
ward, and then remove the panel
by pulling it off.

1. Panel A
2. Panel B
1
2

1. Panel C
1. Panel D
1
1

1. Bolt
1. Bolt
2. Panel A
1
1
2

PERIODIC MAINTENANCE AND ADJUSTMENT
6-8
1
2
3
4
5
6
7
8
9
To install the panel
1. Place the panel in the original po-
sition, and then install the collars
and bolts.
2. Install the seat.
Panel B
To remove the panel1. Remove the seat. (See
page 3-14.)
2. Remove the bolt, and then remove
the panel as shown.To install the panel
1. Place the panel in the original po-
sition, and then install the bolt.
2. Install the seat.
Panel C
To remove the panel
1. Remove the bolts.
2. Lift the bottom of the panel slightly,
and then slide the panel forward.
To install the panelPlace the panel in the original position,
and then install the bolts.

1. Bolt
2. Panel B
12

1. Panel C
2. Bolt
12
2

PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
2
3
4
5
67
8
9 Panel D
To remove the panel
1. Remove the seat. (See
page 3-14.)
2. Remove the bolt and washer, and
then remove the panel as shown.To install the panel
1. Place the panel in the original po-
sition, and then install the washer
and bolt.
2. Install the seat.

EAU19622
Checking the spark plug
The spark plug is an important engine
component, which should be checked
periodically, preferably by a Yamaha
dealer. Since heat and deposits will
cause any spark plug to slowly erode, it
should be removed and checked in ac-
cordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plug can re-
veal the condition of the engine.
The porcelain insulator around the cen-
ter electrode of the spark plug should
be a medium-to-light tan (the ideal color
when the vehicle is ridden normally). If
the spark plug shows a distinctly differ-
ent color, the engine could be operating
improperly. Do not attempt to diagnose
such problems yourself. Instead, have
a Yamaha dealer check the vehicle.
If the spark plug shows signs of elec-
trode erosion and excessive carbon or
other deposits, it should be replaced.
1. Bolt
2. Washer
3. Panel D
3
2
1

Specified spark plug:
NGK/CR9EK

PERIODIC MAINTENANCE AND ADJUSTMENT
6-10
1
2
3
4
5
6
7
8
9
Before installing a spark plug, the spark
plug gap should be measured with a
wire thickness gauge and, if necessary,
adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and then
wipe off any grime from the spark plug
threads.
TIP

If a torque wrench is not available wheninstalling a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible.
EAU45141
Engine oil and oil filter
element
The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter ele-
ment replaced at the intervals specified
in the periodic maintenance and lubri-
cation chart.
To check the engine oil level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Wait a few minutes until the oil set-
tles, and then check the oil level
through the check window located
at the bottom-right side of the
crankcase.
TIP

The engine oil should be between the
minimum and maximum level marks.
1. Spark plug gap
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Tightening torque:
Spark plug:
13 Nm (1.3 m·kgf, 9.4 ft·lbf)
11

PERIODIC MAINTENANCE AND ADJUSTMENT
6-11
2
3
4
5
67
8
9
4. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.
To change the engine oil (with or
without oil filter element replace-
ment)
1. Place the vehicle on a level sur-
face.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Place an oil pan under the engineto collect the used oil.
4. Remove the engine oil filler cap
and drain bolt to drain the oil from
the crankcase.
TIP

Check the washer for damage and re-
place it if necessary.
TIP

Skip steps 5–7 if the oil filter element is
not being replaced.
5. Remove the oil filter element cover
by removing the bolts.
1. Engine oil filler cap
2. Maximum level mark
3. Minimum level mark
4. Engine oil level check window
1
2
3
4

1. Engine oil drain bolt
1

1. Engine oil drain bolt
2. Washer
2
1

PERIODIC MAINTENANCE AND ADJUSTMENT
6-12
1
2
3
4
5
6
7
8
9

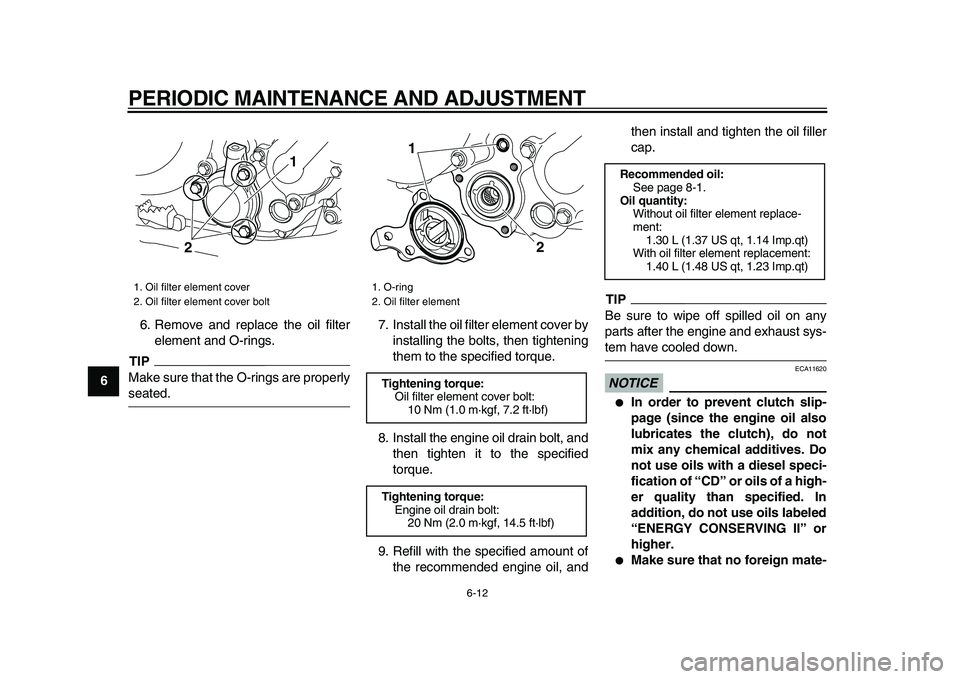

6. Remove and replace the oil filter
element and O-rings.
TIP

Make sure that the O-rings are properly
seated.7. Install the oil filter element cover by
installing the bolts, then tightening
them to the specified torque.
8. Install the engine oil drain bolt, and
then tighten it to the specified
torque.
9. Refill with the specified amount of
the recommended engine oil, andthen install and tighten the oil filler
cap.
TIP

Be sure to wipe off spilled oil on any
parts after the engine and exhaust sys-
tem have cooled down.
NOTICE

ECA11620

In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.

Make sure that no foreign mate-
1. Oil filter element cover
2. Oil filter element cover bolt
1
2

1. O-ring
2. Oil filter element
Tightening torque:
Oil filter element cover bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Tightening torque:
Engine oil drain bolt:
20 Nm (2.0 m·kgf, 14.5 ft·lbf)
1
2

Recommended oil:
See page 8-1.
Oil quantity:
Without oil filter element replace-
ment:
1.30 L (1.37 US qt, 1.14 Imp.qt)
With oil filter element replacement:
1.40 L (1.48 US qt, 1.23 Imp.qt)

PERIODIC MAINTENANCE AND ADJUSTMENT
6-13
2
3
4
5
67
8
9

rial enters the crankcase.
10. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
11. Turn the engine off, and then
check the oil level and correct it if
necessary.
NOTICE

ECA11230
After changing the engine oil, make
sure to check the oil pressure as de-
scribed below.

Remove the bleed bolt.

Start the engine and keep itidling until oil flows out. If no oil
comes out after one minute,
turn the engine off immediately
so it will not seize. If this occurs,
have a Yamaha dealer repair the
vehicle.

After checking the oil pressure,
tighten the bleed bolt to the
specified torque.
EAU20070
Coolant
The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU20253
To check the coolant level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.
TIP


The coolant level must be checked
on a cold engine since the level
varies with engine temperature.

Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in a false reading.
2. Check the coolant level in the cool-
ant reservoir.
TIP

The coolant should be between the
minimum and maximum level marks.
1. “CD” specification
2. “ENERGY CONSERVING II”
1
2

1. Bleed bolt
Tightening torque:
Bleed bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)1

PERIODIC MAINTENANCE AND ADJUSTMENT
6-14
1
2
3
4
5
6
7
8
9
3. If the coolant is at or below the
minimum level mark, remove pan-
el C (See page 6-7.), remove the
reservoir cap, add coolant to the
maximum level mark, and then in-
stall the reservoir cap and the pan-
el.
WARNING! Remove only the
coolant reservoir cap. Never at-
tempt to remove the radiator
cap when the engine is
hot.

[EWA15161]

NOTICE:
If coolant is
not available, use distilled water
or soft tap water instead. Do not
use hard water or salt water
since it is harmful to the engine.
If water has been used insteadof coolant, replace it with cool-
ant as soon as possible, other-
wise the cooling system will not
be protected against frost and
corrosion. If water has been
added to the coolant, have a
Yamaha dealer check the anti-
freeze content of the coolant as
soon as possible, otherwise the
effectiveness of the coolant will
be reduced.
[ECA10472]

EAU45154
To change the coolant
1. Place the vehicle on a level sur-
face and let the engine cool if nec-
essary.
2. Remove panels A and C. (See
page 6-7.)
3. Place a container under the engine
to collect the used coolant.
4. Remove the radiator cap retaining
bolt and radiator cap.
WARNING!
Never attempt to remove the ra-
diator cap when the engine is
hot.
[EWA10381]

5. Remove the coolant reservoir by
removing the bolts.
1. Maximum level mark
2. Minimum level mark
1
2

1. Coolant reservoir cap
Coolant reservoir capacity (up to the
maximum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)1

1. Radiator cap
2. Radiator cap retaining bolt
2 1
