SPECIFICATIONS
EAU2633T
Dimensions:
Overall length:
2115 mm (83.3 in)
Overall width:
810 mm (31.9 in)
Overall height:
1190 mm (46.9 in)
Seat height:
895 mm (35.2 in)
Wheelbase:
1425 mm (56.1 in)
Ground clearance:
265 mm (10.43 in)
Minimum turning radius:
2300 mm (90.6 in)
Weight:
With oil and fuel:
136.0 kg (300 lb)
Engine:
Engine type:
Liquid cooled 4-stroke, DOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
250.0 cm
3

Bore
×
stroke:
77.0
×
53.6 mm (3.03
×
2.11 in)
Compression ratio:
11.80 :1
Starting system:
Electric starter
Lubrication system:
Wet sump

Engine oil:
Type:
SAE 10W-30, SAE 10W-40, SAE 10W-50,
SAE 15W-40, SAE 20W-40 or SAE
20W-50
Recommended engine oil grade:
API service SG type or higher, JASO stan-
dard MA
Engine oil quantity:
Without oil filter element replacement:
1.30 L (1.37 US qt, 1.14 Imp.qt)
With oil filter element replacement:
1.40 L (1.48 US qt, 1.23 Imp.qt)
Cooling system:
Coolant reservoir capacity (up to the maxi-
mum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator capacity (including all routes):
0.90 L (0.95 US qt, 0.79 Imp.qt)
Air filter:
Air filter element:
Wet element
Fuel:
Recommended fuel:
Premium unleaded gasoline only
Fuel tank capacity:
7.6 L (2.01 US gal, 1.67 Imp.gal)
Fuel reserve amount:
2.1 L (0.55 US gal, 0.46 Imp.gal)
Fuel injection:
Throttle body:
Type/quantity:
38EIS/1
Spark plug (s):
Manufacturer/model:
NGK/CR9EK
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Clutch:
Clutch type:
Wet, multiple-disc
Transmission:
Primary reduction system:
Spur gear
Primary reduction ratio:
78/25 (3.120)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
42/13 (3.231)
Transmission type:
Constant mesh 6-speed
Operation:
Left foot operation
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40SAE 10W-50

SPECIFICATIONS
8-2
1
2
3
4
5
6
7
8

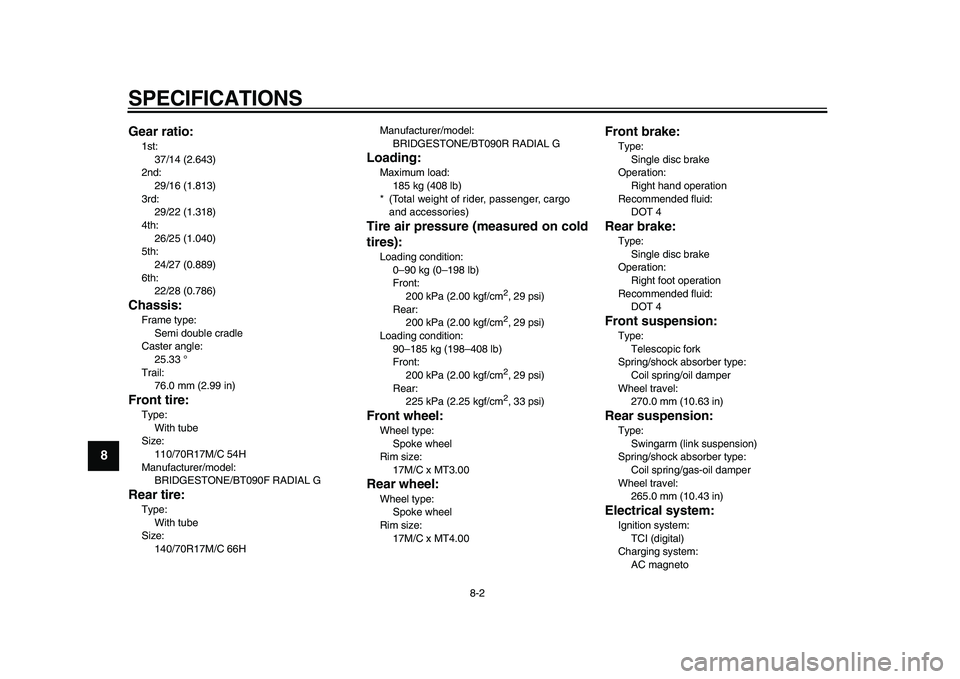

9Gear ratio:

1st:
37/14 (2.643)
2nd:
29/16 (1.813)
3rd:
29/22 (1.318)
4th:
26/25 (1.040)
5th:
24/27 (0.889)
6th:
22/28 (0.786)
Chassis:
Frame type:
Semi double cradle
Caster angle:
25.33 °
Trail:
76.0 mm (2.99 in)
Front tire:
Type:
With tube
Size:
110/70R17M/C 54H
Manufacturer/model:
BRIDGESTONE/BT090F RADIAL G
Rear tire:
Type:
With tube
Size:
140/70R17M/C 66HManufacturer/model:
BRIDGESTONE/BT090R RADIAL G
Loading:
Maximum load:
185 kg (408 lb)
* (Total weight of rider, passenger, cargo
and accessories)
Tire air pressure (measured on cold
tires):
Loading condition:
0–90 kg (0–198 lb)
Front:
200 kPa (2.00 kgf/cm
2

, 29 psi)
Rear:
200 kPa (2.00 kgf/cm
2

, 29 psi)
Loading condition:
90–185 kg (198–408 lb)
Front:
200 kPa (2.00 kgf/cm
2

, 29 psi)
Rear:
225 kPa (2.25 kgf/cm
2
, 33 psi)
Front wheel:
Wheel type:
Spoke wheel
Rim size:
17M/C x MT3.00
Rear wheel:
Wheel type:
Spoke wheel
Rim size:
17M/C x MT4.00
Front brake:
Type:
Single disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4
Rear brake:
Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4
Front suspension:
Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
270.0 mm (10.63 in)
Rear suspension:
Type:
Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
265.0 mm (10.43 in)
Electrical system:
Ignition system:
TCI (digital)
Charging system:
AC magneto

SPECIFICATIONS
8-3
2
3
4
5
6
7
89 Battery:

Model:
YTZ7S
Voltage, capacity:
12 V, 6.0 Ah
Headlight:
Bulb type:
Halogen bulb
Bulb voltage, wattage
×
quantity:
Headlight:
12 V, 60 W/55 W
Tail/brake light:
LED
Front turn signal light:
12 V, 10.0 W
×
2
Rear turn signal light:
12 V, 10.0 W
×
2
Auxiliary light:
12 V, 5.0 W
×
1
License plate light:
12 V, 5.0 W
Meter lighting:
EL (Electroluminescent)
Neutral indicator light:
LED
High beam indicator light:
LED
Turn signal indicator light:
LED
Fuel level warning light:
LED
Coolant temperature warning light:
LEDEngine trouble warning light:
LED

Fuses:
Main fuse:
30.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
7.5 A
Radiator fan fuse:
7.5 A
Fuel injection system fuse:
7.5 A
Backup fuse:
7.5 A

9-1
1
2
3
4
5
6
7
8
9

CONSUMER INFORMATION
EAU26351
Identification numbers
Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.
TIP

The vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
1. Key identification number
1

1. Vehicle identification number
1

CONSUMER INFORMATION
9-2
2
3
4
5
6
7
8
9

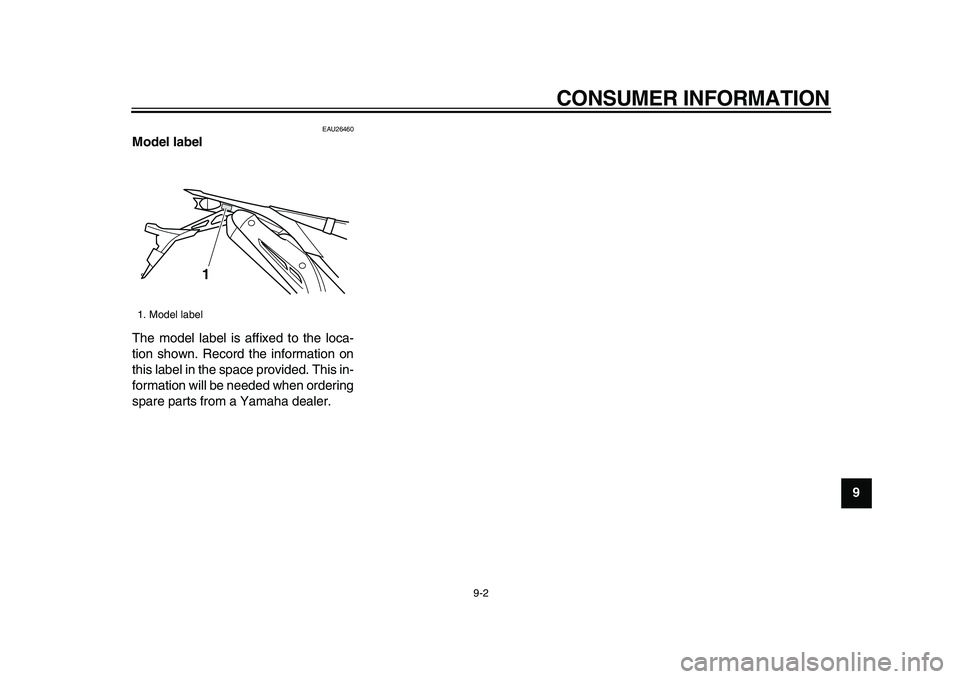

EAU26460
Model label
The model label is affixed to the loca-
tion shown. Record the information on
this label in the space provided. This in-
formation will be needed when ordering
spare parts from a Yamaha dealer.
1. Model label
1
