2009 YAMAHA WOLVERINE 350 Owners Manual

10-3
10
Transmission type:
V-belt automatic
Operation:
Left hand operation
Forward gear:
35/20 (1.750)
Reverse gear:
26/15 (1.733)Chassis:Frame type:
Steel tube frame
Caster angle:
4.0 °
Trail:
19.3 mm (0.76 in)Front tire:Type:
Tubeless
Size:
AT23 x 8-12
Manufacturer/model:
MAXXIS/M937Rear tire:Type:
Tubeless
Size:
AT23 x 10-12
Manufacturer/model:
MAXXIS/M938
Loading:Maximum loading limit:
100.0 kg (220 lb)
(Total weight of rider, cargo, accessories, and tongue)Tire air pressure (measured on cold tires):Recommended:
Front:
25.0 kPa (0.250 kgf/cm², 3.6 psi)
Rear:
25.0 kPa (0.250 kgf/cm², 3.6 psi)
Minimum:
Front:
22.0 kPa (0.220 kgf/cm², 3.2 psi)
Rear:
22.0 kPa (0.220 kgf/cm², 3.2 psi)Front wheel:Wheel type:
Panel wheel
Rim size:
12 x 6.0ATRear wheel:Wheel type:
Panel wheel
Rim size:
12 x 7.5ATFront brake:Type:
Dual disc brake
Operation:
Right hand operation
U3D563E0.book Page 3 Monday, May 12, 2008 11:12 AM

10-4
10
Recommended fluid:
DOT 4Rear brake:Type:
Drum brake
Operation:
Left hand and right foot operationFront suspension:Type:
Double wishbone
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
160 mm (6.3 in)Rear suspension:Type:
Swingarm (monocross)
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
180 mm (7.1 in)Electrical system:Ignition system:
DC. CDI
Charging system:
AC magnetoBattery:Model:
YTX14AH
Voltage, capacity:
12 V, 12.0 Ah
Headlight:Bulb type:
Krypton bulbBulb voltage, wattage × quantity:Headlight:
12 V, 30.0/30.0 W × 2
Tail/brake light:
12 V, 5.0/21.0 W × 1
Neutral indicator light:
12 V, 1.7 W × 1
Reverse indicator light:
12 V, 1.7 W × 1
Oil temperature warning light:
12 V, 1.7 W × 1Fuses:Main fuse:
20.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
15.0 A
U3D563E0.book Page 4 Monday, May 12, 2008 11:12 AM

11-1
11
EBU26000
CONSUMER INFORMATION
EBU26011Identification numbers Record the key identification number, vehicle iden-
tification number and model label information in
the spaces provided below for assistance when or-
dering spare parts from a Yamaha dealer or for ref-
erence in case the ATV is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:
EBU26020Key identification number
The key identification number is stamped into the
key. Record this number in the space provided and
use it for reference when ordering a new key.EBU26040Vehicle identification number
The vehicle identification number is stamped into
the frame.1. Key identification number
U3D563E0.book Page 1 Monday, May 12, 2008 11:12 AM

11-2

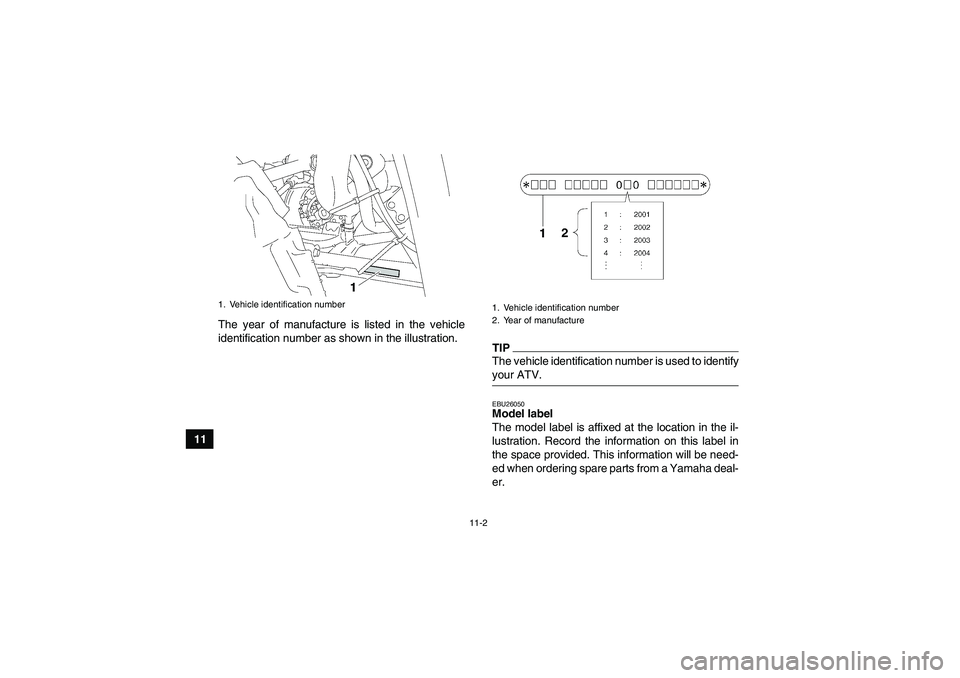

11The year of manufacture is listed in the vehicle
identification number as shown in the illustration.
TIPThe vehicle identification number is used to identifyyour ATV.EBU26050Model label
The model label is affixed at the location in the il-
lustration. Record the information on this label in
the space provided. This information will be need-
ed when ordering spare parts from a Yamaha deal-
er.
1. Vehicle identification number
1. Vehicle identification number
2. Year of manufacture
U3D563E0.book Page 2 Monday, May 12, 2008 11:12 AM

11-3
11
1. Model labelU3D563E0.book Page 3 Monday, May 12, 2008 11:12 AM

INDEX
AAccessories and loading ................................................ 6-6
Air filter element, cleaning ............................................ 8-17
Axle boots .................................................................... 8-32BBattery .......................................................................... 8-34
Brake fluid, changing .................................................... 8-27
Brake fluid level, checking ............................................ 8-26
Brake lever free play, checking the front ...................... 8-28
Brake lever, front ............................................................ 4-5
Brake levers, checking and lubricating ......................... 8-33
Brake light switches ..................................................... 8-32
Brake pads and shoes, checking ................................. 8-25
Brake pedal and brake lever free play (rear) and
brake pedal position, adjusting and checking ............ 8-28
Brake pedal and rear brake lever ................................... 4-5
Brake pedal, checking and lubricating ......................... 8-33
Brakes, front and rear .................................................... 5-3CCables, checking and lubricating ................................. 8-32
Carburetor, adjusting .................................................... 8-23
Chassis fasteners ........................................................... 5-6
Cleaning ......................................................................... 9-1DDrive select lever ............................................................ 4-7
Drive select lever and driving in reverse ........................ 6-3
Drive select lever safety system cable, adjusting ......... 8-25
EEngine break-in .............................................................. 6-4
Engine, cold start ........................................................... 6-1
Engine idling speed ...................................................... 8-23
Engine oil ....................................................................... 5-3
Engine oil and oil filter cartridge ................................... 8-10
Engine, starting a warm ................................................. 6-3
Engine stop switch ......................................................... 4-3FFinal gear oil .......................................................... 5-3, 8-14
Fuel ......................................................................... 4-8, 5-3
Fuel cock ........................................................................ 4-9
Fuel tank cap .................................................................. 4-7
Fuses, replacing ........................................................... 8-37HHandlebar switches ........................................................ 4-3
Headlight beam, adjusting ............................................ 8-40
Headlight bulb, replacing .............................................. 8-38IIdentification numbers .................................................. 11-1
Indicator lights and warning light .................................... 4-2
Instruments, lights and switches .................................... 5-6KKey identification number ............................................. 11-1LLabel locations ............................................................... 2-1
Light switch .................................................................... 4-3
U3D563E0.book Page 1 Monday, May 12, 2008 11:12 AM

MMain switch .................................................................... 4-1
Maintenance and lubrication chart ................................. 8-5
Maintenance chart, emission control system ................. 8-3
Model label ................................................................... 11-2NNeutral indicator light ..................................................... 4-2OOil temperature warning light ......................................... 4-2
Owner’s manual and tool kit ........................................... 8-1PPanel, removing and installing ....................................... 8-8
Parking ........................................................................... 6-5
Parking brake ................................................................. 4-6
Parking on a slope ......................................................... 6-5
Part locations ................................................................. 3-1
Pre-operation check list ................................................. 5-1RReverse indicator light ................................................... 4-2
Riding your ATV ............................................................. 7-1SSafety information .......................................................... 1-1
Seat .............................................................................. 4-11
Shock absorber assemblies, adjusting the front .......... 4-13
Shock absorber assembly, adjusting the rear .............. 4-14
Spark arrester, cleaning ............................................... 8-21
Spark plug, checking ...................................................... 8-8
Specifications ............................................................... 10-1
Speed limiter .................................................................. 4-4
Starter (choke) ............................................................. 4-10
Start switch .................................................................... 4-3
Steering shaft, lubricating ............................................ 8-34Storage .......................................................................... 9-2
Storage compartment .................................................. 4-12
TTail/brake light bulb, replacing ..................................... 8-40
Throttle cable free play, adjusting ................................ 8-24
Throttle lever ........................................................... 4-4, 5-4
Tire pressure, measuring ............................................... 5-5
Tires ............................................................................... 5-4
Tire wear limit ................................................................ 5-6
Troubleshooting ........................................................... 8-43
Troubleshooting chart .................................................. 8-44VValve clearance ........................................................... 8-25
V-belt case drain plug .................................................. 8-22
V-belt cooling duct check hose .................................... 8-22
Vehicle identification number ....................................... 11-1WWheel hub bearings, checking ..................................... 8-34
Wheel, installing ........................................................... 8-42
Wheel, removing .......................................................... 8-41
U3D563E0.book Page 2 Monday, May 12, 2008 11:12 AM
