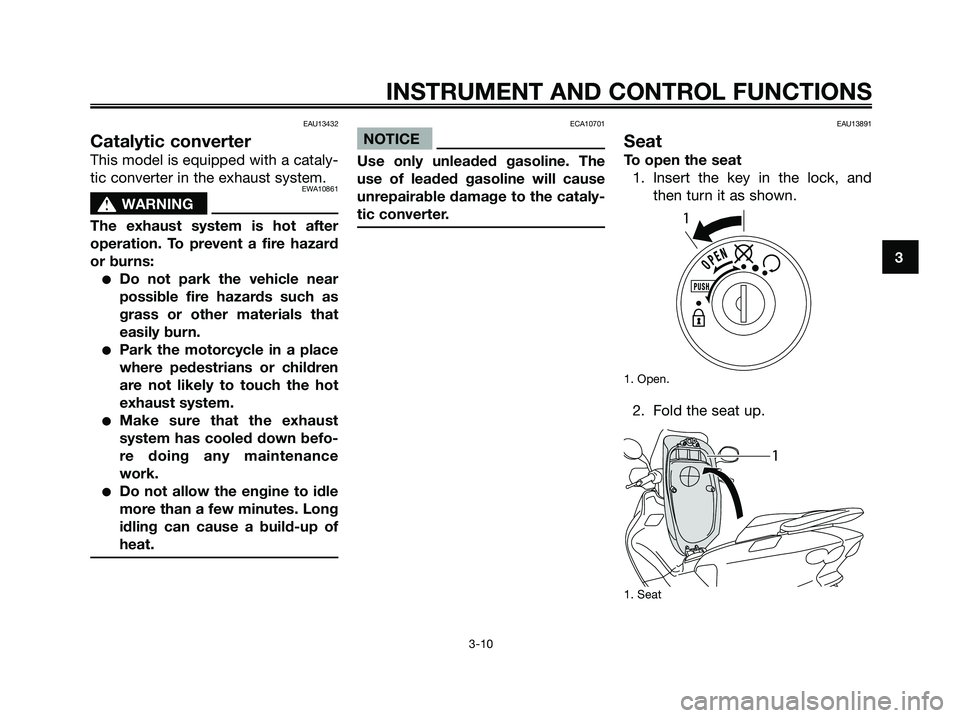

EAU13432
Catalytic converter
This model is equipped with a cataly-
tic converter in the exhaust system.
EWA10861
s s
WARNING
The exhaust system is hot after
operation. To prevent a fire hazard
or burns:
●Do not park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.
●Park the motorcycle in a place
where pedestrians or children
are not likely to touch the hot
exhaust system.
●Make sure that the exhaust
system has cooled down befo-
re doing any maintenance
work.
●Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up of
heat.
ECA10701
NOTICE
Use only unleaded gasoline. The
use of leaded gasoline will cause
unrepairable damage to the cataly-
tic converter.
EAU13891
Seat
To open the seat
1. Insert the key in the lock, and
then turn it as shown.
1. Open.
2. Fold the seat up.
1. Seat
1
1
INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
5D8-F8199-E1.QXD 10/7/08 07:39 Página 25
