Safety information
18

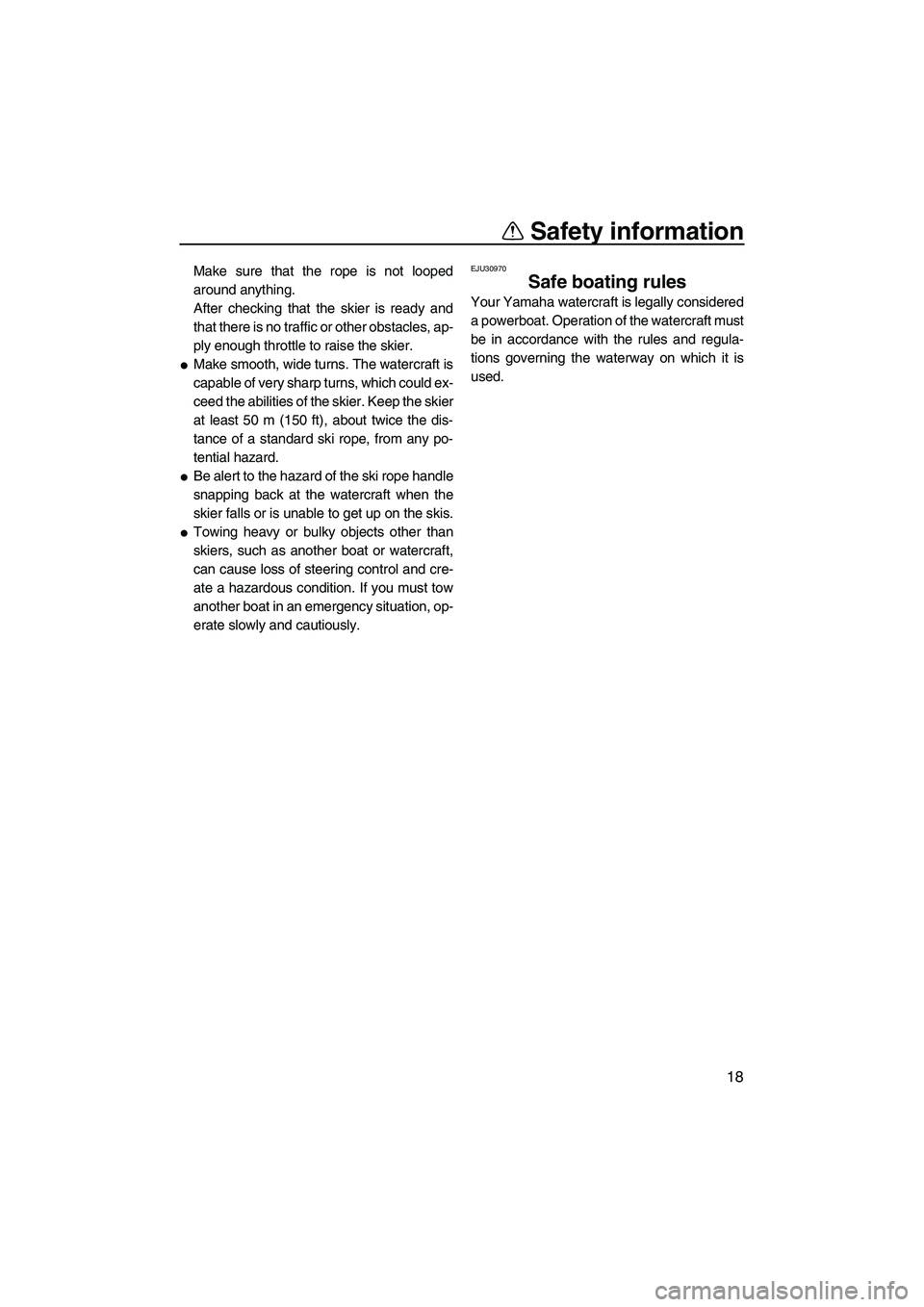

Make sure that the rope is not looped
around anything.
After checking that the skier is ready and
that there is no traffic or other obstacles, ap-
ply enough throttle to raise the skier.

Make smooth, wide turns. The watercraft is
capable of very sharp turns, which could ex-
ceed the abilities of the skier. Keep the skier
at least 50 m (150 ft), about twice the dis-
tance of a standard ski rope, from any po-
tential hazard.

Be alert to the hazard of the ski rope handle
snapping back at the watercraft when the
skier falls or is unable to get up on the skis.

Towing heavy or bulky objects other than
skiers, such as another boat or watercraft,
can cause loss of steering control and cre-
ate a hazardous condition. If you must tow
another boat in an emergency situation, op-
erate slowly and cautiously.
EJU30970
Safe boating rules
Your Yamaha watercraft is legally considered
a powerboat. Operation of the watercraft must
be in accordance with the rules and regula-
tions governing the waterway on which it is
used.
UF2C70E0.book Page 18 Monday, November 3, 2008 10:16 AM

Safety information
19
EJU30991

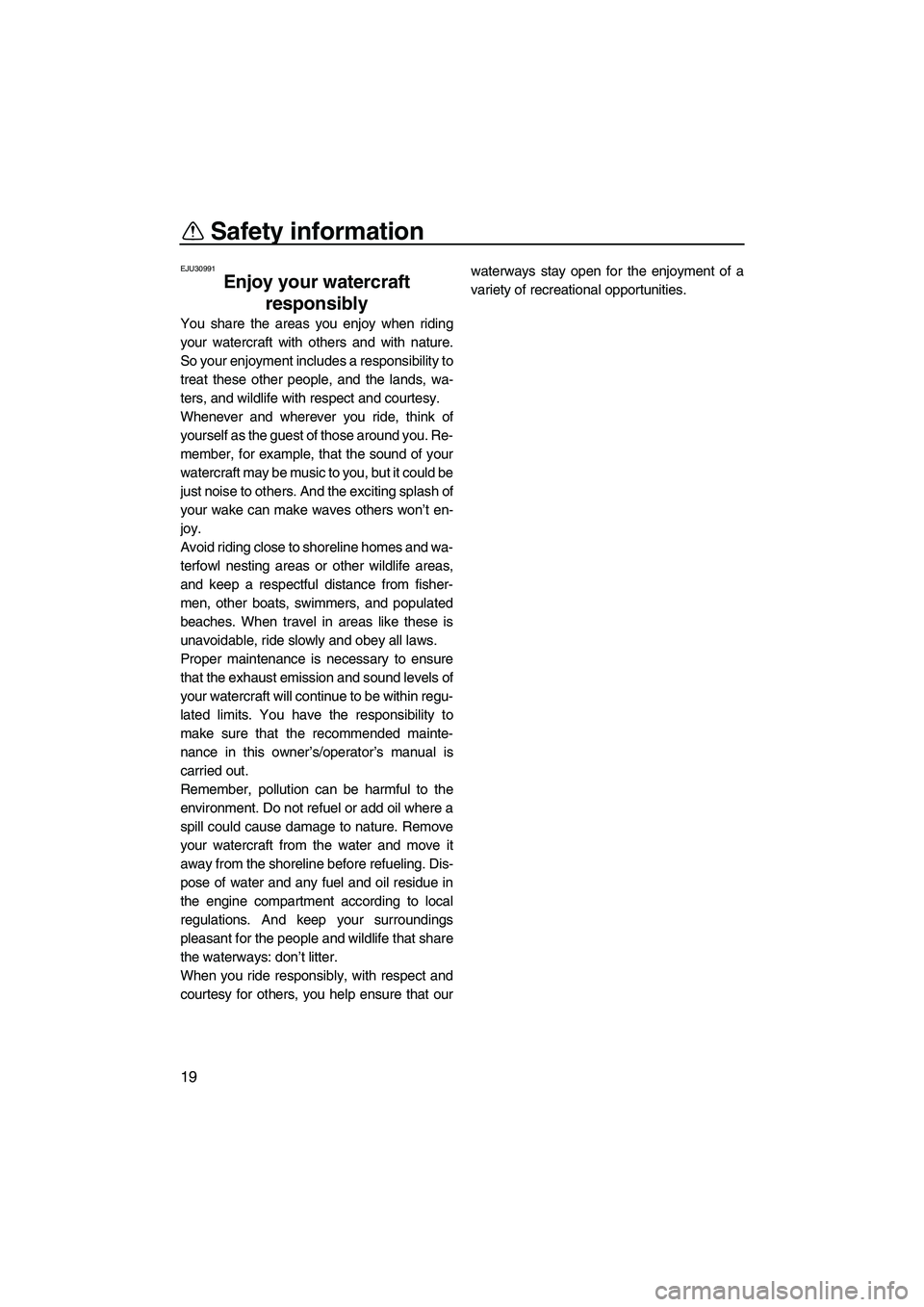

Enjoy your watercraft
responsibly
You share the areas you enjoy when riding
your watercraft with others and with nature.
So your enjoyment includes a responsibility to
treat these other people, and the lands, wa-
ters, and wildlife with respect and courtesy.
Whenever and wherever you ride, think of
yourself as the guest of those around you. Re-
member, for example, that the sound of your
watercraft may be music to you, but it could be
just noise to others. And the exciting splash of
your wake can make waves others won’t en-
joy.
Avoid riding close to shoreline homes and wa-
terfowl nesting areas or other wildlife areas,
and keep a respectful distance from fisher-
men, other boats, swimmers, and populated
beaches. When travel in areas like these is
unavoidable, ride slowly and obey all laws.
Proper maintenance is necessary to ensure
that the exhaust emission and sound levels of
your watercraft will continue to be within regu-
lated limits. You have the responsibility to
make sure that the recommended mainte-
nance in this owner’s/operator’s manual is
carried out.
Remember, pollution can be harmful to the
environment. Do not refuel or add oil where a
spill could cause damage to nature. Remove
your watercraft from the water and move it
away from the shoreline before refueling. Dis-
pose of water and any fuel and oil residue in
the engine compartment according to local
regulations. And keep your surroundings
pleasant for the people and wildlife that share
the waterways: don’t litter.
When you ride responsibly, with respect and
courtesy for others, you help ensure that ourwaterways stay open for the enjoyment of a
variety of recreational opportunities.
UF2C70E0.book Page 19 Monday, November 3, 2008 10:16 AM

Features and functions
20
EJU31010

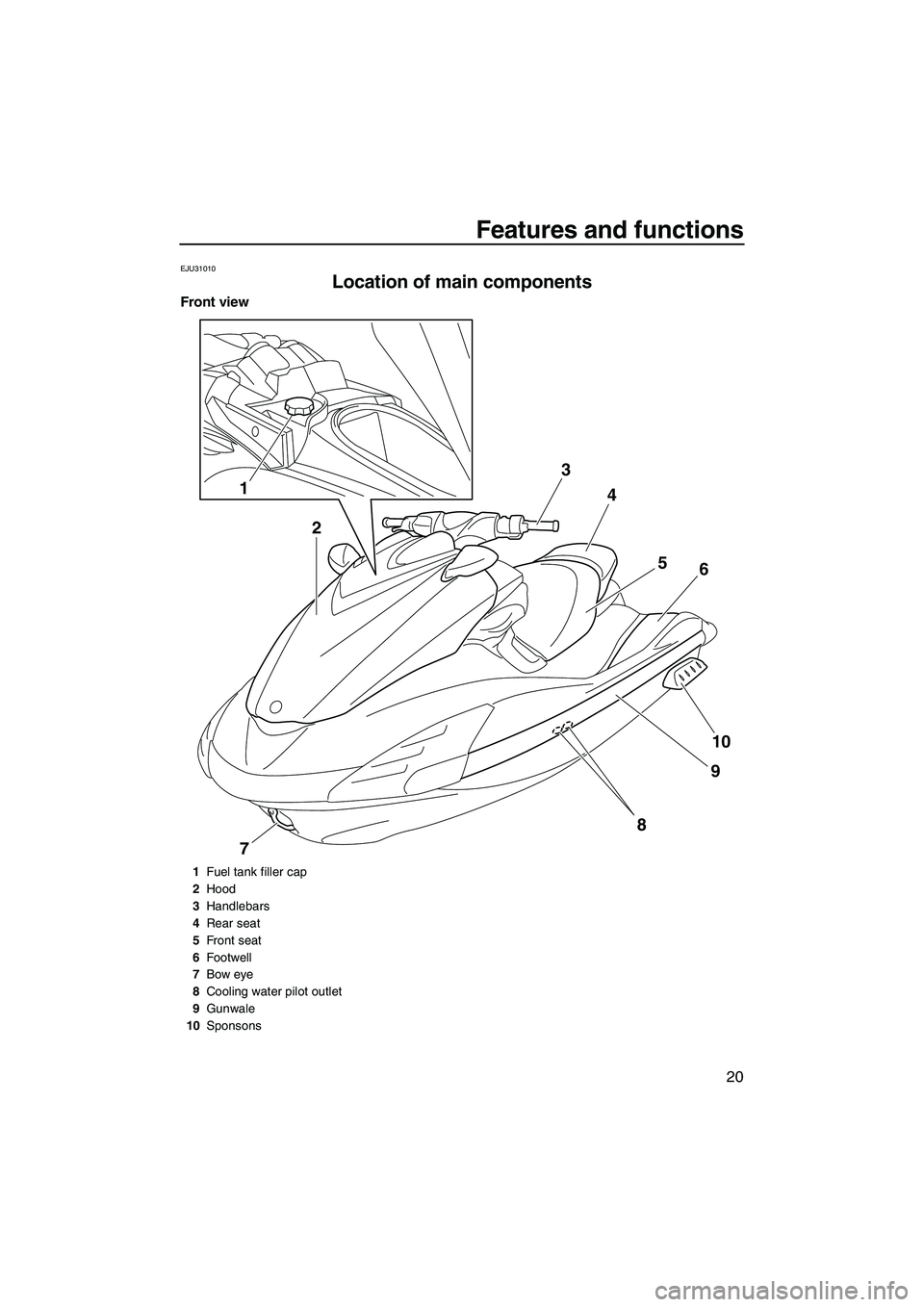

Location of main components
Front view
1
23
4
5
6
10
9
8
7
1Fuel tank filler cap
2Hood
3Handlebars
4Rear seat
5Front seat
6Footwell
7Bow eye
8Cooling water pilot outlet
9Gunwale
10Sponsons
UF2C70E0.book Page 20 Monday, November 3, 2008 10:16 AM

Features and functions
21
Rear view
24
11
10
9
8 7 1
3
5
13
12
6
1Boarding platform
2Electric bilge pilot outlet
3Reboarding grip
4Cleat
5Handgrip
6Reboarding step
7Jet thrust nozzle
8Reverse gate
9Ride plate
10Stern drain plugs
11Stern eyes
12Speed sensor13Intake grate
UF2C70E0.book Page 21 Monday, November 3, 2008 10:16 AM

Features and functions
22
Control system
1234
6
7 5
10
11121314 9 8
1Quick Shift Trim System (QSTS) selector
2QSTS selector lock lever
3Start switch
4Engine shut-off switch
5Clip
6Engine stop switch
7Engine shut-off cord (lanyard)
8Dual analog meter unit
9Rearview mirrors
10Glove compartment
11Remote control transmitter
12Beverage holder
13Shift lever
14Throttle lever
UF2C70E0.book Page 22 Monday, November 3, 2008 10:16 AM

Features and functions
23
Engine compartment
123
46 5
910
8
7
1Engine cover
2Air filter case
3Water separator
4Fuel tank
5Battery
6Flushing hose connector
7Electrical box
8Spark plug cap
9Engine oil filler cap
10Dipstick
UF2C70E0.book Page 23 Monday, November 3, 2008 10:16 AM

Features and functions
24
EJU31022
Operation of controls and other
functions
EJU31041Seats
To remove the rear seat:
Pull the rear seat latch up, and then pull the
seat off.
To install the rear seat:
Insert the projections on the front of the seat
into the stays on the deck, and then push the
rear of the seat down to lock it in place. Makesure that the seat is securely installed before
operating the watercraft.
To remove the front seat:
(1) Remove the rear seat.
(2) Pull the front seat latch up, and then pull
the seat off.
To install the front seat:
(1) Insert the projections on the front of the
seat into the stays on the deck, and then
1Seat latch
1
1Seat latch
1
UF2C70E0.book Page 24 Monday, November 3, 2008 10:16 AM

Features and functions
25
push the rear of the seat down to lock it in
place.
(2) Install the rear seat. Make sure that the
seats are securely installed before oper-
ating the watercraft.
EJU31063Hood
To open the hood, push the hood latch, and
then lift up the hood.To close the hood, push down on the rear of
the hood until it latches securely. Make sure
that the hood is securely closed before oper-
ating the watercraft.
EJU36691Fuel tank filler cap
The fuel tank filler cap is located under the
hood.
To remove the fuel tank filler cap, open the
hood, and then turn the cap counterclockwise.
(See page 25 for hood opening and closing
procedures.)
To install the fuel tank filler cap, turn it clock-
wise until it stops. Make sure that the fuel tank
filler cap and the hood are securely closed be-
fore operating the watercraft.
EJU36621Remote control transmitter
The Yamaha Security System and low-RPM
mode settings are selected using the remote
control transmitter. (See “Yamaha Security1Hood latch
1
1Fuel tank filler cap
1
