2009 YAMAHA FZS Owners Manual

Maintenance and care
74
EJU34212Checking the fuel system
WARNING
EWJ00381
Leaking fuel can result in fire or explosion.

Check for fuel leakage regularly.

If any fuel leakage is found, the fuel sys-
tem must be repaired by a qualified me-
chanic. Improper repairs can make the
watercraft unsafe to operate.
Check the fuel system for leaks, cracks, and
malfunctions. If any problem is found, consult
a Yamaha dealer.
Check:

Fuel tank filler cap and seal for damage

Fuel in fuel tank for water and dirt

Fuel tank for damage, cracks, and leakage

Fuel hoses and joints for damage, cracks,
and leakage

Air bleeding passages for leakageEJU34230Fuel tank
Check the fuel tank for leakage and for water
in the tank. If water is found in the fuel system,
or if the fuel tank needs to be cleaned, have a
Yamaha dealer service the watercraft.
EJU36951Engine oil and oil filter
WARNING
EWJ00340
Engine oil is extremely hot immediately af-
ter the engine is turned off. Coming in con-
tact with or getting any engine oil on your
clothes could result in burns.
NOTICE
ECJ00991
Do not run the engine with too much or not
enough oil in the engine, otherwise the en-
gine could be damaged.
It is recommended to have a Yamaha dealer
change the engine oil. However, if you choose
to change the oil on your own, consult a
Yamaha dealer.
EJU34311Air filter element
Have a Yamaha dealer check the air filter ele-
ment at the intervals specified in the periodic
maintenance chart.
EJU34321Checking the jet thrust nozzle angle
Check the handlebars and jet thrust nozzle for
smooth operation.
Turn the handlebars as far as possible to the
right and left and check that the difference of
distances A and B between the jet thrust noz-
zle and the nozzle is within specification.1Fuel tank
1
Recommended engine oil:
SAE 10W-30, 10W-40, 20W-40, 20W-
50
Oil grade:
API SE,SF,SG,SH,SJ,SL
Oil quantity:
With oil filter replacement:
3.1 L (3.28 US qt, 2.73 Imp.qt)
Without oil filter replacement:
3.0 L (3.17 US qt, 2.64 Imp.qt)
Total amount:
4.3 L (4.55 US qt, 3.78 Imp.qt)
UF2C70E0.book Page 74 Monday, November 3, 2008 10:16 AM

Maintenance and care
75
If the steering is stiff or misadjusted, have a
Yamaha dealer service it.
EJU36590Checking the shift cable
Place the shift lever in the reverse position.
Make sure that the reverse gate makes con-
tact with the stopper.If the reverse gate does not make contact with
the stopper, have a Yamaha dealer service it.
EJU37480Checking the throttle lever
Operate the throttle lever several times to
make sure that it moves back to the fully
closed (idle) position when released. Also,
make sure that the throttle lever free play is
within the specified range.
(1) Adjust the handlebars to the lowest posi-
tion and face them straight ahead. (See
“Telescopic steering system” on page 29
for more information.)
(2) Squeeze and release the throttle lever.
(3) Check the throttle lever free play with the
throttle lever in the fully closed (idle) posi-
tion. Difference of A and B:
Maximum 5 mm (0.20 in)
1Stopper
A
A
B
B
1Throttle lever free play
Throttle lever free play:
2.0–5.0 mm (0.08–0.20 in)
1
UF2C70E0.book Page 75 Monday, November 3, 2008 10:16 AM

Maintenance and care
76
If the throttle lever does not move smoothly or
if the throttle lever free play is not within the
specified range, have a Yamaha dealer ser-
vice the watercraft.
EJU37041Cleaning and adjusting the spark
plugs
WARNING
EWJ00350
Be careful not to damage the insulator
when removing or installing a spark plug.
A damaged insulator could allow sparks to
escape, which could result in a fire or ex-
plosion.
The spark plug is an important engine compo-
nent and is easy to inspect. The condition of
the spark plug can indicate something about
the condition of the engine. For example, if
one spark plug has a distinctly different color,
the engine could require servicing. Do not at-
tempt to diagnose any problems yourself.
Have a Yamaha dealer service the watercraft.
Remove and inspect the spark plugs periodi-
cally; heat and deposits will cause the spark
plugs to slowly break down and erode. If elec-
trode erosion becomes excessive, or if carbon
and other deposits are excessive, replace the
spark plug with the specified plug.
To remove a spark plug:
(1) Remove the seats. (See page 24 for seat
removal and installation procedures.)(2) Remove the engine cover screws, and
then remove the engine cover.
(3) Remove the spark plug cap bolts, and
then remove the spark plug cap.
NOTICE: Do not use any tools to re-
move or install the spark plug cap,
otherwise the ignition coil coupler
could be damaged. The spark plug
cap may be difficult to remove be-
cause the rubber seal on the end of
the cap fits tightly. To remove the
spark plug cap, simply twist it back
and forth while pulling it up; to install
it, twist it back and forth while pushing
it down.
[ECJ00211]
Specified spark plug:
LFR6A
1Engine cover screw
2Engine cover
1 2
UF2C70E0.book Page 76 Monday, November 3, 2008 10:16 AM

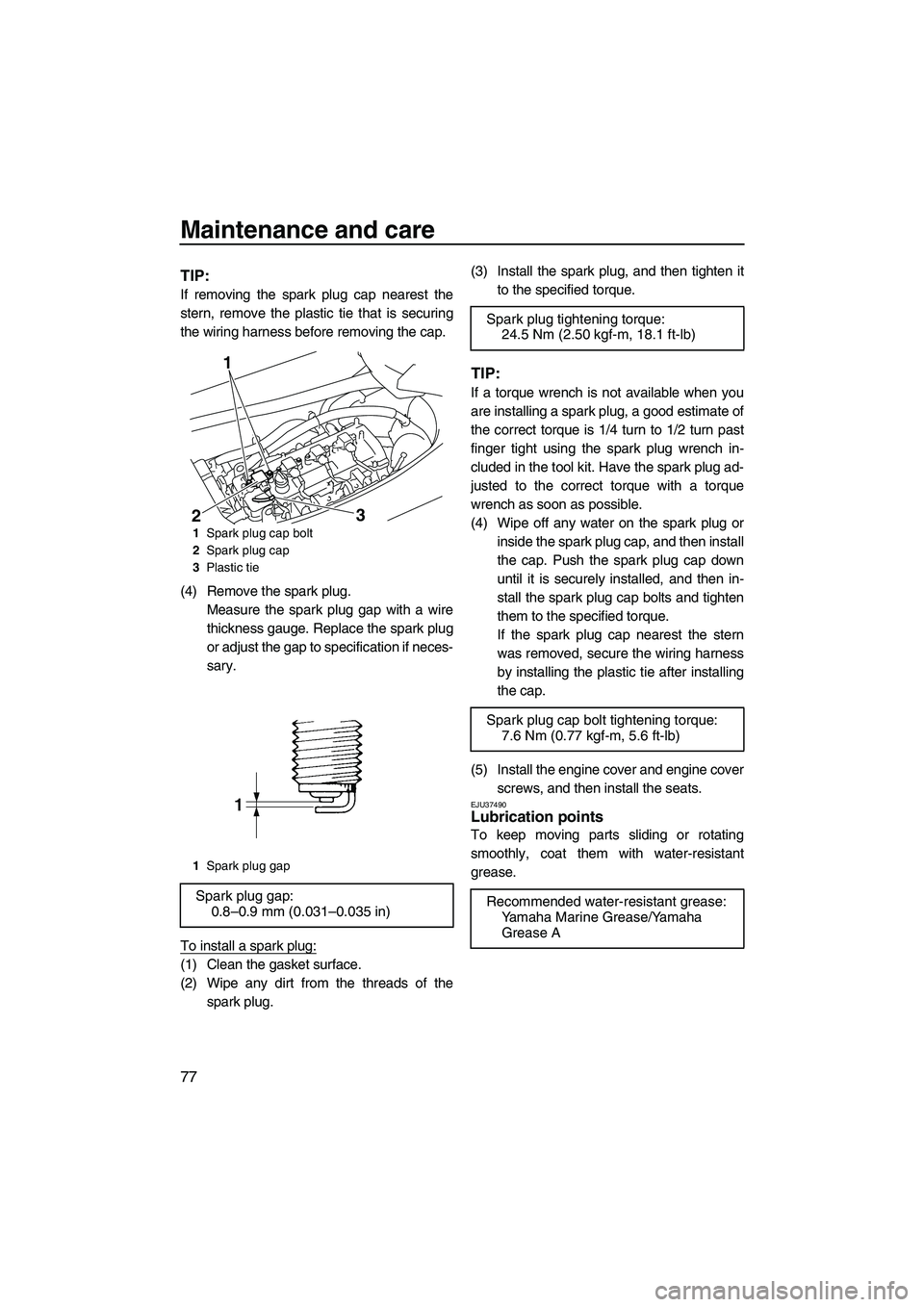

Maintenance and care
77
TIP:
If removing the spark plug cap nearest the
stern, remove the plastic tie that is securing
the wiring harness before removing the cap.
(4) Remove the spark plug.
Measure the spark plug gap with a wire
thickness gauge. Replace the spark plug
or adjust the gap to specification if neces-
sary.
To install a spark plug:
(1) Clean the gasket surface.
(2) Wipe any dirt from the threads of the
spark plug.(3) Install the spark plug, and then tighten it
to the specified torque.
TIP:
If a torque wrench is not available when you
are installing a spark plug, a good estimate of
the correct torque is 1/4 turn to 1/2 turn past
finger tight using the spark plug wrench in-
cluded in the tool kit. Have the spark plug ad-
justed to the correct torque with a torque
wrench as soon as possible.
(4) Wipe off any water on the spark plug or
inside the spark plug cap, and then install
the cap. Push the spark plug cap down
until it is securely installed, and then in-
stall the spark plug cap bolts and tighten
them to the specified torque.
If the spark plug cap nearest the stern
was removed, secure the wiring harness
by installing the plastic tie after installing
the cap.
(5) Install the engine cover and engine cover
screws, and then install the seats.
EJU37490Lubrication points
To keep moving parts sliding or rotating
smoothly, coat them with water-resistant
grease.
1Spark plug cap bolt
2Spark plug cap
3Plastic tie
1Spark plug gap
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)
1
2
3
Spark plug tightening torque:
24.5 Nm (2.50 kgf-m, 18.1 ft-lb)
Spark plug cap bolt tightening torque:
7.6 Nm (0.77 kgf-m, 5.6 ft-lb)
Recommended water-resistant grease:
Yamaha Marine Grease/Yamaha
Grease A
UF2C70E0.book Page 77 Monday, November 3, 2008 10:16 AM

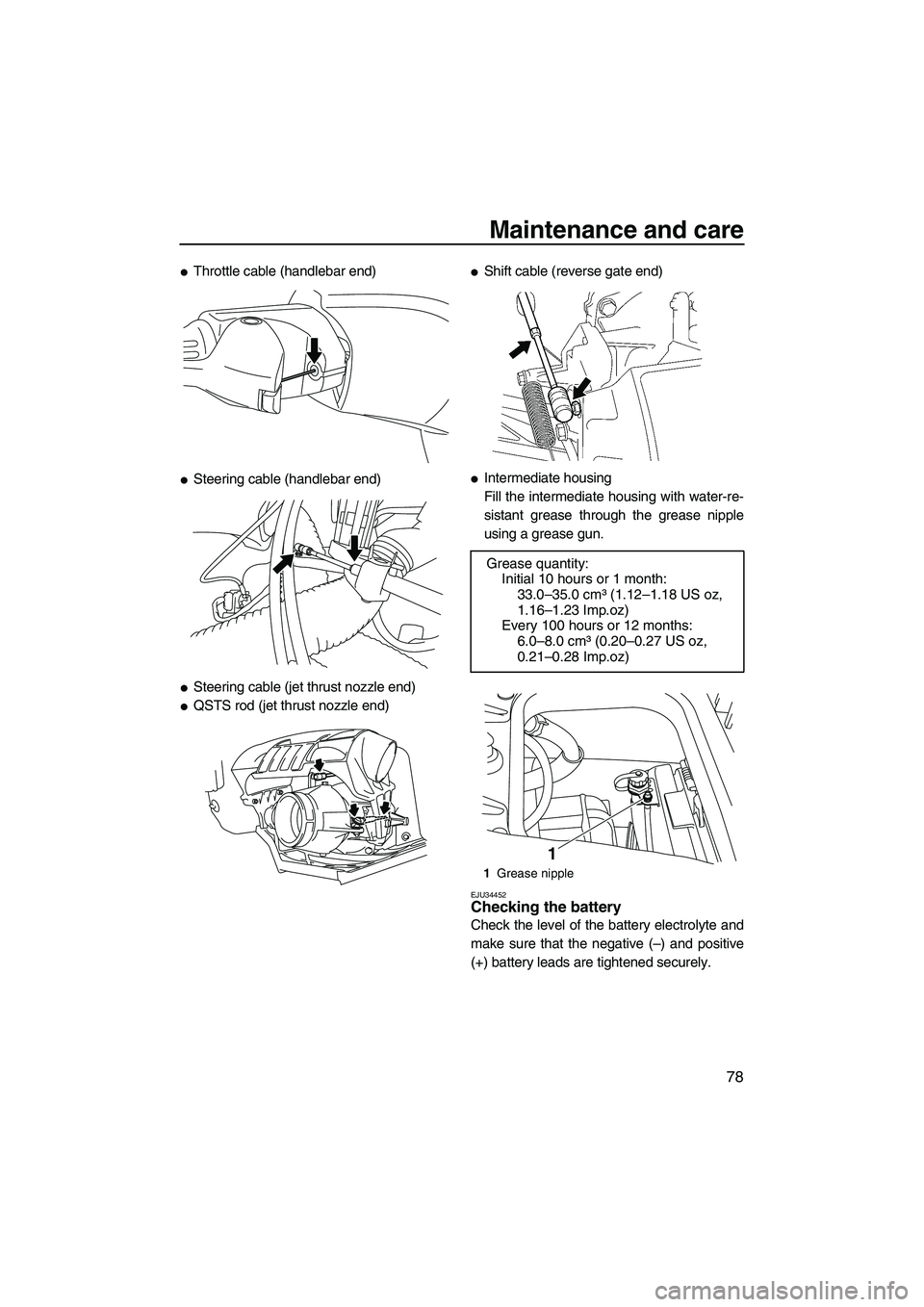

Maintenance and care
78

Throttle cable (handlebar end)

Steering cable (handlebar end)

Steering cable (jet thrust nozzle end)

QSTS rod (jet thrust nozzle end)

Shift cable (reverse gate end)

Intermediate housing
Fill the intermediate housing with water-re-
sistant grease through the grease nipple
using a grease gun.
EJU34452Checking the battery
Check the level of the battery electrolyte and
make sure that the negative (–) and positive
(+) battery leads are tightened securely.
Grease quantity:
Initial 10 hours or 1 month:
33.0–35.0 cm³ (1.12–1.18 US oz,
1.16–1.23 Imp.oz)
Every 100 hours or 12 months:
6.0–8.0 cm³ (0.20–0.27 US oz,
0.21–0.28 Imp.oz)
1Grease nipple
1
UF2C70E0.book Page 78 Monday, November 3, 2008 10:16 AM

Maintenance and care
79
WARNING
EWJ00791
Battery electrolyte is poisonous and dan-
gerous, causing severe burns, etc. Elec-
trolyte contains sulfuric acid. Avoid
contact with skin, eyes, or clothing.
Antidotes
External: Flush with water.
Internal: Drink large quantities of water or
milk. Follow with milk of magnesia, beaten
egg, or vegetable oil. Call a physician im-
mediately.
Eyes: Flush with water for 15 minutes and
get prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flames, cigarettes, etc., well away.
If using or charging the battery in an en-
closed space, make sure that it is well ven-
tilated. Always shield your eyes when
working near batteries.
Keep out of the reach of children.
To remove the battery:
Disconnect the negative (–) battery lead first,
then the positive (+) battery lead and breather
hose, and then remove the battery from the
watercraft.To replenish the battery:
(1) Make sure that the electrolyte level is be-
tween the maximum and minimum level
marks.
(2) If the electrolyte level is low, add distilled
water to raise it to the specified level.
NOTICE: Use only distilled water for
replenishing the battery, otherwise
battery life could be shortened.
[ECJ00241]
To recharge the battery:
NOTICE
ECJ00250
Do not attempt to charge a battery hastily.
Battery life could be shortened.
It is recommended to have a Yamaha dealer
charge the battery. If you charge the battery
yourself, be sure to read and follow the in-
structions provided with the battery tester and
charger you use.
To install the battery:
(1) Place the battery in the battery compart-
ment. Connect the red lead to the positive
(+) battery terminal, and then connect the
black lead to the negative (–) battery ter-
minal. NOTICE: Reversal of the battery
leads will damage the electrical parts.
[ECJ00261]
(2) Connect the breather hose to the battery.
1Maximum level mark
2Minimum level mark
UF2C70E0.book Page 79 Monday, November 3, 2008 10:16 AM

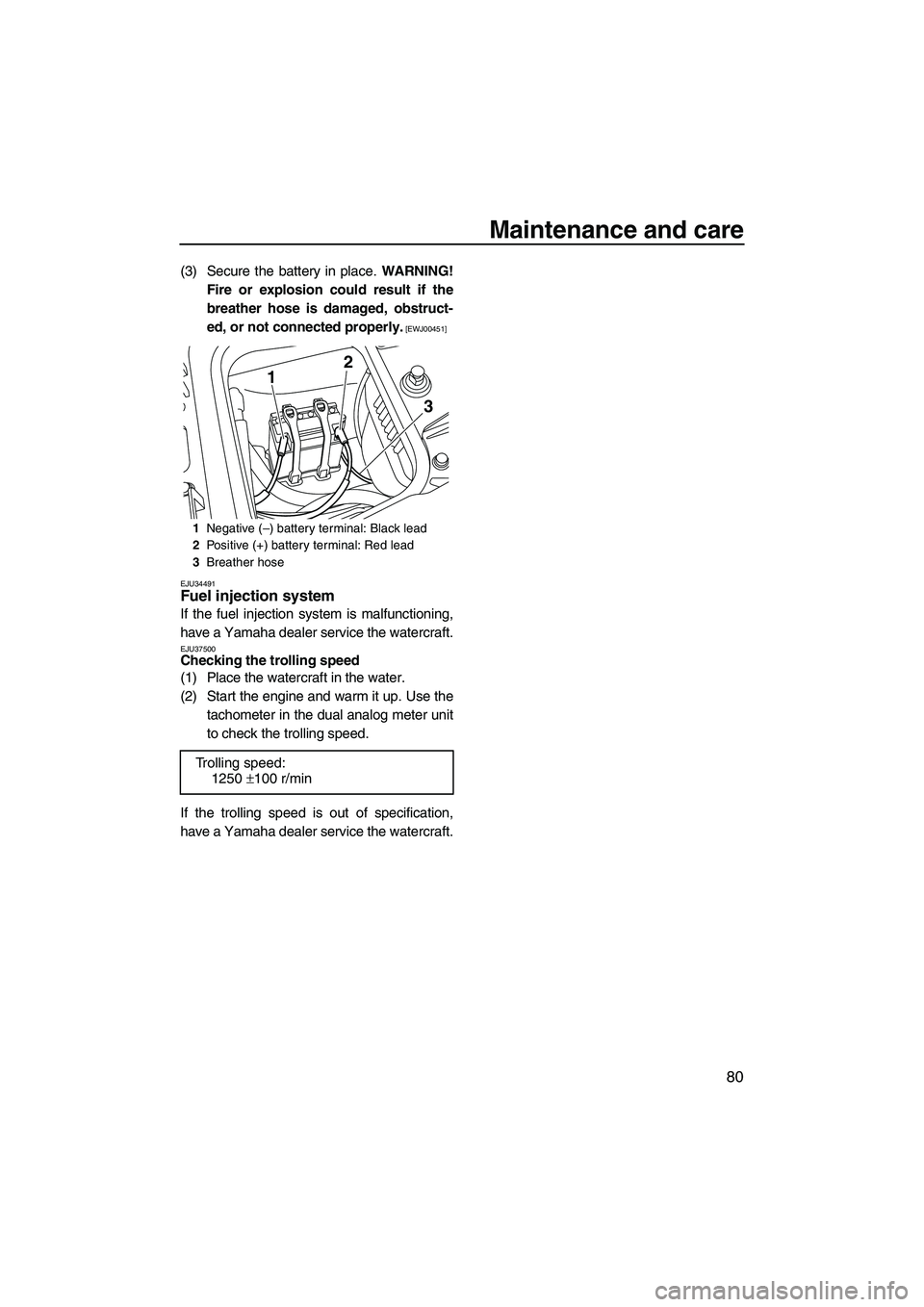

Maintenance and care
80
(3) Secure the battery in place. WARNING!
Fire or explosion could result if the
breather hose is damaged, obstruct-
ed, or not connected properly.
[EWJ00451]
EJU34491
Fuel injection system
If the fuel injection system is malfunctioning,
have a Yamaha dealer service the watercraft.
EJU37500Checking the trolling speed
(1) Place the watercraft in the water.
(2) Start the engine and warm it up. Use the
tachometer in the dual analog meter unit
to check the trolling speed.
If the trolling speed is out of specification,
have a Yamaha dealer service the watercraft.
1Negative (–) battery terminal: Black lead
2Positive (+) battery terminal: Red lead
3Breather hose
Trolling speed:
1250 ±100 r/min
12
3
UF2C70E0.book Page 80 Monday, November 3, 2008 10:16 AM

Specifications
81
EJU34542
Specifications
Watercraft capacity:
Maximum people on board:
3 person
Maximum load capacity:
240 kg (530 lb)
Dimensions:
Length:
3370 mm (132.7 in)
Width:
1230 mm (48.4 in)
Height:
1160 mm (45.7 in)
Dry weight:
369 kg (813 lb)
Performance:
Maximum output (according to ISO 8665/SAE
J1228):
154.50 kW@7500 r/min
Maximum fuel consumption:
67.3 L/h (17.8 US gal/h, 14.8 Imp.gal/h)
Cruising range at full throttle:
1.04 hour
Trolling speed:
1250 ±100 r/min
Engine:
Engine type:
Liquid cooled 4-stroke, DOHC
Number of cylinders:
4
Engine displacement:
1812 cm³
Bore & stroke:
86.0 × 78.0 mm (3.39 × 3.07 in)
Compression ratio:
8.6 : 1
Valve clearance-intake (cold):
0.14–0.23 mm (0.0055–0.0091 in)
Valve clearance-exhaust (cold):
0.28–0.37 mm (0.0110–0.0146 in)
Lubrication system:
Wet sump
Cooling system:
Water
Starting system:
Electric
Ignition system:
T.C.I.Spark plug:
LFR6A
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)
Battery capacity:
12 V, 19.0 Ah
Charging system:
Flywheel magneto
Drive unit:
Propulsion system:
Jet pump
Jet pump type:
Axial flow, single stage
Impeller rotation:
Counterclockwise
Jet thrust nozzle angle:
24.0+24.0 °
Jet thrust nozzle trim angle:
-10, -5, 0, 5, 10 °
Fuel and oil:
Recommended fuel:
Regular unleaded gasoline
Minimum octane rating (PON):
86
Minimum octane rating (RON):
90
Recommended engine oil type SAE:
SAE 10W-30, 10W-40, 20W-40, 20W-50
Recommended engine oil grade API:
API SE,SF,SG,SH,SJ,SL
Fuel tank total capacity:
70 L (18.5 US gal, 15.4 Imp.gal)
Engine oil quantity with oil filter replacement:
3.1 L (3.28 US qt, 2.73 Imp.qt)
Engine oil quantity without oil filter replacement:
3.0 L (3.17 US qt, 2.64 Imp.qt)
Engine oil total quantity:
4.3 L (4.55 US qt, 3.78 Imp.qt)
UF2C70E0.book Page 81 Monday, November 3, 2008 10:16 AM
