2009 YAMAHA FZ1 S Owners Manual

PERIODIC MAINTENANCE AND ADJUSTMENT
6-32
6 2. Unhook the battery band, and then
remove the battery cover.
3. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do notuse a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15131]
4. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.5. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
6. Install the battery cover, and then
hook the battery band onto the
holder.
1. Battery band
2. Battery cover
1. Fuel injection system fuse
2. Fuel injection system spare fuse
Specified fuses:
Main fuse:
50.0 A
Headlight fuse:
25.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
15.0 A
Fuel injection system fuse:
15.0 A
Taillight fuse:
10.0 A
Radiator fan fuse:
10.0 A × 2
Backup fuse:
10.0 A
ABS control unit fuse:
FZ1-SA 10.0 A
ABS motor fuse:
FZ1-SA 30.0 A
U3C3E3E0.book Page 32 Thursday, July 10, 2008 2:03 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-33
6
EAU23932
Replacing a headlight bulb This model is equipped with quartz bulb
headlights. If a headlight bulb burns
out, replace it as follows.NOTICE
ECA10650
Take care not to damage the follow-
ing parts:

Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.


Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of awattage higher than specified.1. Disconnect the headlight coupler,
and then remove the bulb cover.
2. Unhook the headlight bulb holder,
and then remove the burnt-out
bulb.3. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.
4. Install the headlight bulb cover,
and then connect the coupler.
5. Have a Yamaha dealer adjust the
headlight beam if necessary.
1. Do not touch the glass part of the bulb.
1. Headlight coupler
2. Headlight bulb cover
1. Headlight bulb holder
U3C3E3E0.book Page 33 Thursday, July 10, 2008 2:03 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-34
6
EAU24114
Replacing the tail/brake light
bulb 1. Remove the passenger seat. (See
page 3-19.)
2. Remove the socket (together with
the bulb) by turning it counter-
clockwise.
3. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.
4. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
5. Install the socket (together with the
bulb) by turning it clockwise.
6. Install the passenger seat.
EAU24204
Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw.
2. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw. NOTICE: Do not over-
tighten the screw, otherwise the
lens may break.
[ECA11191]EAU24312
Replacing the license plate
light bulb 1. Remove the license plate light unit
by removing the screws.
2. Remove the socket (together with
the bulb) by pulling it out.
1. Tail/brake light bulb socket
1. Screw
1. License plate light unit
2. Screw
1. License plate light bulb
U3C3E3E0.book Page 34 Thursday, July 10, 2008 2:03 PM

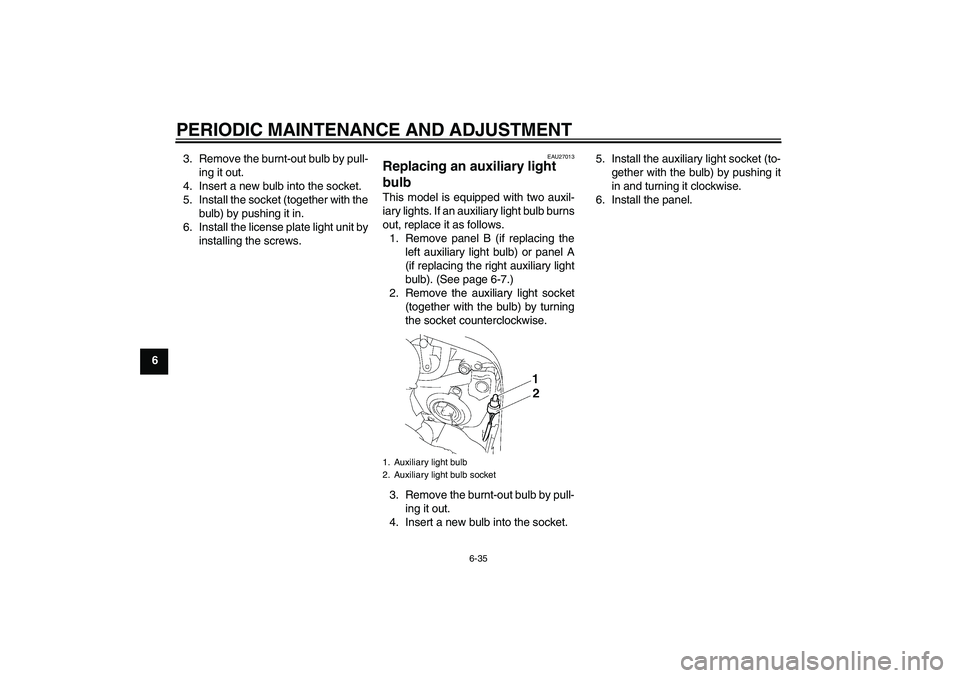

PERIODIC MAINTENANCE AND ADJUSTMENT
6-35
63. Remove the burnt-out bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with the
bulb) by pushing it in.
6. Install the license plate light unit by
installing the screws.
EAU27013
Replacing an auxiliary light
bulb This model is equipped with two auxil-
iary lights. If an auxiliary light bulb burns
out, replace it as follows.
1. Remove panel B (if replacing the
left auxiliary light bulb) or panel A
(if replacing the right auxiliary light
bulb). (See page 6-7.)
2. Remove the auxiliary light socket
(together with the bulb) by turning
the socket counterclockwise.
3. Remove the burnt-out bulb by pull-
ing it out.
4. Insert a new bulb into the socket.5. Install the auxiliary light socket (to-
gether with the bulb) by pushing it
in and turning it clockwise.
6. Install the panel.1. Auxiliary light bulb
2. Auxiliary light bulb socket
U3C3E3E0.book Page 35 Thursday, July 10, 2008 2:03 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-36
6
EAU44790
Front wheel (FZ1-S)
WARNING
EWA14840
For the ABS model, have a Yamahadealer remove and install the wheel.
EAU40061
To remove the front wheel
WARNING
EWA10821
To avoid injury, securely support the
vehicle so there is no danger of itfalling over.
1. Place the vehicle on the center-
stand.
2. Loosen the front wheel axle pinch
bolt, then the wheel axle and the
brake caliper bolts.3. Remove the brake hose holder on
each side by removing the bolt and
nut.
4. Remove the brake caliper on each
side by removing the bolts.
NOTICE: Do not apply the brake
after the brake calipers have
been removed, otherwise the
brake pads will be forced shut.
[ECA11051]
5. Pull the wheel axle out, and then
remove the wheel.
EAU40070
To install the front wheel
1. Lift the wheel up between the fork
legs.
2. Insert the wheel axle.
3. Install the brake caliper on each
side by installing the bolts.TIPMake sure that there is enough space
between the brake pads before install-
ing the brake calipers onto the brakediscs.
1. Front wheel axle pinch bolt
2. Wheel axle
1. Brake hose holder
2. Bolt and nut
3. Brake caliper bolt
4. Brake caliper
U3C3E3E0.book Page 36 Thursday, July 10, 2008 2:03 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-37
64. Install the brake hose holder on
each side by installing the bolt and
nut.
5. Take the vehicle off the center-
stand so that the front wheel is on
the ground.
6. Tighten the wheel axle, the front
wheel axle pinch bolt, and the
brake caliper bolts to the specified
torques.
7. Push down hard on the handlebar
several times to check for proper
fork operation.
EAU44800
Rear wheel (FZ1-S)
WARNING
EWA14840
For the ABS model, have a Yamahadealer remove and install the wheel.
EAU40021
To remove the rear wheel
WARNING
EWA10821
To avoid injury, securely support the
vehicle so there is no danger of itfalling over.
1. Loosen the axle nut.2. Place the vehicle on the center-
stand.
3. Remove the axle nut.
4. Loosen the locknut on each side of
the swingarm.
5. Turn the drive chain slack adjust-
ing bolts fully in direction (a) and
push the wheel forward.
6. Remove the drive chain from the
rear sprocket.
TIP

If the drive chain is difficult to re-
move, remove the wheel axle first,
and then lift the wheel upward
enough to remove the drive chain
from the rear sprocket.


The drive chain cannot be disas-sembled.
7. While supporting the brake caliper
bracket, pull the wheel axle out,
and then remove the wheel.
NOTICE: Do not apply the brake
after the wheel has been re-
moved together with the brake
disc, otherwise the brake pads
will be forced shut.
[ECA11071]
Tightening torques:
Wheel axle:
72 Nm (7.2 m·kgf, 52 ft·lbf)
Front wheel axle pinch bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
Brake caliper bolt:
40 Nm (4.0 m·kgf, 29 ft·lbf)
1. Axle nut
2. Locknut
3. Drive chain slack adjusting bolt
4. Brake caliper
5. Brake caliper bracket
U3C3E3E0.book Page 37 Thursday, July 10, 2008 2:03 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-38
6
EAU39411
To install the rear wheel
1. Install the wheel and the brake cal-
iper bracket by inserting the wheel
axle from the left-hand side.TIP

Make sure that the slot in the brake
caliper bracket is fit over the retain-
er on the swingarm.


Make sure that there is enough
space between the brake pads be-fore installing the wheel.2. Install the drive chain onto the rear
sprocket.
3. Install the axle nut, and then lower
the rear wheel so that it is on the
ground.
4. Adjust the drive chain slack. (See
page 6-23.)
5. Tighten the axle nut to the speci-
fied torque.
EAU25871
Troubleshooting Although Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look like
Yamaha parts, but they are often inferi-
or, have a shorter service life and can
lead to expensive repair bills.
WARNING
EWA15141
When checking the fuel system, do
not smoke, and make sure there are
no open flames or sparks in the ar-
ea, including pilot lights from water
1. Wheel axle
1. Slot
2. Retainer
Tightening torque:
Axle nut:
150 Nm (15.0 m·kgf, 110 ft·lbf)
U3C3E3E0.book Page 38 Thursday, July 10, 2008 2:03 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-39
6heaters or furnaces. Gasoline or
gasoline vapors can ignite or ex-
plode, causing severe injury or
property damage.U3C3E3E0.book Page 39 Thursday, July 10, 2008 2:03 PM
