2009 YAMAHA AEROX50 light

TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
Further safe-riding points ................1-5
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Main switch/steering lock ................3-1
Indicator and warning lights ............3-2
Speedometer unit ...........................3-3
Tachometer (if equipped) ................3-3
Fuel gauge ......................................3-4
Handlebar switches ........................3-4
Front brake lever ............................3-5
Rear brake lever .............................3-5
Fuel tank cap ..................................3-5
Fuel .................................................3-6
Catalytic converters ........................3-7
2-stroke engine oil ..........................3-8

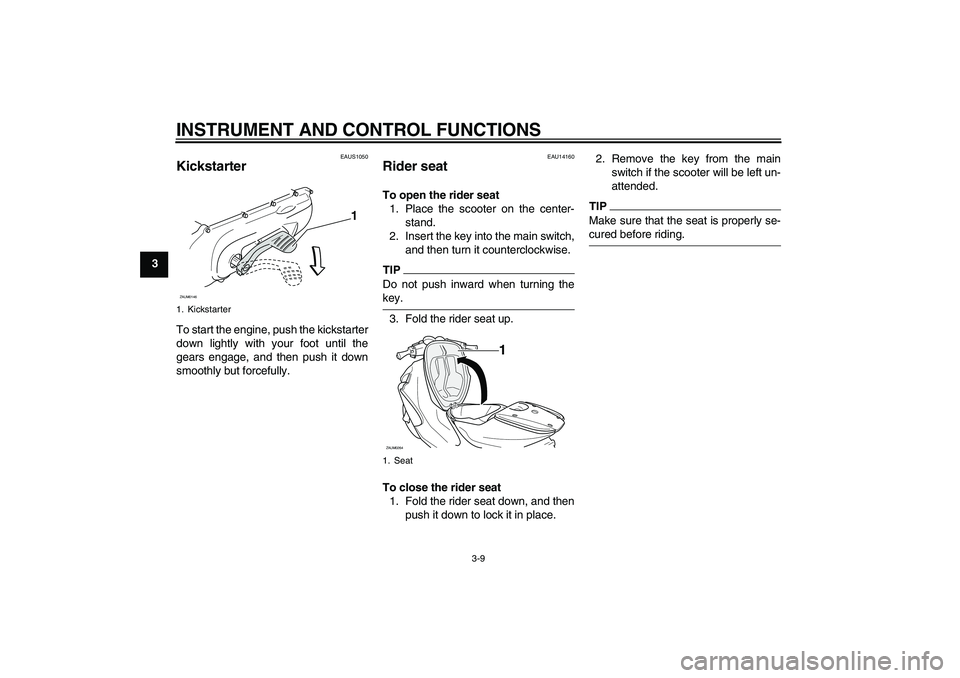

Kickstarter .......................................3-9
Rider seat .......................................3-9
Storage compartments .................3-10
Adjusting the shock absorber
assembly (if equipped) ..............3-11FOR YOUR SAFETY –
PRE-OPERATION CHECKS............. 4-1
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting a cold engine .................... 5-1
Starting off ...................................... 5-2
Acceleration and deceleration ........ 5-2
Braking ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
ADJUSTMENT................................... 6-1
Periodic maintenance and
lubrication chart .......................... 6-2
Removing and installing the
cowling and panel ....................... 6-6
Checking the spark plug ................. 6-7
Final transmission oil ...................... 6-8
Coolant ........................................... 6-9
Cleaning the air filter element ...... 6-10
Adjusting the carburetor ............... 6-11
Checking the throttle cable free
play ........................................... 6-11
Tires ............................................. 6-12
Cast wheels .................................. 6-13
Checking the front and rear brake
lever free play ........................... 6-14Checking the front and rear
brake pads ................................ 6-14
Checking the brake fluid level ...... 6-15
Changing the brake fluid .............. 6-16
Checking and lubricating the
throttle grip and cable ............... 6-16
Lubricating the front and rear
brake levers .............................. 6-16
Checking and lubricating the
centerstand ............................... 6-17
Checking the front fork ................. 6-17
Checking the steering .................. 6-18
Checking the wheel bearings ....... 6-18
Battery ......................................... 6-19
Replacing the fuse ....................... 6-20
Replacing the headlight bulb ....... 6-21
Replacing the tail/brake light
bulb ........................................... 6-22
Replacing a turn signal light
bulb ........................................... 6-22
Troubleshooting ........................... 6-23
Troubleshooting charts ................ 6-24
SCOOTER CARE AND STORAGE... 7-1
Care ............................................... 7-1
Storage .......................................... 7-3
SPECIFICATIONS ............................ 8-1
CONSUMER INFORMATION............ 9-1
Identification numbers .................... 9-1U3C6E1E0.book Page 1 Friday, August 8, 2008 10:09 AM

SAFETY INFORMATION
1-4
1aftermarket companies produce.
Therefore, Yamaha can neither en-
dorse nor recommend the use of ac-
cessories not sold by Yamaha or
modifications not specifically recom-
mended by Yamaha, even if sold and
installed by a Yamaha dealer.
Aftermarket Parts, Accessories, and
Modifications
While you may find aftermarket prod-
ucts similar in design and quality to
genuine Yamaha accessories, recog-
nize that some aftermarket accessories
or modifications are not suitable be-
cause of potential safety hazards to you
or others. Installing aftermarket prod-
ucts or having other modifications per-
formed to your vehicle that change any
of the vehicle’s design or operation
characteristics can put you and others
at greater risk of serious injury or death.
You are responsible for injuries related
to changes in the vehicle.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.


Never install accessories or carry
cargo that would impair the perfor-
mance of your scooter. Carefully
inspect the accessory before using
it to make sure that it does not in
any way reduce ground clearance
or cornering clearance, limit sus-
pension travel, steering travel or
control operation, or obscure lights
or reflectors.
Accessories fitted to the handle-
bar or the front fork area can
create instability due to improper
weight distribution or aerody-
namic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.
Bulky or large accessories may
seriously affect the stability of
the scooter due to aerodynamic
effects. Wind may attempt to lift
the scooter, or the scooter may
become unstable in cross
winds. These accessories may
also cause instability when
passing or being passed by
large vehicles.Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the free-
dom of movement of the opera-
tor and may limit control ability,
therefore, such accessories are
not recommended.


Use caution when adding electri-
cal accessories. If electrical acces-
sories exceed the capacity of the
scooter’s electrical system, an
electric failure could result, which
could cause a dangerous loss of
lights or engine power.
Aftermarket Tires and Rims
The tires and rims that came with your
scooter were designed to match the
performance capabilities and to provide
the best combination of handling, brak-
ing, and comfort. Other tires, rims, siz-
es, and combinations may not be
appropriate. Refer to page 6-12 for tire
specifications and more information on
replacing your tires.
U3C6E1E0.book Page 4 Friday, August 8, 2008 10:09 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU10460
Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU10640
ON“”
All electrical circuits are supplied with
power, and the engine can be started.
The key cannot be removed.TIPThe headlight, meter lighting and tail-
light come on automatically when theengine is started.
EAU10661
OFF“”
All electrical systems are off. The key
can be removed.
WARNING
EWA10061
Never turn the key to“” or“”
while the vehicle is moving. Other-
wise the electrical systems will be
switched off, which may result inloss of control or an accident.
EAU10670
CHECK“”
The 2-stroke engine oil level warning
light should come on. (See page 3-2.)
EAU10681
LOCK“”
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering1. Turn the handlebars all the way to
the left.
2. Push the key in from the“” posi-
tion, and then turn it to“” while
still pushing it.
3. Remove the key.To unlock the steering
Push the key in, and then turn it to“”
while still pushing it.
PUSHOPEN
ZAUM0253
U3C6E1E0.book Page 1 Friday, August 8, 2008 10:09 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU11003
Indicator and warning lights
EAU11020
Turn signal indicator light“”
This indicator light flashes when the
turn signal switch is pushed to the left or
right.
EAU11080
High beam indicator light“”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11181
Oil level warning light“”
This warning light comes on when the
key is in the“” position or if the oil lev-
el in the 2-stroke engine oil tank is low
during operation. If the warning light
comes on during operation, stop imme-
diately and fill the oil tank with Ya-
malube 2 or equivalent 2-stroke engine
oil of either JASO grade “FC” or ISO
grades “EG-C” or “EG-D”. The warning
light should go off after the 2-stroke en-
gine oil tank has been refilled.TIPIf the warning light does not come on
when the key is in the“” position or
does not go off after the 2-stroke en-
gine oil tank has been refilled, have a
Yamaha dealer check the electrical cir-cuit.NOTICE
ECA16291
Do not operate the vehicle until you
know that the engine oil level is suf-ficient.
EAU11433
Coolant temperature warning
light“”
This warning light comes on if the en-
gine overheats. If this occurs, stop the
engine immediately and allow the en-
gine to cool.NOTICE
ECA10021
Do not continue to operate the en-gine if it is overheating.TIP

For radiator-fan-equipped vehi-
cles, the radiator fan(s) automati-
cally switch on or off according to
the coolant temperature in the ra-
diator.
1. Turn signal indicator light“”
2. High beam indicator light“”
3. Oil level warning light“”
TEMP
123
ZAUM0254
1. Coolant temperature warning light“”
TEMP
Km / h
E1/2
F
1
ZAUM0255
U3C6E1E0.book Page 2 Friday, August 8, 2008 10:09 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU12140
Fuel gauge The fuel gauge indicates the amount of
fuel in the fuel tank. The needle moves
towards “E” (Empty) as the fuel level
decreases. When the needle reaches
“E”, refuel as soon as possible.TIPDo not allow the fuel tank to empty itselfcompletely.
EAU12347
Handlebar switches Left
Right
EAU12400
Dimmer switch“/”
Set this switch to“” for the high
beam and to“” for the low beam.
EAU12460
Turn signal switch“/”
To signal a right-hand turn, push this
switch to“”. To signal a left-hand
turn, push this switch to“”. When re-
leased, the switch returns to the center
position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch“”
Press this switch to sound the horn.
EAUM1132
Start switch“”
Push this switch while applying the
front or rear brake to crank the engine
with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
1. Fuel gauge
E1/2
F
1
ZAUM0257
1. Horn switch“”
2. Turn signal switch“/”
3. Dimmer switch“/”
1. Start switch“”
U3C6E1E0.book Page 4 Friday, August 8, 2008 10:09 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
TIPThe fuel tank cap cannot be installed
unless the key is in the lock. In addition,
the key cannot be removed if the cap isnot properly installed and locked.
WARNING
EWA11141
Make sure that the fuel tank cap is
properly installed before riding.Leaking fuel is a fire hazard.
EAU13212
Fuel Make sure there is sufficient gasoline in
the tank.
WARNING
EWA10881
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, followthese instructions.
1. Before refueling, turn off the en-
gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters and
clothes dryers.
2. Do not overfill the fuel tank. Stop
filling when the fuel reaches the
bottom of the filler tube. Because
fuel expands when it heats up,
heat from the engine or the sun
can cause fuel to spill out of the
fuel tank.3. Wipe up any spilled fuel immedi-
ately. NOTICE: Immediately wipe
off spilled fuel with a clean, dry,
soft cloth, since fuel may deteri-
orate painted surfaces or plastic
parts.
[ECA10071]
4. Be sure to securely close the fuel
tank cap.
WARNING
EWA15151
Gasoline is poisonous and can
cause injury or death. Handle gaso-
line with care. Never siphon gaso-
line by mouth. If you should swallow
some gasoline or inhale a lot of gas-
oline vapor, or get some gasoline in
your eyes, see your doctor immedi-1. Fuel tank filler tube
2. Fuel level
1
2
ZAUM0020
U3C6E1E0.book Page 6 Friday, August 8, 2008 10:09 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
EAUS1050
Kickstarter To start the engine, push the kickstarter
down lightly with your foot until the
gears engage, and then push it down
smoothly but forcefully.
EAU14160
Rider seat To open the rider seat
1. Place the scooter on the center-
stand.
2. Insert the key into the main switch,
and then turn it counterclockwise.TIPDo not push inward when turning thekey.
3. Fold the rider seat up.
To close the rider seat
1. Fold the rider seat down, and then
push it down to lock it in place.2. Remove the key from the main
switch if the scooter will be left un-
attended.
TIPMake sure that the seat is properly se-cured before riding.
1. Kickstarter
1
ZAUM0146
1. Seat
1
ZAUM0264
U3C6E1E0.book Page 9 Friday, August 8, 2008 10:09 AM

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-2
4
Rear brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-14, 6-14, 6-15
Throttle gripMake sure that operation is smooth.
Check cable free play.
If necessary, have Yamaha dealer adjust cable free play and lubricate cable and
grip housing.6-11, 6-16
Wheels and tiresCheck for damage.
Check tire condition and tread depth.
Check air pressure.
Correct if necessary.6-12, 6-13
Brake leversMake sure that operation is smooth.
Lubricate lever pivoting points if necessary.6-16
CenterstandMake sure that operation is smooth.
Lubricate pivot if necessary.6-17
Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened.
Tighten if necessary.—
Instruments, lights, signals
and switchesCheck operation.
Correct if necessary.—
BatteryCheck fluid level.
Fill with distilled water if necessary.6-19 ITEM CHECKS PAGE
U3C6E1E0.book Page 2 Friday, August 8, 2008 10:09 AM
