• When the engine is cold, avoid high engine
speeds, driving at full throttle and overloading
the engine.
Displays
• The needle on the rev counter should only
briefly tip into the red area. Damage to the en­
gine may otherwise be incurred.
&"" Changing up a gear early wi~l help to save
W fuel a nd minimise engine no1se. B SK ·O!'i8 4
Fig. 13 A: bonnet open , B : tailgate open, C: front left door open, D: right rear door open (only in four-door
vehicles)
r-('n First read and observe the introductory
L-W.I information and safety warnings A on
page 20.
Depending on the vehicle equipment level, a varie­
ty of information can be displayed in the instrument
cluster =>Fig. 12 @:
• Open doors, bonnet and tailgate =>Fig. 13
• Warning and information messages
• Mileage displays
• Time
• Radio and navigation information =>Booklet Ra­
dio
or =>Booklet Navigation system
• Telephone information =>Booklet Provision for
mobile telephone
• Outside temperature
• Compass display
• Selector lever positions
• Gear-change indicator (manual gearbox)
• Driving data display (multifunction display
(MFD)) and menus for various settings
=>page 26
• Service interval dis play =>page 24
• Speed warning function =>page 26
• Speed warning for winter tyres
• Start/stop system status display =>page 196
• Status display for active cylinder management
(ACr®) =>page 190
• Traffic signs detected by the traffic sign recogni­
tion system =>page 243
• Engine code
• Vehicle battery charge level (SOC)
Open doors, bonnet and tailgate
The instrument cluster display indicates if any
doors, or the bonnet or tailgate, are open once the
vehicle has been unlocked, and while the vehicle is
in motion .
In some cases, an acoustic warning is
also sounded . Different instrument cluster designs
will have different displays.
Instrument cluster

Downloaded from www.Manualslib.com manuals search engine Legend for Fig . 13 See
A I D o not drive on!
Bonne t ope n or not prope rly closed. ~page 277
B 0 Do not drive on! ~page 57 Tailgate open or no t closed prope rly .
C Do not drive on! C ,D Ve hicle door ope n or n ot pr ope rly clos ed. ~page 55
Warn ing and information messages
The sy~tem runs a che ck o n ce rtain components
and function s in the vehicle whe n the ignition is
sw itched on or w hil e the ve hi cle is in motion . Mal­
fun tions ar e indic ated by r ed and yellow warning
s ymbol s 1
) wi th te t message s in the instrument
c l
1ster d is pla y ~page 16. An acoustic warning is
a ls o so unded i n certa in ca se s. Di fferent instrument
clu ster design s
will h av e diffe rent dis plays .
Type of mes­
sage
Symbol col­
our In addition, a list of current malfunctions can be
opened manually.
To do so, choose Vehicle
status or Vehicle in the selection menu
~page 26.
Priori ty 1 warn­
in g re port The
symbol flashes or lights up -sometimes together with an acoustic
warning signal.
Red i> Do not drive on! Danger! ~A
Check function and resolve problem. Seek expert assistance if neces­
sary.
The symbol flashes or lights up -sometimes together with an acoustic
warning signal.
Prio rity 2 warn ­
ing report Yellow If there is a fault, or if service fluids are running low, your vehicle could
be damaged or break down
~CD.
Check the fault as soon as possible . Seek expert assistance if neces­
sary.
Information
message Information about various procedures within the vehicle .
a) Displa yed in colour on an i nstrumen t cluster wit h co lour d isplay .
Mileage displays
The odometer re gi sters the total distance travelled
by the car.
T he
trip recorde r(trip) shows the distance travel ­
led since the trip reco rder was last reset. The final
d ig it show s dis tan ces
of 100 m.
• Press button ::::>Fig . 12 0 briefly to reset the
tri p record
er to 0 .
Time
• To se t th e t ime , press and hold button
~Fig. 12 0 while the doors are closed until the
word Time appears in the display .
• Releas e the button . The time is shown in the
d is p l
ay and the hour setting is marked .
1
) D isp layed in col our on an instrum ent clu ste r with col our di sp la y.
O ve rview of the ve hicle
• Then press the button repeatedly until the re­
quired hour is displayed . Press and hold the button
to scroll through quickly.
• Once you have set the hour, wait until the mi­
nutes display is marked .
• Then press the button repeatedly until the re­
quired minute is displayed. Press and hold the but­
ton to scroll through quickly.
• Release the button to finish setting the clock.
You can also set the time in the infotainment sys­
tem using the@) button and the ~ and
[T tme and date] function buttons ~page 31. ..,.

Downloaded from www.Manualslib.com manuals search engine Outsldo temperature display
If Ill~ ut ·id I mpera ture f lis ba-
lm -t4''C (+39~F), the display als o sh ows a snow-
0,1'-mbol (i e w rning) . This symbo l re m ains lit
up until th ou tside t mp erature rises above +6°C
(+ 4 ·'F)-£.
hicl is s ta tionary. tl1e auxiliary hea te r is
wit h d on ( p age 264) or the ve hi cle is tr ave l­
tin A t v ry I w speeds , the te mper atur e disp laye d
m y be slightly higl1er th a n th e actual outside te m­
per lure due to hea t ra di ated from the e ngine .
Th e meas uring range
lies be tw ee n -45 °C (-49 °F)
and +76"C
(+169 °F) .
Compass display
When the ignition and navigation system are
switched on, the instrument cluster display shows
the current direction
of travel.
Selector lever positions (automatic gearbox)
The gear selec ted is displayed on the side of the
selecto r leve r and on the di
spla y in th e instrument
cluster . The dis play may show which gear has
been selected if
the lever is in 0/S, or in Tiptronic
mode
~page 169 .
Gear-change indicator (manual gearbox)
While the vehicle is in mot ion , the instrum ent clus­
ter may show which gear should be selec ted to re­
duce fuel cons umption
~page 169.
Speed warning for winter tyres
A display in the instrument clu ste r indicates when
the set maximum speed has been exceeded
~page 26.
Speed warning settings can be mad e and adjusted
in the infotai nment system using the
@) button and
the
0 and (T yres) function buttons ~page 3 1.
Start/stop system status display
The instrumen t cluste r display shows informat ion
about the current status
~page 1 96 .
Vehicle battery charge level (SOC)
In some models , the battery charge le vel (SOC1l)
is displayed as a percentage .
To displa y the ch arge leve l, pr ess and hold button
~Fig. 12 0 with the ignition switched off until SOC
appea rs in the display .
1> State of ch arg e
Engine code
Press and ho ld button ~Fig. 12 0 (fo r approxi­
mately 15 seco nds) to show the vehicle's engine
code in
the display . The ignition should be swit ch­
ed on but the engin e should not be running.
-~--
A WARNING l
Failure to observe illuminated warning lamps
and text messages can lead to your vehicle
breaking down in traffic, and can cause acci­
dent and serious injury.
• Never ignore any illuminated warning
lamps or text messages.
• Stop the vehicle as soon as possible and
when safe to do so.
• Broken-down vehicles increase the risk of
accidents both for you and for other road
users. If necessary , switch on the hazard
warning lights and set up the warning trian­
gle to warn other road users.
• Stop the vehicle at a safe distance away
from moving traffic and ensure that no part of
the exhaust system can come into contact
with any inflammable material underneath the
vehicle, e.g . dry grass or fuel.
~A WARNING
Streets and bridges can be iced over at out­
side temperatures above freezing point.
• There may be black ice on the roads at
outside temperatures above +4°C (+39 °F) and
also when no snowflake symbol is displayed
as a black ice warning.
• You should never rely solely on the out­
side temperature display!
Failure to observe illuminated indicator lamps
and text messages can lead to your vehicle be­
ing damaged.
m Di~erent instrument cluste~s are available ,
L!J wh1ch means that the vers1ons and displays
may vary.
In displays without warning or informa­
tion texts , faults are indicated exclusively
by the in­
dicator la mps.
m D epe nding on the vehicle equipment level,
W some settings and displays may also appear
in the infotainment system.
..,..
Instrument cluster 23

Downloaded from www.Manualslib.com manuals search engine L
l:l If several w arning reports a re detecte d, the
L!J symbols will appear f or s eve ra l seconds, on e
a ft e r a
noth er. T he symbols will continue to appear
until the fa ults a re rectifie d .
l:l If w arni ng messages about malfunctions are
L!J displa ye d when th e ig nition is switched on, it
m ay
not be possib le to a dju st some settings as de-
Service interval display
A
scribed, or the information display m ay appea r dif­
f e rently .
If this is the case, take the ve hicl e to a
qualified
workshop to have the m alfunction re cti -
fied .
<
B
BSG-0022
Fig. 14 In th e instrum ent cluster display , A: Service warning, B : Serv ice due
Vehicle number: WVWZZZ37083645655
Volkswagen-inspection:
in
5400 mi I 350 day(s)
Oil change service:
in 2300 mi /120 day(s)
I BSG-0021
Fig. 15 Servi ce informatio n displ ay in the infot ain­
m ent sy ste m
r-f"n First read and observe the introductory
l-J=JJ information and safety warnings£ on
page 20 .
The se rvice disp la y i s s hown on th e instrum ent
cl us te r ~Fig. 12@) a nd in th e infota inment syste m
~page 3 1.
V ol
ksw age n se rvi ces are divid ed into two cate go­
r ies,
w ith oil c h a nge, e.g . o il ch a ng e se rvice , and
with out oil cha nge, e.g. in spectio n .
24 Overview of the vehicle
In ve hicles with fixed service, services ta ke place
at prede fin ed int ervals .
The service intervals are calculated on an individu­
al basis in ve hicles with flexible service. Advan­
c es in technology have brought about a considera­
ble redu ction in servi cing re quirements . An oil
chang e service must only be carried out when re ­
quired by the vehicle. The individual conditions in
which the ve hile is used , as the driver's pe rsonal
driv i
ng style , are taken into account. The se rvice
reminder is displayed 30 da ys befor e the service is
due . The dista nce is round ed to the nearest
100 km ; th e re maining time is rounded to full days.
Service warning
If an oil change service or inspection is due soon,
a service warning
will appear th e next time the ig­
nition is switched on
~Fig. 14 A.
Th e numb er
of kilometr es or amount of time shown
c orr espond to the maximum number
of kilometr es
or maximum time that can still be driv en b efo re the
n ext servic
e. ..,..
J

Downloaded from www.Manualslib.com manuals search engine 0 N ,....: 0 .C)
Service
If a service is due, an acoustic signal will sound
and the spanner symbol _.c with the message
Service now! will appear for a few seconds in
the instrument cluster display when the ignition is
switched on. ==>Fig. 14 B.
Accessing a service message
You can access the current service message when

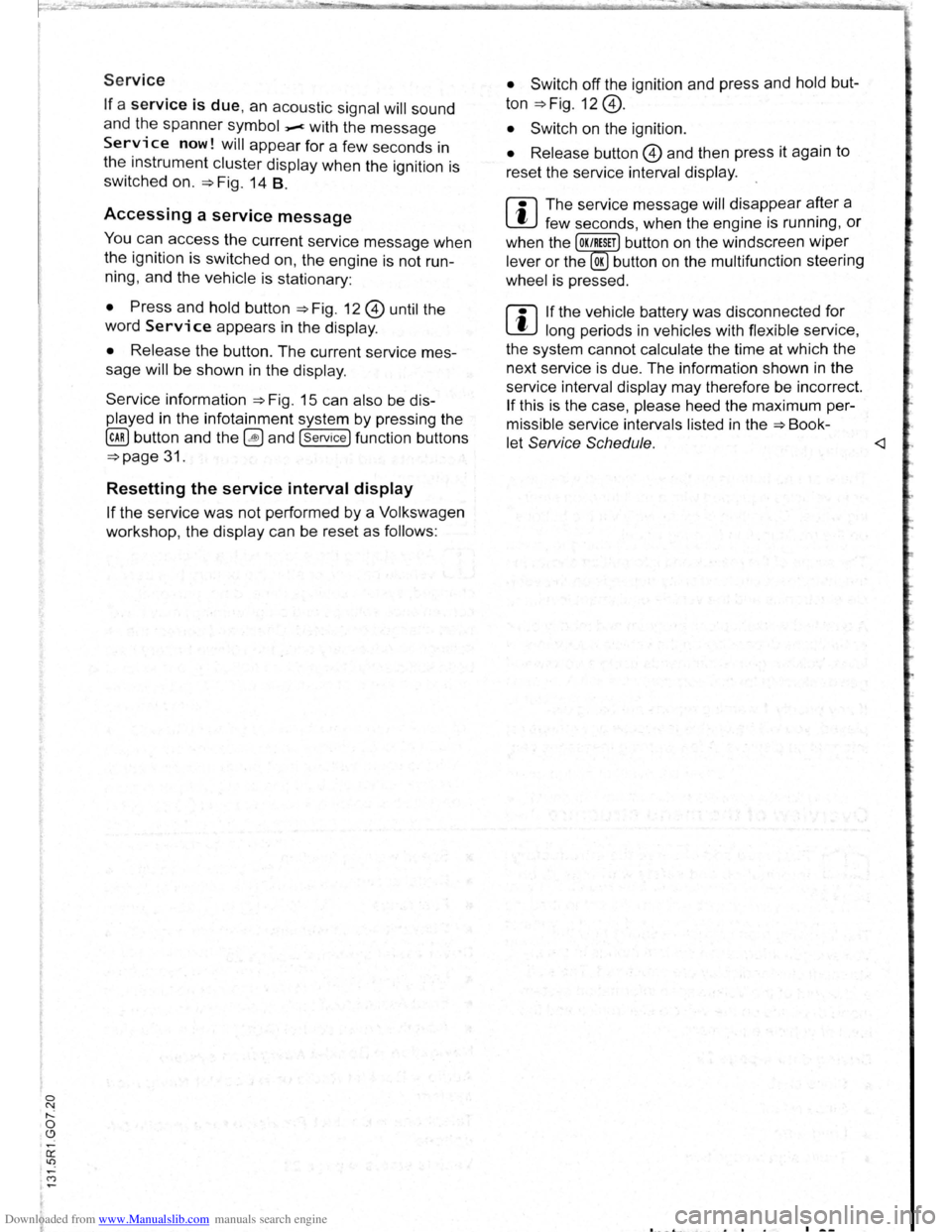

the ignition is switched on, the engine is not run­
ning ,
and the vehicle is stationary:
• Press and hold button ==>Fig . 12 @ until the
word Service appears in the display.
•
Release the button . The current service mes­
sage will be shown in the display.
Service information ==>Fig. 15 can also be dis­
played in the infotainment system by pressing the
@ill button and the ~ and [Serv ice ) function buttons
==>page 31.
Resetting the service interval display
If the service was not performed by a Volkswagen
workshop, the display can be reset as follows: •
Switch
off the ignition and press and hold but­
ton ==>Fig. 12 @.
• Switch on the ignition .
• Release button @ and then press it again to
reset the service
interval display.
m The service message will disappear after a
W few seconds, when the engine is running , or
when the OK/RESET button on the windscreen wiper
lever or the OK button on the multifunction steering
wheel is pressed.
m If the vehicle battery was disconnected for
W long periods in vehicles with flexible service,
the system cannot
calculate the time at which the
next service is due. The information shown in the
service interval display may therefore be incorrect.
If this is the case, please heed the maximum per­
missible service intervals listed in the ==>Book-
let Service Schedule. I --

Downloaded from www.Manualslib.com manuals search engine Volkswagen information system
o::n Introduction
This chapter contains information on the following subjects:
Overview of the menu structure . . . . . . . . . . . . 26
Using the selection menu in the instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Button for the driver assist systems 28
Selection menu . . . . . . . . . . . . . . . . . . . . . . . . . 28 Driving data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Assist systems menu . . . . . . . . . . . . . 30
When the ignition is switched on, the various dis­play functions can be accessed via the selection menu, e.g . the driving data disp lay (multifunction display (MFD)).
There are no buttons on the windscreen wiper lev­er in vehicles equipped with a multifunction steer­ing wheel. Operation is exclusiv ely via the buttons on the multifunction steering wheel.
The scope of the menus and information shown in the instrument cluster display depends on the vehi­cle electronics and the vehicle equ ipment level.
A
qualified workshop can program and modify oth­er functions depending on the vehicle equipment
level. Volkswagen recommends us ing a Volkswa­gen dealership for this purpose.
If any priority 1 warn ing reports are being dis­played, you will be unable to access any menus or information displays. A few warning messages can
Overview of the menu structure
r-'('n First read and observe the introductory l....-J=,ll information and safety warnings & on
page 26.
The following menu structure shows how the Volkswagen information system menus in the in­strument cluster display are structured . The size and layout of the Volkswagen information system menu depends on the vehicle electronics and the
level of vehicle equipment.
Driving data ~page 29
• Since start
• Since refuel
• Long-term
• Traffic sign recognition
26 Overview of the vehicle
be confirmed and hidden by pressing the OK/RESET button on the windscreen wiper lever or the OK but­ton on the multifunction steering wheel.
Additional information and warnings:
• lnfotainment system ~page 31
• Driver assist systems ~page 196
• Radio or navigation system ~Booklet Radio or ~Booklet Navigation system
• Provision for mobile telephone ~Booklet Provi­sion for mobile telephone
A WARNING -Accidents and injuries can occur if the driver is distracted.
• Never open the menus on the instrument cluster display while the vehicle is in motion.
r::l After starting the engine with a discharged ~ vehicle battery, or after the battery has been
changed , system settings (time, date, personal
convenience settings and programming) may have
been changed or deleted .
Check and correct the
settings as necessary once the vehicle battery has
been sufficiently charged.
• Speed warning function
• Digital speed
• Fuel range
• Convenience consumers
Driver assist systems ~page 28
• Lane Assist on/off
• Front Assist on/off
• Adaptive cruise control (ACC)
Navigation ~Booklet Navigation system
Audio ~Booklet Radio or ~Booklet Navigation system
Telephone ~Booklet Provision for a mobile tel· ephone
Vehicle status ~page 28
,J
--------

Downloaded from www.Manualslib.com manuals search engine 0
0

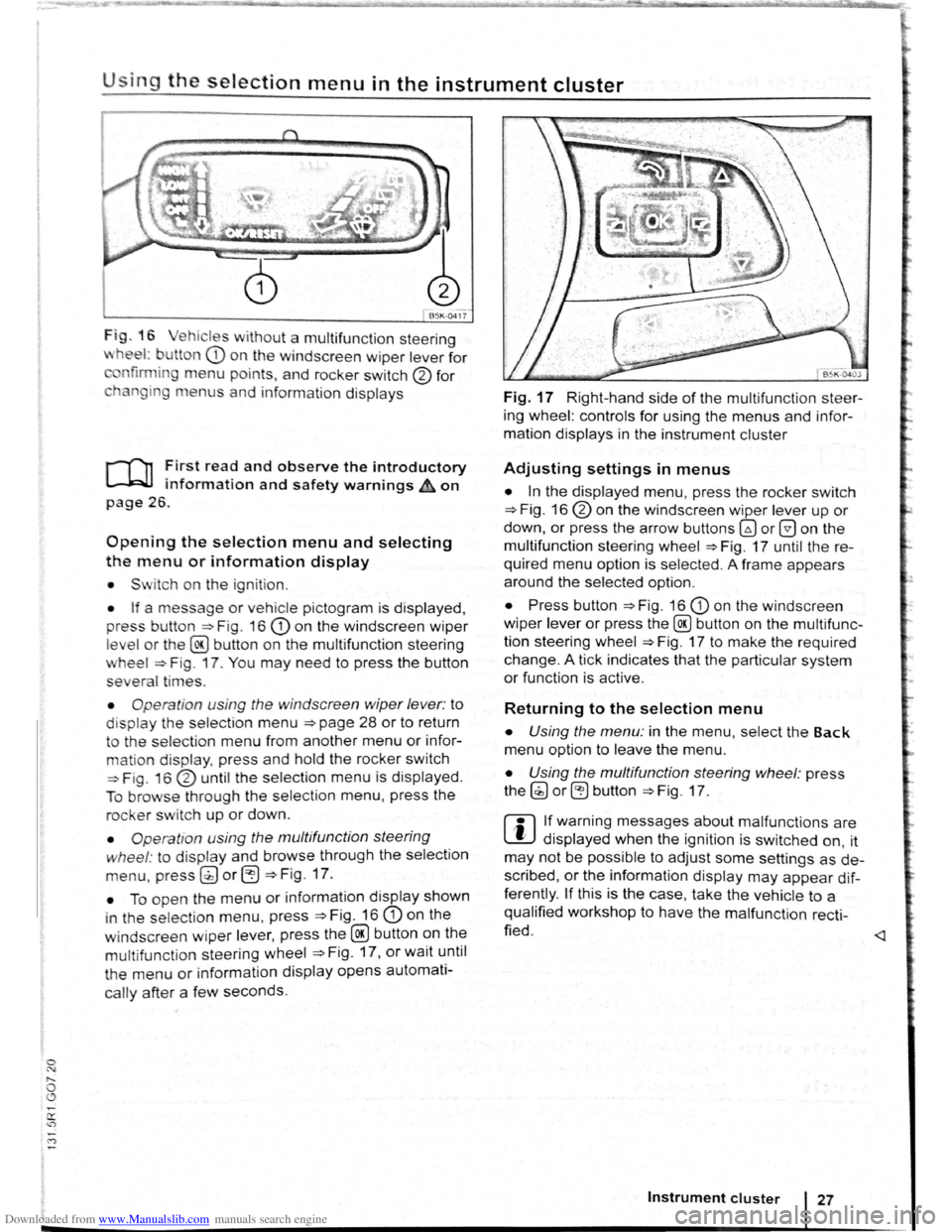

Using the selection menu in the instrument cluster
Fig . 16 ehicl es w ithout a multifunct ion steering
wheel: b utton CD o n th e windscreen wiper lever for
nfirmin g menu points, and ro cker switch 0 for
h n gin g m e
nus and info rm ation displays
r-T'n First read and observe the introductory
l.-.W.I information and safety warnings&, on
page 26.
Opening the selection menu and selecting
the menu or information display
• Sw itch on th e ig nit io n.
• If a messag e or vehicle p ictogram is displayed,
p res s bu tton
=>F ig . 16 CD on the windscreen wiper
level or the @ button on the multifunction steering
wheel => F ig . 17. You may need to press the button
several ti
mes .
• Opera tion u sin g the windscreen wiper lever: to
dis p lay the selection menu =>page 28 or to return
to the selection menu from another menu or infor­
mation dis play, press and hold the rocker switch
=>Fig. 1 6 0 until the select ion menu is displayed.
To
brows e through the select ion menu, press the
rocker switch up or down.
• Operatio n using the multifunction steering
wh
eel : to display and browse through the selection
menu, press g) or eJ =>Fig. 17.
• To open the menu or information display shown
i n th e s election
menu, press =>Fig . 16 CD on the
w i
ndscreen wiper lever, press the @ button on the
multifunct ion steering wheel =>Fig . 17, or wait until
th e
menu or information display opens automati­
cally after a few seconds.
Fig. 17 Right-hand side of the multifunction steer­
ing wheel: controls
for using the menus and infor­
mation displays in the instrument cluster
Adjusting settings in menus
• In the displayed menu, press the rocker switch
=>Fig. 16 0 on the windscreen wiper lever up or
down, or press the arrow buttons~ or G on the
multifunction steering wheel
=>Fig. 17 until the re­
quired menu option is selected . A frame appea rs
around the selected option .
• Press button =>Fig. 16 CD on the windscreen
wiper lever
or press the@ button on the mult ifunc­
tion steering wheel
=>Fig. 17 to make the requir ed
change.
A tick indicates that the part icular system
or function is act ive .
Returning to the selection menu
• Using the menu: in the menu , select the Back
menu option to leave the menu .
• Using the multifunction steering wheel: p ress
the (;) or ~ button => Fig . 17 .
r:l If warning messages about malfunctions are
L!J displayed when the ignition is switched on, it
may not be possible to adjust some settings as de­
scribed ,
or the information display may appear dif­
ferently .
If this is the case, take the vehicle to a
qualified workshop to have the malfunction
recti­
fied .
Instrument cluster 27
