2009 TOYOTA RAV4 Navigation Manual

AUDIO SYSTEM
157
NOTICE
This equipment has been tested and
found to comply with the limits for a
class B digital device, pursuant to
Part 15 of the FCC Rules. These lim-
its are designed to provide reason-
able protection against harmful inter-
ference in a residential installation.
This equipment generates, uses and
can radiate radio frequency energy
and, if not installed and used in ac-
cordance with the instructions, may
cause harmful interference to radio
communications. However, there is
no guarantee that interference will
not occur in a particular installation.
If this equipment does cause harmful
interference to radio or television re-
ception, which can be determined by
turning the equipment off and on, the
user is encouraged to try to correct
the interference by one or more of the
following measures:
— Reorient or relocate the receiving
antenna.
— Increase the separation between
the equipment and receiver.
— Connect the equipment into an
outlet on a circuit different from that
to which the receiver is connected.
— Consult the dealer or an experi-
enced radio/TV technician for help.
Information to user
Alternation or modifications carried
out without appropriate authoriza-
tion may invalidate the user’s right to
operate the equipment.
INFORMATION
This XM  tuner supports “Audio Ser-
vices” (Music and Talk) of only XM
Satellite Radio and “Text Informa-
tion”* linked to the respective “Audio
Services”.
*Text Information includes, Station
Name, (Artist) Name, (Song) Title and
Category Name.

AUDIO SYSTEM
158
The CD player can play audio CDs, CD
text, WMA discs and MP3 discs.
Audio CD, CD text161
. . . . . . . . .
MP3/WMA disc 164
. . . . . . . . . . .
For appropriate discs for this changer, see
“Audio system operating hints” on page
170. (a) Inserting discs
Vehicles with smart key system —
The “ENGINE START STOP” switch must
be set at ACCESSORY or IGNITION ON
mode.
Vehicles without smart key system —
The engine switch must be set at “ACC” or
“ON” position.
1. Push the “” button.
— CD player operation

AUDIO SYSTEM
159
2. Insert a disc.
3. Push the “CLOSE” button to
close the display.
After insertion, the set disc is automatically
loaded.
If the label faces down, the disc cannot be
played. In this case, “CD Check” appears
on the screen.
CAUTION
Do not place anything on the
opened display, as such items may
be thrown about and possibly in-
jure people in the vehicle during
sudden braking or in an accident.
To reduce the chance of injury in
case of an accident or sudden stop
while driving, keep the display
closed.
Take care not to jam your hand
while the display is moving. Other-
wise, you could be injured.
NOTICE
Do not obstruct the display while it is
moving. It could damage your audio
system.
INFORMATION
Under extremely cold conditions, the
display may react slowly or operation
sound may become louder.

AUDIO SYSTEM
160
(b) Ejecting discs
Push the “” button.
The display will open and the disc will be
ejected. A disc can then be inserted.
NOTICE
If a disc cannot be ejected, do not for-
cibly take out the disc. Keep pushing
the “ ” button for approximately 5
seconds and release it. At this time,
the audio disc and the map DVD
ROM will be ejected.
(c) Playing a disc
Push the “DISC·AUX” button if the disc
are already loaded in the CD player.
The “CD” screen will be displayed.

AUDIO SYSTEM
161

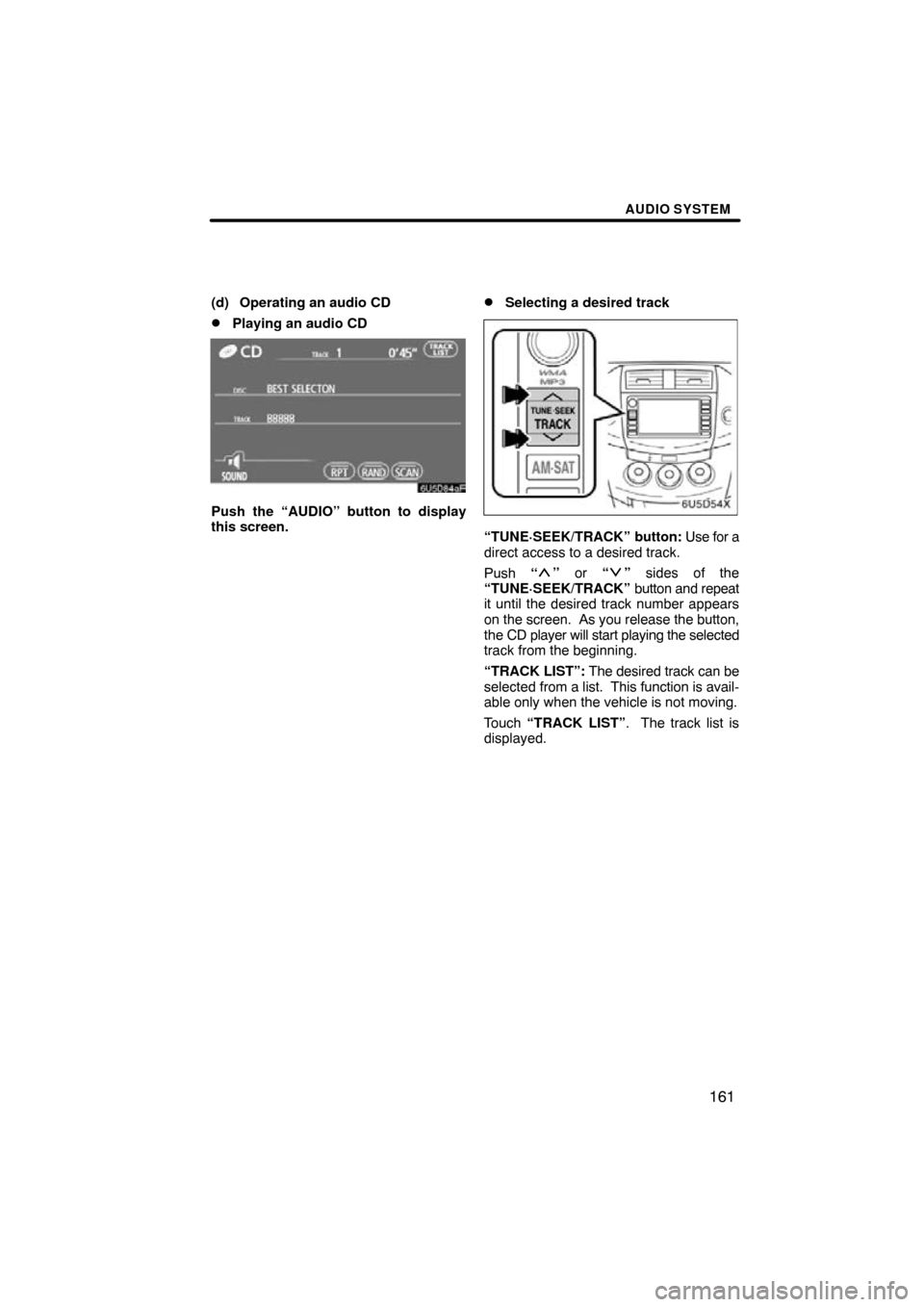

(d) Operating an audio CD
Playing an audio CD
Push the “AUDIO” button to display
this screen.
Selecting a desired track
“TUNE·SEEK/TRACK” button: Use for a
direct access to a desired track.
Push “
” or “” sides of the
“TUNE·SEEK/TRACK” button and repeat
it until the desired track number appears
on the screen. As you release the button,
the CD player will start playing the selected
track from the beginning.
“TRACK LIST”: The desired track can be
selected from a list. This function is avail-
able only when the vehicle is not moving.
Touch “TRACK LIST”. The track list is
displayed.

AUDIO SYSTEM
162
Touch the desired track number. The
CD player will start playing the selected
track from the beginning.
: By touching this button, the list moves
up by 6 track groups. If this button is
touched when the top page of the list is dis-
played, the last page is displayed.
: By touching this button, the list moves
down by 6 track groups. If this button is
touched when the last page of the list is
displayed, the top page is displayed.
Fast forward: Push “
” sides of the
“TUNE·SEEK/TRACK” button and hold it
to fast forward the disc. When you release
the button, the CD player will resume play-
ing from that position.
Reverse: Push “
” sides of the
“TUNE·SEEK/TRACK” button and hold it
to reverse the disc. When you release the
button, the CD player will resume playing.
Searching for a desired track
While the disc is playing, touch
“SCAN” briefly.
“SCAN” appears on the screen. The CD
player will play the next track for 10 sec-
onds, then scan again. To select a track,
touch “SCAN” once again. If the CD
player reaches the end of the disc, it will
start playing at track 1.
After all the tracks are scanned in one
pass, normal play resumes.

AUDIO SYSTEM
163

Other functions
“RPT”:
Use it for automatic repeat of the
track or disc you are currently listening to.
While the track is playing, touch “RPT”
briefly.
“RPT” appears on the screen. When the
track is finished, the CD player will auto-
matically go back to the beginning of the
track and play the track again. To cancel
it, touch “RPT” once again. “RAND”:
Use it for automatic and random
selection.
While the disc is playing, touch
“RAND” briefly.
“RAND” appears on the screen. The sys-
tem selects a track on the disc being lis-
tened to in random order. To cancel it,
touch “RAND” once again.
If a CD −TEXT disc is inserted, the title of
the disc and track will be displayed. Up to
29 letters can be displayed.

AUDIO SYSTEM
164
(e) Operating a MP3/WMA disc
Playing a MP3/WMA disc
Push the “AUDIO” button and touch a
MP3/WMA disc number to display this
screen.
Selecting a desired folder
“FOLDER ”: Touch this button to go to
the next folder.
“FOLDER ”: Touch this button to go to
the previous folder.
“FOLDER LIST”: The desired folder can
be selected in a list. This function is avail-
able only when the vehicle is not moving.
Touch “FOLDER LIST”. The folder list is
displayed.
Touch the desired folder number. The
changer will start playing the first file of
the selected folder.
: By touching this button, the list moves
up by 6 folder groups. If this button is
touched when the top page of the list is dis-
played, the last page is displayed.
: By touching this button, the list moves
down by 6 folder groups. If this button is
touched when the last page of the list is
displayed, the top page is displayed.
“FILE”: The file list is displayed.
“DETAIL”: Details of the file currently
playing is displayed. This function is avail-
able only when the vehicle is not moving.
