2009 TOYOTA RAV4 Navigation Manual

OTHER FUNCTIONS
141
You can set a beep sound off.
1. Push the “INFO” button.
2. Touch “Beep Off”.
“Beep Off” is highlighted.
To switch the beep sound on, touch “Beep
Off” again. The language of the touch screen buttons,
pop−up messages and the voice guidance
can be changed.
1. Push the “INFO” button.
2. Touch “Language”.
Beep settingSelecting a language

OTHER FUNCTIONS
142

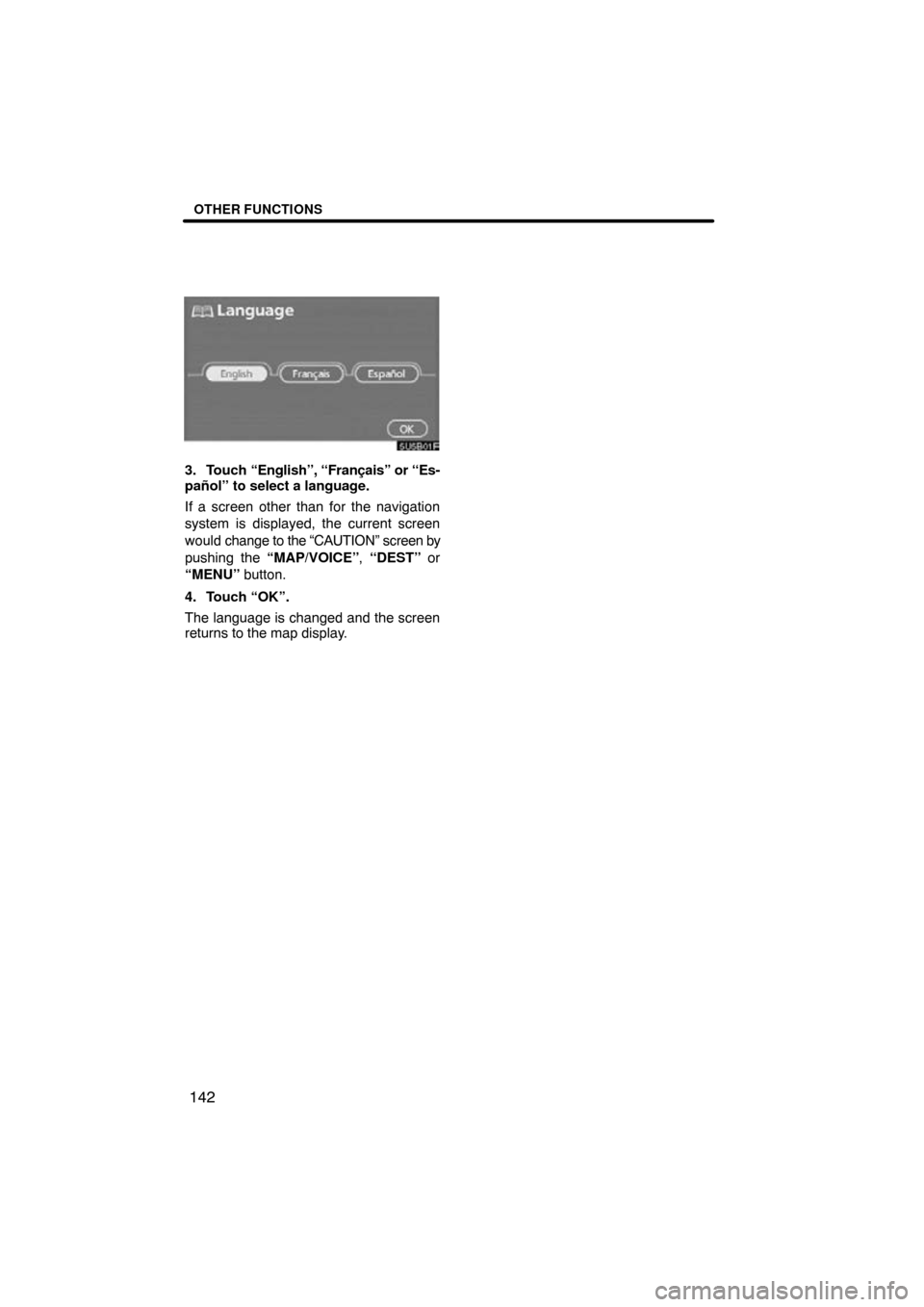

3. Touch “English”, “Français” or “Es-
pañol” to select a language.
If a screen other than for the navigation
system is displayed, the current screen
would change to the “CAUTION” screen by
pushing the “MAP/VOICE” , “DEST” or
“MENU” button.
4. Touch “OK”.
The language is changed and the screen
returns to the map display.

SECTION 6
AUDIO SYSTEM
143
AUDIO SYSTEM
Quick reference 144
 Using your audio system 145
Some basics 145
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Radio operation 149
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

CD player operation 158
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 Audio remote controls 169
 Audio system operating hints 170

AUDIO SYSTEM
144
Operations such as selecting a preset station and adjusting the sound balance are c\
ar-
ried out on the touch screen. To display the audio screen, push the “AUDIO” button.
1Function menu display screen
To control the radio or CD player,
touch the touch screen buttons. For
details, see page 147.
2“AUDIO” button
Push this button to display the audio
control screen. For details, see page
146.
3“” button
Push this button to insert or eject a
disc. For details, see pages 158 and
160.
4“DISC·AUX” button
Push this button to turn the CD player
and AUX on. For details, see pages
146, 149 and 160.
5“FM” button
Push this button to choose an FM sta-
tion. For details, see pages 146 and
149.
6“AM·SAT” button
Push this button to choose an AM or
SAT station. For details, see pages
146 and 149.
7“TUNE·SEEK/TRACK” button
Push either side of this button to step
up or down the frequency, or to ac-
cess a desired track or file. For de-
tails, see pages 149, 151, 154, 161
and 165.
8“PWR·VOL” knob
Push this knob to turn the audio sys-
tem on and off, and turn it to adjust the
volume. For details, see page 146.
Quick reference

AUDIO SYSTEM
145
This section describes some of the basic
features of your audio system. Some in-
formation may not pertain to your system.
Vehicles with smart key system —
Your audio system works when the “EN-
GINE START STOP” switch is in ACCES-
SORY or IGNITION ON mode.
Vehicles without smart key system —
Your audio system works when the engine
switch is in “ACC” or “ON” position.
NOTICE
To prevent the battery from being dis-
charged, do not leave the audio sys-
tem on longer than necessary when
the engine is not running.
CAUTION
For vehicles sold in U.S.A. and
Canada:
 Part 15 of the FCC Rules
FCC Warning:
Changes or modifications in con-
struction not expressly approved by
the party responsible for compliance
could void the user’s authority to op-
erate the equipment.
 Laser products
 Do not take this unit apart or
attempt to make any changes
yourself. This is an intricate
unit that uses a laser pickup to
retrieve information from the
surface of compact discs. The
laser is carefully shielded so
that its rays remain inside the
cabinet. Therefore, never try to
disassemble the player or alter
any of its parts since you may
be exposed to laser rays and
dangerous voltages.
 This product utilizes a laser.
Use of controls or adjustments
or performance of procedures
other than those specified
herein may result in hazardous
radiation exposure.
Using your audio system —
— Some basics

AUDIO SYSTEM
146

Turning the system on and off
“AUDIO”:
Push this button to display
touch screen buttons for audio system (au-
dio control mode).
“PWR·VOL”: Push this knob to turn the
audio system on and off. Turn this knob to
adjust the volume. The system turns on in
the last mode used.
You can select the function that enables
automatic return to the previous screen
from the audio screen. See “(a) Automatic
transition” on page 139 for details.
Switching between functions
Push “AM·SAT”, “FM” or “DISC·AUX”
button to turn on the desired mode. The
selected mode turns on immediately.
Push these buttons if you want to switch
from one mode to another.
If the disc is not inserted, the “CD” screen
will not appear.

AUDIO SYSTEM
147
The function buttons for radio and CD play-
er operation are displayed on the screen
when the audio control mode is selected.Touch them lightly and directly on the
screen.
The selected button is highlighted.
INFORMATION

If the system does not respond to
a touch of a touch screen button,
move your finger away from the
screen and then touch it again.
 You cannot operate dimmed touch
screen buttons.
 Wipe off fingerprints using a glass
cleaning cloth. Do not use chemi-
cal cleaners to clean the touch
screen.

AUDIO SYSTEM
148

Tone and balance
How good an audio program sounds to you
is largely determined by the mix of the
treble and bass levels. In fact, different
kinds of music and vocal programs usually
sound better with different levels of treble
and bass.
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to a
stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.
1. Push the “AUDIO” button.
2. Touch “SOUND”.
3. Touch the desired button.
“TREB” “+” or “–”: Adjusts high −pitched
tones.
“BASS” “+” or “–”: Adjusts low− pitched
tones.
“FRONT” or “REAR”: Adjusts sound bal-
ance between the front and rear speakers.
“L” or “R”: Adjusts sound balance be-
tween the left and right speakers.
4. Touch “OK”.
The tone of each mode (for such as AM,
FM1 and CD player) can be adjusted.
