525
6-1. Specifications
6
Vehicle specifications
L/C200_U (OM60D97U)
■

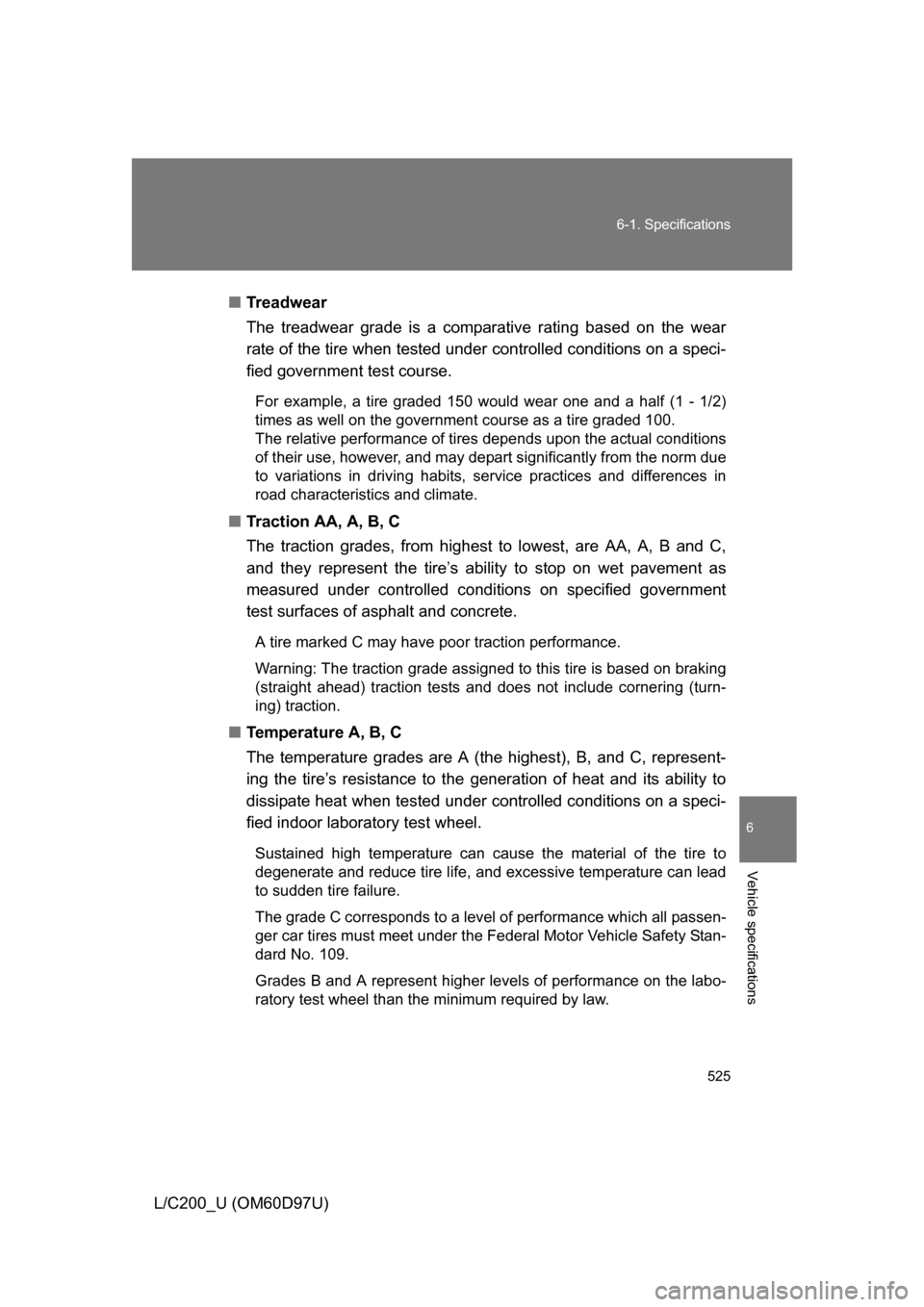

Treadwear
The treadwear grade is a comparative rating based on the wear
rate of the tire when tested under controlled conditions on a speci-
fied government test course.
For example, a tire graded 150 would wear one and a half (1 - 1/2)
times as well on the government course as a tire graded 100.
The relative performance of tires depends upon the actual conditions
of their use, however, and may depart significantly from the norm due
to variations in driving habits, service practices and differences in
road characteristics and climate.
■ Traction AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B and C,
and they represent the tire’s ab ility to stop on wet pavement as
measured under controlled cond itions on specified government
test surfaces of asphalt and concrete.
A tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is based on braking
(straight ahead) traction tests and does not include cornering (turn-
ing) traction.
■ Temperature A, B, C
The temperature grades are A (the highest), B, and C, represent-
ing the tire’s resistance to the generation of heat and its ability to
dissipate heat when tested under controlled conditions on a speci-
fied indoor laboratory test wheel.
Sustained high temperature can cause the material of the tire to
degenerate and reduce tire life, and excessive temperature can lead
to sudden tire failure.
The grade C corresponds to a level of performance which all passen-
ger car tires must meet under the Federal Motor Vehicle Safety Stan-
dard No. 109.
Grades B and A represent higher levels of performance on the labo-
ratory test wheel than the minimum required by law.
552
L/C200_U (OM60D97U)
What to do if...
What to do if...
A tire puncturesP. 476If you have a flat tire
The engine does not start
P. 9 5Engine immobilizer system
P. 489If the engine will not start
P. 497If the battery is discharged
The shift lever cannot be
moved outP. 491If the shift lever cannot be shifted
from “P”
The engine coolant temperature
gauge enters the red zone
Steam can be seen coming
from under the hood
P. 501If your vehicle overheats
The key is lostP. 492If you lose your keys
The battery runs outP. 497If the battery is discharged
The doors cannot be lockedP. 4 3Side doors
P. 4 8Back door
The horn begins to soundP. 9 7Alarm
The vehicle is stuck in mud
or sandP. 504If the vehicle becomes stuck
The warning light or indi-
cator light comes onP. 462If the warning light turns on
