1-7. Safety information
1
Before driving
L/C200_U (OM60D97U)

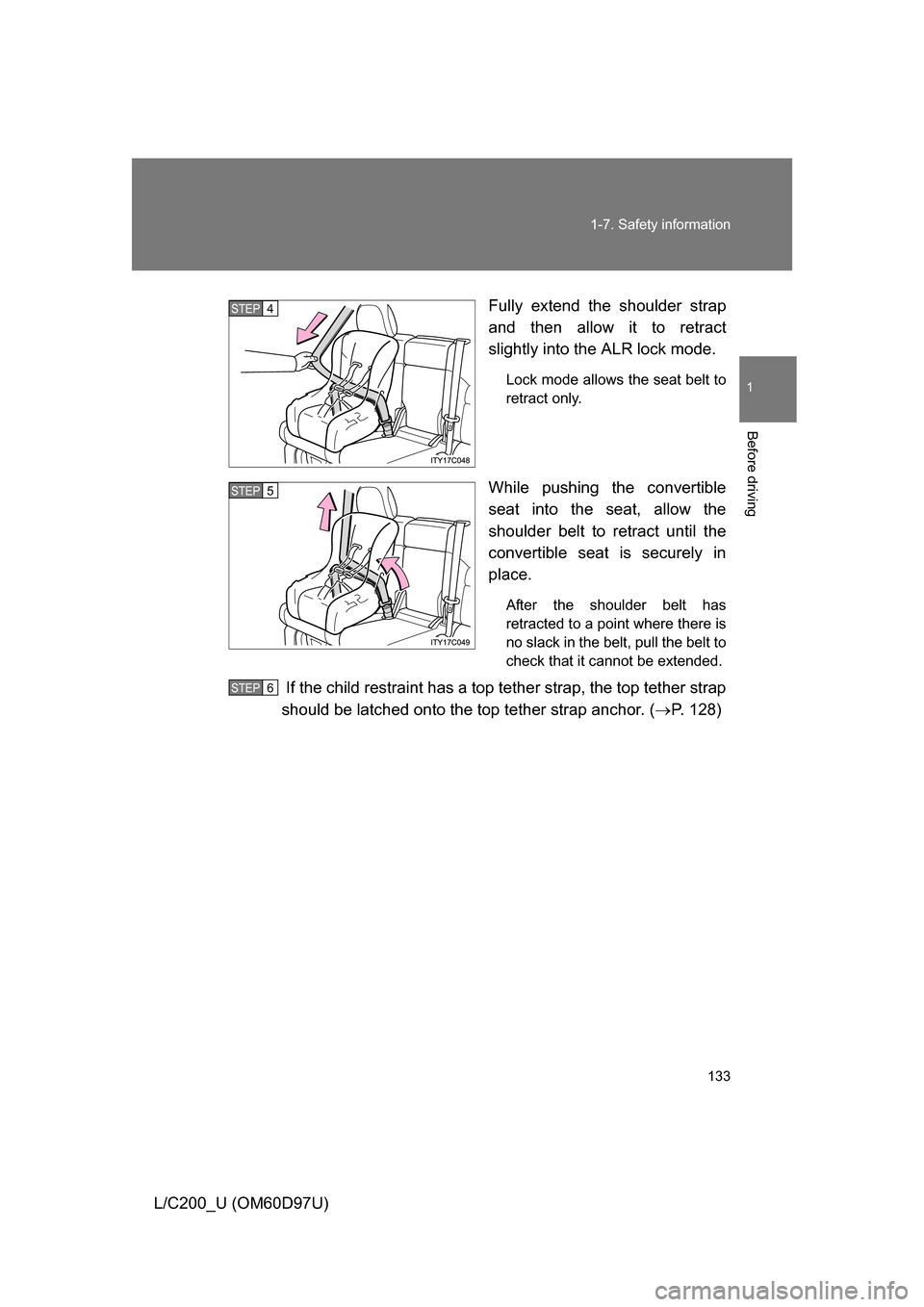

Fully extend the shoulder strap
and then allow it to retract
slightly into the ALR lock mode.
Lock mode allows the seat belt to
retract only.
While pushing the convertible
seat into the seat, allow the
shoulder belt to retract until the
convertible seat is securely in
place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
If the child restraint has a top tether strap, the top tether strap
should be latched onto the top tether strap anchor. (
P. 128)
STEP4
STEP5
STEP6

134 1-7. Safety information
L/C200_U (OM60D97U)■

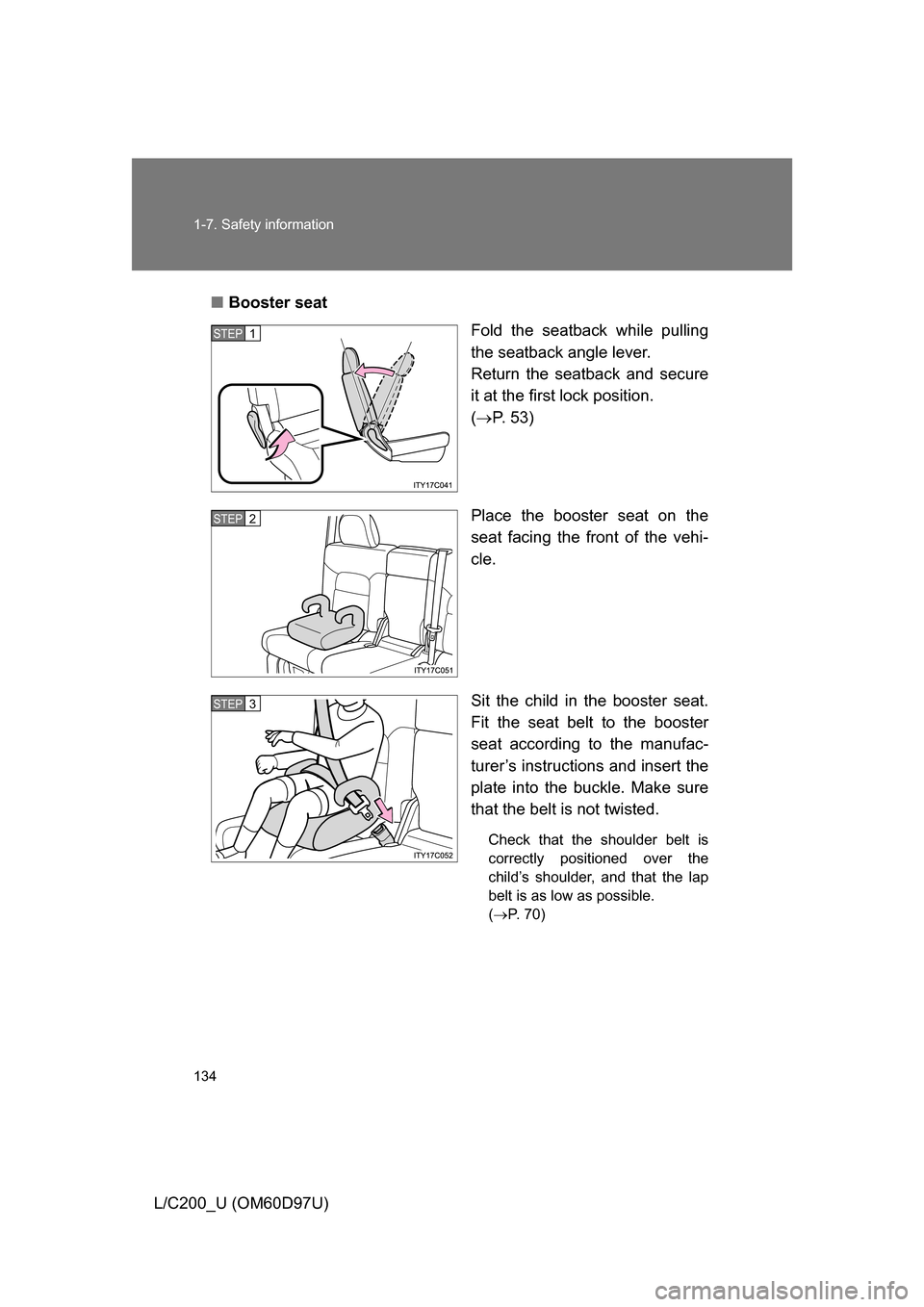

Booster seat
Fold the seatback while pulling
the seatback angle lever.
Return the seatback and secure
it at the first lock position.
( P. 53)
Place the booster seat on the
seat facing the front of the vehi-
cle.
Sit the child in the booster seat.
Fit the seat belt to the booster
seat according to the manufac-
turer’s instructions and insert the
plate into the buckle. Make sure
that the belt is not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder, and that the lap
belt is as low as possible.
( P. 70)
STEP1
STEP2
STEP3

135
1-7. Safety information
1
Before driving
L/C200_U (OM60D97U)

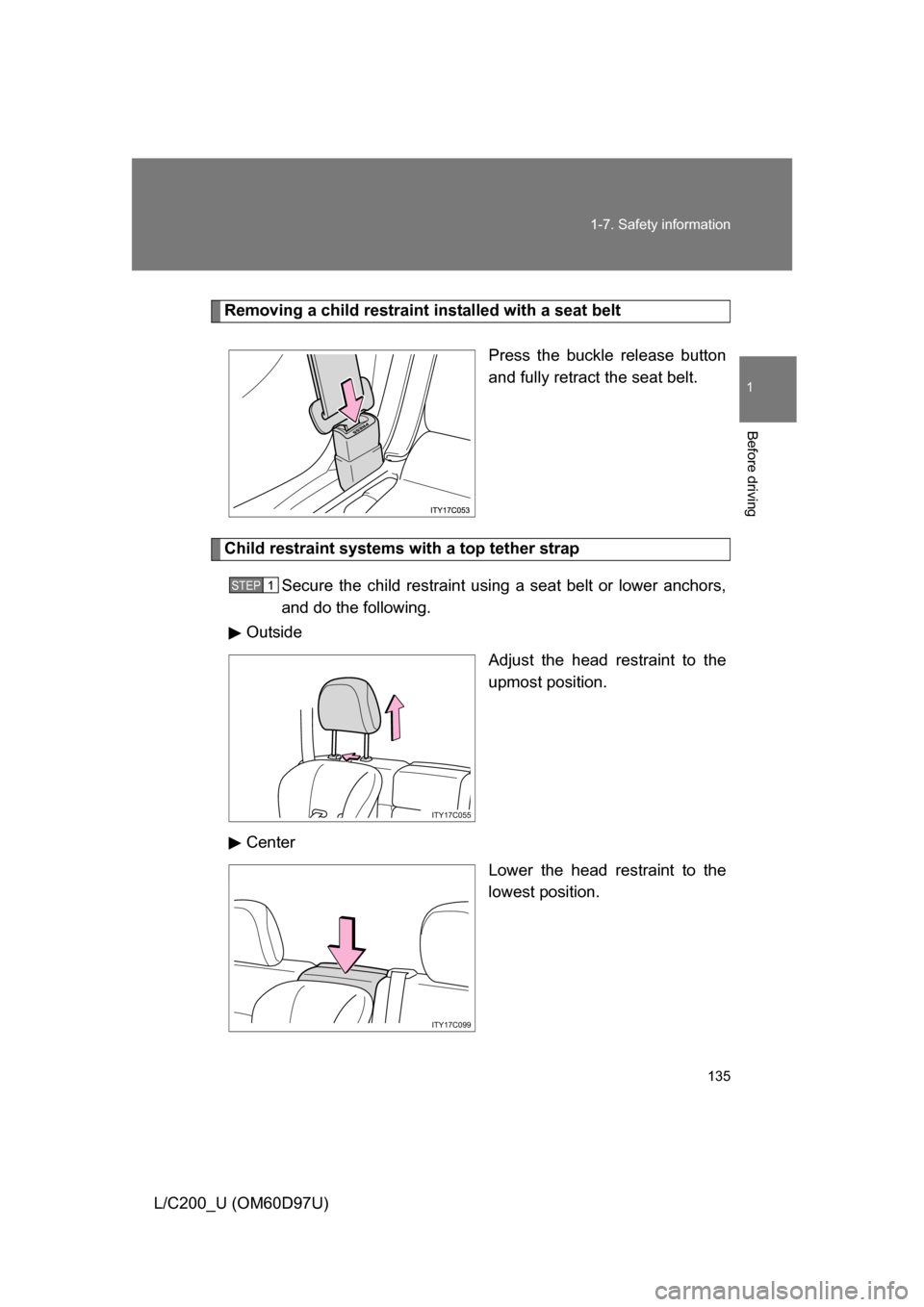

Removing a child restraint installed with a seat belt
Press the buckle release button
and fully retract the seat belt.
Child restraint systems with a top tether strapSecure the child restraint using a seat belt or lower anchors,
and do the following.
Outside
Adjust the head restraint to the
upmost position.
Center Lower the head restraint to the
lowest position.
STEP1
ITY17C055
STEP1
ITY17C099

136 1-7. Safety information

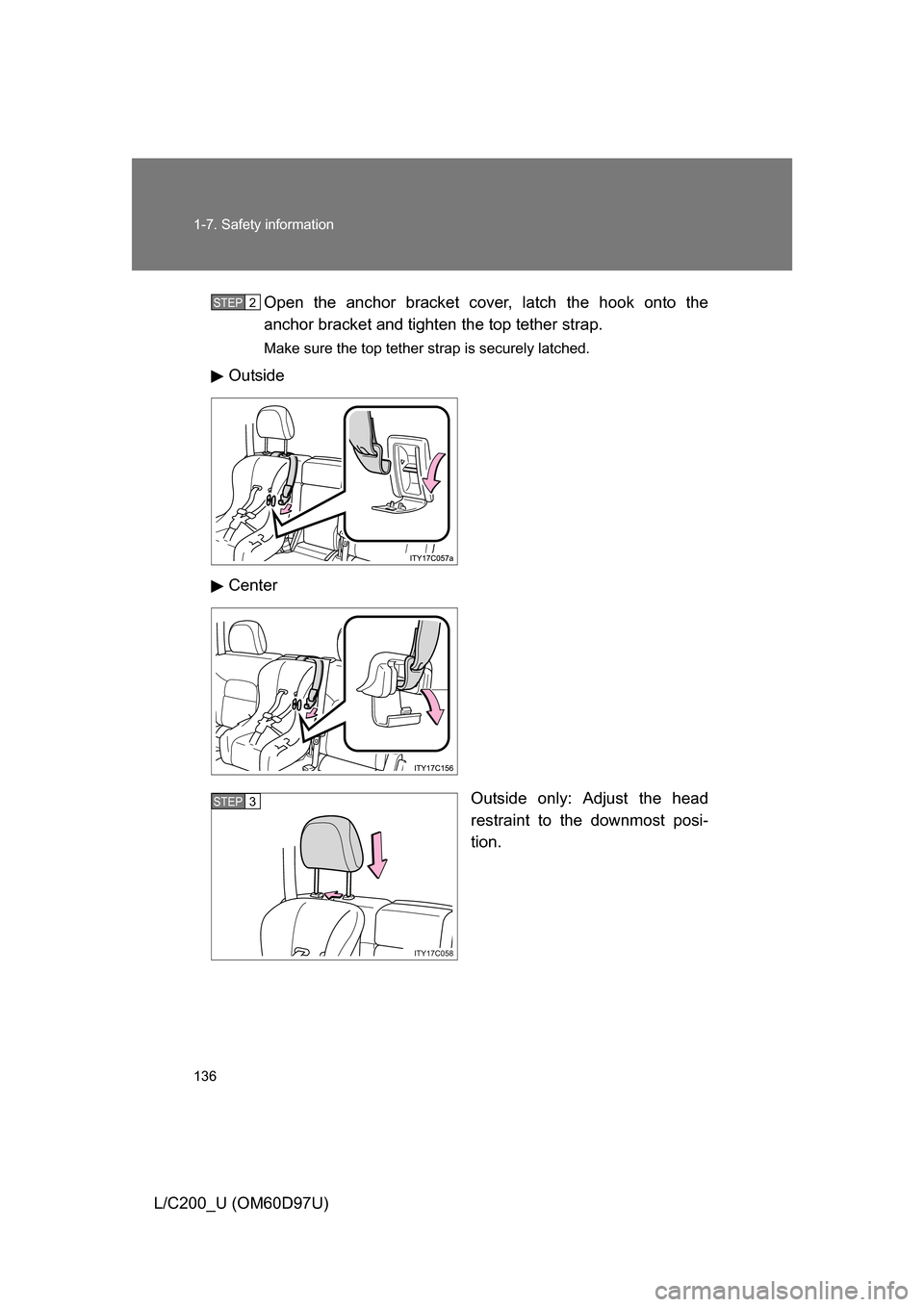

L/C200_U (OM60D97U)Open the anchor bracket cover, latch the hook onto the
anchor bracket and tighten
the top tether strap.
Make sure the top tether strap is securely latched.
Outside
Center
Outside only: Adjust the head
restraint to the downmost posi-
tion.
STEP2
ITY17C058
STEP3

138 1-7. Safety information
L/C200_U (OM60D97U)

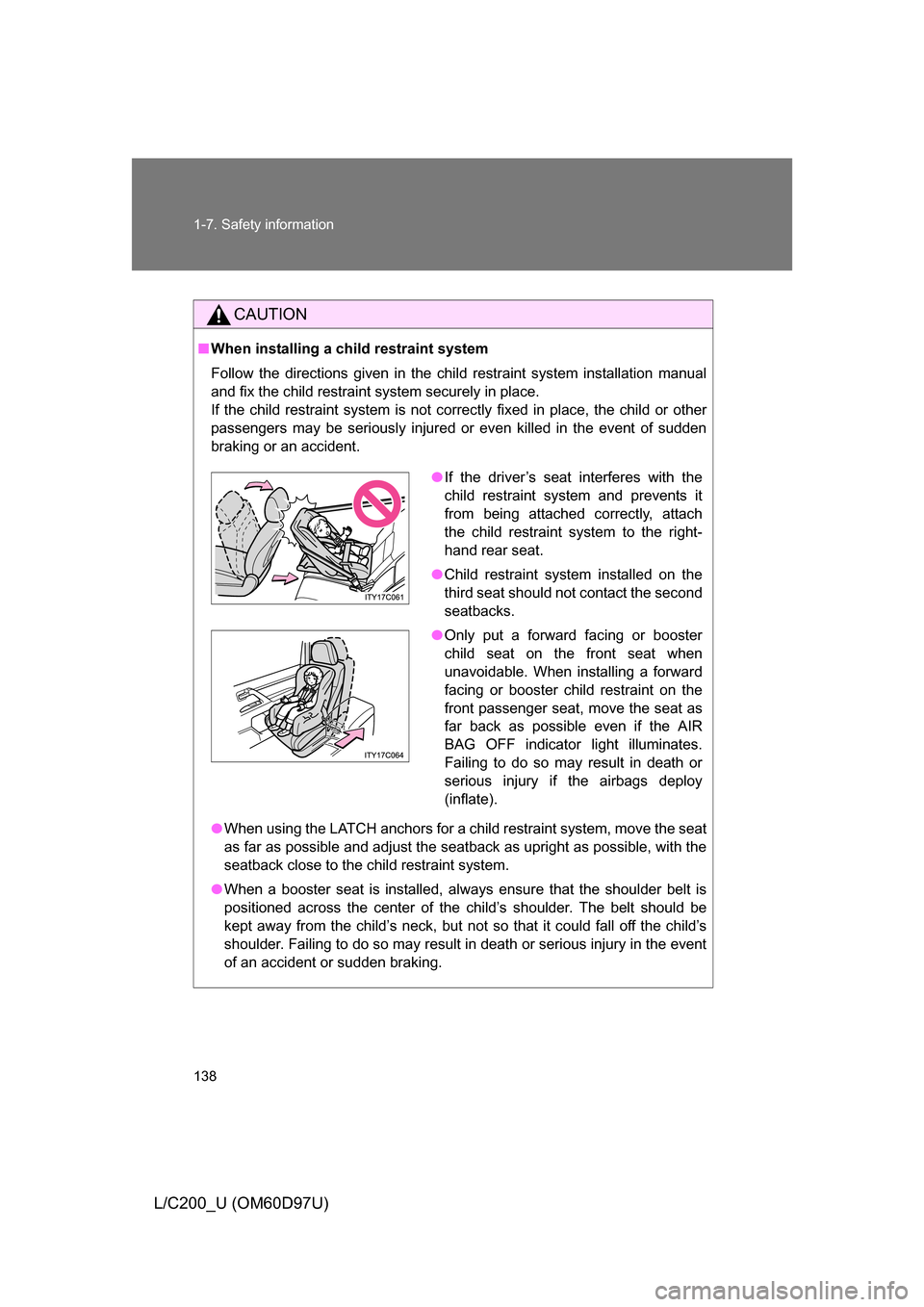

CAUTION
■When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking or an accident.
● When using the LATCH anchors for a child restraint system, move the seat
as far as possible and adjust the seatback as upright as possible, with \
the
seatback close to the child restraint system.
● When a booster seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of an accident or sudden braking.
●If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the right-
hand rear seat.
● Child restraint system installed on the
third seat should not contact the second
seatbacks.
● Only put a forward facing or booster
child seat on the front seat when
unavoidable. When installing a forward
facing or booster child restraint on the
front passenger seat, move the seat as
far back as possible even if the AIR
BAG OFF indicator light illuminates.
Failing to do so may result in death or
serious injury if the airbags deploy
(inflate).

139
1-7. Safety information
1
Before driving
L/C200_U (OM60D97U)

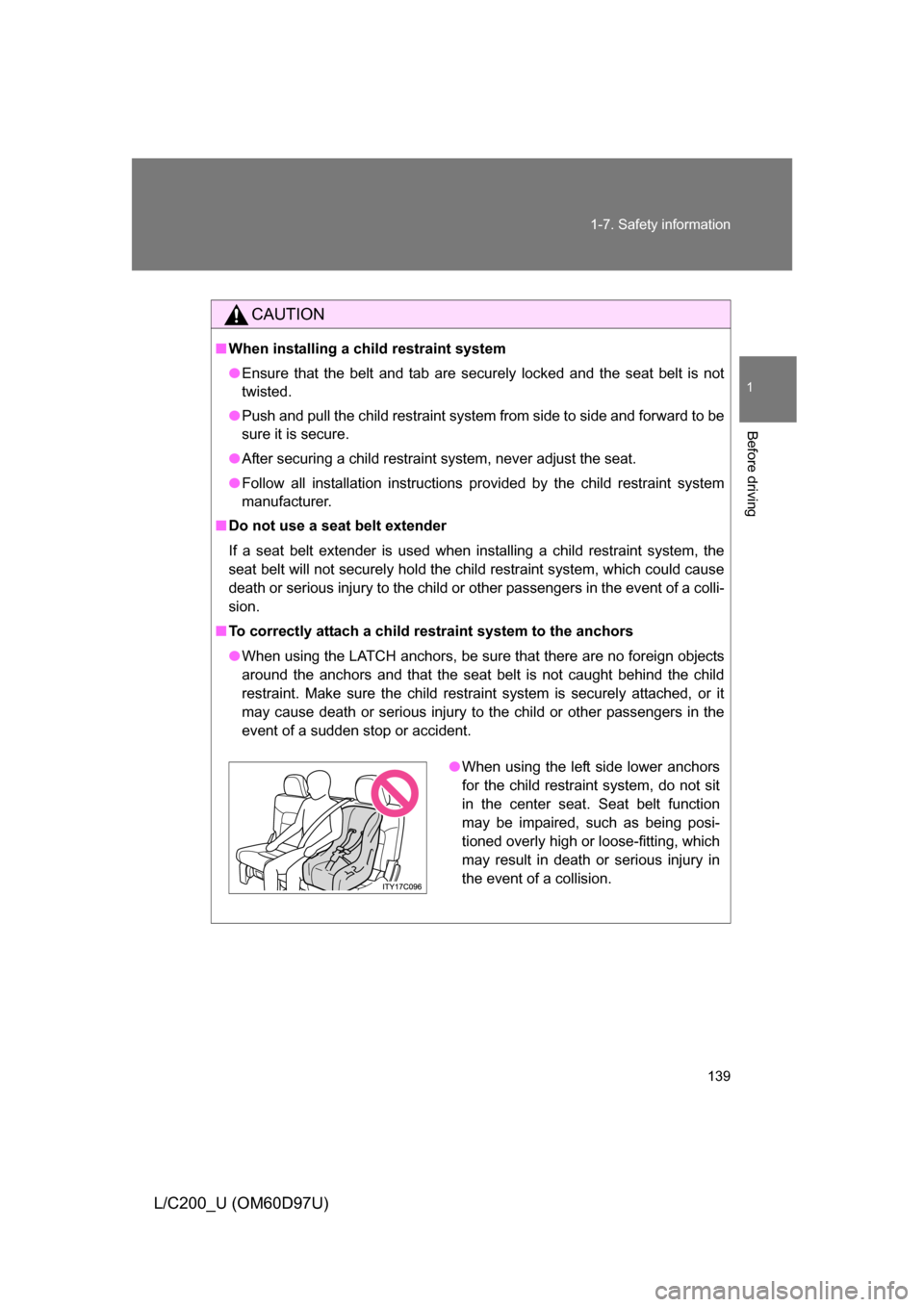

CAUTION
■
When installing a child restraint system
● Ensure that the belt and tab are securely locked and the seat belt is not
twisted.
● Push and pull the child restraint system from side to side and forward to be
sure it is secure.
● After securing a child restraint system, never adjust the seat.
● Follow all installation instructions provided by the child restraint system
manufacturer.
■ Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the
seat belt will not securely hold the child restraint system, which could cause
death or serious injury to the child or other passengers in the event of a colli-
sion.
■ To correctly attach a child r estraint system to the anchors
● When using the LATCH anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint. Make sure the child restraint system is securely attached, or it
may cause death or serious injury to the child or other passengers in the
event of a sudden stop or accident.
● When using the left side lower anchors
for the child restraint system, do not sit
in the center seat. Seat belt function
may be impaired, such as being posi-
tioned overly high or loose-fitting, which
may result in death or serious injury in
the event of a collision.

148 2-1. Driving procedures
L/C200_U (OM60D97U)
CAUTION
■When taking a nap in the vehicle
Always turn the engine off. Otherwise, you may accidentally move the shift
lever or depress the accelerator pedal, which could cause an accident or fire
due to engine overheating. Additionally, if the vehicle is parked in a poorly
ventilated area, exhaust gases may collect and enter the vehicle, leadin\
g to
death or a serious health hazard.
■ When braking the vehicle
● When the brakes are wet, drive more cautiously.
Braking distance increases when the brakes are wet, and may cause one
side of the vehicle to brake differently than the other side. Also the parking
brake may not securely hold the vehicle.
● If the power brake assist function does not operate, do not follow other
vehicles closely and avoid downhill or sharp turns that require braking.
In this case, braking is still possible, but it will require more force on the
pedal than usual. Braking distance may also increase.
● Do not pump the brake pedal if the engine stalls.
Each push on the brake pedal uses up the reserve for the power-assisted
brakes.
● The brake system consists of 2 individual hydraulic systems: if one of the
systems fails, the other will still operate. In this case, the brake pedal
should be depressed more firmly than usual and braking distance
becomes longer.
Do not drive your vehicle with only a single brake system. Have your
brakes fixed immediately.

225
2-5. Driving information
2
When driving
L/C200_U (OM60D97U)
Cargo and luggage
Take notice of the following information about storage precau-
tions, cargo capacity and load.
●Stow cargo and luggage in the luggage compartment when-
ever possible. Be sure all items are secured in place.
● Be careful to keep the vehicle le vel. Placing the weight as far
forward as possible helps maintain vehicle balance.
● For better fuel economy, do no t carry unnecessary weight.
■ Roof luggage carrier
Roof rails
Cross rails
1
2
ITY25C039
