2009 TOYOTA LAND CRUISER window

20
L/C200_U (OM60D97U)
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that will hurt or kill you,
your occupants or others.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■ General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the cigarette lighter, the windows, the moon roof, or other features of the
vehicle. In addition, heat build-up or extremely cold temperatures inside the
vehicle can be fatal to children.

Before driving1
23
L/C200_U (OM60D97U)
1-1. Key information................ 24Keys ................................... 24
1-2. Opening, closing and locking the doors ........... 26
Smart key system .............. 26
Wireless remote control ..... 40
Side doors .......................... 43
Back door ........................... 48
1-3. Adjustable components (seats, mirrors,
steering wheel)............... 51
Front seats ......................... 51
Rear seats.......................... 53
Driving position memory system ............................. 62
Head restraints................... 66
Seat belts ........................... 70
Steering wheel ................... 79
Inside rear view mirror ....... 81
Outside rear view mirrors.............................. 82 1-4. Opening and closing
the windows and
moon roof ....................... 85
Power windows .................. 85
Moon roof ........................... 88
1-5. Refueling........................... 91 Opening the fuel tank cap ................................... 91
1-6. Theft deterrent system .... 95 Engine immobilizer system ............................. 95
Alarm.................................. 97
Theft prevention labels....... 99
1-7. Safety information ......... 100 Correct driving posture..... 100
SRS airbags ..................... 102
Front passenger occupant classification system ...... 117
Child restraint systems..... 123
Installing child restraints ........................ 127

27
1-2. Opening, closing and locking the doors
1
Before driving
L/C200_U (OM60D97U)

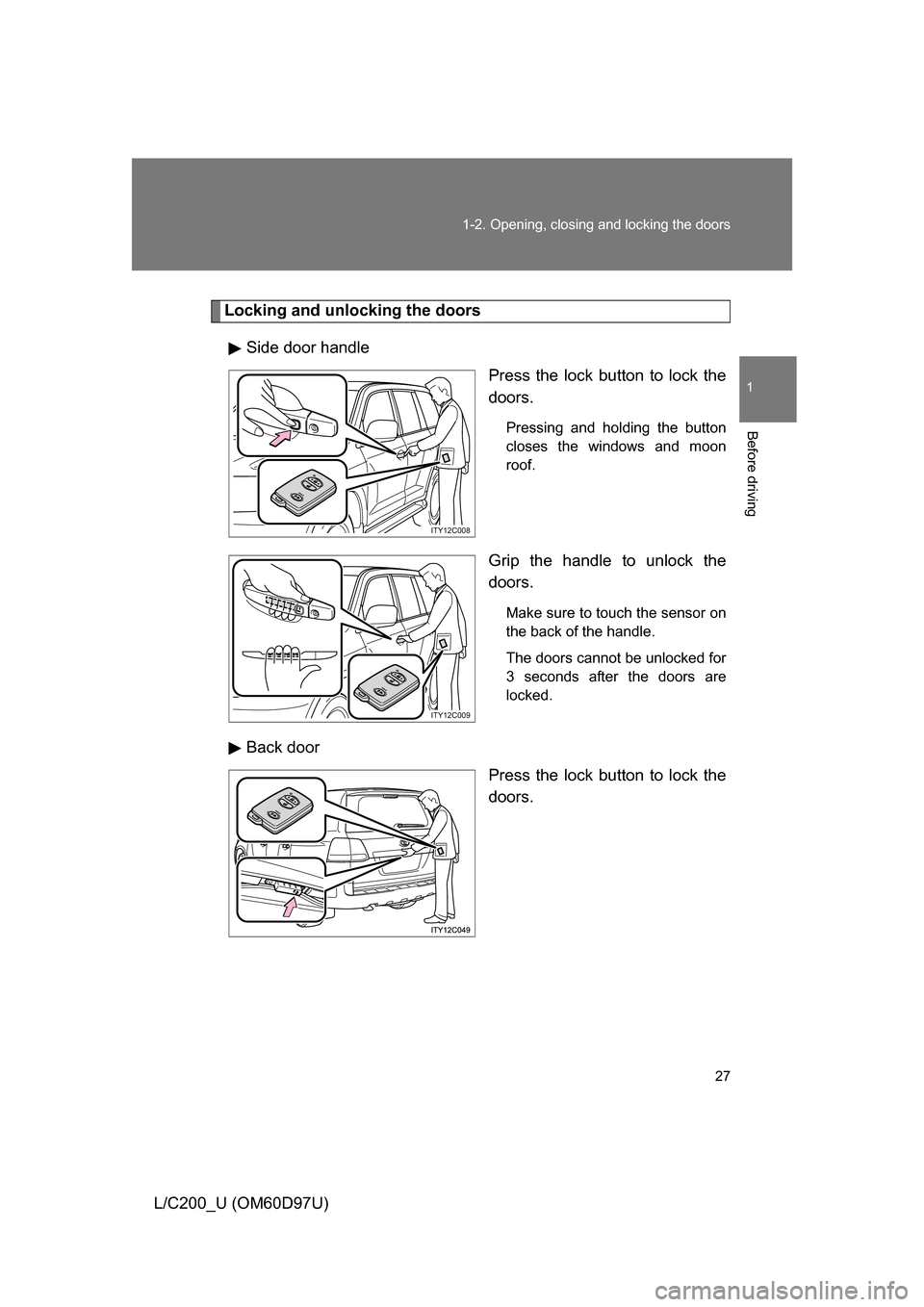

Locking and unlocking the doors
Side door handle Press the lock button to lock the
doors.
Pressing and holding the button
closes the windows and moon
roof.
Grip the handle to unlock the
doors.
Make sure to touch the sensor on
the back of the handle.
The doors cannot be unlocked for
3 seconds after the doors are
locked.
Back doorPress the lock button to lock the
doors.
ITY12C008
ITY12C009

30 1-2. Opening, closing and locking the doors
L/C200_U (OM60D97U)
■Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
■ Door lock buzzer
If a door is not fully closed, a buzzer sounds continuously if an attempt to
lock the door is made. Fully close the door to stop the buzzer, and lock the
vehicle once more.
■ Conditions affecting operation
The smart key system uses weak radio waves. In the following situations,
the communication between the electronic key and the vehicle may be
affected, preventing the smart key system and wireless remote control from
operating properly. (Way of coping P. 494)
● When the electronic key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electri-
cal noise
● When carrying a portable radio, ce llular phone, cordless phone or other
wireless communication devices
● When the electronic key has come into contact with, or is covered by a
metallic object
● When multiple electronic keys are in the vicinity
● When carrying or using the electronic key together with the following
devices that emit radio waves
• Another vehicle’s electronic key
• A wireless key that emits radio waves
• Personal computer
● If window tint with a metallic content or metallic objects are attached to
the rear window

33
1-2. Opening, closing and locking the doors
1
Before driving
L/C200_U (OM60D97U)
■
Note for the smart key system
● Even when the electronic key is within the effective range (detection
areas), the system may not operate properly in the following cases.
• The electronic key is too close to the window or outside door handle,
near the ground, or in a high place when the doors are locked or
unlocked.
• The electronic key is near the ground or in a high place, or too close to the rear bumper center when the back door is locked or unlocked.
• The electronic key is on the instrument panel, floor or in the glove box when the engine is started or “ENGINE START STOP” switch modes
are changed.
● As long as the electronic key is within the effective range, the doors may
be locked or unlocked by anyone.
● Even if the electronic key is not inside the vehicle, it may be possible to
start the engine if the electronic key is near the window.
● The doors may unlock if a large amount of water splashes on the door
handle, such as in the rain or in a car wash. (The doors will automatically
be locked after approximately 60 seconds if the doors are not opened
and closed.)
● Gripping the door handle when wearing a glove may not unlock the door.
● If the wireless remote control is used to lock the doors when the elec-
tronic key is near the vehicle, there is a possibility that the door may not
be unlocked by the smart key system. (Use the wireless remote control to
unlock the doors.)
● A sudden approach to the effective range or door handle operation may
prevent the doors from being unlocked. In this case, return the door han-
dle to the original position and check that the doors unlock before pulling
the door handle.
■ When the vehicle is not dr iven for extended periods
To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2
m) of the vehicle.
■ Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.

40
1-2. Opening, closing and locking the doors
L/C200_U (OM60D97U)

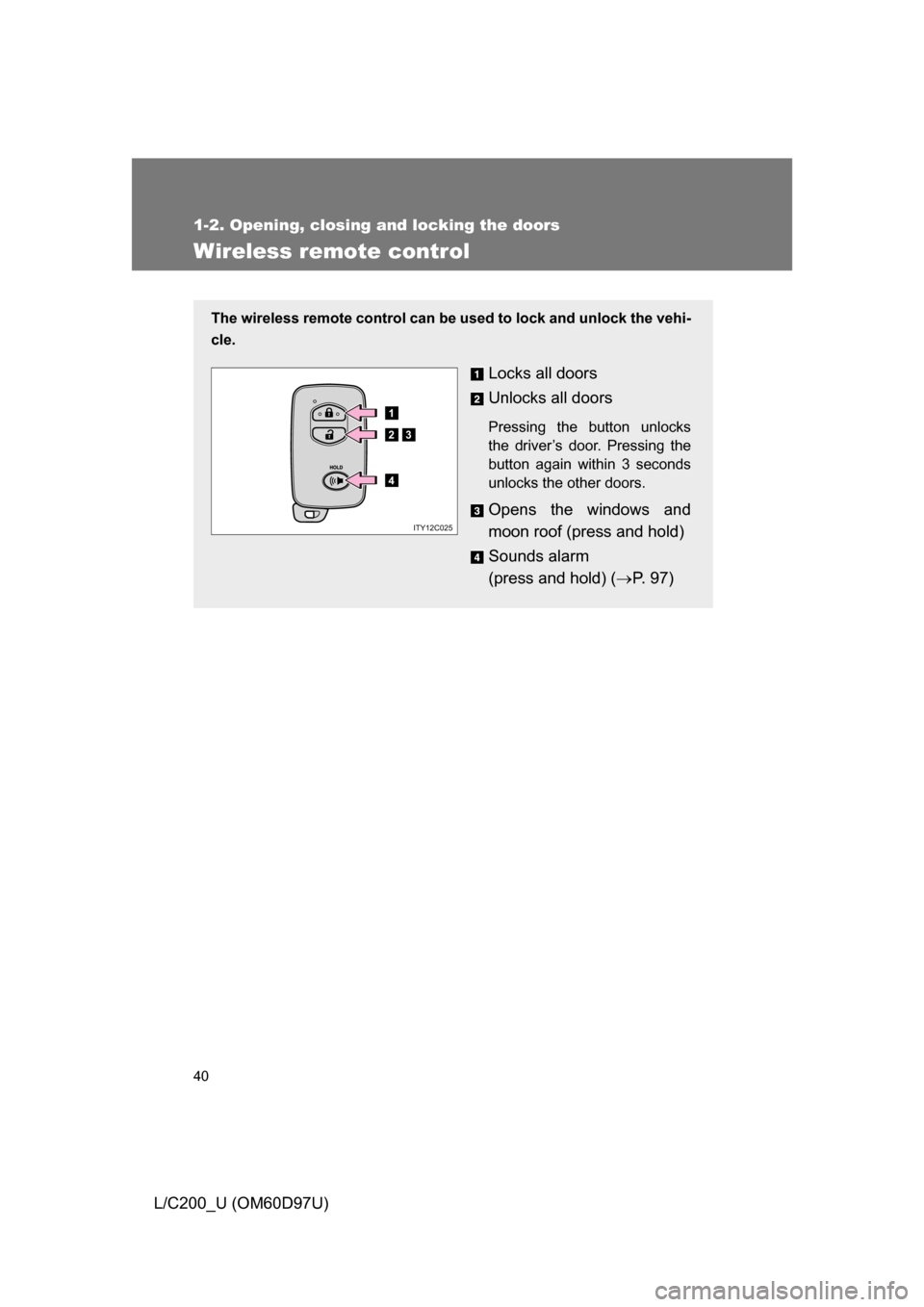

Wireless remote control
The wireless remote control can be used to lock and unlock the vehi-
cle.
Locks all doors
Unlocks all doors
Pressing the button unlocks
the driver’s door. Pressing the
button again within 3 seconds
unlocks the other doors.
Opens the windows and
moon roof (press and hold)
Sounds alarm
(press and hold) ( P. 9 7 )
1
2
4
3
ITY12C025

41
1-2. Opening, closing and locking the doors
1
Before driving
L/C200_U (OM60D97U)
■
Operation signals
Doors: A buzzer sounds and the emergency flashers flash to indicate that
the doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)
Windows and moon roof: A buzzer s ounds when the windows and moon roof
begin to open.
■ Door lock buzzer
 P. 3 0
■ Security feature
 P. 3 3
■ Alarm
Using the wireless remote control to lock the door will set the alarm system.
(P. 97)
■ Electronic key battery depletion
 P. 494
■ If the wireless remote cont rol does not operate properly
● Locking and unlocking the doors: Use the mechanical key. ( P. 494)
● Starting the engine ( P. 151)
■ When the electronic key battery is fully depleted
 P. 423
■ Conditions aff ecting operation
 P. 3 0
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. 2-step unlocking function) can be changed. (Customizable
features P. 533)

85
1
Before driving
L/C200_U (OM60D97U)

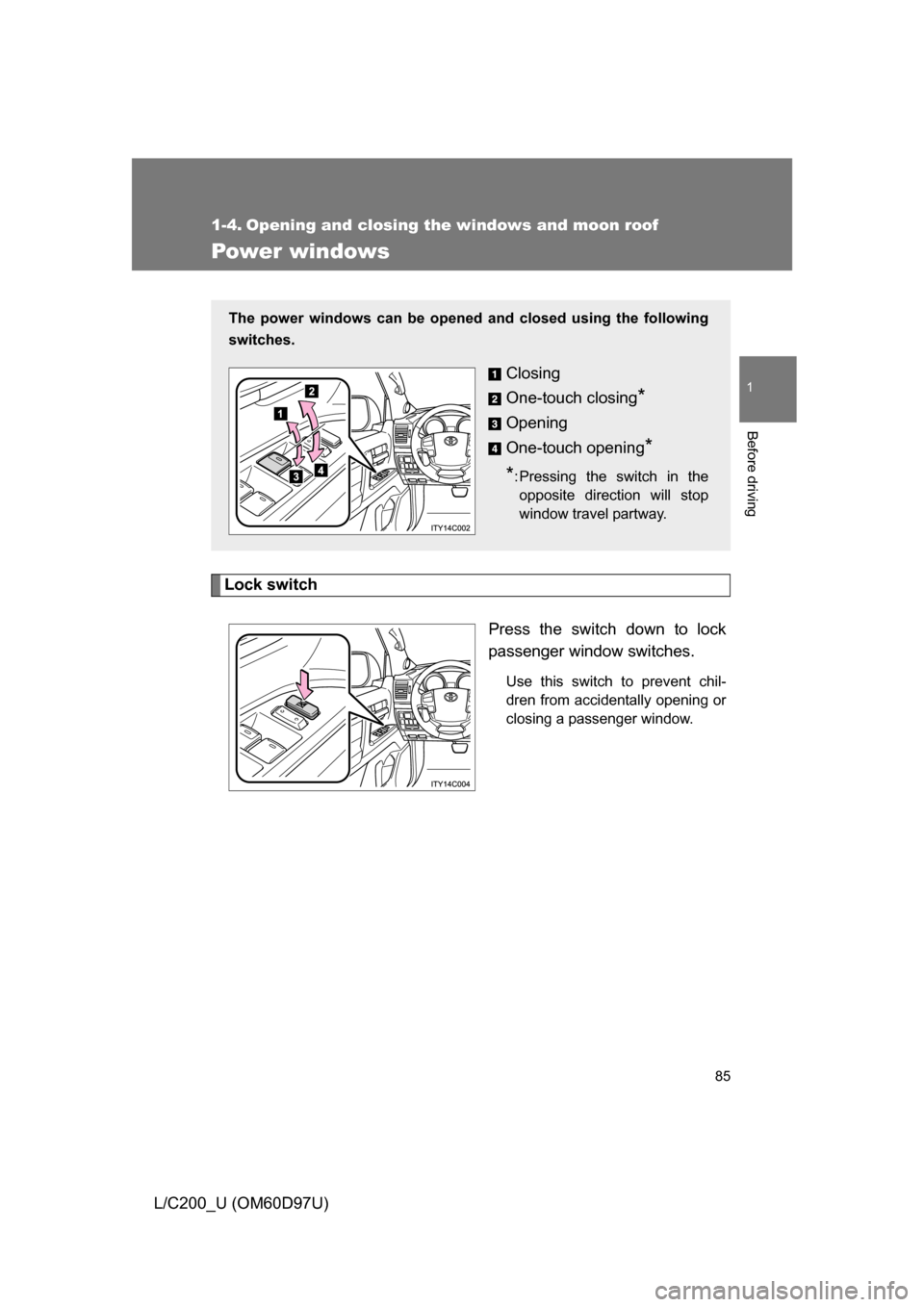

1-4. Opening and closing the windows and moon roof
Power windows
Lock switchPress the switch down to lock
passenger window switches.
Use this switch to prevent chil-
dren from accidentally opening or
closing a passenger window.
The power windows can be opened and closed using the following
switches.
Closing
One-touch closing
*
Opening
One-touch opening
*
*
: Pressing the switch in the opposite direction will stop
window travel partway.
