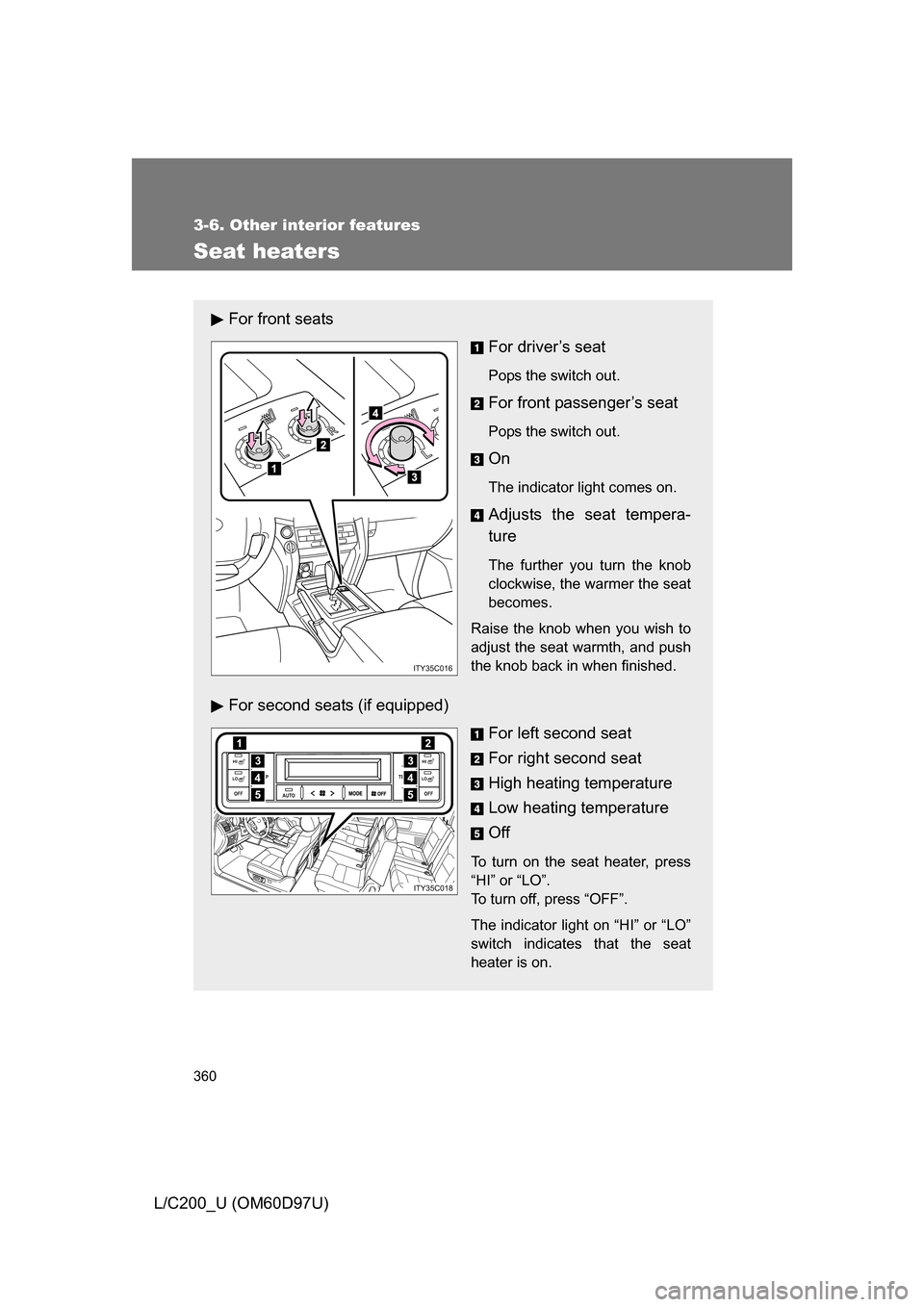

360
3-6. Other interior features
L/C200_U (OM60D97U)
Seat heaters
For front seatsFor driver’s seat
Pops the switch out.
For front passenger’s seat
Pops the switch out.
On
The indicator light comes on.
Adjusts the seat tempera-
ture
The further you turn the knob
clockwise, the warmer the seat
becomes.
Raise the knob when you wish to
adjust the seat warmth, and push
the knob back in when finished.
For second seats (if equipped) For left second seat
For right second seat
High heating temperature
Low heating temperature
Off
To turn on the seat heater, press
“HI” or “LO”.
To turn off, press “OFF”.
The indicator light on “HI” or “LO”
switch indicates that the seat
heater is on.
L
R
L
ITY35C016
AUTO
TEMP
OFF TEMP
HI
LOOFF
HI
LO4
12
3
5
4
3
5
ITY35C018

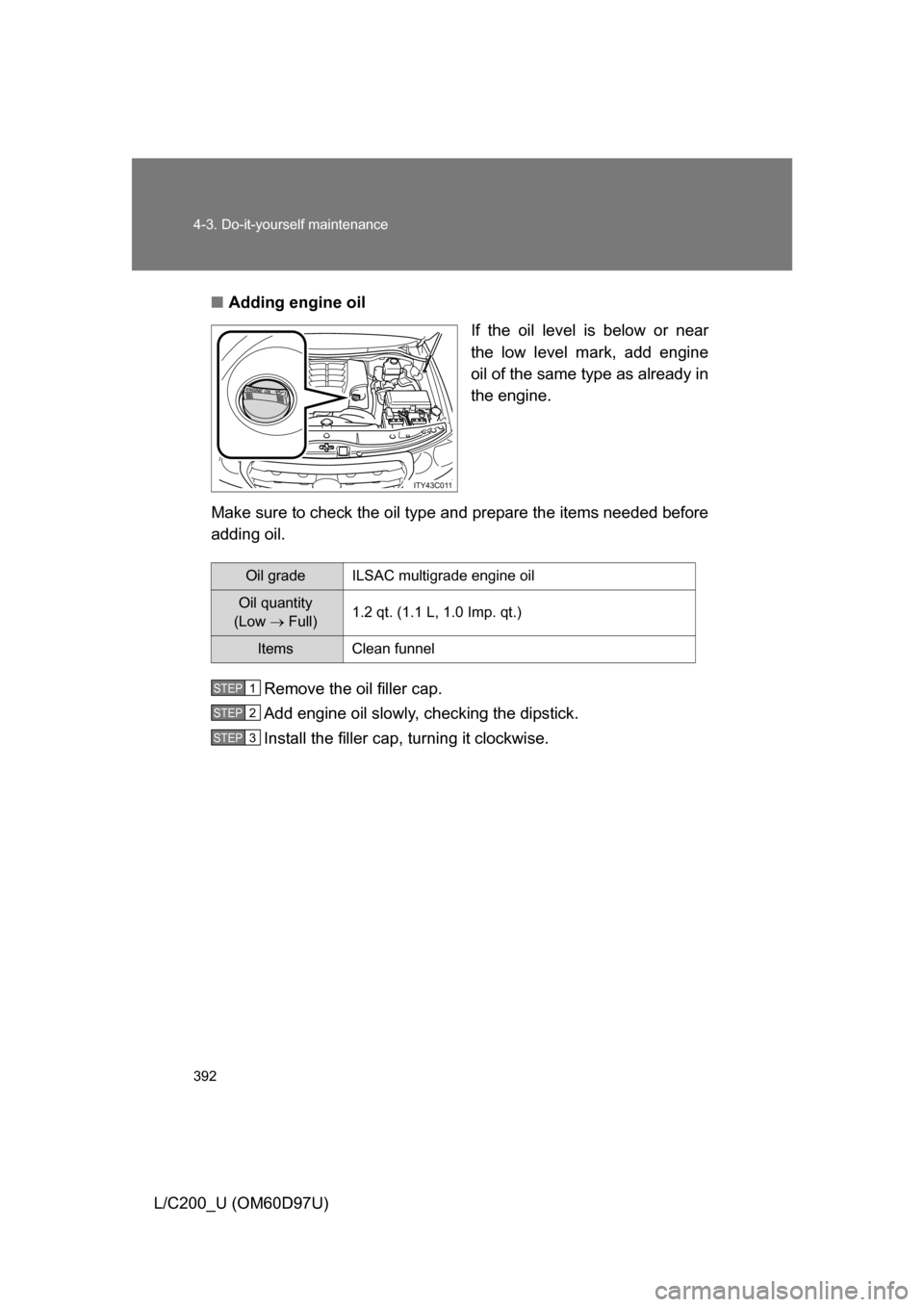

392 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)■
Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as already in
the engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap.
Add engine oil slowly, checking the dipstick.
Install the filler cap, turning it clockwise.
ITY43C011
Oil gradeILSAC multigrade engine oil
Oil quantity
(Low  Full)1.2 qt. (1.1 L, 1.0 Imp. qt.)
ItemsClean funnel
STEP1
STEP2
STEP3

400 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)
Power steering fluid■ Fluid level
The fluid level should be within the appropriate range.
Full (when hot)
Add fluid (when hot)
Full (when cold)
Add fluid (when cold)
Hot:Vehicle has been driven around 50 mph (80 km/h) for 20 min- utes, or slightly longer in frigid temperatures. (Fluid tempera-
ture, 140°F - 175°F [60°C - 80°C]).
Cold:Engine has not been run for about five hours. (Room temper- ature, 50°F - 85°F [10°C - 30°C]).
■ Checking the fluid level
Make sure to check the fluid type and prepare the necessary items.
Clean all dirt off the reservoir.
Remove the cap by turning it counterclockwise.
Wipe the dipstick clean.
Reinstall and remove the reservoir cap again.
Check the fluid level.
1
23
4
ITY43C070
Fluid typeAutomatic transmission fluid DEXRON® II or III
ItemsRag or paper, Clean funnel (only for adding fluid)
STEP1
STEP2
STEP3
STEP4
STEP5

432 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)
41ECU-B25 ADriving position memory sys-
tem
42TEL5 A
No circuit
43RSE7.5 A Rear seat entertainment
44TOWING30 ATo w i n g
45DOOR NO.225 A
Main body ECU
46STR LOCK20 ASteering lock system
47TURN-HAZ15 AMeter, front turn signal lights,
rear turn signal lights, towing
converter
48EFI MAIN220 A
Fuel pump
49ETCS10 A
EFI
50ALT-S5 AIC-ALT
51AMP30 A Audio system
52RAD NO.110 ANavigation system, radio
receiver assembly
53ECU-B15 ASmart key system, overhead
module, tilt and telescopic
steering, meter, cool box, gate-
way ECU, steering sensor
54DOME15 A
Door courtesy lights, clock
55HEAD LH15 A Headlight high beam (left)
56HEAD LL15 AHeadlight low beam (left)
57INJ10 A
Injector, ignition
58MET5 AMeter
59IGN10 A Circuit open, SRS airbag sys-
tem, gateway ECU, occupant
detection system, smart key
system, ABS, VSC, steering
lock system, GBS
60HEAD RH15 A
Headlight high beam (right)
FuseAmpereCircuit

434 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)■
Driver’s side instrument panel
FuseAmpereCircuit
1CIG15 A Cigarette lighter
2BK/UP LP10 A Back-up lights, trailer
3ACC7.5 A Stereo component amplifier
assembly, multi-display
assembly, gateway ECU, radio
receiver assembly, main body
ECU, mirror ECU, rear seat
entertainment, smart key sys-
tem, clock
4PA N E L10 AFour-wheel drive system, ash-
tray, cigarette lighter, brake
controller, cool box, cruise con-
trol, center differential lock,
DAC, multi-display assembly,
seat heater, air conditioning
system, glove box light, emer-
gency flasher, radio receiver
assembly, headlight cleaner,
inverter, driving position mem-
ory system, mirror ECU, over-
head module, roll sensing of
curtain shield airbags off
switch, shift lever switch, steer-
ing switches, VSC, console
switch

435
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60D97U)
5ECU-IG NO.210 A
Air conditioning system,
heater, overhead module,
ABS, VSC, steering sensor,
yaw rate & G sensor, main
body ECU, stoplights, moon
roof, clock, EC mirror
6WINCH5 A No circuit
7A/C IG10 A
Cool box, condenser fan,
cooler compressor, MG CL,
rear window defogger, RR
MGC VLV
8TA I L15 ATail lights, license plate lights,
front fog lights, front side
marker lights, rear side marker
lights, parking lights
9WIPER30 A Windshield wiper
10WSH20 A Windshield washer
11RR WIPER15 A Rear wiper
124WD20 A 4WD
13LH-IG5 AAlternator, sub battery, seat
heater, windshield wiper de-
icer, seat belt pretensioners,
emergency flasher, inverter,
shift lever switch
14ECU-IG NO.15 AABS, VSC, tilt and telescopic
steering, gateway ECU, shift
lock system, cruise control sys-
tem, pre-collision seat belt,
headlight cleaner, multi-dis-
play assembly, driving position
memory system, power door
lock system
15S/ROOF25 A Moon roof
FuseAmpereCircuit

440 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)
Replacing light bulbs■ Headlight low beam
Turn the bulb base counterclock-
wise.
■Rear bulb locations
ITY43C075
License plate lights
Rear turn signal
light
Back-up light
ITY43C038
STEP1

441
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60D97U)
Unplug the connector while
depressing the lock release.
■ Headlight high beam
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
ITY43C039
STEP2
ITY43C040
STEP1
ITY43C041
STEP2
