442 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)■

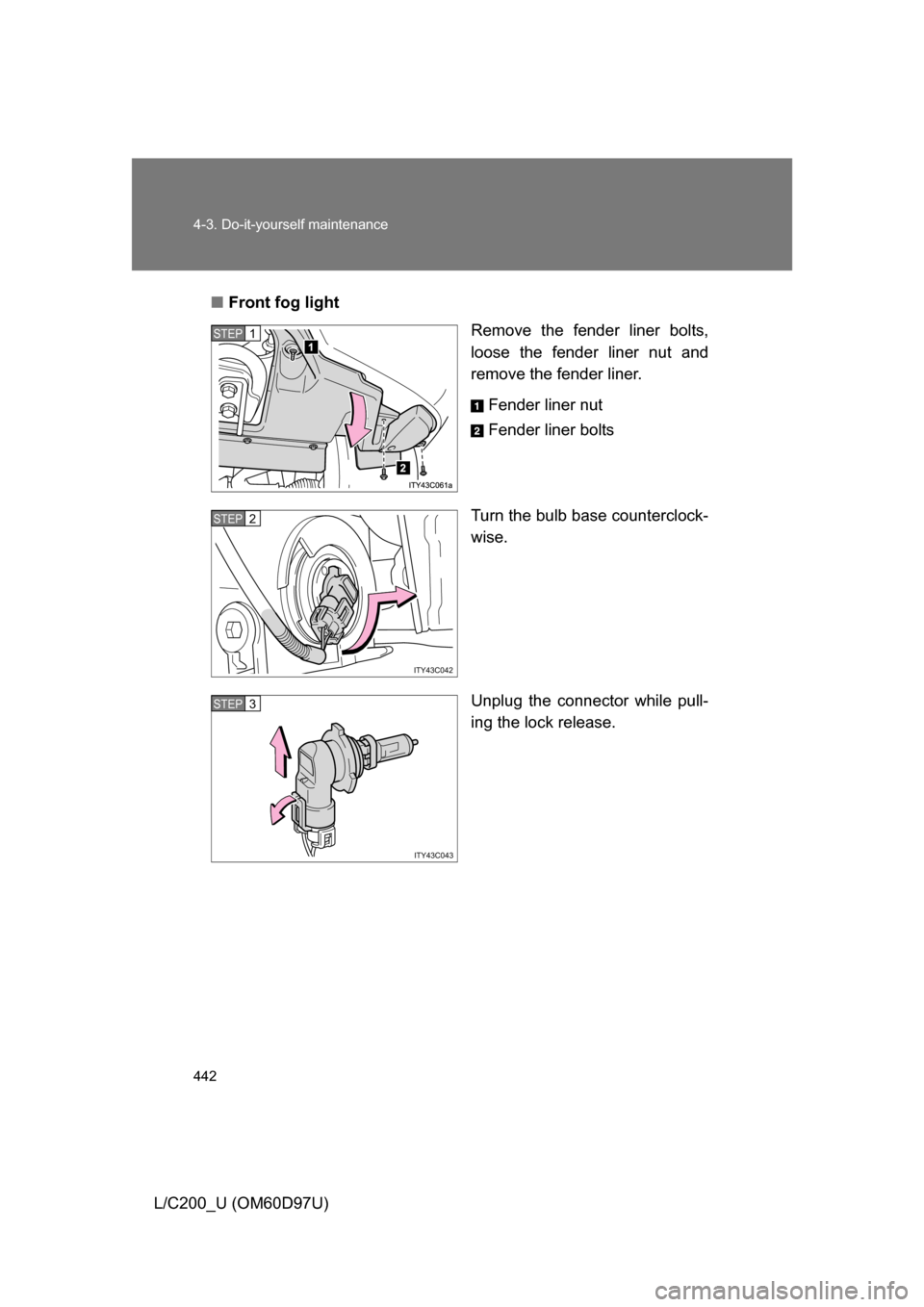

Front fog light
Remove the fender liner bolts,
loose the fender liner nut and
remove the fender liner.
Fender liner nut
Fender liner bolts
Turn the bulb base counterclock-
wise.
Unplug the connector while pull-
ing the lock release.
STEP1
ITY43C042
STEP2
ITY43C043
STEP3

443
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60D97U)
■

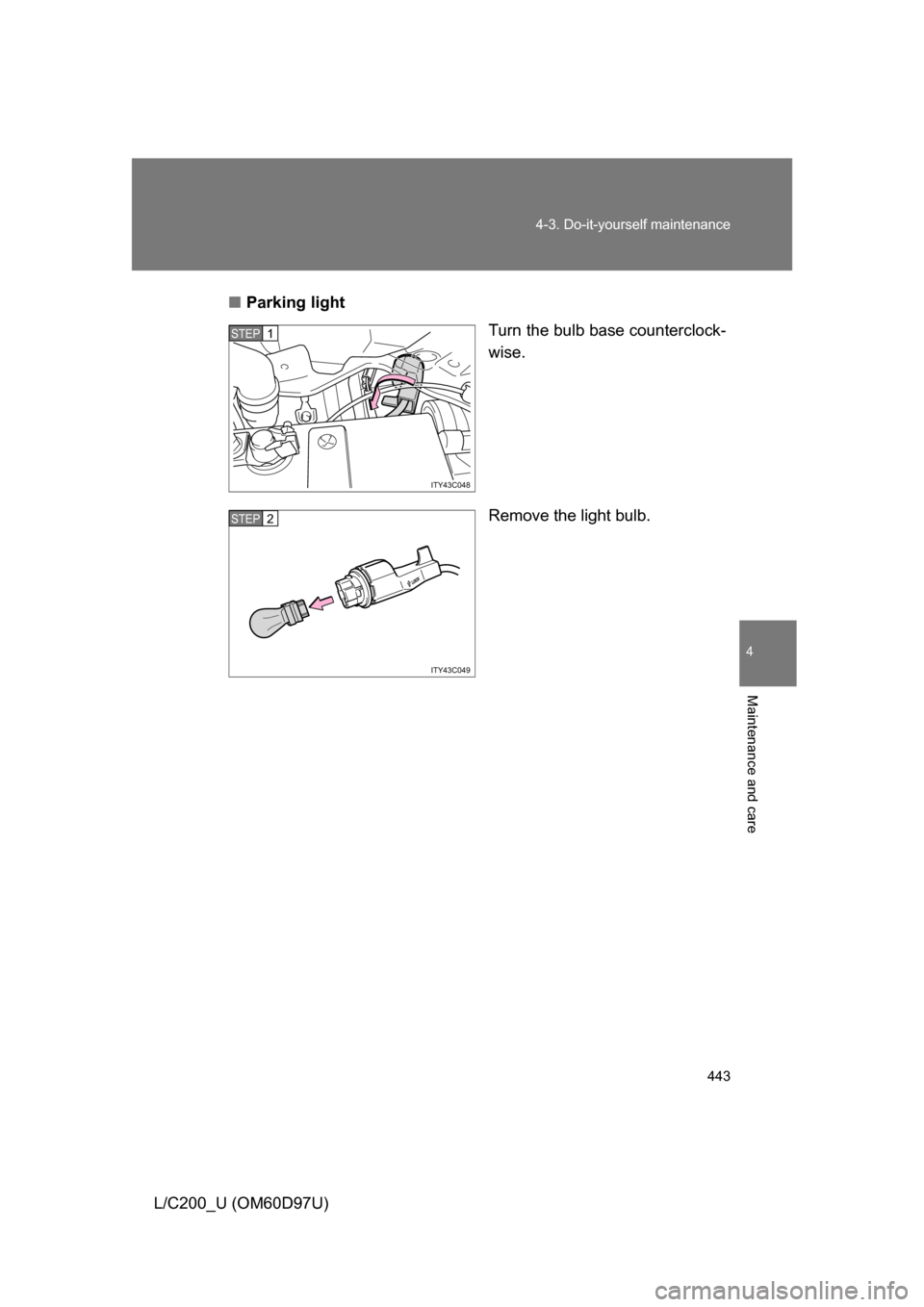

Parking light
Turn the bulb base counterclock-
wise.
Remove the light bulb.
ITY43C048
STEP1
ITY43C049
STEP2

444 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)■

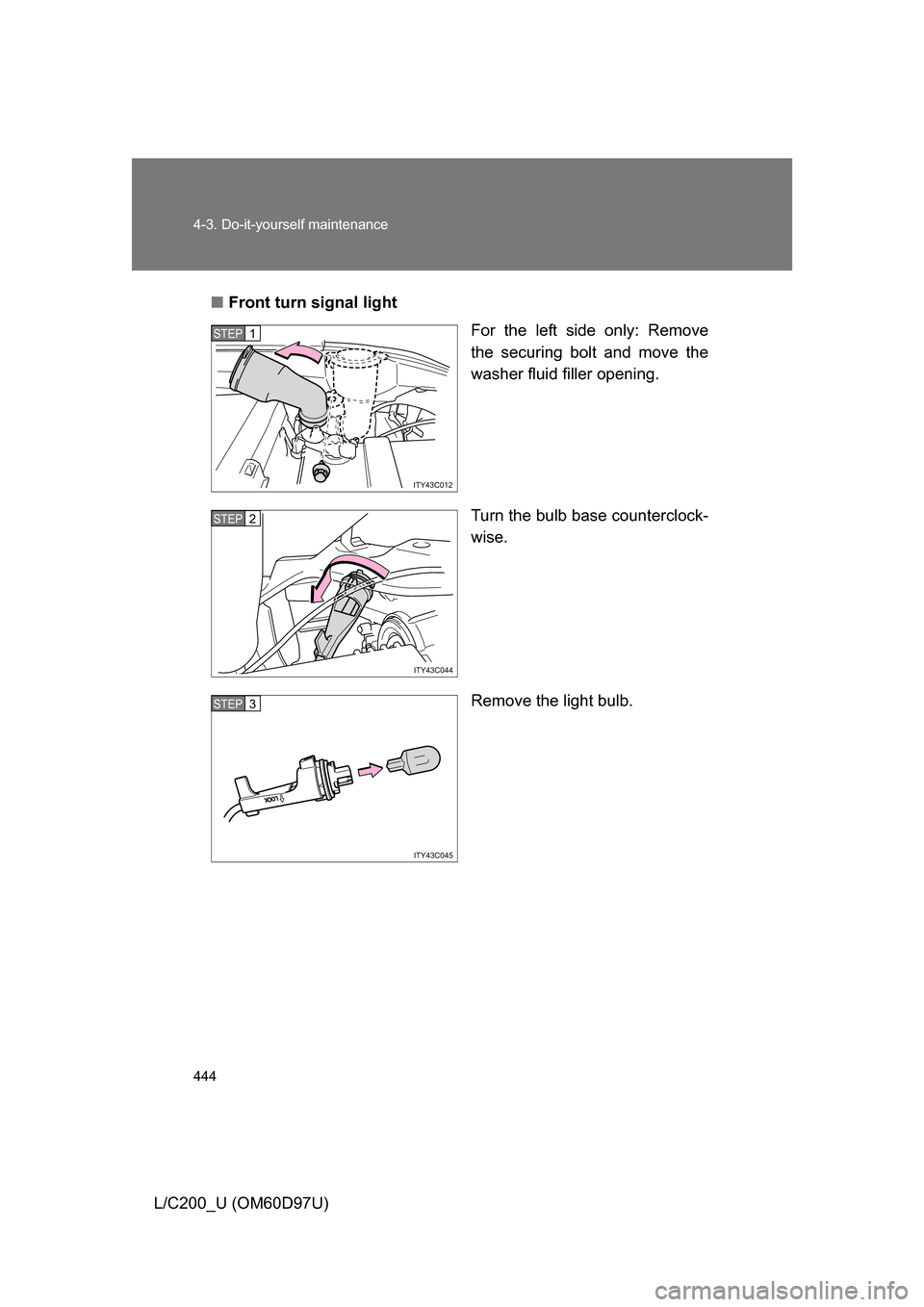

Front turn signal light
For the left side only: Remove
the securing bolt and move the
washer fluid filler opening.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
ITY43C012
STEP1
ITY43C044
STEP2
ITY43C045
STEP3

445
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60D97U)
■

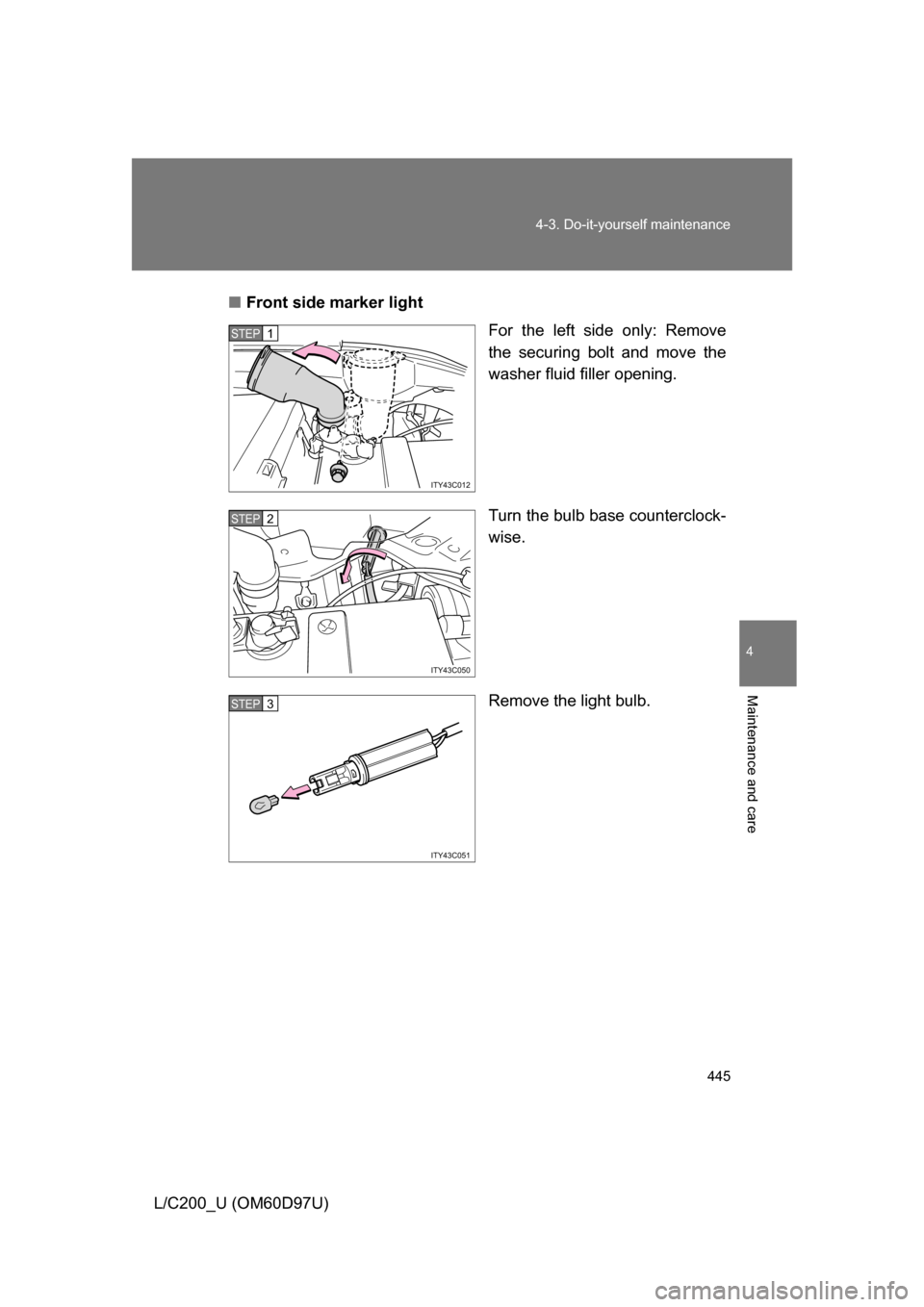

Front side marker light
For the left side only: Remove
the securing bolt and move the
washer fluid filler opening.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
ITY43C012
STEP1
ITY43C050
STEP2
ITY43C051
STEP3

446 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)■

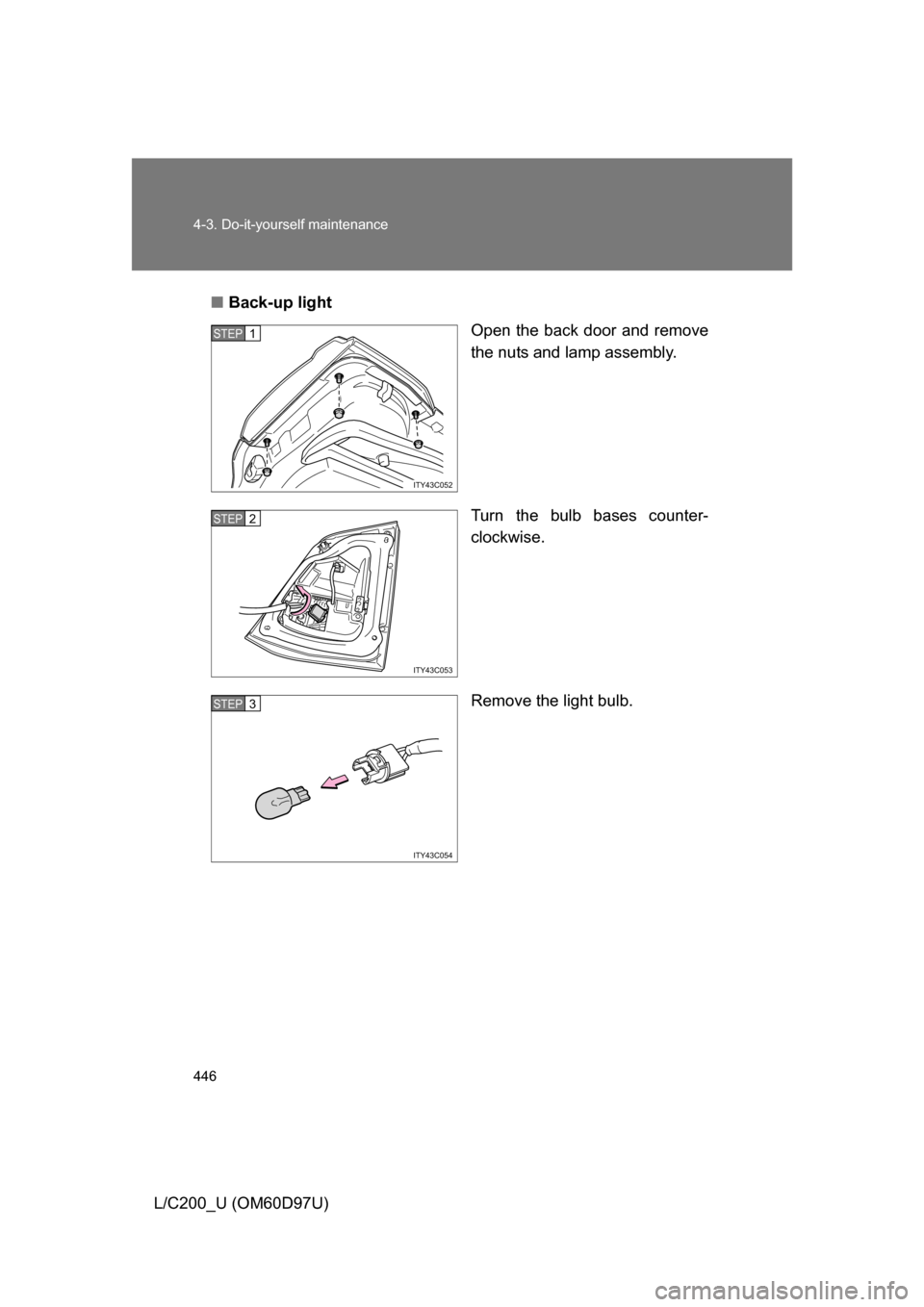

Back-up light
Open the back door and remove
the nuts and lamp assembly.
Turn the bulb bases counter-
clockwise.
Remove the light bulb.
ITY43C052
STEP1
ITY43C053
STEP2
ITY43C054
STEP3

447
4-3. Do-it-yourself maintenance
4
Maintenance and care
L/C200_U (OM60D97U)
■

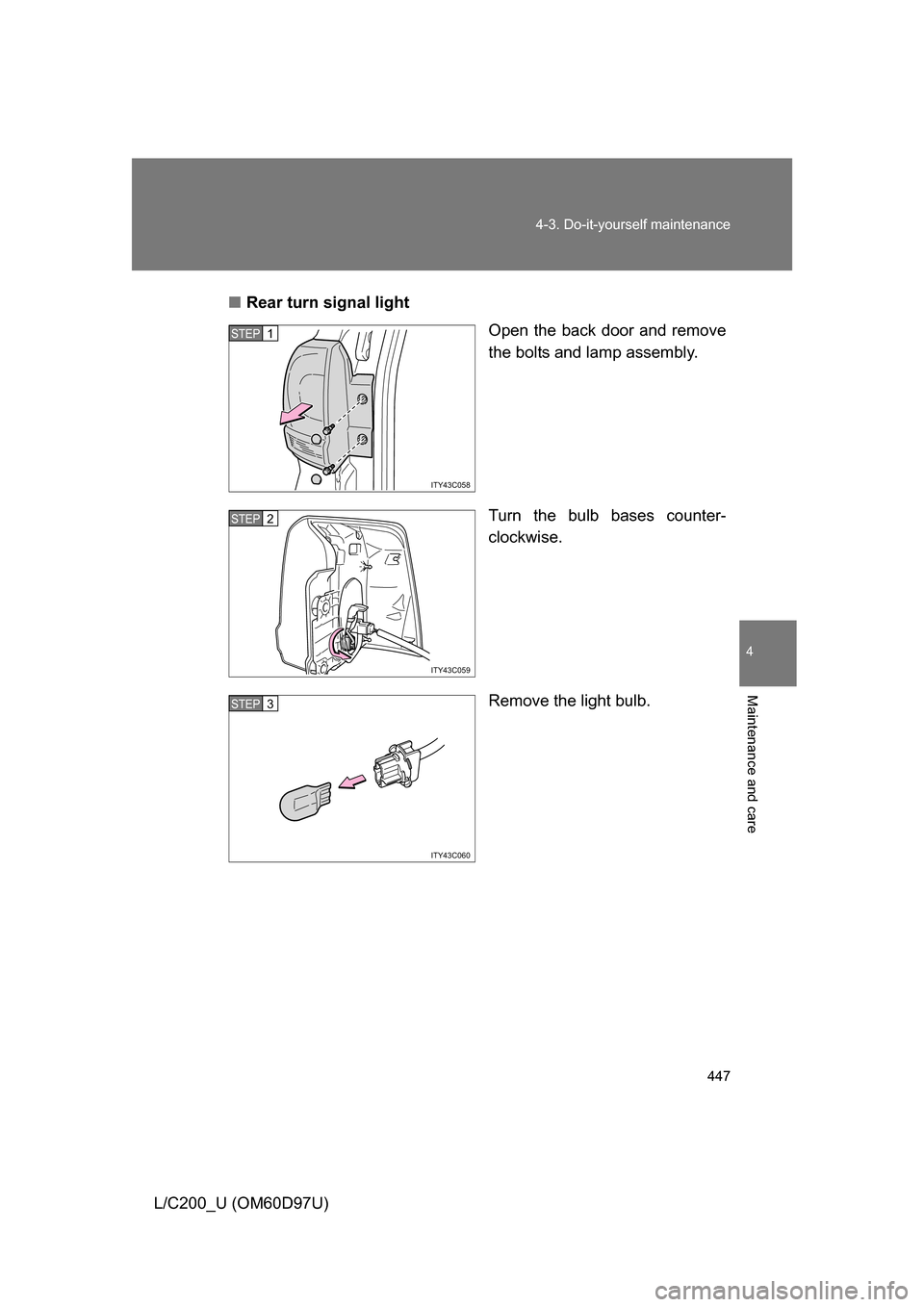

Rear turn signal light
Open the back door and remove
the bolts and lamp assembly.
Turn the bulb bases counter-
clockwise.
Remove the light bulb.
ITY43C058
STEP1
ITY43C059
STEP2
ITY43C060
STEP3

448 4-3. Do-it-yourself maintenance
L/C200_U (OM60D97U)■

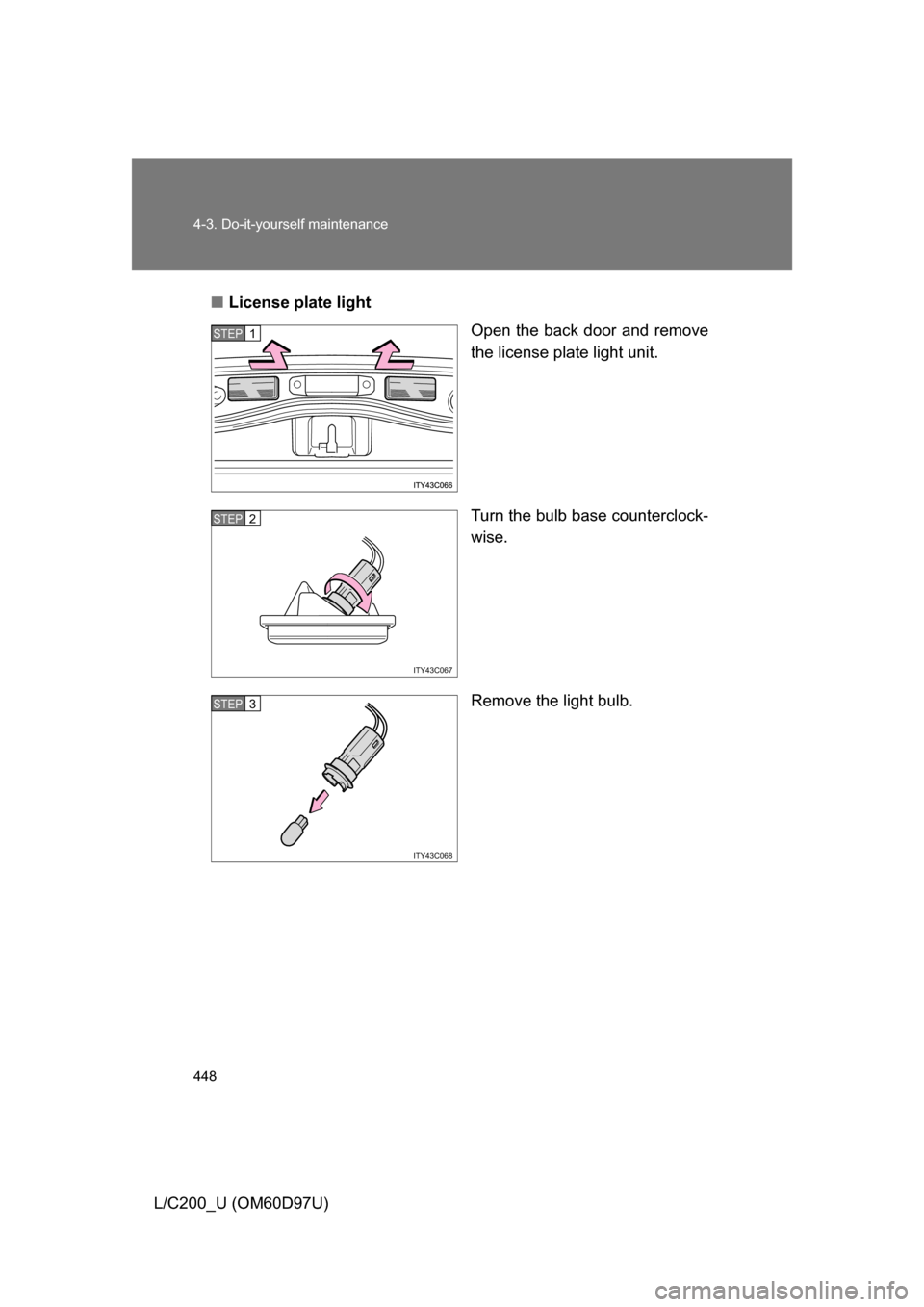

License plate light
Open the back door and remove
the license plate light unit.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
ITY43C067
STEP2
ITY43C068
STEP3
