2009 TOYOTA COROLLA CD player

212 3-2. Using the audio system

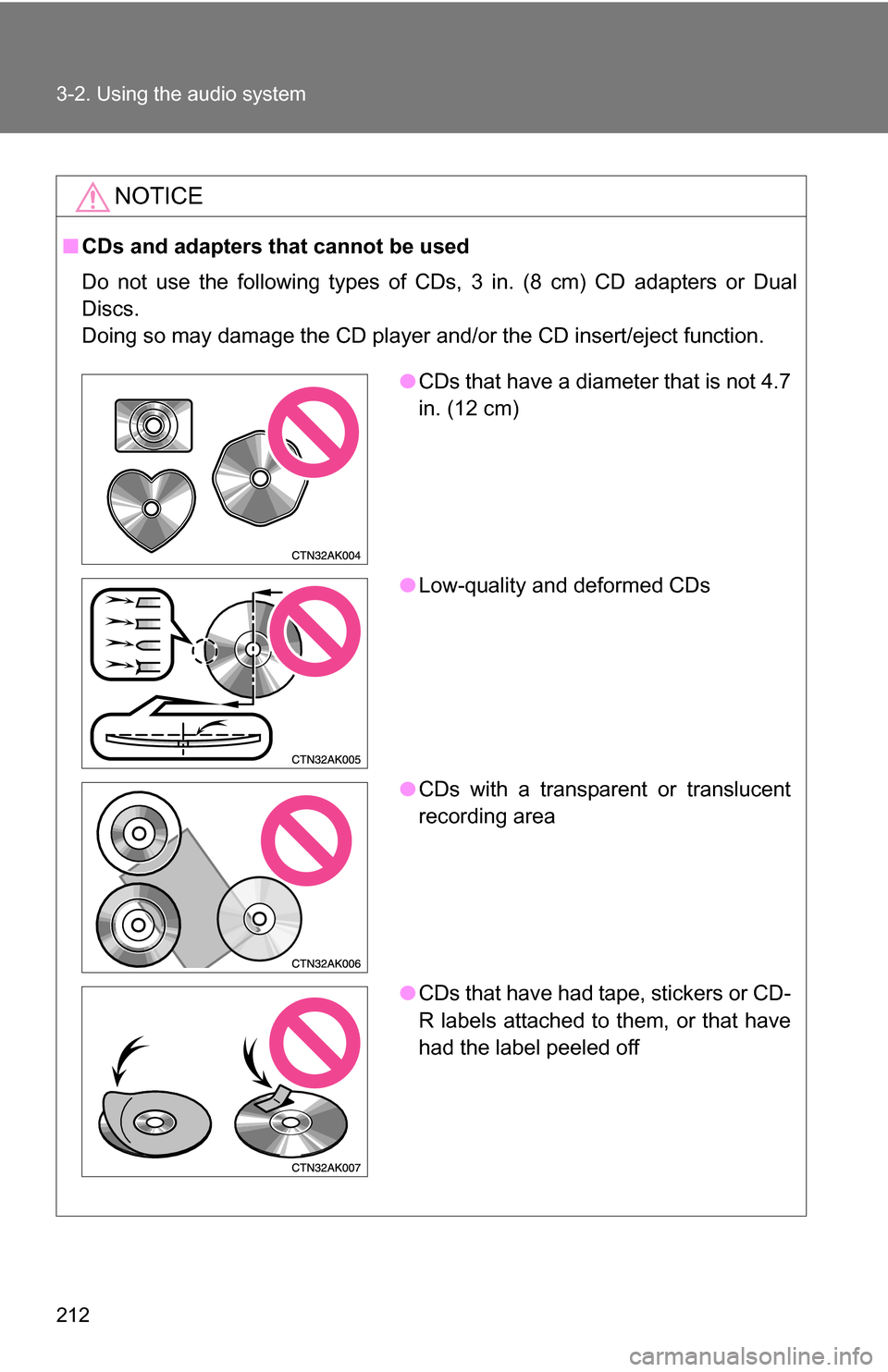

NOTICE
■CDs and adapters that cannot be used
Do not use the following types of CDs, 3 in. (8 cm) CD adapters or Dual
Discs.
Doing so may damage the CD player and/or the CD insert/eject function.
●CDs that have a diameter that is not 4.7
in. (12 cm)
● Low-quality and deformed CDs
● CDs with a transparent or translucent
recording area
● CDs that have had tape, stickers or CD-
R labels attached to them, or that have
had the label peeled off

213
3-2. Using the audio system
3
Interior features

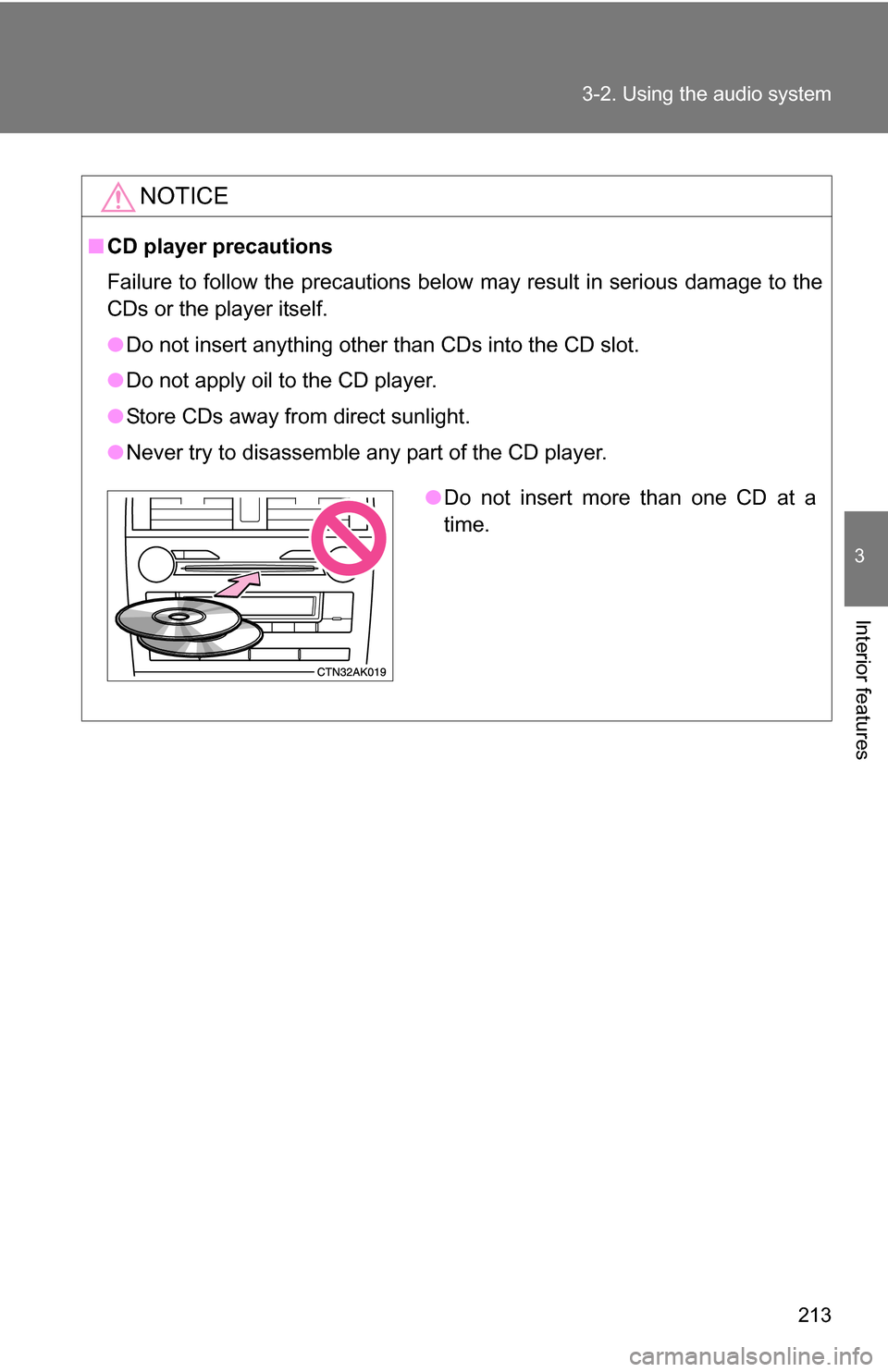

NOTICE
■
CD player precautions
Failure to follow the precautions below may result in serious damage to the
CDs or the player itself.
●Do not insert anything other than CDs into the CD slot.
● Do not apply oil to the CD player.
● Store CDs away from direct sunlight.
● Never try to disassemble any part of the CD player.
●Do not insert more than one CD at a
time.

217
3-2. Using the audio system
3
Interior features
■

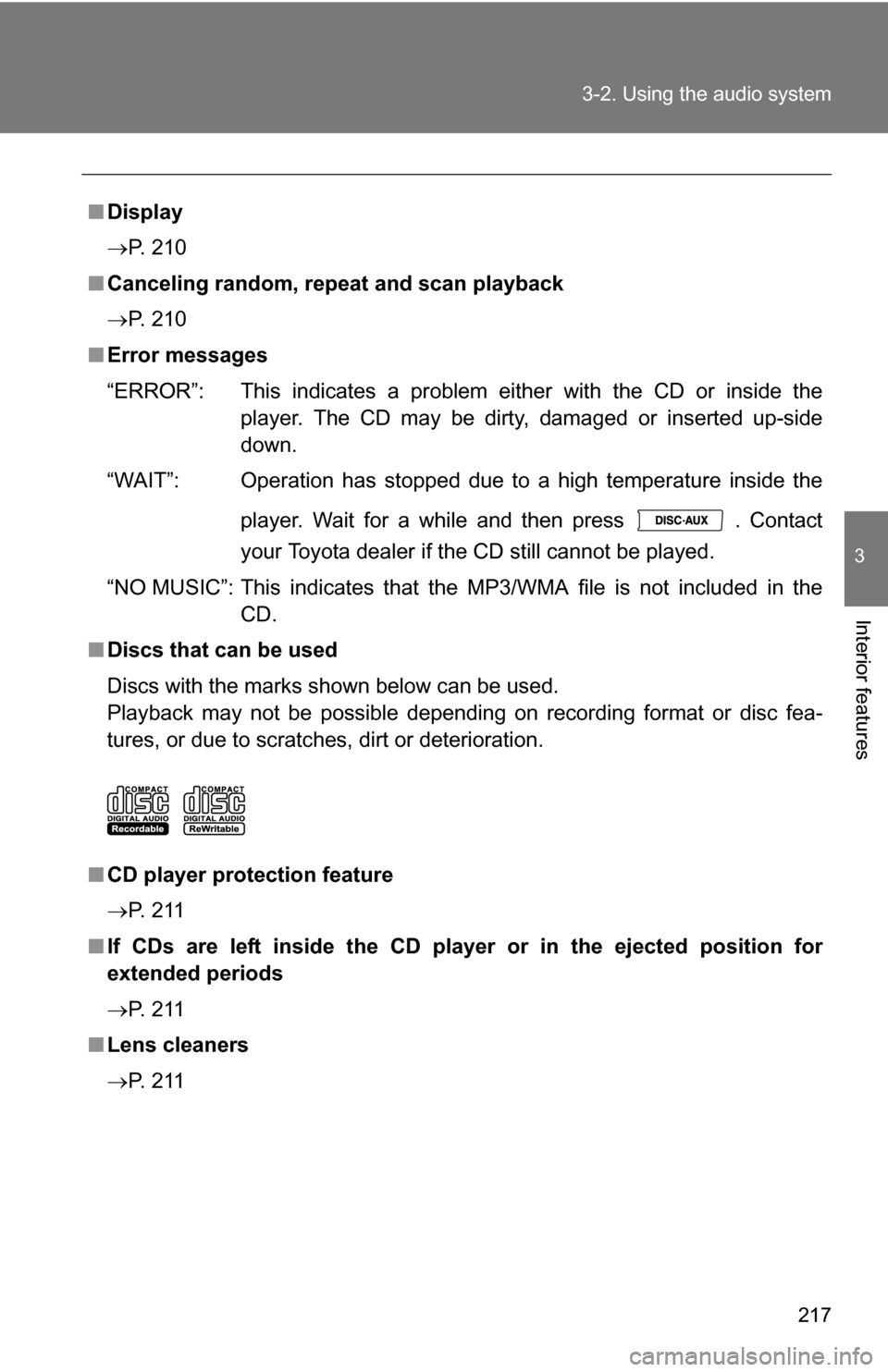

Display
P. 210
■ Canceling random, repeat and scan playback
P. 210
■ Error messages
“ERROR”: This indicates a problem ei ther with the CD or inside the
player. The CD may be dirty, damaged or inserted up-side
down.
“WAIT”: Operation has stopped due to a high temperature inside the
player. Wait for a while and then press . Contact
your Toyota dealer if the CD still cannot be played.
“NO MUSIC”: This indicates that the MP3/WMA file is not included in the CD.
■ Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
■ CD player protection feature
P. 2 1 1
■ If CDs are left inside the CD player or in the ejected position for
extended periods
P. 2 1 1
■ Lens cleaners
P. 2 1 1

220 3-2. Using the audio system

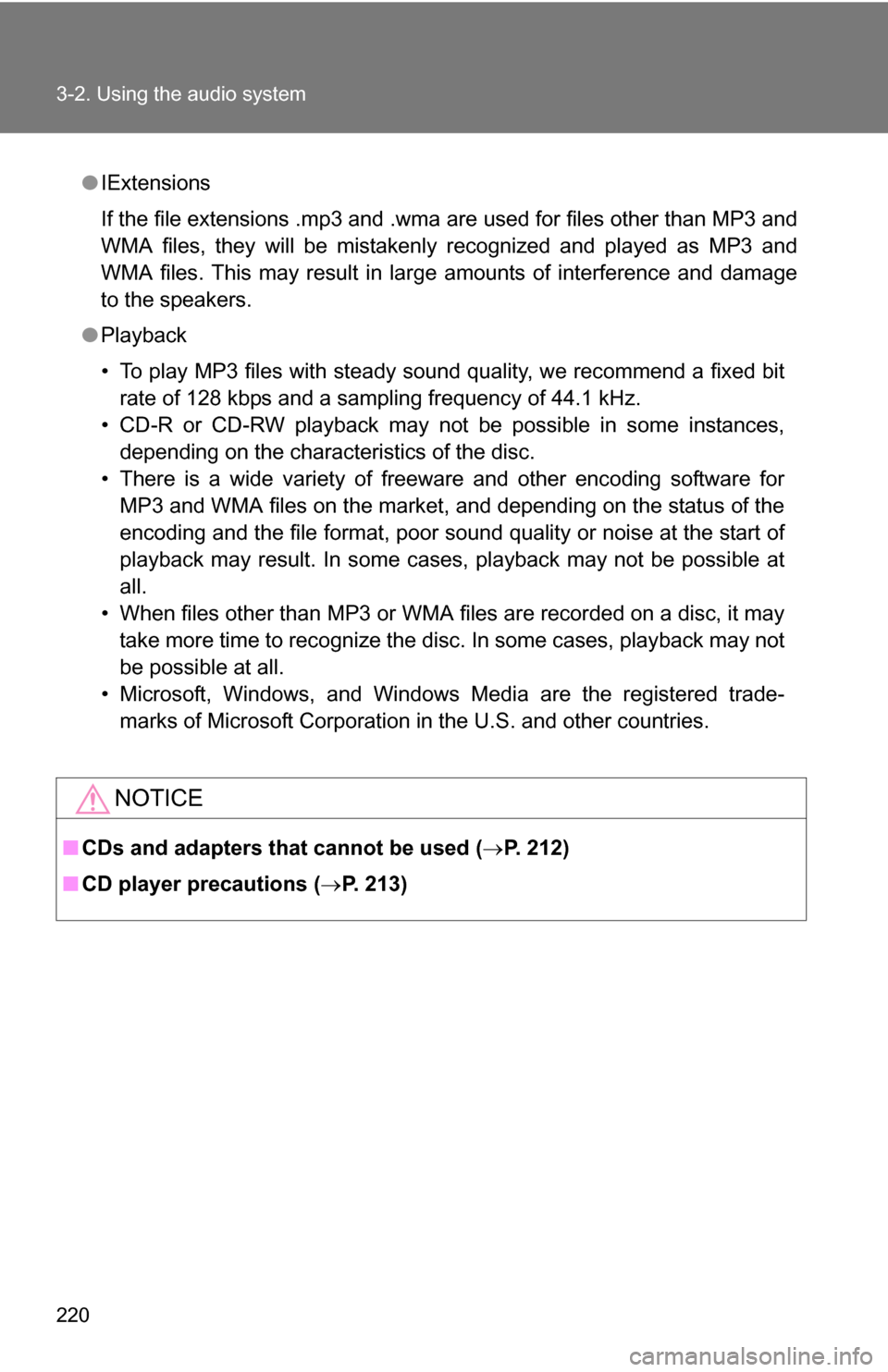

●IExtensions
If the file extensions .mp3 and .wma are used for files other than MP3 and
WMA files, they will be mistakenly recognized and played as MP3 and
WMA files. This may result in large amounts of interference and damage
to the speakers.
● Playback
• To play MP3 files with steady sound quality, we recommend a fixed bit
rate of 128 kbps and a sampling frequency of 44.1 kHz.
• CD-R or CD-RW playback may not be possible in some instances, depending on the characteristics of the disc.
• There is a wide variety of freeware and other encoding software for MP3 and WMA files on the market, and depending on the status of the
encoding and the file format, poor sound quality or noise at the start of
playback may result. In some cases, playback may not be possible at
all.
• When files other than MP3 or WMA files are recorded on a disc, it may take more time to recognize the disc. In some cases, playback may not
be possible at all.
• Microsoft, Windows, and Windows Media are the registered trade- marks of Microsoft Corporation in the U.S. and other countries.
NOTICE
■ CDs and adapters that cannot be used ( P. 212)
■ CD player precautions ( P. 213)

457
Alphabetical index
Alphabetical index
A/C .................................... 184, 190
ABS........................................... 158
Air conditioning filter .............. 341
Air conditioning systemAir conditioning filter ............. 341
Automatic air conditioning system................................ 184
Manual air conditioning system................................ 190
Airbags
Airbag operating conditions .... 83
Airbag precautions for your child...................................... 87
Airbag warning light .............. 378
Curtain shield airbag operating conditions ............. 83
Curtain shield airbag precautions .......................... 87
Front passenger occupant
classification system ............ 92
General airbag precautions .... 87
Locations of airbags ............... 80
Modification and disposal of airbags ................................. 91
Proper driving posture ...... 78, 87
Side airbag operating
conditions ............................. 83
Side airbag precautions.......... 87
SRS airbags ........................... 80
Antenna .................................... 204
Anti-lock brake system ........... 158
Armrest .................................... 281
Ashtray ..................................... 275
Audio input .............................. 224 Audio system
Antenna .................................204
Audio input ............................224
AUX adapter..........................224
CD player/changer ................207
MP3/WMA disc......................214
Optimal use ...........................222
Portable music player............224
Radio .....................................201
Steering wheel audio switch ..................................225
Type ......................................198
Automatic air conditioning
system ....................................184
Automatic transmission Automatic transmission .........130
If the shift lever cannot be
shifted from P......................401
S mode ..................................133
AUX adapter .............................224
Auxiliary boxes ........................269
Back-up lights Replacing light bulbs .............357
Wattage .................................427
Battery Checking ...............................321
If the vehicle has a
discharged battery ..............405
Preparing and checking
before winter .......................166
Bluetooth
®................................228
Bottle holder .............................271
Brake Fluid ......................................318
Parking brake ........................137
Brake assist ..............................158
Break-in tips .............................114
A
B

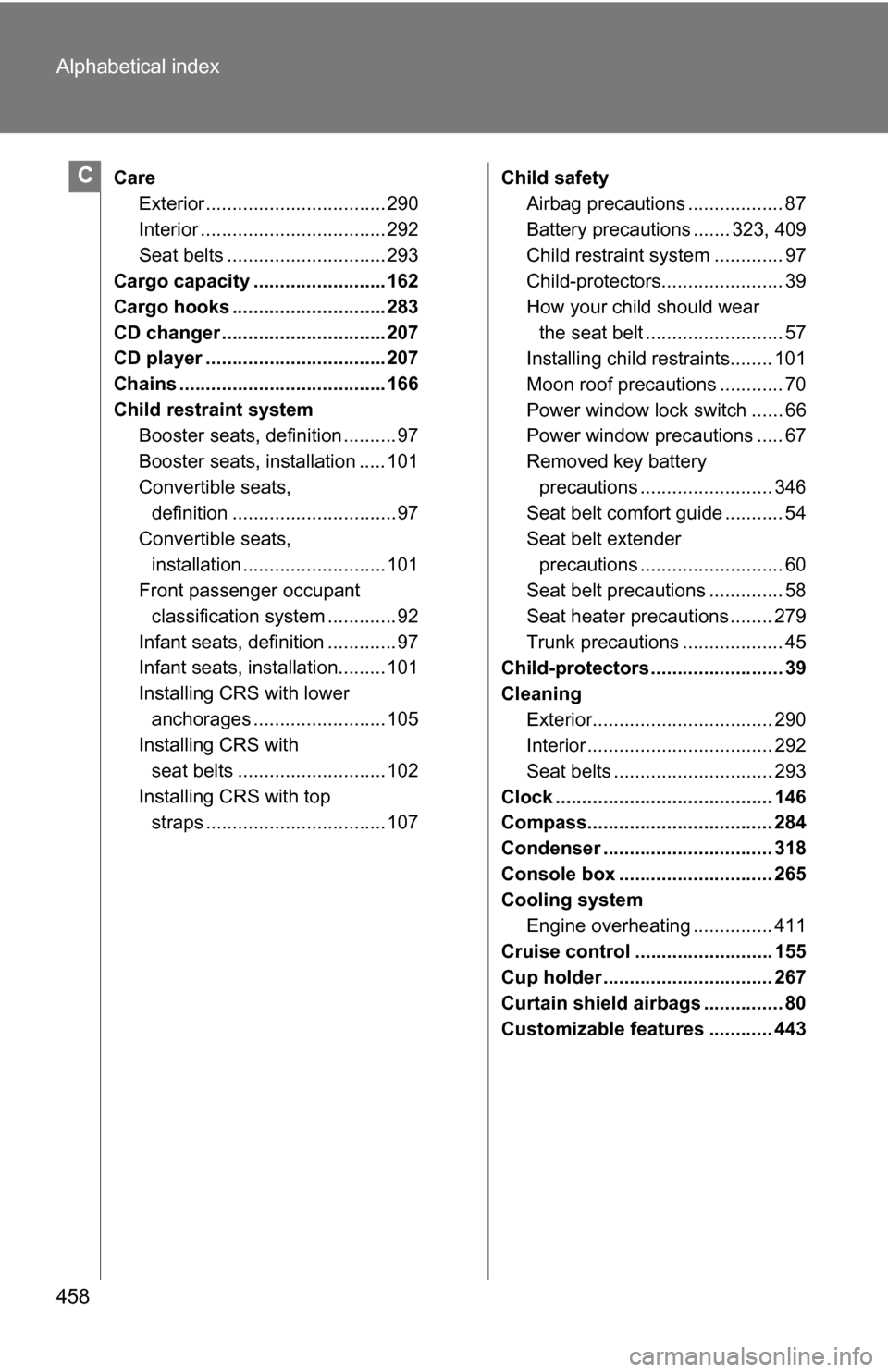

458 Alphabetical index
CareExterior .................................. 290
Interior ................................... 292
Seat belts .............................. 293
Cargo capacity ......................... 162
Cargo hooks ............................. 283
CD changer ............................... 207
CD player .................................. 207
Chains ....................................... 166
Child restraint system Booster seats, definition ..........97
Booster seats, installation ..... 101
Convertible seats, definition ...............................97
Convertible seats, installation ........................... 101
Front passenger occupant
classification system .............92
Infant seats, definition .............97
Infant seats, installation......... 101
Installing CRS with lower anchorages ......................... 105
Installing CRS with
seat belts ............................ 102
Installing CRS with top straps .................................. 107 Child safety
Airbag precautions .................. 87
Battery precautions ....... 323, 409
Child restraint syst em ............. 97
Child-protectors....................... 39
How your child should wear
the seat belt .......................... 57
Installing child restraints........ 101
Moon roof precautions ............ 70
Power window lock switch ...... 66
Power window precautions ..... 67
Removed key battery
precautions ......................... 346
Seat belt comfort guide ........... 54
Seat belt extender
precautions ........................... 60
Seat belt precautions .............. 58
Seat heater precautions ........ 279
Trunk precautions ................... 45
Child-protectors ......................... 39
Cleaning
Exterior.................................. 290
Interior ................................... 292
Seat belts .............................. 293
Clock ......................................... 146
Compass................................... 284
Condenser ................................ 318
Console box ............................. 265
Cooling system Engine overheating ............... 411
Cruise control .......................... 155
Cup holder ................................ 267
Curtain shield airbags ............... 80
Customizable features ............ 443C
