2009 TOYOTA COROLLA engine

414
5-2. Steps to take in an emergency
If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the sur-
rounding area is clear, to avoid striki ng other vehicles, objects or persons.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
For vehicles with an automatic transmission, be careful not to shift the shift
lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident and result in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the wheels and do not rev the engine.
● If the vehicle remains stuck after trying these procedures, the vehicle may
require towing to be freed.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow.
Stop the engine. Set the parking brake and put the shift
lever in P (automatic transmission) or N (manual transmis-
sion).
Remove the mud, snow, or sand from around the stuck tire.
Place wood, stones or some other material to help provide
traction under the tires.
Restart the engine.
Shift the shift lever to the D or R position (automatic trans-
mission) or 1 or R position (manual transmission) and care-
fully apply the accelerator to free the vehicle.STEP1
STEP2
STEP3
STEP4
STEP5

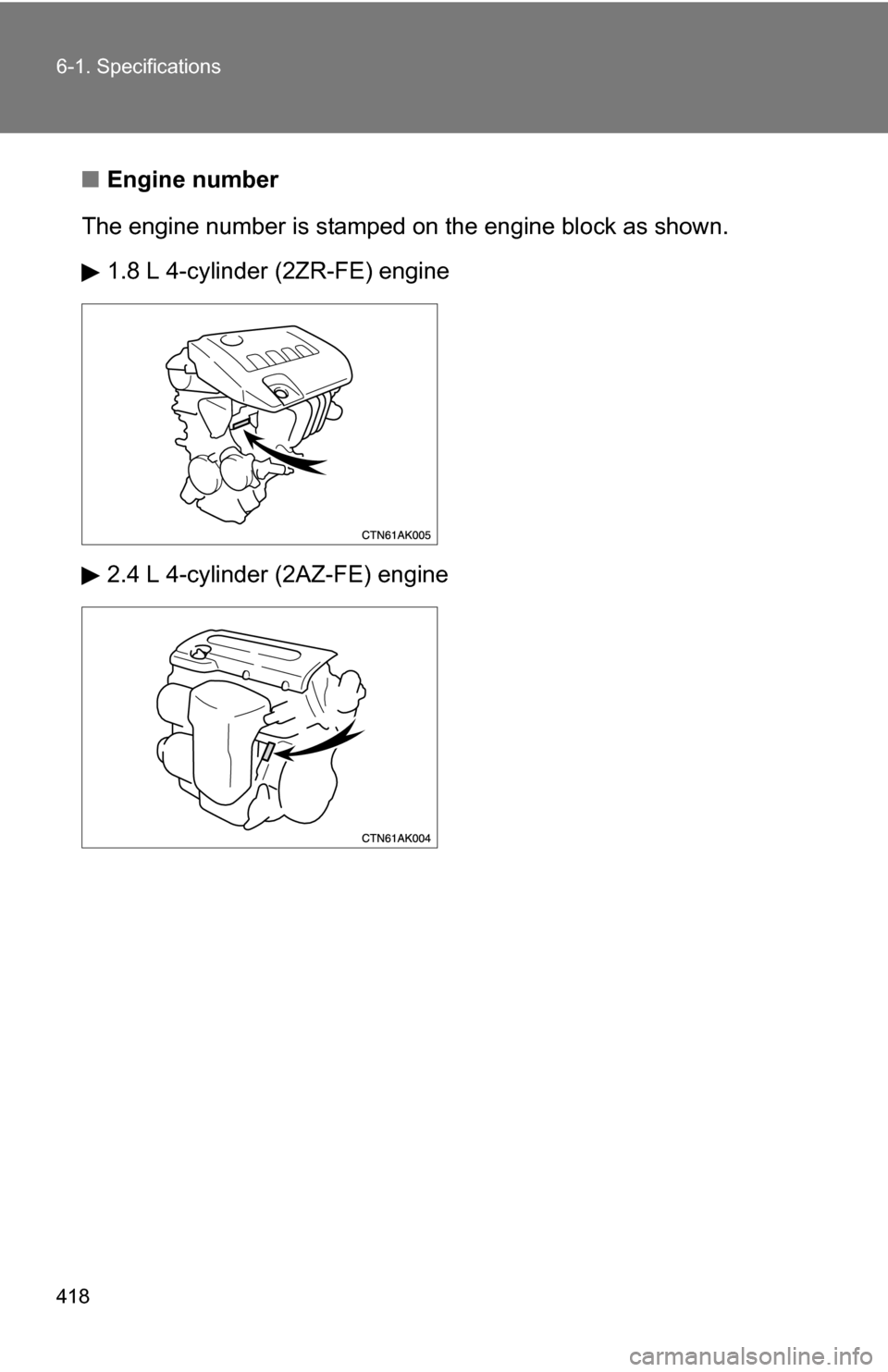

418 6-1. Specifications
■Engine number
The engine number is stamped on the engine bl ock as shown.
1.8 L 4-cylinder (2ZR-FE) engine
2.4 L 4-cylinder (2AZ-FE) engine

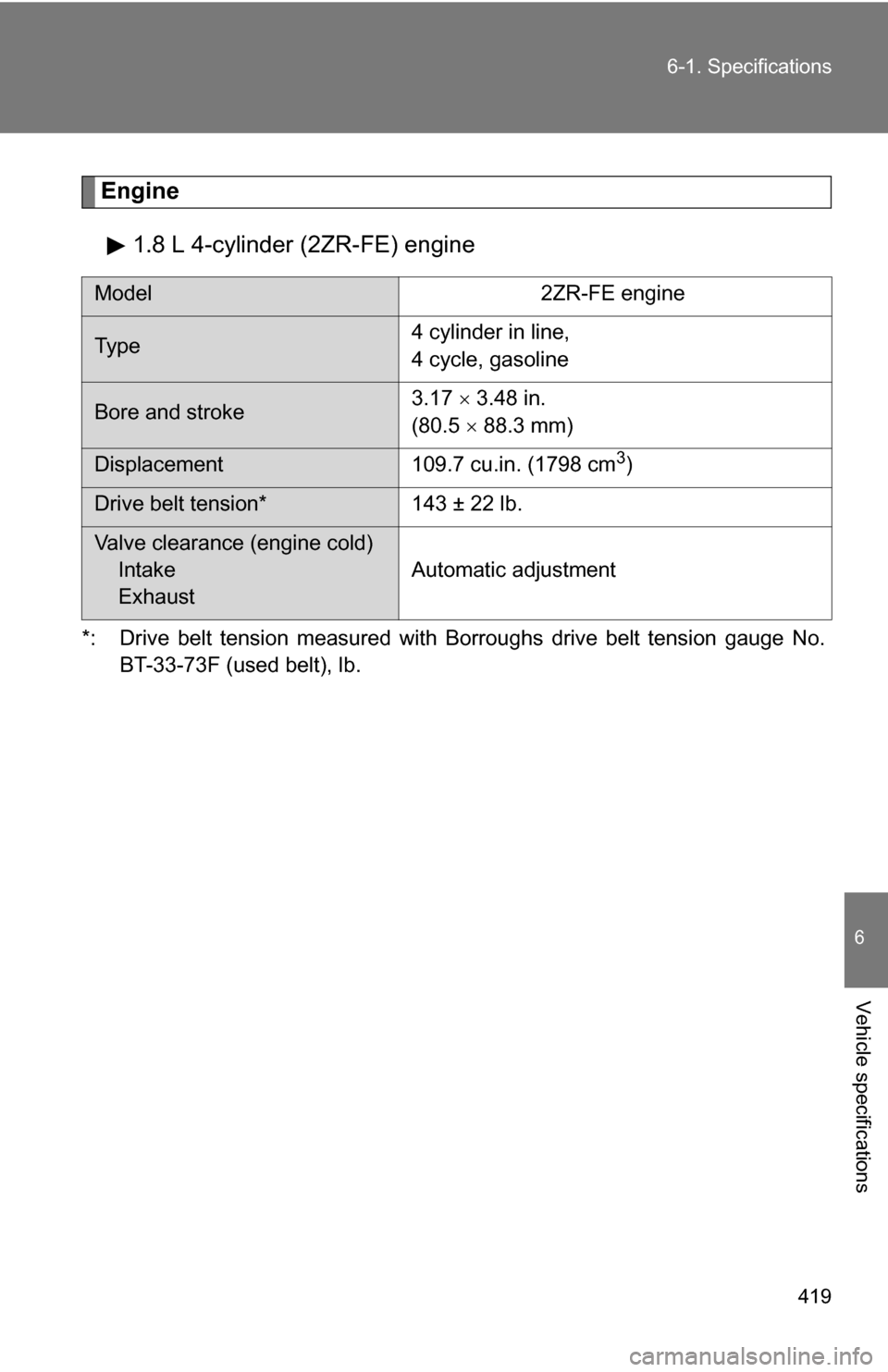

419
6-1. Specifications
6
Vehicle specifications
Engine
1.8 L 4-cylinder (2ZR-FE) engine
*: Drive belt tension measured with Borroughs drive belt tension gauge No. BT-33-73F (used belt), lb.
Model 2ZR-FE engine
Ty p e4 cylinder in line,
4 cycle, gasoline
Bore and stroke3.17 
3.48 in.
(80.5  88.3 mm)
Displacement 109.7 cu.in. (1798 cm3)
Drive belt tension* 143 ± 22 lb.
Valve clearance (engine cold)
Intake
Exhaust Automatic adjustment

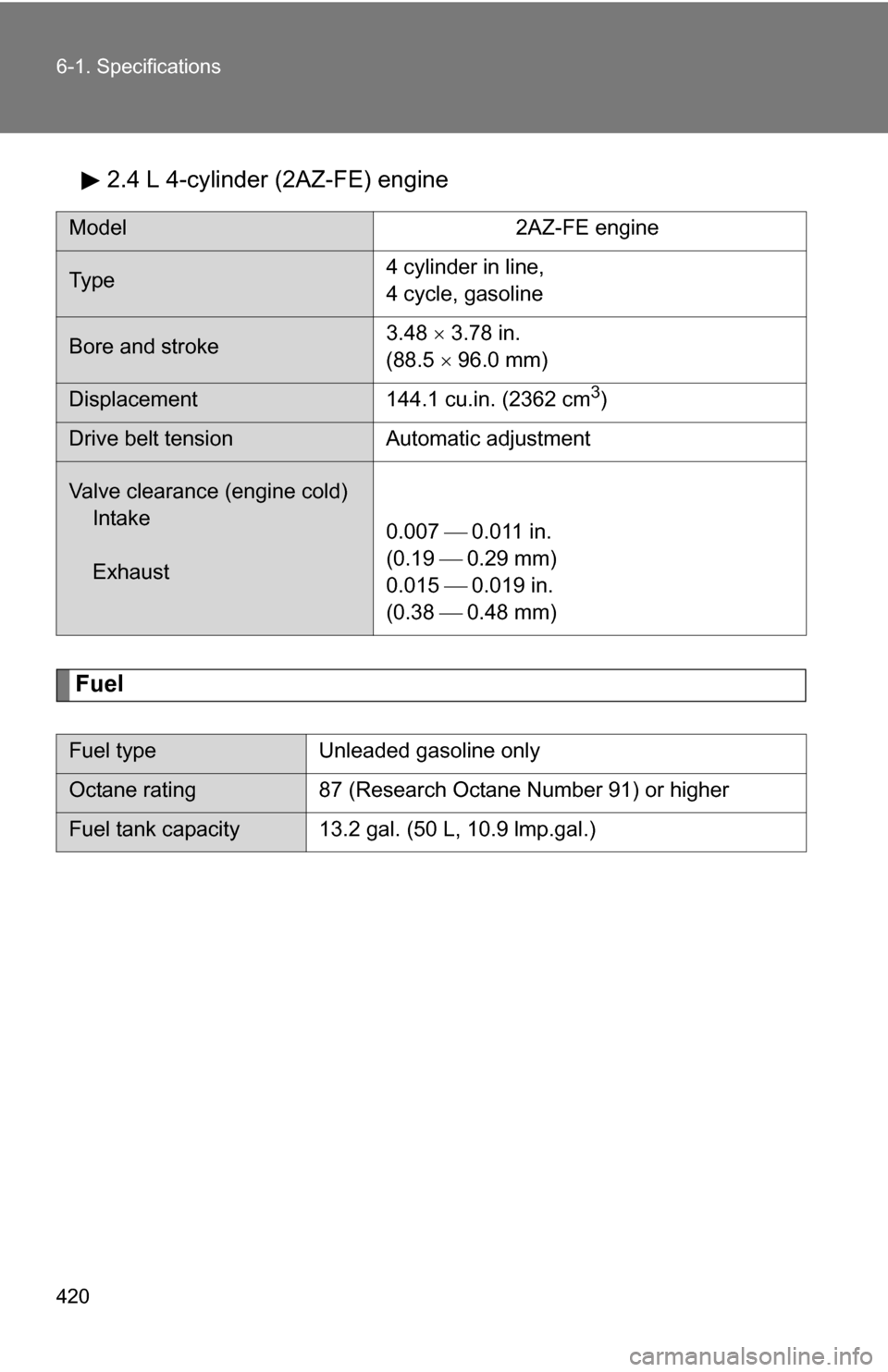

420 6-1. Specifications
2.4 L 4-cylinder (2AZ-FE) engine
Fuel
Model2AZ-FE engine
Ty pe4 cylinder in line,
4 cycle, gasoline
Bore and stroke3.48 
3.78 in.
(88.5  96.0 mm)
Displacement 144.1 cu.in. (2362 cm3)
Drive belt tensionAutomatic adjustment
Valve clearance (engine cold)
Intake
Exhaust 0.007 
0.011 in.
(0.19 0.29 mm)
0.015  0.019 in.
(0.38 0.48 mm)
Fuel type Unleaded gasoline only
Octane rating 87 (Research Octane Number 91) or higher
Fuel tank capacity 13.2 gal. (50 L, 10.9 lmp.gal.)

421
6-1. Specifications
6
Vehicle specifications
Lubrication system
Oil viscosity
● The 0W portion of the oil viscosity rating indicates the characteristic
of the oil which allows cold startab ility. Oils with a lower value before
the W allow for easier starting of the engine in cold weather.
● The 20 in 0W-20 indicates the oil viscosity when the oil is at its oper-
ating temperature. An oil with a higher viscosity may be better suited
if the vehicle is operated at high speeds, or under extreme load con-
ditions.
Oil capacity
(drain and refill) With filter
Without filter 1.8 L 4-cylinder (2ZR-FE) engine
4.4 qt. (4.2 L, 3.7 Imp.qt.)
2.4 L 4-cylinder (2AZ-FE) engine
4.0 qt. (3.8 L, 3.3 Imp.qt.)
1.8 L 4-cylinder (2ZR-FE) engine
4.1 qt. (3.9 L, 3.4 Imp.qt.)
2.4 L 4-cylinder (2AZ-FE) engine
3.8 qt. (3.6 L, 3.2 Imp.qt.)
Oil grade
ILSAC multi-grade engine oil
Recommended oil
viscosity Use Toyota approved “Toyota Genuine Motor
Oil” or equivalent to satisfy the grade and vis-
cosity shown below.
0W-20 is the oil that provides the optimal level
of fuel efficiency.
Outside temperature

422 6-1. Specifications
Cooling system
Ignition system
Capacity
(Reference)1.8 L 4-cylinder (2ZR-FE) engine
5.8 qt. (5.5 L, 4.8 Imp.qt.)
2.4 L 4-cylinder (2AZ-FE) engine
6.0 qt. (5.7 L, 5.0 Imp.qt.)
Coolant type Use either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
Spark plug
Make
Gap 1.8 L 4-cylinder (2ZR-FE) engine
DENSO SC20HR11
2.4 L 4-cylinder (2AZ-FE) engine
DENSO SK20R11
NGK IFR6A11
0.043 in. (1.1 mm)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust spark plug gap.

423
6-1. Specifications
6
Vehicle specifications
Electrical system
Manual transaxle
Automatic transaxle
Battery
Open voltage at
68
F (20 C): 12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8
 12.0 V Discharged
(Voltage checked 20 minutes after the
engine and all the lights turned off)
Charging rates 5 A max.
Gear oil capacity (Reference) 1.8 L 4-cylinder (2ZR-FE) engine
2.0 qt. (1.9 L, 1.7 Imp.qt.)
2.4 L 4-cylinder (2AZ-FE) engine
2.6 qt. (2.5 L, 2.2 Imp.qt.)
Gear oil type API GL-4
Recommended gear oil
viscosity SAE 75W
Fluid capacity
(drain and refill) 1.8 L 4-cylinder (2ZR-FE) engine
2.6 qt. (2.5 L, 2.2 Imp.qt.)
2.4 L 4-cylinder (2AZ-FE) engine
3.7 qt. (3.5 L, 3.1 Imp.qt.)
Fluid type Toyota Genuine ATF WS

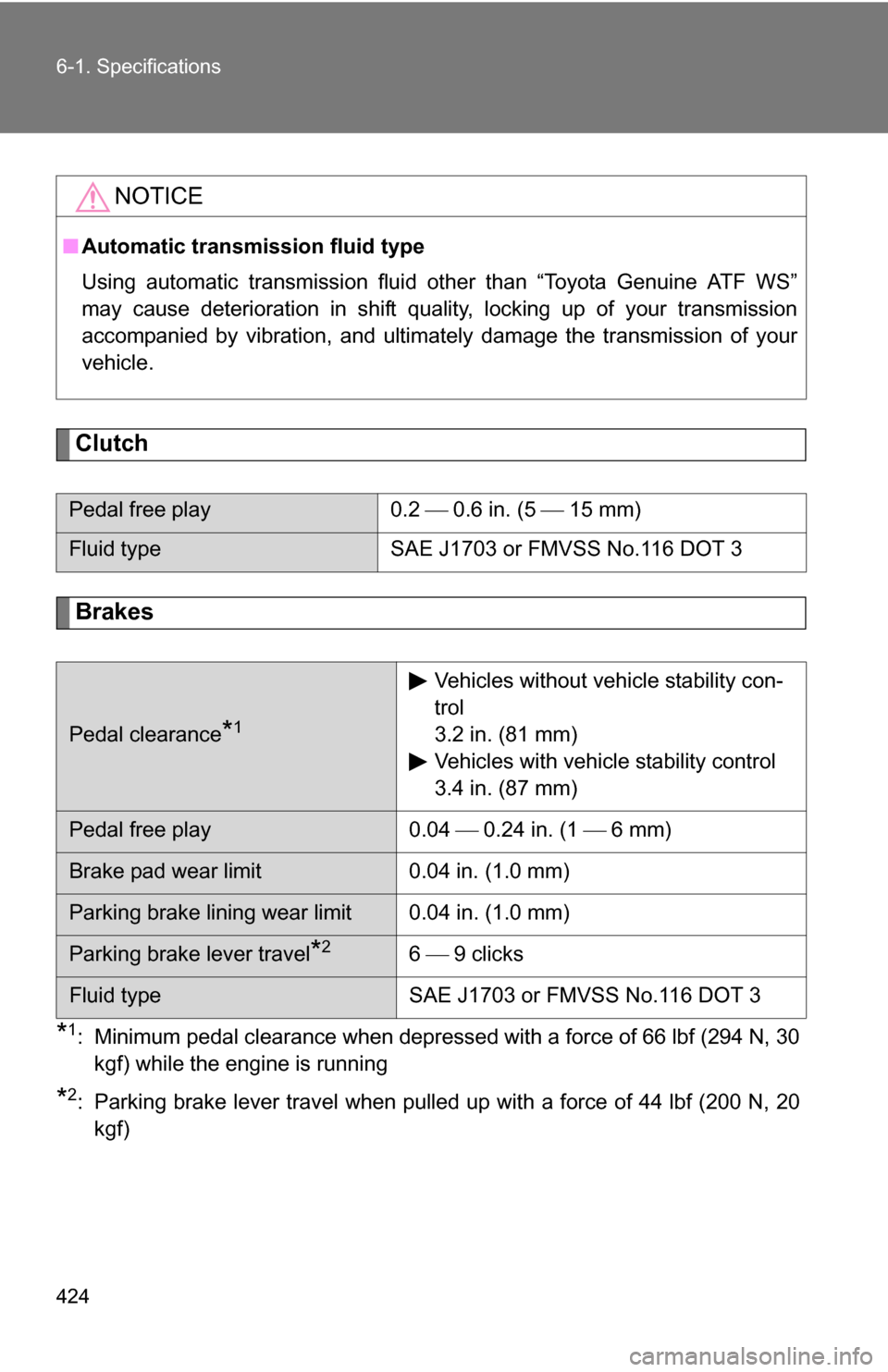

424 6-1. Specifications
Clutch
Brakes
*1: Minimum pedal clearance when depressed with a force of 66 lbf (294 N, 30kgf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 44 lbf (200 N, 20kgf)
NOTICE
■ Automatic transmission fluid type
Using automatic transmission fluid other than “Toyota Genuine ATF WS”
may cause deterioration in shift quality, locking up of your transmission
accompanied by vibration, and ultimately damage the transmission of your
vehicle.
Pedal free play 0.2  0.6 in. (5  15 mm)
Fluid type SAE J1703 or FMVSS No.116 DOT 3
Pedal clearance*1
Vehicles without vehicle stability con-
trol
3.2 in. (81 mm)
Vehicles with vehicle stability control
3.4 in. (87 mm)
Pedal free play 0.04  0.24 in. (1  6 mm)
Brake pad wear limit 0.04 in. (1.0 mm)
Parking brake lining wear limit 0.04 in. (1.0 mm)
Parking brake lever travel*26  9 clicks
Fluid type SAE J1703 or FMVSS No.116 DOT 3
