2009 TOYOTA COROLLA engine

428
6-1. Specifications
Fuel infor mation
■Fuel tank opening fo r unleaded gasoline
To help prevent incorrect fueling, your Toyota has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
■ If your engine knocks
●Consult your Toyota dealer.
● You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
■ Gasoline quality
In very few cases, driveability problems may be caused by the brand of gas-
oline you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer.
■ Gasoline quality standards
●Automotive manufacturers in the U.S., the Europe and Japan have
developed a specification for fuel quality called World-Wide Fuel Charter
(WWFC) that is expected to be applied worldwide.
● The WWFC consists of four categories that are based on required emis-
sion levels. In the U.S., category 4 has been adopted.
● The WWFC improves air quality by lowering emissions in vehicle fleets,
and improves customer satisfaction through better performance.
You must only use unleaded gasoline in your vehicle.
Unleaded gasoline with an Octane Rating of 87 (Research Octane
Number 91) or higher is required for optimum engine performance.
At minimum, the gasoline you use should meet the specifications
of ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada.

429
6-1. Specifications
6
Vehicle specifications
■
Toyota recommends the use of gaso line containing detergent additives
● Toyota recommends the use of gasoline that contains detergent additives
to avoid build-up of engine deposits.
● All gasoline sold in the U.S. contains detergent additives to clean and/or
keep clean intake systems.
■ Toyota recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxy-
genates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in
many areas.
Toyota recommends the use of cleaner burning gasoline and appropriately
blended reformulated gasoline. These types of gasoline provide excellent
vehicle performance, reduce vehicle emissions and improve air quality.
■ Toyota does not recommend blended gasoline
●Toyota allows the use of oxygenate blended gasoline where the oxygen-
ate content is up to 10% ethanol or 15% MTBE.
● If you use gasohol in your Toyota, be sure that it has an octane rating no
lower than 87.
● Toyota does not recommend the use of gasoline containing methanol.
■ Toyota does not recommend gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If
this happens, contact your Toyota dealer for service.

430 6-1. Specifications
NOTICE
■Notice on gasoline quality
●Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s catalytic converters
causing the emission control system to malfunction.
● Do not use gasohol other than that stated here.
Other gasohol may cause fuel system damage or vehicle performance
problems.
■ Fuel-related poor driveability
If after using a different type of fuel, poor driveability is encountered (poor
hot starting, vaporization, engine knocking, etc.), discontinue the use of that
type of fuel.
■ When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle's paint.

437
6-1. Specifications
6
Vehicle specifications
Warning: The temperature grades for this tire are established for a
tire that is properly inflated and not overloaded.
Excessive speed, underinflation, or
excessive loading, either sepa-
rately or in combination, can caus e heat buildup and possible tire fail-
ure.
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sure Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressure The maximum cold inflated
pressure to which a
tire may be inflated, s hown on the sidewall of
the tire
Recommended infla-
tion pressure Cold tire inflation pressure recommended by a
manufacturer
Accessory weight The combined weight (in excess of those stan-
dard items which may be replaced) of auto-
matic transmission, power steering, power
brakes, power windows, power seats, radio
and heater, to the extent that these items are
available as factory-installed equipment
(whether installed or not)
Curb weight The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded vehi-
cle weight The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight

446 6-2. Customization
Illumination
(
P. 260)Time elapsed before
lights turn off (vehicles
with power door lock
system)
15 seconds
7.5 seconds
30 seconds
Operation when the
doors are unlocked
(vehicles with power
door lock system) On Off
Vehicles with smart key
system: Operation after
the “ENGINE START
STOP” switch is turned
OFF
Vehicles without smart
key system: Operation
after the engine switch
is turned to the “LOCK”
position On Off
Seat belt
reminder
(
P. 379) Vehicle speed linked
seat belt reminder
buzzer
On Off
ItemFunctionDefault settingCustomized
setting

447
6
Vehicle specifications

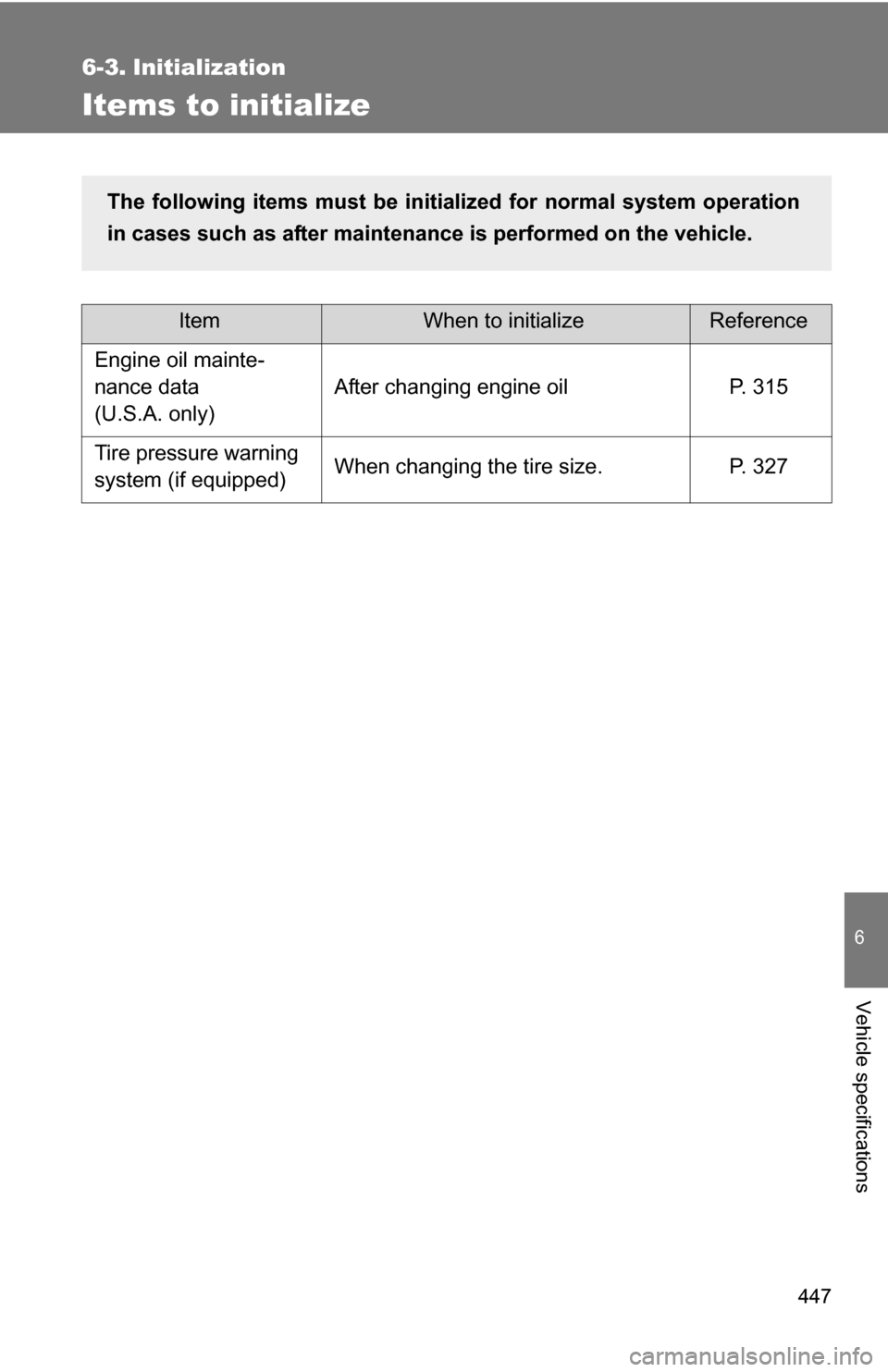

6-3. Initialization
Items to initialize
ItemWhen to initializeReference
Engine oil mainte-
nance data
(U.S.A. only) After changing engine oil P. 315
Tire pressure warning
system (if equipped) When changing the tire size. P. 327
The following items must be initia
lized for normal system operation
in cases such as after maintenance is performed on the vehicle.

458 Alphabetical index
CareExterior .................................. 290
Interior ................................... 292
Seat belts .............................. 293
Cargo capacity ......................... 162
Cargo hooks ............................. 283
CD changer ............................... 207
CD player .................................. 207
Chains ....................................... 166
Child restraint system Booster seats, definition ..........97
Booster seats, installation ..... 101
Convertible seats, definition ...............................97
Convertible seats, installation ........................... 101
Front passenger occupant
classification system .............92
Infant seats, definition .............97
Infant seats, installation......... 101
Installing CRS with lower anchorages ......................... 105
Installing CRS with
seat belts ............................ 102
Installing CRS with top straps .................................. 107 Child safety
Airbag precautions .................. 87
Battery precautions ....... 323, 409
Child restraint syst em ............. 97
Child-protectors....................... 39
How your child should wear
the seat belt .......................... 57
Installing child restraints........ 101
Moon roof precautions ............ 70
Power window lock switch ...... 66
Power window precautions ..... 67
Removed key battery
precautions ......................... 346
Seat belt comfort guide ........... 54
Seat belt extender
precautions ........................... 60
Seat belt precautions .............. 58
Seat heater precautions ........ 279
Trunk precautions ................... 45
Child-protectors ......................... 39
Cleaning
Exterior.................................. 290
Interior ................................... 292
Seat belts .............................. 293
Clock ......................................... 146
Compass................................... 284
Condenser ................................ 318
Console box ............................. 265
Cooling system Engine overheating ............... 411
Cruise control .......................... 155
Cup holder ................................ 267
Curtain shield airbags ............... 80
Customizable features ............ 443C

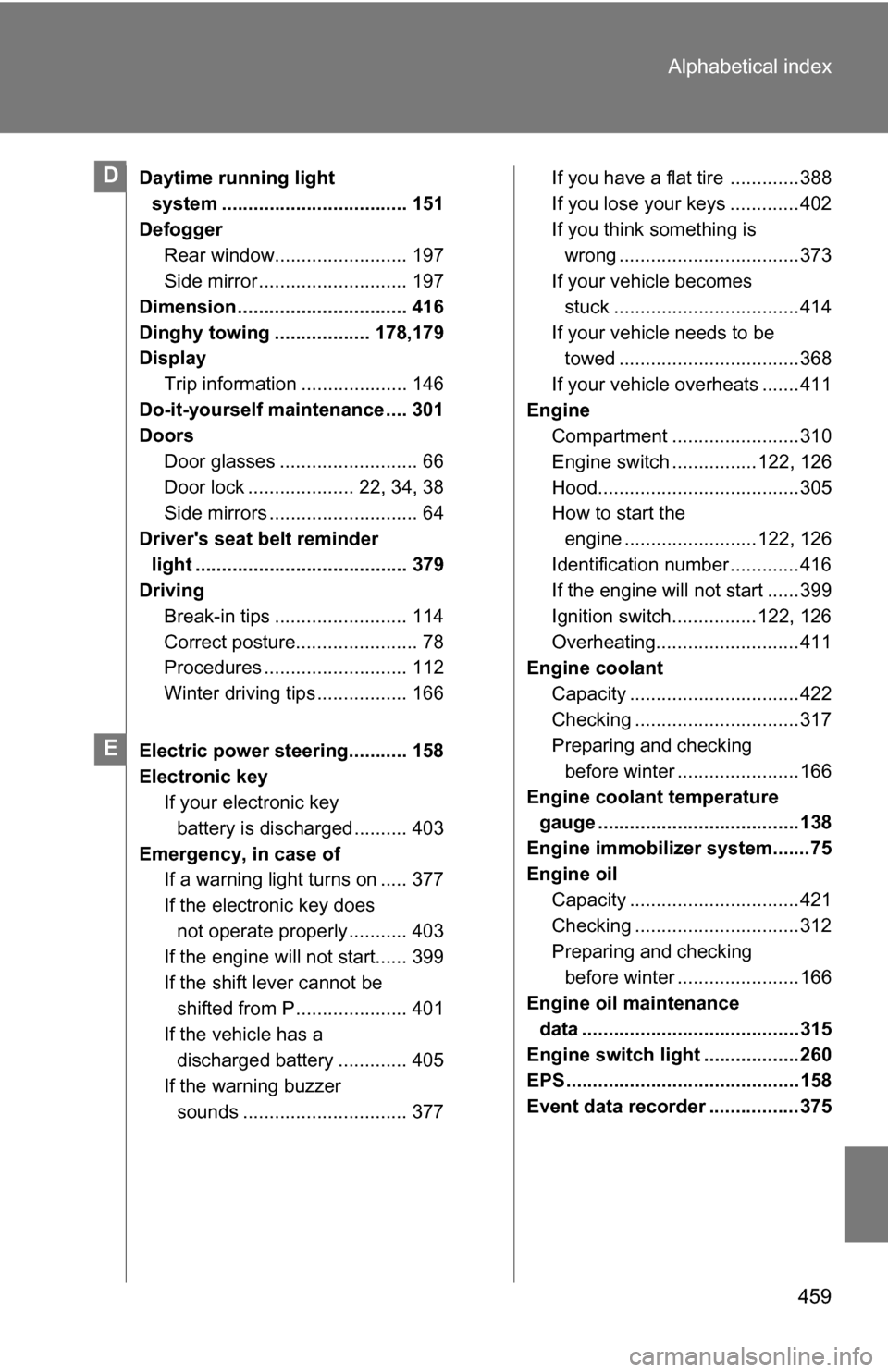

459
Alphabetical index
Daytime running light
system ................................... 151
Defogger Rear window......................... 197
Side mirror ............................ 197
Dimension ................................ 416
Dinghy towing .................. 178,179
Display Trip information .................... 146
Do-it-yourself maintenance .... 301
Doors Door glasses .......................... 66
Door lock .................... 22, 34, 38
Side mirrors ............................ 64
Driver's seat belt reminder light ........................................ 379
Driving
Break-in tips ......................... 114
Correct posture....................... 78
Procedures ........................... 112
Winter driving tips ................. 166
Electric power steering........... 158
Electronic key If your electronic key
battery is discharged .......... 403
Emergency, in case of If a warning light turns on ..... 377
If the electronic key does
not operate properly ........... 403
If the engine will not start...... 399
If the shift lever cannot be
shifted from P ..................... 401
If the vehicle has a
discharged battery ............. 405
If the warning buzzer sounds ............................... 377 If you have a flat tire .............388
If you lose your keys .............402
If you think something is
wrong ..................................373
If your vehicle becomes
stuck ...................................414
If your vehicle needs to be towed ..................................368
If your vehicle overheats .......411
Engine Compartment ........................310
Engine switch ................122, 126
Hood......................................305
How to start the
engine .........................122, 126
Identification number .............416
If the engine will not start ......399
Ignition switch................122, 126
Overheating...........................411
Engine coolant
Capacity ................................422
Checking ...............................317
Preparing and checking before winter .......................166
Engine coolan t temperature
gauge ......................................138
Engine immobilizer system.......75
Engine oil Capacity ................................421
Checking ...............................312
Preparing and checking before winter .......................166
Engine oil maintenance data .........................................315
Engine switch light ..................260
EPS ............................................158
Event data recorder .................375D
E
