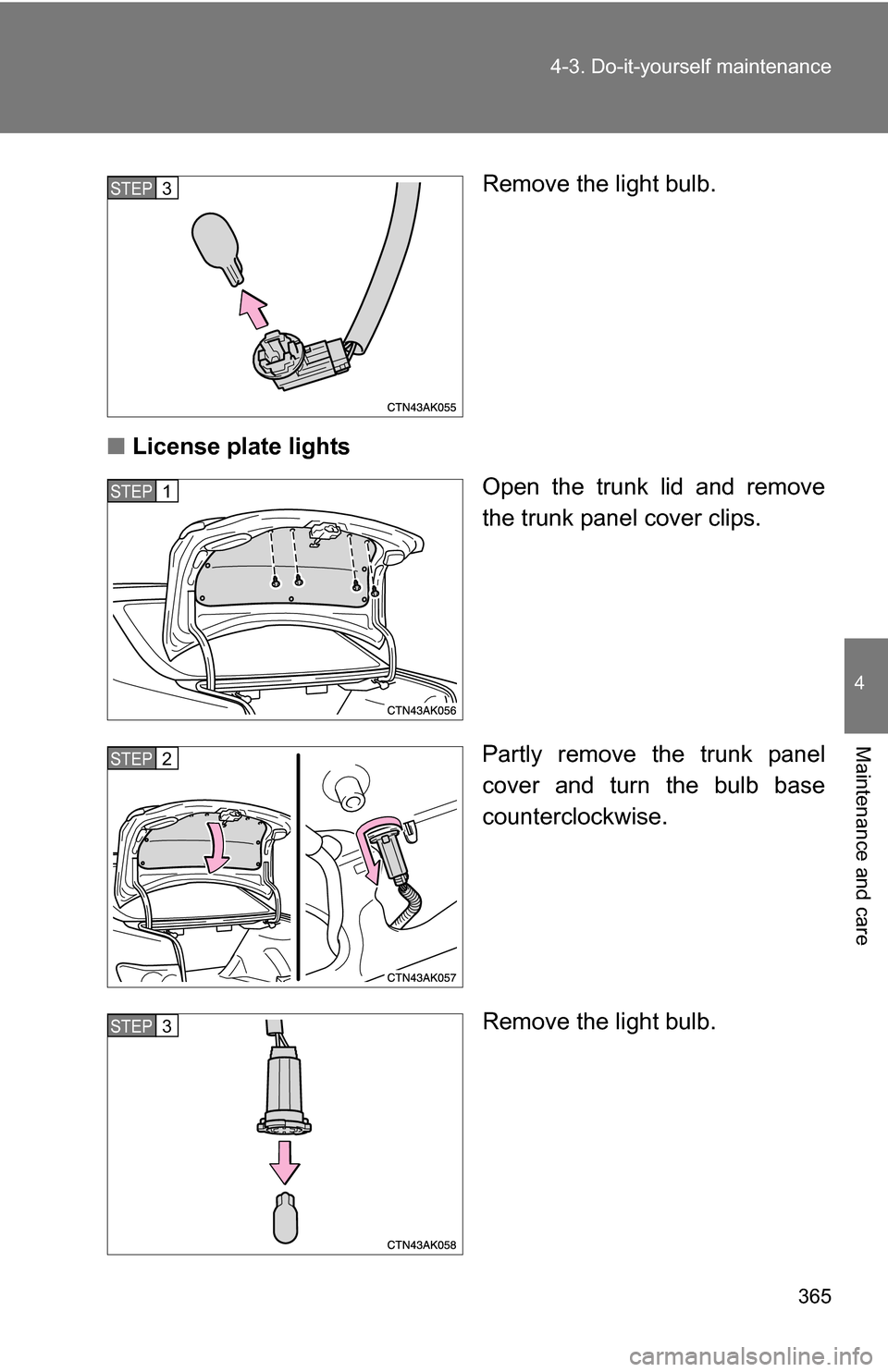

2009 TOYOTA COROLLA Do it yourself

365
4-3. Do-it-yourself maintenance
4
Maintenance and care
Remove the light bulb.
■ License plate lights
Open the trunk lid and remove
the trunk panel cover clips.
Partly remove the trunk panel
cover and turn the bulb base
counterclockwise.
Remove the light bulb.STEP3
STEP1
STEP2
STEP3

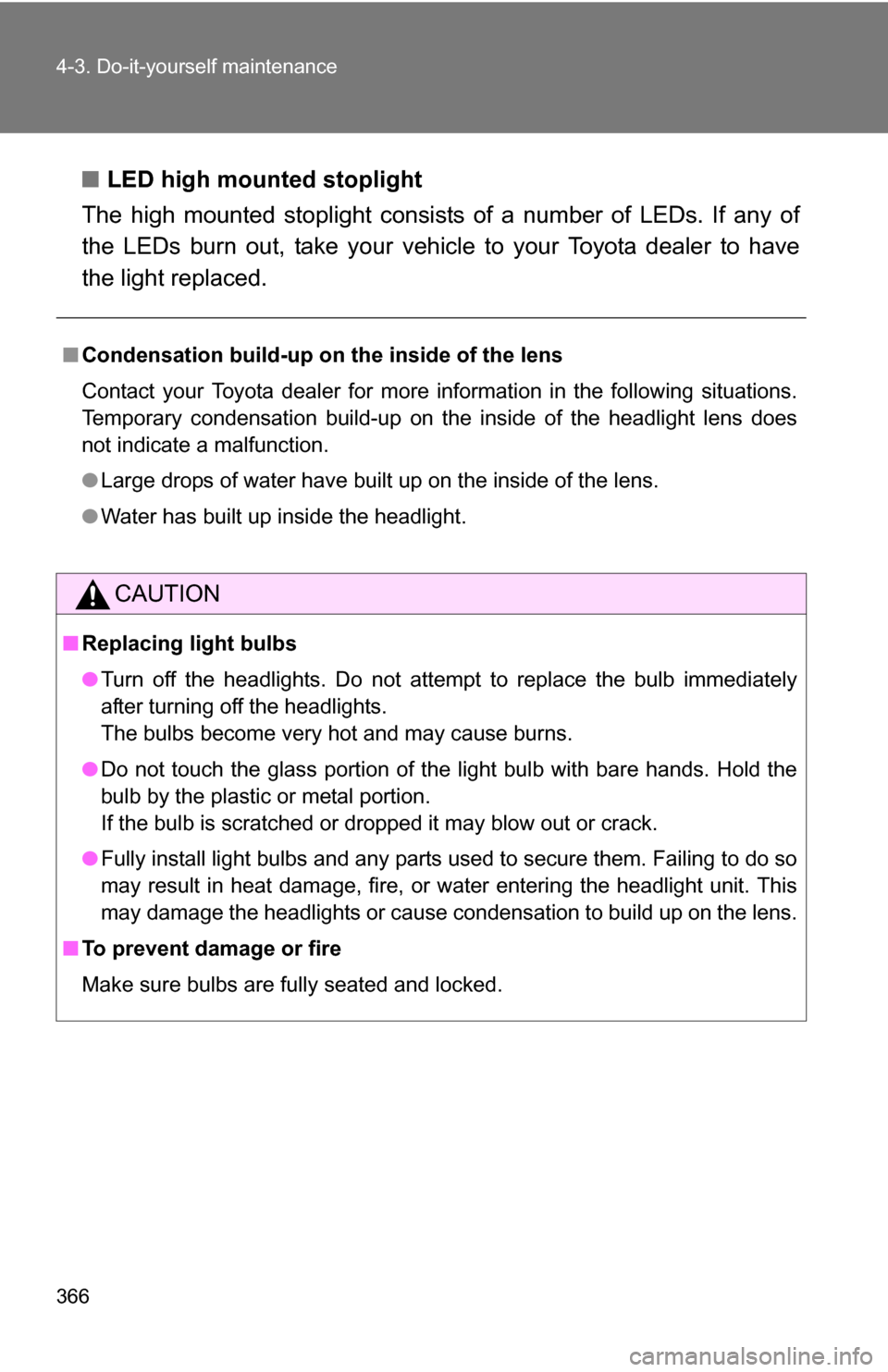

366 4-3. Do-it-yourself maintenance
■LED high mounted stoplight
The high mounted stoplight consists of a number of LEDs. If any of
the LEDs burn out, take your vehicl e to your Toyota dealer to have
the light replaced.
■ Condensation build-up on th e inside of the lens
Contact your Toyota dealer for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
● Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.
CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

459
Alphabetical index
Daytime running light
system ................................... 151
Defogger Rear window......................... 197
Side mirror ............................ 197
Dimension ................................ 416
Dinghy towing .................. 178,179
Display Trip information .................... 146
Do-it-yourself maintenance .... 301
Doors Door glasses .......................... 66
Door lock .................... 22, 34, 38
Side mirrors ............................ 64
Driver's seat belt reminder light ........................................ 379
Driving
Break-in tips ......................... 114
Correct posture....................... 78
Procedures ........................... 112
Winter driving tips ................. 166
Electric power steering........... 158
Electronic key If your electronic key
battery is discharged .......... 403
Emergency, in case of If a warning light turns on ..... 377
If the electronic key does
not operate properly ........... 403
If the engine will not start...... 399
If the shift lever cannot be
shifted from P ..................... 401
If the vehicle has a
discharged battery ............. 405
If the warning buzzer sounds ............................... 377 If you have a flat tire .............388
If you lose your keys .............402
If you think something is
wrong ..................................373
If your vehicle becomes
stuck ...................................414
If your vehicle needs to be towed ..................................368
If your vehicle overheats .......411
Engine Compartment ........................310
Engine switch ................122, 126
Hood......................................305
How to start the
engine .........................122, 126
Identification number .............416
If the engine will not start ......399
Ignition switch................122, 126
Overheating...........................411
Engine coolant
Capacity ................................422
Checking ...............................317
Preparing and checking before winter .......................166
Engine coolan t temperature
gauge ......................................138
Engine immobilizer system.......75
Engine oil Capacity ................................421
Checking ...............................312
Preparing and checking before winter .......................166
Engine oil maintenance data .........................................315
Engine switch light ..................260
EPS ............................................158
Event data recorder .................375D
E

461
Alphabetical index
Jack
Positioning a floor jack ......... 307
Replacing the wheel ............. 388
Jack handle.............................. 388
Keyless entry ............................. 34
Keys Electronic key ......................... 20
Engine switch ............... 122, 126
If you lose your keys............. 402
If your electronic key battery is discharged .......... 403
Ignition switch ............... 122, 126
Key number ............................ 20
Keyless entry .......................... 34
Keys ....................................... 20
Mechanical key....................... 20
Wireless remote control key ... 34
License plate lights Replacing light bulbs ............ 357
Switch ................................... 150
Wattage ................................ 427
Light bulbs
Replacing ............................. 357
Wattage ................................ 427
Lights
Fog light switch..................... 152
Headlights switch ................. 150
Interior light switch................ 262
Personal light switch............. 262
Personal/interior light switch ................................. 263
Replacing light bulbs ............ 357
Turn signal lever ................... 136
Wattage ................................ 427
Load capacity .......................... 165
Lock steering column ..... 124, 128 Maintenance
Do-it-yourself
maintenance .......................301
General maintenance ............297
Maintenance data..................416
Maintenance requirements....295
Manual air conditioning system ....................................190
Manual transmission Manual transmission .............135
Meter
Instrument panel light control .................................141
Meters ...................................138
Mirrors Inside rear view mirror.............62
Side mirror heater .................197
Side mirrors .............................64
Vanity mirrors ........................273
Moon roof ...................................68
MP3 disc ...................................214
Multi-information display ....................................146
Odometer ..................................138
Oil Engine oil ..............................312
Opener
Fuel filler door .........................71
Hood......................................305
Trunk .......................................43
Outside rear view mirrors Adjusting and folding ...............64
Outside temperature
display ....................................146
Overheating, Engine ................411J
K
L
M
O
