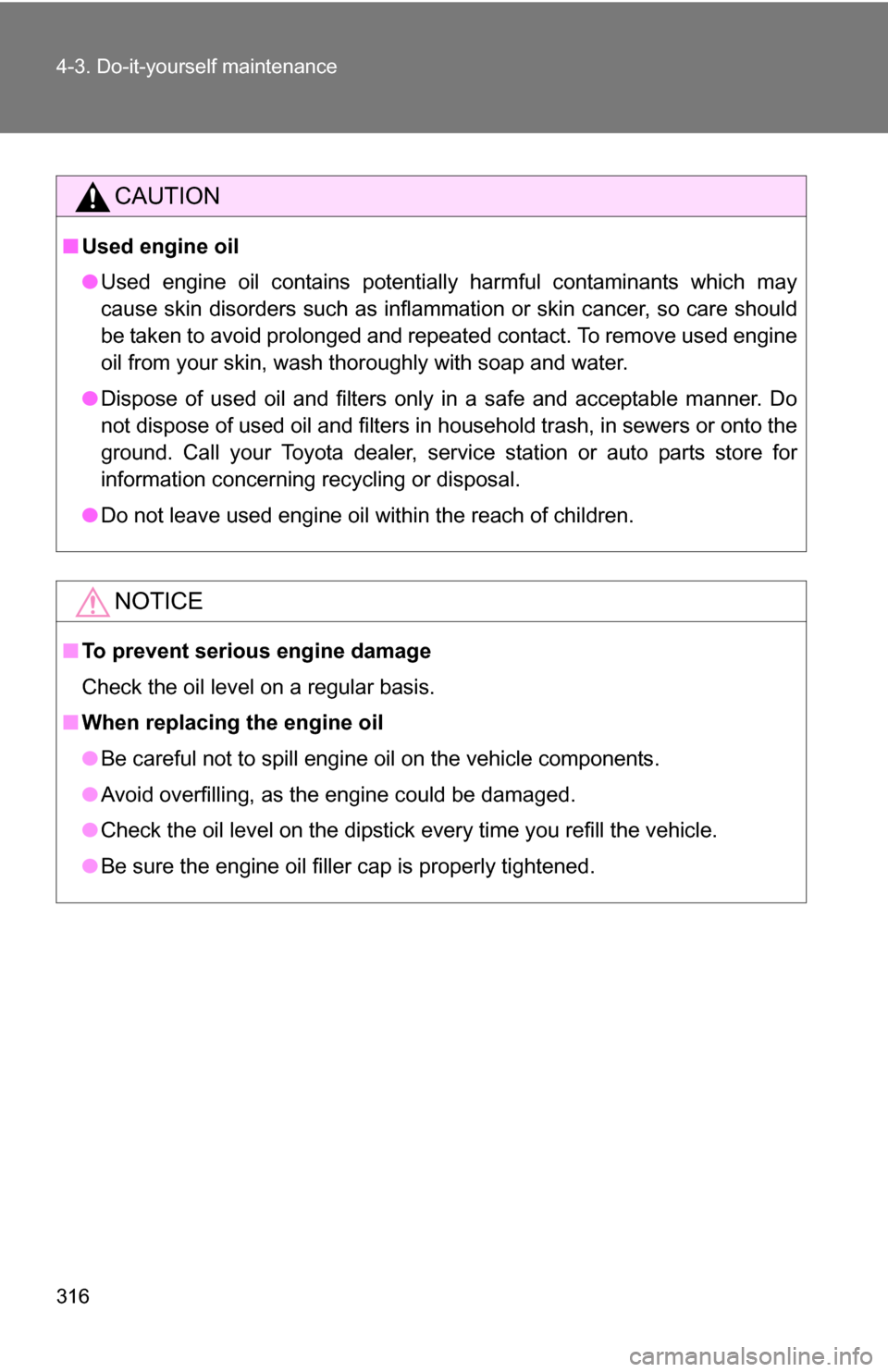

316 4-3. Do-it-yourself maintenance
CAUTION
■Used engine oil
●Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation or skin cancer, so care should
be taken to avoid prolonged and repeated contact. To remove used engine
oil from your skin, wash thoroughly with soap and water.
● Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground. Call your Toyota dealer, service station or auto parts store for
information concerning recycling or disposal.
● Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on a regular basis.
■ When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
● Avoid overfilling, as the engine could be damaged.
● Check the oil level on the dipstick every time you refill the vehicle.
● Be sure the engine oil filler cap is properly tightened.

421
6-1. Specifications
6
Vehicle specifications
Lubrication system
Oil viscosity
● The 0W portion of the oil viscosity rating indicates the characteristic
of the oil which allows cold startab ility. Oils with a lower value before
the W allow for easier starting of the engine in cold weather.
● The 20 in 0W-20 indicates the oil viscosity when the oil is at its oper-
ating temperature. An oil with a higher viscosity may be better suited
if the vehicle is operated at high speeds, or under extreme load con-
ditions.
Oil capacity
(drain and refill) With filter
Without filter 1.8 L 4-cylinder (2ZR-FE) engine
4.4 qt. (4.2 L, 3.7 Imp.qt.)
2.4 L 4-cylinder (2AZ-FE) engine
4.0 qt. (3.8 L, 3.3 Imp.qt.)
1.8 L 4-cylinder (2ZR-FE) engine
4.1 qt. (3.9 L, 3.4 Imp.qt.)
2.4 L 4-cylinder (2AZ-FE) engine
3.8 qt. (3.6 L, 3.2 Imp.qt.)
Oil grade
ILSAC multi-grade engine oil
Recommended oil
viscosity Use Toyota approved “Toyota Genuine Motor
Oil” or equivalent to satisfy the grade and vis-
cosity shown below.
0W-20 is the oil that provides the optimal level
of fuel efficiency.
Outside temperature

468

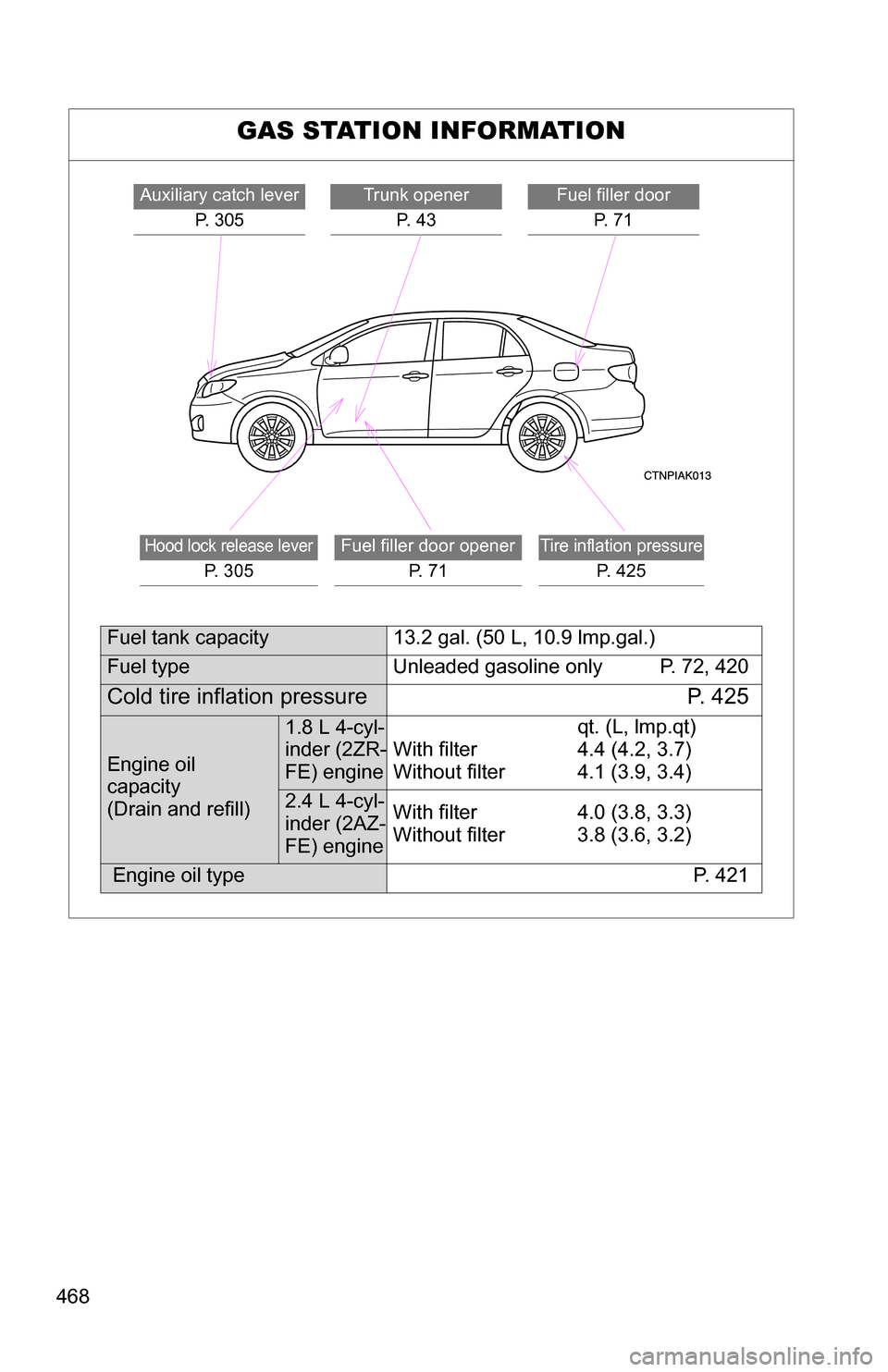

GAS STATION INFORMATION
Auxiliary catch leverP. 305Trunk openerP. 4 3Fuel filler door P. 7 1
Hood lock release lever
P. 3 0 5
Fuel filler door opener P. 7 1Tire inflation pressure
P. 425
Fuel tank capacity 13.2 gal. (50 L, 10.9 lmp.gal.)
Fuel typeUnleaded gasoline only P. 72, 420
Cold tire inflation pressure P. 425
Engine oil
capacity
(Drain and refill)
1.8 L 4-cyl-
inder (2ZR-
FE) engineqt. (L, lmp.qt)
With filter 4.4 (4.2, 3.7)
Without filter 4.1 (3.9, 3.4)
2.4 L 4-cyl-
inder (2AZ-
FE) engine With filter 4.0 (3.8, 3.3)
Without filter 3.8 (3.6, 3.2)
Engine oil type
P. 421
