23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

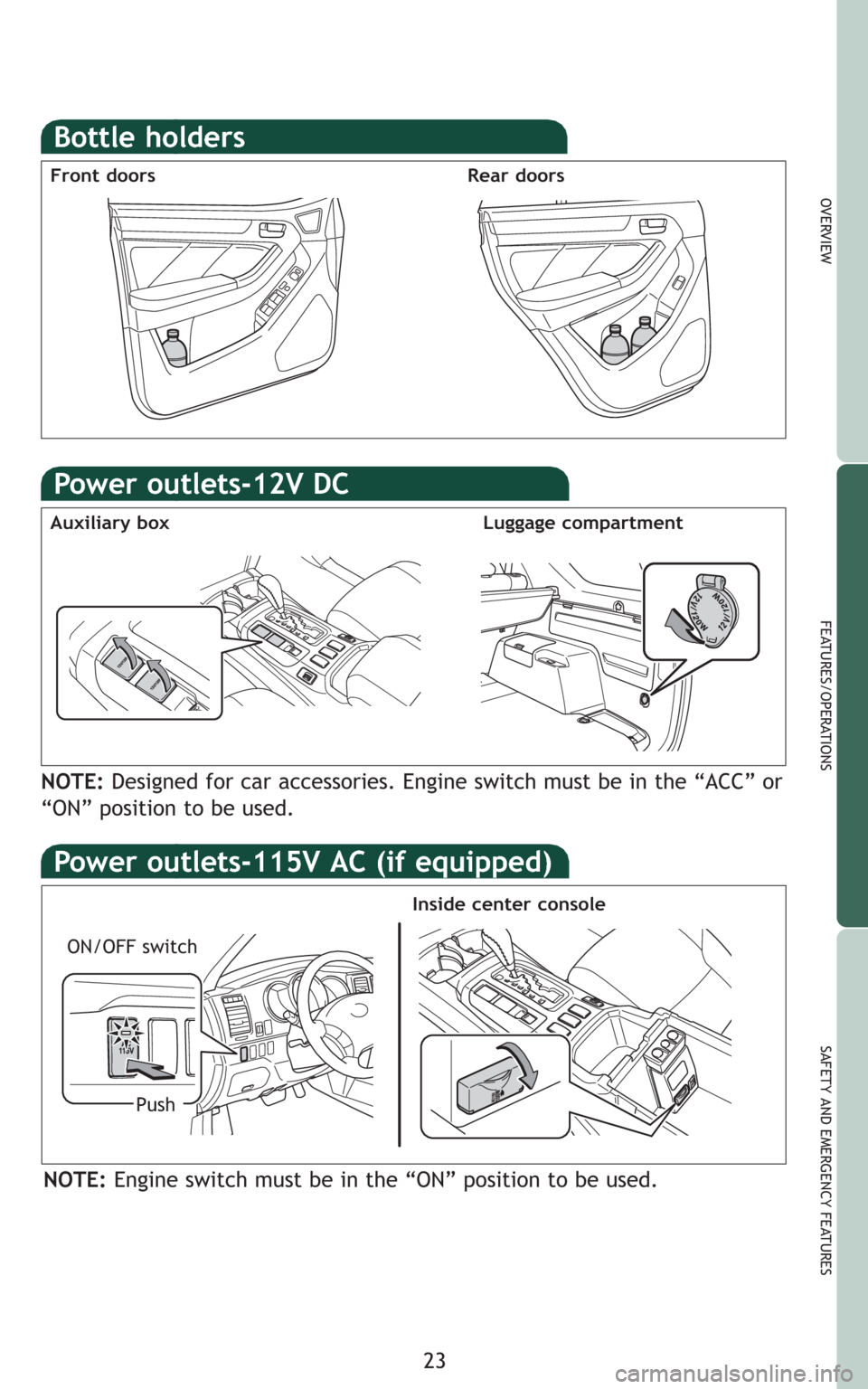

Power outlets-12V DC
ON/OFF switch
Inside center console
Push
Auxiliary boxLuggage compartment
NOTE:Designed for car accessories. Engine switch must be in the “ACC” or
“ON” position to be used.
NOTE:Engine switch must be in the “ON” position to be used.
Bottle holders
Front doorsRear doors
Power outlets-115V AC (if equipped)
24
SAFETY AND
EMERGENCY FEATURES
If tire pressure becomes critically low on any of the tires (including the
spare), indicator light will come on. Correctly adjusting tire inflation will
turn off the light after a few minutes. If the light does not turn off, have
the system checked by your Toyota dealer.
Refer to the Owner’s Manualfor more details.
Seat belts-Shoulder belt anchor
Push up or squeeze lock
release to lower
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Doors-Child safety locks
Rear door
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Tire Pressure Monitoring (warning)
System
