2009 TOYOTA 4RUNNER Quick Reference Guide

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Operating from inside
Windows
Driver side
Automatic operation (driver side only) Push the switch completely down
or pull it completely up and release to fully open or close. To stop window
midway, lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
NOTE:If the battery is disconnected, the window will need to be
reinitialized. Refer to the Owner’s Manualfor more details.
Window-Rear hatch
Operating from outside
Up
Down
Window lock switch
Window lock switch
Open
Open
Turn and hold
CloseClose
NOTE:If the battery is disconnected, the rear hatch window will need to
be reinitialized. Refer to the Owner’s Manualfor more details.

16
Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Refer to the Owner’s Manualfor more details.
Turning system ON/OFF
Functions
System ON/OFF
Resume
2/Increase speed
Set/Decrease speed
Cancel1
Seat heaters (if equipped)
Left front seatRight front seat
FEATURES/OPERATIONS

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Air Conditioning/Heating
With “DUAL” button
Fan speed
Temperature selector
Automatic climate control ON/OFF
“DUAL” button
Indicator ON:Separate temperature settings for driver and
passenger.
Indicator OFF:Synchronize temperature settings for driver and
passenger.
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce
window fogging. “ ” mode uses fresh air only.
Fresh or recirculated cabin air
Air Conditioning ON/OFF
Rear defogger
Climate control OFF
Without “DUAL” button

18
CD PLAYER
To scan tracks on a disc Push “SCAN.” Push again to hold selection.
CD Changer (Types 2 and 3)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) Turn “TUNE.
FILE.”
To select a folder (MP3/WMA only) Push either side of “FOLDER” or
“TYPE/FOLDER.”
Audio
Type 2 additional functions
Type 3 additional functions
View radio/CD
information Eject CD
Push to turn
ON/OFFPush to adjust
tone & balance
Push to skip
up/down folder Seek station/
CD track select
Station/CD
track scanMode
Load CD(s) Preset buttons - functions in other
modes indicated above number.
View genre/Push to skip up/down folder
Ty p e 1
AM/Satellite radio
FEATURES/OPERATIONS

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
“ ”
-In radio modePush to select a preset station; push and hold to seek
the next strong station.
-In CD modePush to skip up or down to next/previous track.
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
audio system OFF.
By inserting a mini plug into the AUX audio jack, you can listen to music
from a portable audio device through the vehicle’s speaker system while
in AUX mode.>>
Steering wheel controls (if equipped)
AUX adapter
RADIO
To preset stations Tune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6) to
select.
To scan stations Push “SCAN.” Push and hold to scan preset stations. Push
again to hold selection.
Center console
Volume control

20
Front audio system
DVD player
DVD screen
Remote control
A/V input adapter
115V AC Power outlet
115V AC Power outlet ON/OFF switch
Door locks
Unlock
Lock
Rear seat entertainment system
(if equipped)
FEATURES/OPERATIONS

21
OVERVIEW
FEATURES/OPERATIONS

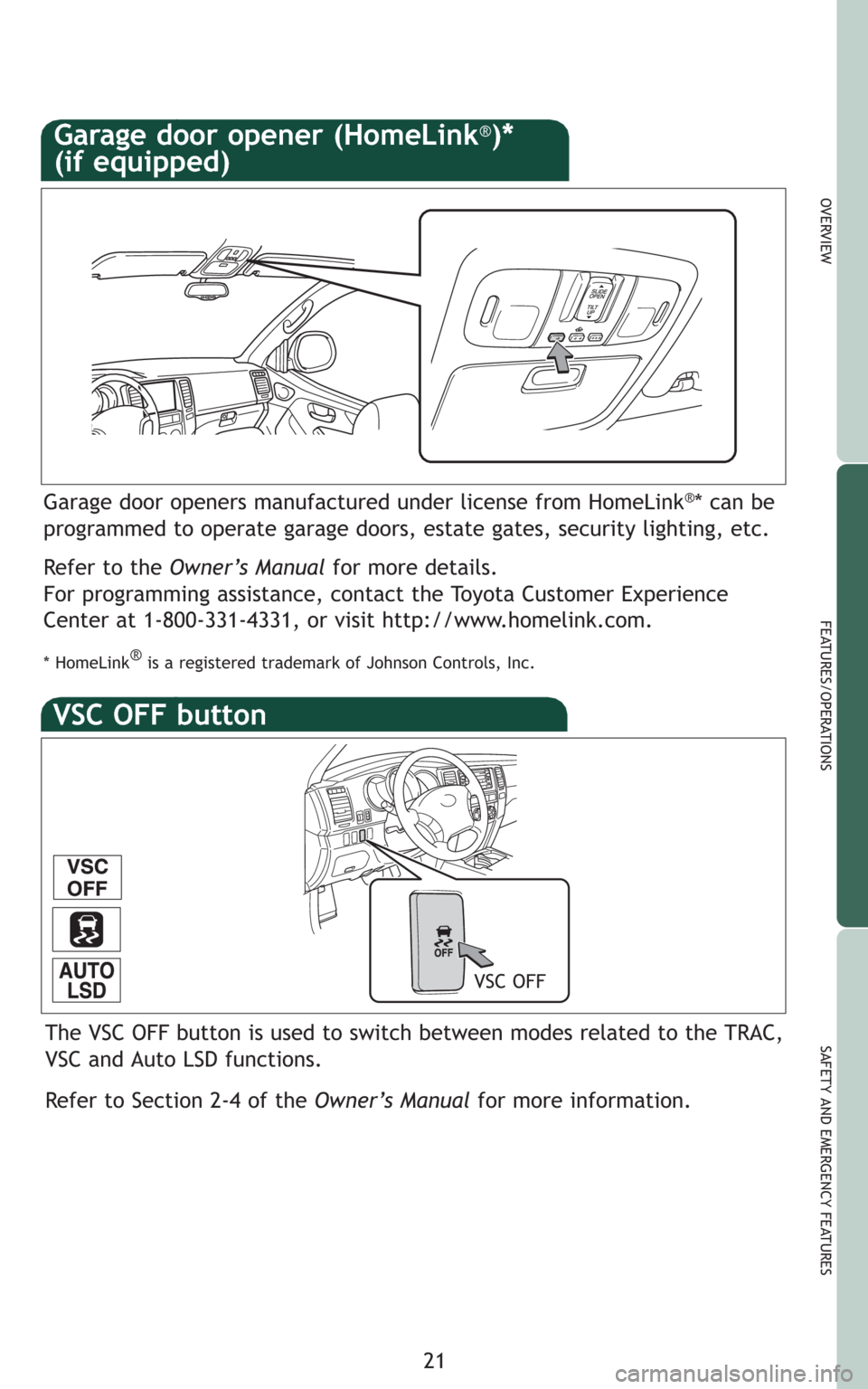

SAFETY AND EMERGENCY FEATURESThe VSC OFF button is used to switch between modes related to the TRAC,
VSC and Auto LSD functions.
Refer to Section 2-4 of the Owner’s Manualfor more information.
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to the Owner’s Manualfor more details.
For programming assistance, contact the Toyota Customer Experience
Center at 1-800-331-4331, or visit http://www.homelink.com.
* HomeLink®
is a registered trademark of Johnson Controls, Inc.
Garage door opener (HomeLink®)*
(if equipped)
VSC OFF
VSC OFF button

22
Moonroof (if equipped)
NOTE:If battery is disconnected, the moonroof will need to be
reinitialized. Refer to the Owner’s Manualfor more details.
Cup holders
Center console
Rear (with third seats)
Second row seat
Third row side trim
Rear (without third seats)
Sliding operationTilting operation
Open
CloseClose
Tilt
FEATURES/OPERATIONS
Push once to open/close completely.
To stop partway, press switch lightly.
