EN(H6DO)(diag)-121
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
R: DTC P0076 INTAKE VALVE CONTROL CIRCUIT LOW (BANK 1)
DTC DETECTING CONDITION:
•Immediately at fault recognition
•GENERAL DESCRIPTION LOW (BANK 1), Diagnostic Trouble Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
Erroneous idling
CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Inspection Mode.>.
WIRING DIAGRAM:
EN-03658
B21
E2
B137
E69
24
21
2625
E69
12
25
ECM
OIL SWITCHING SOLENOID VALVE RH
B21
123412131415567816171819910 1120212223 24 25 2627 28 29 3031 32 33
3534 37363938 41404342 4445 47464948 51505352 54
B137
85610 11 12 13 14 157213416
3019 20 2228 29
91718 2521 23 243126 27

EN(H6DO)(diag)-122
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
Step Check Yes No
1CHECK HARNESS BETWEEN ECM AND OIL
SWITCHING SOLENOID VALVE.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM and oil
switching solenoid valve.
3) Measure the resistance between ECM and
oil switching solenoid valve.
Connector & terminal
(B137) No. 25 — (E69) No. 1:
(B137) No. 24 — (E69) No. 2:
Is the resistance less than 1
Ω?
Go to step 2.Repair the open
circuit of harness
between ECM and
oil switching sole-
noid valve connec-
tor.
NOTE:In this case, repair
the following item:
•Open circuit
of harness be-
tween ECM and
oil switching so-
lenoid valve
connector
•Poor contact
of coupling con-
nector
2CHECK OIL SWITCHING SOLENOID VALVE.
1) Remove the oil switching solenoid valve
connector.
2) Measure the resistance between oil switch-
ing solenoid valve terminals.
Te r m i n a l s
No. 1 — No. 2:
Is the resistance between 6 —
12 Ω?
Repair the poor
contact of ECM
and oil switching
solenoid valve.
Replace the oil
switching solenoid
valve. ME(H6DO)-78, Oil
Switching Sole-
noid Valve.>

EN(H6DO)(diag)-123
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)

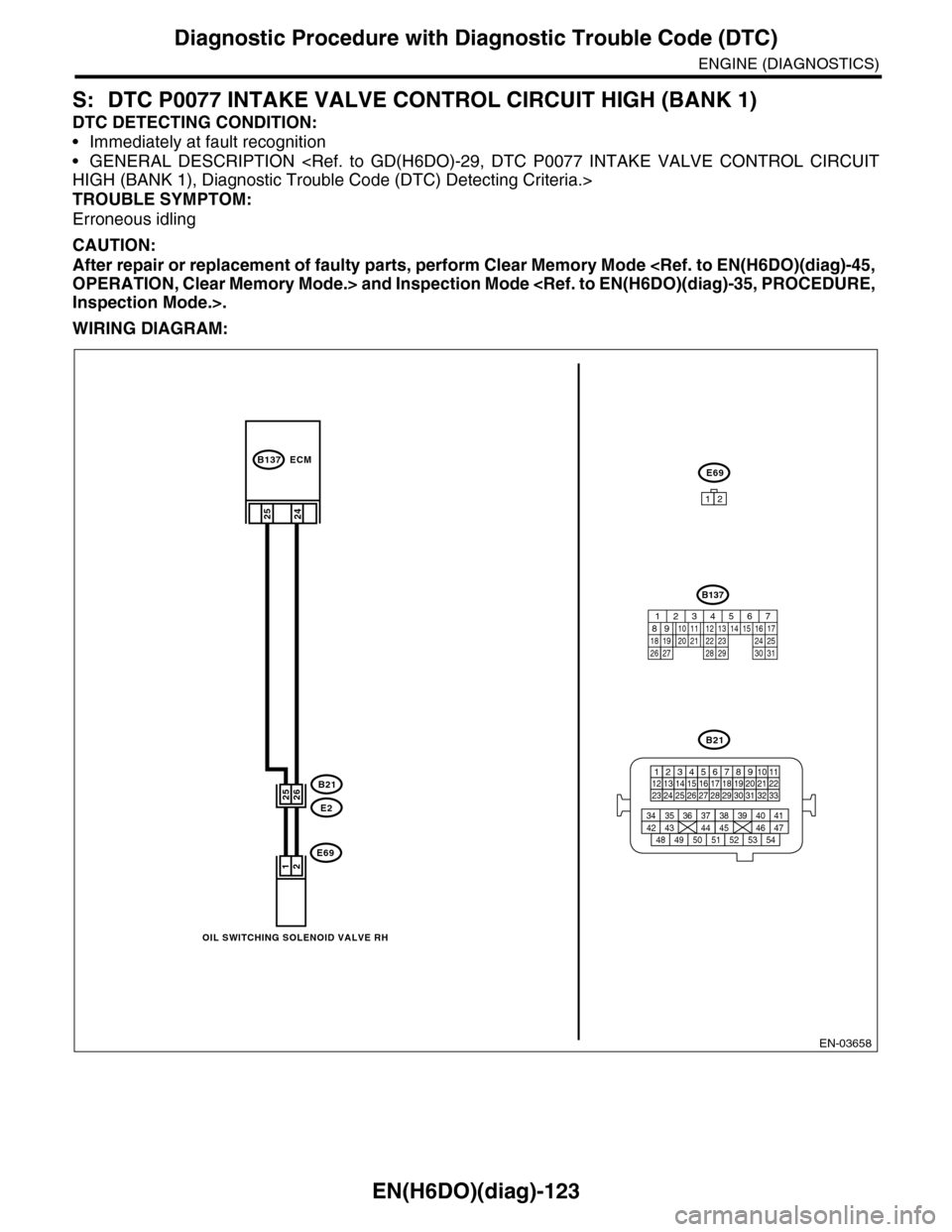

S: DTC P0077 INTAKE VALVE CONTROL CIRCUIT HIGH (BANK 1)
DTC DETECTING CONDITION:
•Immediately at fault recognition
•GENERAL DESCRIPTION HIGH (BANK 1), Diagnostic Trouble Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
Erroneous idling
CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Inspection Mode.>.
WIRING DIAGRAM:
EN-03658
B21
E2
B137
E69
24
21
2625
E69
12
25
ECM
OIL SWITCHING SOLENOID VALVE RH
B21
123412131415567816171819910 1120212223 24 25 2627 28 29 3031 32 33
3534 37363938 41404342 4445 47464948 51505352 54
B137
85610 11 12 13 14 157213416
3019 20 2228 29
91718 2521 23 243126 27

EN(H6DO)(diag)-124
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
Step Check Yes No
1CHECK HARNESS BETWEEN ECM AND OIL
SWITCHING SOLENOID VALVE.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM and oil
switching solenoid valve.
3) Measure the resistance between oil switch-
ing solenoid valve and engine ground.
Connector & terminal
(E69) No. 1 — Engine ground:
(E69) No. 2 — Engine ground:
Is the resistance more than 1
MΩ?
Go to step 2.Repair the short
circuit between
ECM and oil
switching solenoid
valve connector.
2CHECK OIL SWITCHING SOLENOID VALVE.
1) Remove the oil switching solenoid valve
connector.
2) Measure the resistance between oil switch-
ing solenoid valve terminals.
Te r m i n a l s
No. 1 — No. 2:
Is the resistance between 6 —
12 Ω?
Repair the poor
contact of ECM
and oil switching
solenoid valve.
Replace the oil
switching solenoid
valve. ME(H6DO)-78, Oil
Switching Sole-
noid Valve.>

EN(H6DO)(diag)-125
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
T: DTC P0082 INTAKE VALVE CONTROL CIRCUIT LOW (BANK 2)
DTC DETECTING CONDITION:
•Immediately at fault recognition
•GENERAL DESCRIPTION LOW (BANK 2), Diagnostic Trouble Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
Erroneous idling
CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Inspection Mode.>.
WIRING DIAGRAM:
EN-03659
B21
E2
B137
E70
30
21
3029
E70
12
31
ECM
B21
123412131415567816171819910 1120212223 24 25 2627 28 29 3031 32 33
3534 37363938 41404342 4445 47464948 51505352 54
OIL SWITCHING SOLENOID VALVE LH
B137
85610 11 12 13 14 157213416
3019 20 2228 29
91718 2521 23 243126 27

EN(H6DO)(diag)-126
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
Step Check Yes No
1CHECK HARNESS BETWEEN ECM AND OIL
SWITCHING SOLENOID VALVE.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM and oil
switching solenoid valve.
3) Measure the resistance between ECM and
oil switching solenoid valve.
Connector & terminal
(B137) No. 31 — (E70) No. 1:
(B137) No. 30 — (E70) No. 2:
Is the resistance less than 1
Ω?
Go to step 2.Repair the open
circuit of harness
between ECM and
oil switching sole-
noid valve connec-
tor.
NOTE:In this case, repair
the following item:
•Open circuit
of harness be-
tween ECM and
oil switching so-
lenoid valve
connector
•Poor contact
of coupling con-
nector
2CHECK OIL SWITCHING SOLENOID VALVE.
1) Remove the oil switching solenoid valve
connector.
2) Measure the resistance between oil switch-
ing solenoid valve terminals.
Te r m i n a l s
No. 1 — No. 2:
Is the resistance between 6 —
12 Ω?
Repair the poor
contact of ECM
and oil switching
solenoid valve.
Replace the oil
switching solenoid
valve. ME(H6DO)-78, Oil
Switching Sole-
noid Valve.>

EN(H6DO)(diag)-127
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)

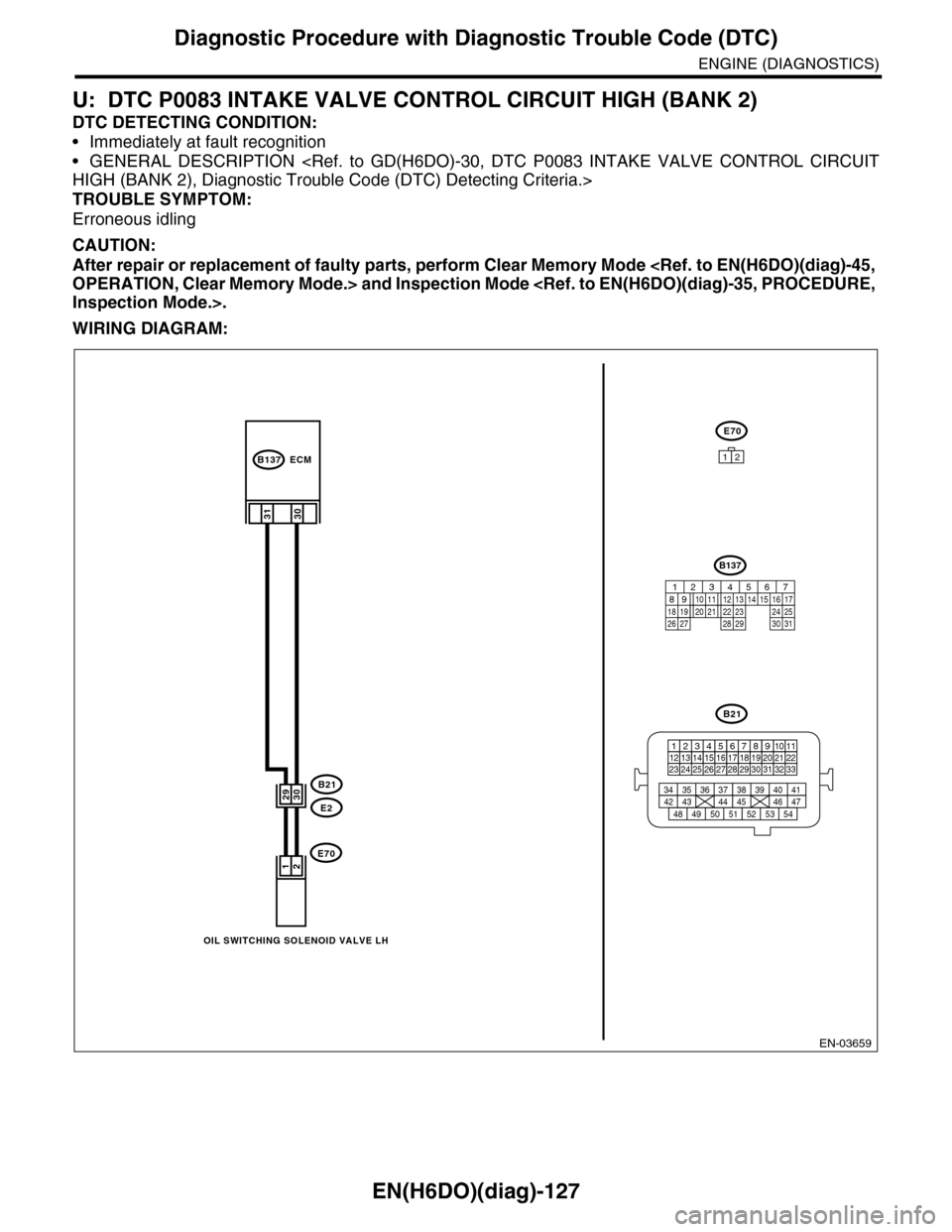

U: DTC P0083 INTAKE VALVE CONTROL CIRCUIT HIGH (BANK 2)
DTC DETECTING CONDITION:
•Immediately at fault recognition
•GENERAL DESCRIPTION HIGH (BANK 2), Diagnostic Trouble Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
Erroneous idling
CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode OPERATION, Clear Memory Mode.> and Inspection Mode Inspection Mode.>.
WIRING DIAGRAM:
EN-03659
B21
E2
B137
E70
30
21
3029
E70
12
31
ECM
B21
123412131415567816171819910 1120212223 24 25 2627 28 29 3031 32 33
3534 37363938 41404342 4445 47464948 51505352 54
OIL SWITCHING SOLENOID VALVE LH
B137
85610 11 12 13 14 157213416
3019 20 2228 29
91718 2521 23 243126 27

EN(H6DO)(diag)-128
Diagnostic Procedure with Diagnostic Trouble Code (DTC)
ENGINE (DIAGNOSTICS)
Step Check Yes No
1CHECK HARNESS BETWEEN ECM AND OIL
SWITCHING SOLENOID VALVE.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from ECM and oil
switching solenoid valve.
3) Measure the resistance between oil switch-
ing solenoid valve and engine ground.
Connector & terminal
(E70) No. 1 — Engine ground:
(E70) No. 2 — Engine ground:
Is the resistance more than 1
MΩ?
Go to step 2.Repair the short
circuit between
ECM and oil
switching solenoid
valve connector.
2CHECK OIL SWITCHING SOLENOID VALVE.
1) Remove the oil switching solenoid valve
connector.
2) Measure the resistance between oil switch-
ing solenoid valve terminals.
Te r m i n a l s
No. 1 — No. 2:
Is the resistance between 6 —
12 Ω?
Repair the poor
contact of ECM
and oil switching
solenoid valve.
Replace the oil
switching solenoid
valve. ME(H6DO)-78, Oil
Switching Sole-
noid Valve.>
