Seats and Stowage
78•
Do not place any footmats or other additional floor coverings in the area of
the pedals in order to ensure that all the pedals can be fully depressed and are able to return unobstructed to their initial position - risk of accident!•
There must be no objects on the floor
which could roll under the pedals. You
would then no longer be able to apply
the brakes, operate the clutch or acceler-
ator - risk of accident!Luggage compartmentLoading the luggage compartmentPlease observe the following in the interest of having good handling characteristics of your vehicle: – Distribute the items of luggage as evenly as possible. – Place heavy objects as far forward as possible.– Attach the items of luggage to the lashing eyes or the fixing net*
⇒page 79.
In the event of an accident, there is such a
high kinetic energy wh
ich is produced by
small and light objects that they can cause se
vere injuries. The magnitude of the kinetic
energy depends on the speed at which the vehi
cle is travelling and on the weight of the
object. The speed at which the vehicle is travelling is in this case the more significant factor. Example: In the event of a frontal collision at a speed of 50 km/h, an unsecured object with a weight of 4.5 kg produces an ener
gy, which corresponds to 20 times its own
weight. This means that it results in a weight of approx. 90 kg. You can imagine the inju- ries that can occur, if this “bullet” is fl
ying through the interior
compartment and hits
an occupant.
WARNING
•
Store the objects in the luggage compartment and attach them to the
lashing eyes, e.g. with the fixing nets.
•
Loose objects in the passenger compartment can be thrown forward during
a sudden manoeuvre or in case of an a
ccident and can injure the occupants or
other oncoming traffic. This risk is still increased, if the objects which are flying around are hit by a deployed airbag. In this case, the objects which are thrown back can injure the occupants - hazard.•
Please note that the handling properti
es of your vehicle may be affected
when transporting heavy objects as a result
of the displacement of the centre of
gravity. The speed and style of driv
ing must be adjusted accordingly.
•
The items carried in the luggage compartment should be stowed in such a
way that no objects are able to slip forward if there are any sudden driving or braking manoeuvres undertaken - risk of injury!•
Never drive with the boot lid fully open
ed or slightly ajar otherwise exhaust
gases may get into the interior of the vehicle - risk of poisoning!•
On no account exceed the permissible
axle loads and the permissible gross
weight of the vehicle - risk of accident!•
Never transport occupants in the luggage compartment!Caution
Please ensure that the heating elements of the rear window heater are not damaged as a result of objects sliding in this area.
Note
Tyre pressure must be adjusted to the load
⇒page 215.
WARNING (continued)
WARNING (continued)
sgg.6.book Page 78 Thursday, September 24, 2009 2:32 PM

Seats and Stowage
80 Move the hook into another position– Fold up the hook in direction of arro
w until an angle of 45° is reached
⇒ page 79, fig. 77
.
– Move the hook in direction of arrow into the desired position and fold down the
hook as far as the stop
in direction of arrow
⇒page 79, fig. 77
.
Remove the hook from the fastening strip– Fold the hook in direction of arrow until it slackens.Install the hook on the fastening strip– Position the hook on the fastening strip in
the vertical position in direction of arrow
and lightly press it on.
– Fold the hook down in opposite direct
ion of the arrow until it locks fully.
WARNING
Please refer to the following guidelines
⇒page 78.
Fixing nets - Net programme*Fig. 78 Fixing net: double horizontal pocket
, floor fixing net / double vertical pockets
Fixing examples of the fixing net as do
uble horizontal pocket, floor fixing net
⇒fig. 78

on the left and double vertical pocket
⇒fig. 78
on the right.
The fixing nets* and the installation inst
ruction are located in the luggage compart-
ment.
WARNING
•
The whole strength of the net makes it possible to load the pocket with
objects of up to 3.5 kg in weight. Heavy
objects are not secured sufficiently - risk
of injury and net damage!•
The load to be transported must be fixed in place in such a way that it cannot
move during the journey and when braking.
Caution
Do not place any objects with sharp edge
s in the nets - risk of net damage.
The luggage compartment cover You can use the luggage compartment cover behind the head restraints for storing
light and soft items.
The luggage compartment cover can be remo
ved as required if one must transport
bulky goods.Removing the luggage compartment cover– Fold the seat backrests a little forward in order to facilitate the removal of the
luggage compartment cover.
– Unhook the support straps on the boot lid
⇒fig. 79
.
A1
A2
A3
A4
A5
A4
Fig. 79 Removing the luggage compart- ment coverA1
sgg.6.book Page 80 Thursday, September 24, 2009 2:32 PM

Seats and Stowage
81
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
– Place the cover in the horizontal position. – Pull the luggage compartment cover out of the holders to the rear or press on
the bottom side of the luggage compartment cover in the front area.
– Fold the slackened front part of the luggage compartment cover over the head
restraints of the rear seats.
– Slightly tilt the luggage compartment cover and remove it to the rear. – Install again by pushing the luggage compartment cover forwards into the holder
and hanging the support straps on the boot lid.
You can stow the removed luggage compartment cover behind the rear seat backrest. The procedure of installing or removing is identical.The luggage compartment cover is foreseen for storage of small objects of up to 2.5 kg. in weight.
WARNING
No objects should be placed on the luggage compartment cover, the vehicle occupants could be endangered if th
ere is sudden braking or the vehicle
collides with something.
Caution
Please ensure that the heating elements of the rear window heater are not damaged as a result of objects placed in this area.
Static separation net*Fig. 80 Use of the static separation net be
hind the rear seats / behind the front seats
Install the static separation net behind the front seats or the rear seats.Installing the static separation net– Remove the luggage compartment cover
⇒page 80.
– Take the separation net out of the bag.– Unfold both parts of the cross rod until they are heard to engage. – Insert the cross rod into the mount first on the one side and push the cross rod
forward. In the same way, fix the cross rod to the other side of the vehicle, mount ⇒fig. 80
.
– Hang the carabines at the ends of the strap into the fixing eyes behind the rear
or front seats.
– Pull the strap through the tensioning clasp,
first of all on the one side and then on
the other side.
Remove the static separation net behind the rear seats– Slacken the bands on both side
s and take off the carabines
⇒fig. 80
.
– Push the cross rod first of all on the one side and then on the other side towards
the rear.
– Take the cross rod out of the mounts .
A2
A2
A1
AB
AB
AC
AC
AB
sgg.6.book Page 81 Thursday, September 24, 2009 2:32 PM

Seats and Stowage
84Removeable storage boxThe storage box is housed under the vari
able loading floor. If
necessary, you can
remove it. There is a space for the vehicle tool kit under the storage box
⇒page 223.
WARNING
The removeable storage box must be lo
cated under the loading floor for the
safe use of the vari
able loading floor.
Roof rackRoof rail
Pay attention to the following points if you
wish to transport luggage or other items on
the roof of your vehicle:•
A special roof luggage rack system was de
veloped for the vehicle, that is why you
should only use a roof luggage rack which has been released for use by Škoda Auto.•
The roof rail is the basis for a complete
roof luggage rack system. Separate addi-
tional holders are required for safety reasons for transporting luggage, bikes, surf-boards, skis and boats.•
The basic version of the roof luggage rack system and further components are
obtainable as accessories from the specialist garages.
Caution
•
Ensure that the opened boot lid do
es not collide with the roof load.
•
On models fitted with a power sliding/tilting roof, ensure that the opened
sliding/tilting roof does not strike any items of luggage transported on the roof.
For the sake of the environment
The increased aerodynamic drag resu
lts in a higher fuel consumption.
Roof loadDistribute weight evenly over the roof lu
ggage rack system. The maximum permissible
roof load (including roof rack system) of
75 kg
and the maximum
permissible total
weight of the vehicle should not be exceeded. You cannot make full use of th
e permissible roof load if
you use a roof luggage rack
system with a lower load carr
ying capacity. The load transported on the roof luggage
rack system must not exceed the weight limit
which is stated in the fitting instructions.
WARNING
•
The items which you transport on the roof bar system must be reliably
attached - risk of accident!•
You must on no account exceed the pe
rmissible roof load, the permissible
axle loads and the permissible gross weight of your vehicle - risk of accident!
Fig. 84 Luggage compartment: Storage box
AA
Fig. 85 Roof rail
sgg.6.book Page 84 Thursday, September 24, 2009 2:32 PM

Seats and Stowage
91
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
WARNING
Use the area
⇒page 90, fig. 99
of the storage compartment only for storing
objects which do not project so that the effectiveness of the side airbag is not impaired.Storage compartment below front passenger seat*The storage compartment is foreseen for storing small objects of up to 1.5 kg in weight. – Tilt the lock to open the flap and pull out the flap
⇒fig. 100
.
– Tilt the lock to close the
flap and press flap close.
Front seat armrest with storage compartment*Fig. 101 Armrest: Storage compartment / cooling of storage compartment
The armrest is adjustable for height and length.Opening storage compartment– Open the lid of the armrest in the direction of arrow
⇒fig. 101
.
Closing storage compartment– Open the lid up to the stop, then you can fold it downwards.Setting height– First of all fold the lid to the bottom and li
ft it in the direction of arrow into one of
the 4 fixed positions.
Adjusting in forward/back direction– Push the lid into the desired position.Opening air inlet– Pull the lock in upward direction
⇒fig. 101
.
Closing air inlet– Push the lock as far as the stop downwards. On vehicles fitted with air conditioning, the storage compartment is equipped with a lockable inlet for thermally treated (warmed-up) air. At open air supply, air flows into the storage with a temperature which is as high as the one out of the air outlet nozzles, depending on temperature setting. The air inlet in the storage compar
tment is connected to position
 through adjust-
ment of the control dial for air distribution. This position causes the maximum amount of air to flow into the storage compartmen
t (depending on the rotary regulator posi-
tion for the fan). You can use the storage compartment, for
example, to temper drinks cans, etc.
If you do not use the air inlet in the storage compartment, the end cover should always be kept closed.
AA
Fig. 100 Front passenger seat: Storage compartment
A1
AAAA
sgg.6.book Page 91 Thursday, September 24, 2009 2:32 PM

Seats and Stowage
92
Note
Push the lid of the armrest up to stop to the rear before operating the handbrake.Storage compartment in rear centre console*The storage compartment is equipped with a removeable insert. – Open the storage compartment by pulling on the upper edge of the storage
compartment in the direction of arrow
⇒fig. 102
.
WARNING
The storage compartment is not a substitu
te for the ashtray and must also not
be used for such purposes - risk of fire!
Caution
The storage compartment in the rear part of the centre console must be closed (other-wise it could get damaged) before folding forward the rear middle seat.
Storage compartments in the luggage compartment*Fig. 103 Luggage compartment: Storage compartmentsStorage compartments are located on bo
th sides of the luggage compartment.
The removeable storage compartment on the left side
⇒fig. 103
is suitable for
stowing small objects weighing up to 1.5 kg. The storage compartment on the right side
⇒fig. 103
is suitable for stowing small
objects weighing up to 0.5 kg.Flexible storage compartment*A flexible storage compartmen
t is located on the right side of the luggage compart-
ment. The flexible storage compartment is foreseen for storing small objects of up to 8 kg in weight.

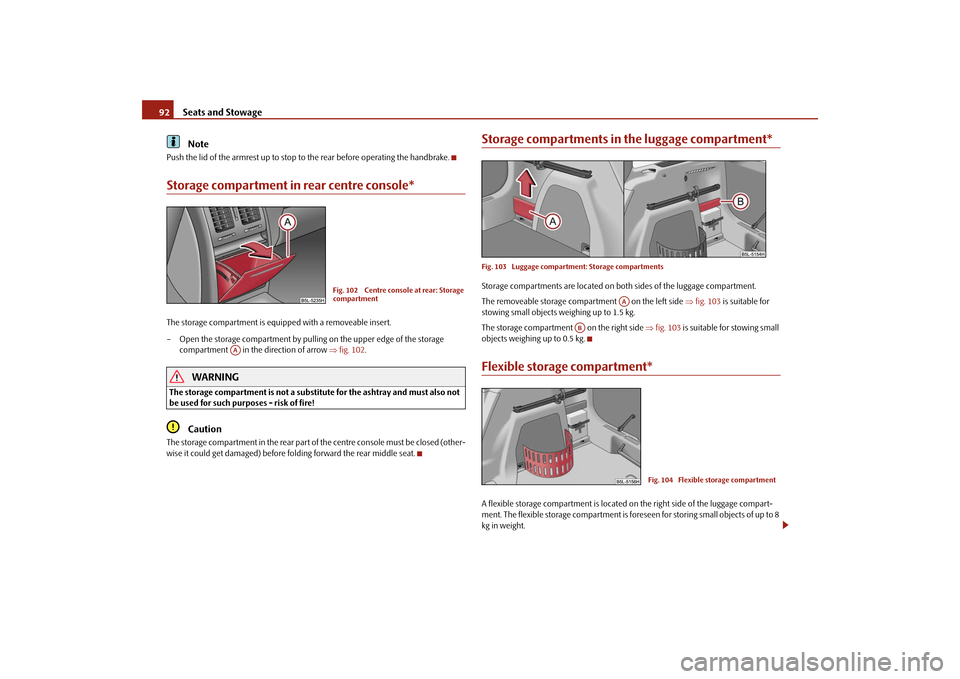

Fig. 102 Centre console at rear: Storage compartment
AA
AA
AB
Fig. 104 Flexible storage compartment
sgg.6.book Page 92 Thursday, September 24, 2009 2:32 PM

Seats and Stowage
93
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Removing– Take hold of the flexible storage
compartment at both upper corners.
– Press the upper corners to the inside
and release the storage compartment by
pulling upwards.
– Remove by pulling towards you.Installing– Insert both ends of the flexible storage
compartment into the openings of the right
side trim panel of the luggage compartment and push it downwards until it locks.
Clothes hooksThe clothes hooks are located on the middle
pillar and on the handle of the headliner
above each of the rear doors.
WARNING
•
Ensure that any clothes hanging from the hooks do not impair your vision to
the rear.•
Use the hooks for hanging only light item
s of clothing and ensure that there
are no heavy or sharp-edge
d objects in the pockets.
•
The maximum permissable load of the hooks is 2 kg.
•
Do not use clothes hangers for hanging up items of clothing otherwise this
will interfere with the protection offered by the head airbag*.
Removeable through-loading bag*The removeable through-loading bag
is solely used for transporting
skis.The removeable through-loading bag is foreseen for two pairs of skis. The total weight of the skis which are transported must not exceed 10 kg.Loading– Open a rear side door of the vehicle. – Fold the backrest of the middle seat forwards
⇒page 74.
– Place the empty removeable through-loading bag in the gap between the front and
rear seats in such a way that the end of
the bag with the zip lies in the luggage
compartment.
– Open the boot lid.– Push the skis into the removeable through-loading bag from the luggage compart-
ment
⇒
.
– Close the removeable through-loading bag with the zip.Securing– Pull the securing belt with both lock to
ngues out of the pocket of the removeable
through-loading bag.
– Insert the lock tongues in the belt locks
of the rear middle seat belt , first of
all on the one side and then on the other side
⇒fig. 105
.
Fig. 105 Securing the removeable through-loading bag
AA
AC
sgg.6.book Page 93 Thursday, September 24, 2009 2:32 PM
