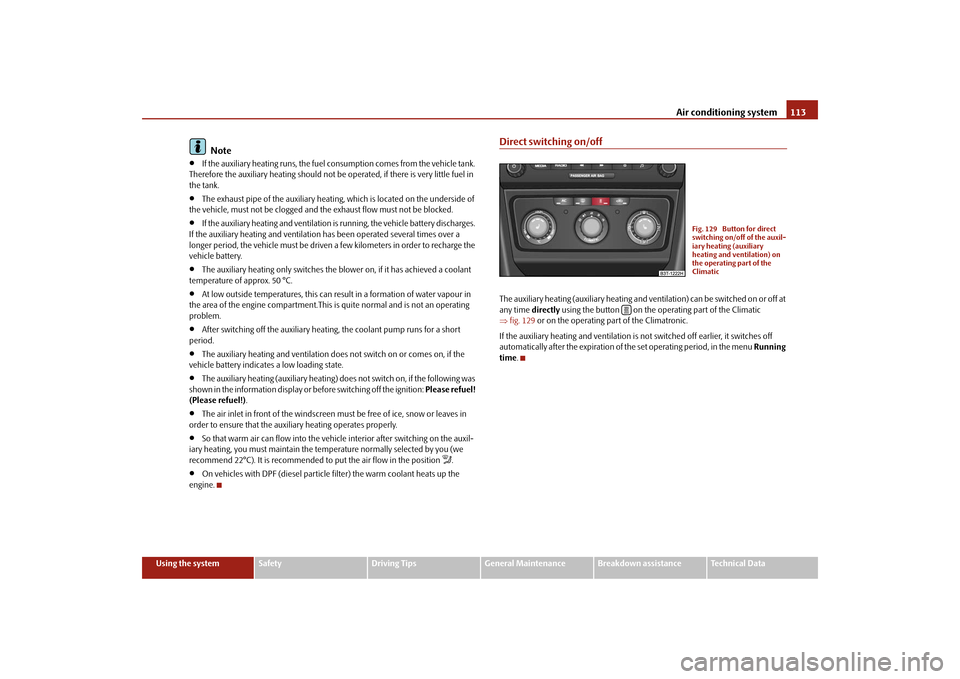

2009 SKODA SUPERB technical data

Air conditioning system
113
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Note
•
If the auxiliary heating runs, the fuel
consumption comes from
the vehicle tank.
Therefore the auxiliary heating should not be operated, if there is very little fuel in the tank.•
The exhaust pipe of the auxiliary heating,
which is located on the underside of
the vehicle, must not be clogged and the exhaust flow must not be blocked.•
If the auxiliary heating and ventilation is
running, the vehicle battery discharges.
If the auxiliary heating and ventilation
has been operated several times over a
longer period, the vehicle must be driven
a few kilometers in order to recharge the
vehicle battery.•
The auxiliary heating only sw
itches the blower on, if
it has achieved a coolant
temperature of approx. 50 °C.•
At low outside temperatures, this can resu
lt in a formation of water vapour in
the area of the engine compartment.This
is quite normal and is not an operating
problem.•
After switching off the auxiliary heating, the coolant pump runs for a short
period.•
The auxiliary heating and ventilation does not switch on or comes on, if the
vehicle battery indicate
s a low loading state.
•
The auxiliary heating (auxiliary heating) does not switch on, if the following was
shown in the information display or before switching off the ignition:
Please refuel!
(Please refuel!)
.
•
The air inlet in front of the windscreen must be free of ice, snow or leaves in
order to ensure that the auxiliary heating operates properly.•
So that warm air can flow into the vehi
cle interior after switching on the auxil-
iary heating, you must maintain the te
mperature normally selected by you (we
recommend 22°C). It is recommended to
put the air flow
in the position
.
•
On vehicles with DPF (diesel particle filter) the warm coolant heats up the
engine.
Direct switching on/offThe auxiliary heating (auxiliary heating and ve
ntilation) can be switched on or off at
any time
directly
using the button on the op
erating part of the Climatic
⇒ fig. 129
or on the operating part of the Climatronic.
If the auxiliary heating and ventilation is not switched off earlier, it switches off automatically after the expiration of
the set operating period, in the menu
Running
time
.
Fig. 129 Button for direct switching on/off of the auxil-iary heating (auxiliary heating and ventilation) on the operating part of the Climatic

s2dk.1.book Page 113 Wednesday, April 8, 2009 12:23 PM

Air conditioning system
115
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
If the system is running, a warning light in
the button for direct switching on/off of
the auxiliary heating lights up. The running system deactivates after expiration of the operating period or is deac- tivated earlier by pressing the button for di
rect switching on/off of the auxiliary
heating
⇒page 113.
The random pre-set time can be deactivated by selecting the menu point
Deactive

in the menu
Activate
.
After selecting the menu point
Fac to r y s e tt ing
in the menu
Aux. heating
(auxiliary heating)
, it is possible to change to the factory setting.
Radio remote control The auxiliary heating (auxiliary heating and ventilation) can be switched on or off with the remote control.– For switching on, press the button . – For switching off, press the button .The transmitter and the battery are housed in the housing of the remote control. The receiver is located in
the interior of the car.
If the battery is properly charged, the ef
fective range is up to 600 m. For switching
on or off the auxiliary heating, hold the
remote control vertically with the antenna
⇒fig. 131
towards the top. You must not cover over the antenna with the
fingers or the palm of th
e hand. Obstacles between the radio remote control and
the vehicle, bad weather co
nditions and a weaker batt
ery can clearly reduce the
range. The auxiliary heating can only be switched
on or off with the radio remote control,
if the distance between the radio remote
control and the vehicle is at least 2 m.
Warning light in the radio remote control The warning light in the radio remote control
⇒fig. 131
indicates after a keystroke
if the remote control signal was received
by the auxiliary heating and if the battery
is adequately charged.
Caution
There are electronic components in the radio remote control, protect the remote control against water, severe
shocks and direct sun rays.


Fig. 131 Auxiliary heating: Radio remote control
ONOFF
AA
Display warning light
Importance
Lights up green for 2 seconds.
The auxiliary heating was switched on.
Lights up red for 2 seconds.
The auxiliary heating was switched off.
Slowly flashes green for 2 seconds.
The ignition signal was not received.
Quickly flashes green for 2 seconds.
The auxiliary heating is blocked, e. g because the tank is nearly empty or there is a fault in the auxiliary heating.
Flashes red for 2 seconds.
The switch off signal was not received.
Lights up orange for 2 seconds, then green or red.
The battery is weak, however the switching on or off signal was received.
Lights up orange for 2 seconds, then flashes green or red.
The battery is weak, however the switching on or off signal was not received.
Flashes orange for 5 seconds.
The battery is discharged, however the switching on or off signal was not received.
s2dk.1.book Page 115 Wednesday, April 8, 2009 12:23 PM

Starting-off and Driving
117
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Starting-off and DrivingSetting steering wheel positionYou can set the height and the forw
ard/back position of the steering
wheel to the desired position. – Adjust the driver seat
⇒
page 78.
– Pull the lever below the steering column
⇒
fig. 132
down
⇒
.
– Set the steering wheel to the desired position (concerning height and
forward/back position).
– Push the lever upwards as far as the stop.
WARNING
•
You must not adjust the steering wh
eel when the vehicle is moving!
•
The driver must maintain a distance of at least 25 cm to the steering
wheel
⇒fig. 133
. Not maintaining this minimum distance will mean that the
airbag system will not be able to properly protect you - hazard!•
For s a fe t y re a s ons the le v e r m ust a lwa y s b e fi rm l y pus he d up t o a vo id the
steering wheel altering its position unintentionally when driving - risk of accident!•
If you adjust the steering wheel furthe
r towards the head, you will reduce
the protection offered by the driver airb
ag in the event of an accident. Check
that the steering wheel is aligned to the chest.•
When driving, hold the steering wheel
with both hands firmly on the
outer edge in the 9 o'clock and 3 o'clock position. Never hold the steering wheel firmly in the 12 o'clock position or in another way (e.g. in the middle of the steering wheel or
at the inner steering wheel edge). In such cases,
injuries to the arms, the hands and
the head can occur when the driver
airbag is deployed.
Fig. 132 Adjustable steering wheel: Lever next to the steering columnFig. 133 Safe distance to steering wheel
s2dk.1.book Page 117 Wednesday, April 8, 2009 12:23 PM

Starting-off and Driving
119
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Starting the engineGeneral You can only start the engine only using an original ignition key.•
Place the gearshift lever into neutral (or place the selector lever to the position
P or N in the case of an automatic gearbox)
and put on the handbrake firmly before
starting the engine.•
The clutch pedal should be fully depressed when starting the engine which
means that the starter only
has to crank the engine.
•
Let go of the key as soon as the engine starts otherwise there may be damage
to the starter. The engine running noises may louder at
first be louder for
a short time after
starting the cold engine until oil pressure
can be built up in the hydraulic valve
clearance compensation. This is quite normal and is not an operating problem. If the engine does not start ... You can use the battery of anothe
r vehicle as a jump-start aid
⇒page 250.
It is only possible to tow-start vehicl
es fitted with a manual gearbox. The tow-
starting distance must not be more than 50 metres.
WARNING
•
Never run the engine in non ventilat
ed or enclosed areas. The exhaust
gases of the engine contain besides
the odorless and colourless carbon
monoxide a poisonous gas - hazard! Carbon monoxide can cause uncon- sciousness and death.•
Never leave your vehicle unattended with the engine running.Caution
•
The starter may only be operated (ignition key position ), if the engine is not
running. If the starter is immediately oper
ated after switching off the engine, the
starter or the engine can be damaged.
•
Avoid high engine revolutions, full throttl
e and high engine loads as long as the
engine has not yet reached it
s normal operating temperature - risk of damaging the
engine!•
Vehicles which are fitted wi
th an exhaust gas catalyti
c converter should not be
tow-started over a distance of more than 50 metres.
For the sake of the environment
Never warm up the engine when the vehi
cle is standing. Drive off right away.
Through this the engine reaches its operating temperature more rapidly and the pollutant emissions are lower.Petrol enginesThese engines are fitted with a starter system which selects the correct fuel/air mixture for every external air temperature.•
Do not operate accelerator before and when starting engine.
•
Interrupt the attempt at starting after
10 seconds if the engine does not start
right awayand wait for about 30 se
conds before repeating the attempt.
•
It is possible that the fuse on the electric
al fuel pump is defect if the engine still
does not start. Check the fuse and replace it if necessary
⇒page 256.
•
Contact the nearest specialist garage to obtain professional assistance.
It may be necessary, if the engine is
very hot
, to slightly depress the accelerator
after the engine has started.Diesel enginesGlow plug system Diesel engines are equipped with a glow
plug system, the preglow period being
controlled automatically in
line with the coolant temperature and outside temper-
ature. The preglow indicator light
 comes on after the ignition has been switched on.
A3
s2dk.1.book Page 119 Wednesday, April 8, 2009 12:23 PM

Starting-off and Driving
121
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Shift into reverse only when the car is stationary. Depress the clutch pedal and hold it fully depressed. Wait a moment before
engaging reverse gear in order to avoid
any shift noises. The reversing lights will come on once reve
rse gear is engaged, provided the igni-
tion is on. Superb GreenLine - Shift recommendation for changing gears On the model Superb GreenLine, the currently engaged gear
⇒fig. 136
is
shown in the display of the instrument cluster. In order to minimise the fuel consumptio
n, a recommendation for shifting into
another gear is indicated in the display. An arrow points up or down depending on whether it is recommended to shift to
a higher gear or to a lower gear. At the
same time, the recommended gear is indicated instead of the currently engaged gear .
WARNING
Never engage the reverse gear when driving - risk of accident!
Note
•
One should not lay the hand on the shift lever while driving the vehicle. The
pressure of the hand will be transferred to the gearshift forks in the gearbox. This can, over a period of time, lead to early wear of the gearshift forks.
•
Depress the clutch pedal fully when changing gears, in order to avoid unneces-
sary wear and damage to the clutch and gearbox parts.HandbrakeApplying the handbrake – Pull the handbrake lever up fully. Releasing the handbrake – Pull the handbrake lever up slightly
and
at the same time
press in the
locking button
⇒
fig. 137
.
– Hold the button pressed and push the handbrake lever down fully
⇒
.
The handbrake warning light
 lights up when the handbr
ake is applied, provided
the ignition is on. A warning signal sounds and the following text appears in the display* if you have inadvertently driven off with the handbrake applied:
Release parking brake!
The handbrake warning is activated if you dr
ive at a speed of more than 6 km/h for
more than 3 seconds.
Fig. 136 Shift recommenda- tion for changing gears
AA
AB
AA
Fig. 137 Centre console: Handbrake
s2dk.1.book Page 121 Wednesday, April 8, 2009 12:23 PM

Starting-off and Driving
123
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
vehicle. Such an obstacle might not be within the range detected by the sensors.•
Under certain circumstances, surfaces
of certain objects and types of
clothing cannot reflect the signal of the parking aid. Thus, these objects or people who wear such clothing are not recognised by the sensors of the parking aid.
Note
•
The parking aid does not operate if you are towing a trailer (applies to models
which feature a factory-fitted towing device*).•
If a warning signal sounds for about 3 se
conds after switching the ignition on
and engaging reverse gear, and there is no obstacle close to your car, this indicates a system fault. Have the fault rectified by a specialist workshop.•
The sensors must be kept clean and free of ice to enable the parking aid to
operate properly.Front and rear parking aid*The parking aid provides a warning
of obstacles in front and behind
the vehicle.
The audible parking aid determines the dist
ance between the front or rear bumper
and an obstacle with the aid of ultrasound sensors. The sensors are integrated in the front and rear bumper. The signal tones for the front parking aid sound higher as standard than for the rear parking aid. Th
e tones of the parking aid can be adapted
in the menu of the information display*
⇒page 30.
Range of sensors The distance warning begins at a distance
of about 120 cm from the obstacle in
front of the vehicle (area
⇒fig. 140
) and about 160 cm from the obstacle
behind the vehicle (area
⇒page 122, fig. 138
). The interval between the
warning signals becomes shorter as the clearance is reduced. A continuous tone sounds from a distance
of approx. 30 cm (area ) - danger area.
From this moment on do not continue driving!
If the vehicle is equipped with a
factory-fitted towing device*, the border
of the danger area
starts - continuous
tone - 5 cm further behind the vehicle.
The vehicle can be extended through an
installed detachable towing device. On vehicles equipped wi
th a factory-fitted radio* or na
vigation*, the distance to the
obstruction is shown graphically on the disp
lay. On vehicles with a factory-fitted
towing device, the rear sensors are deactivated when towing a trailer. The driver is also informed of the radio* or the navigation* by a graphic display (vehicle towing a trailer) on the display. The radio* or navi
gation*, which is factory-fitted, can be set
so that the play function volume decrea
ses when activating the parking aid, see
Owner's Manual radio* or navigation*. This
improves the audibility of the parking
aid.
WARNING (continued)
Fig. 139 Activating the parking aid
Fig. 140 Parking aid: Detec-tion range of the front sensors
AAAA
AB
s2dk.1.book Page 123 Wednesday, April 8, 2009 12:23 PM

Starting-off and Driving
125
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
these objects or people who wear such clothing are not recognised by the sensors of the parking aid.•
The external sound source of the park assist and the parking aid can be
disruptively influenced and under unfavourable conditions, objects or people cannot be recognised by the sensors of the parking aid.
Caution
•
If other vehicles are parked
behind or on the kurb, the park assist guides your
vehicle beyond the kurb or onto it. Make sure that the wheels or the wheel rims of your vehicle are not damaged and
if necessary intervene in time.
•
You should satisfy yourself before parkin
g that there is no small obstacle, such
as a rock, thin post, trailer drawbar etc., in
front or behind your vehicle. Such an
obstacle might not be within the range detected by the sensors.•
Under certain circumstances, surfaces or structures of certain objects such as
wire mesh fences, powder snow etc...,
cannot be recognised by the system.
•
The evaluation of the parking place and the parking procedure depends on the
circumference of the wheels. The system does
not function correctly if your vehicle
is mounted with wheels of non-permissible size, snow chains or a temporary spare wheel (in order to reach the nearest workshop). If the tyres other than those excepted by the manufacturer are mounted,
the resulting position of the vehicle in
the parking place can differ slightly. This
can be avoided throug
h new calibration of
the system in a specialist garage.•
The accuracy of the evaluation for the
parking place can be influenced by the
incorrectly determined outside temperature if
the later is influenced by the thermal
radiation of the engine i.e for stop and go in a traffic jam.•
In order to avoid damaging the sensor
s while cleaning with high-pressure
cleaners or steam jets, the sensors must on
ly be directly sprayed for short periods
while a minimum distance of 10 cm must be observed.
Note
•
A component of the park assist is
the front and rear parking aid*.
•
The electronic stability programme (ESP)
must always be switched on for the
parking procedure.•
Only the front parking aid operates if you are towing a trailer (applies only to
models which feature a factory-fitted towing device*). This is why it is not possible to park backwards with the help of th
e park assist when
towing a trailer.
•
The sensors must be kept clean and free of ice to enable the parking aid to
operate properly.Switch on display of the park assist in the information display*
WARNING (continued)
Fig. 141 Switch on display of the park assist in the infor-mation displayFig. 142 Information display: Finding a suitable parking place
s2dk.1.book Page 125 Wednesday, April 8, 2009 12:23 PM

Starting-off and Driving
127
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
– As soon as the following message is indicated in the information
display*:
Steering intervention! M
onitor area around veh.!
let go
of the steering wheel, the steering will be taken over by the system.
– Observe the surroundings and drive backwards with a speed of
maximum 7 km/h, at the same time operate the pedal.
– End the parking procedure from a distance on the basis of the infor-
mation of the system.
As soon as the parking procedure is completed, an audible signal sounds and in the information display* the following message appears:
Steering intervention
finished! Please take over steering!
.
If your vehicle is not proper
ly parked, the position of th
e wheels is corrected by the
system after disengaging the reverse gear when your vehicle is stationary, so that you can align the vehicle yourself during
a forward movement after taking over the
steering. Switch off park assist The park assist switches off during
one of the following occurences:
•
A speed of 30 km/h exceeded
•
A speed of 7 km/h exceeded during the parking procedure
•
A time limit of 180 seconds exceeded
for engaging the reverse gear after
switching on the park assist.•
A time limit of 180 seconds exceeded for the parking procedure
•
The button pressed
for the park assist
•
Parking aid activated
•
Switch off ESP
•
Intervention of the driver in the automatic steering procedure (stop the steering
wheel)•
Disengage reverse gear or take out selector lever* out of the position
R during
the parking procedure. Further warning and information texts of the park assist in the information display*:
Park Assist cancelled! The parking procedure has ended or after sw
itching on the ignition, the vehicle has
not been driven above 10 km/h. Park Assist: Speed too high! Reduce the speed below 30 km/h. Driver steering intervention!
Please take over steering!
The parking procedure is ended through driver intervention. Park Assist cancelled! ESP switched off! The parking procedure cannot be carried ou
t because the ESP system is switched
off. ESP switched off! Please take over steering! The parking procedure was ended because th
e ESP system was switched off during
the parking procedure. Park Assist cancelled! Trailer The parking procedure is not possible becaus
e the trailer is hitched and a plug is
inserted in the socket of the towing device. Park Assist cancelled! Time limit exceeded! The parking procedure was not started because a time limit of 180 seconds for engaging the reverse gear was exceeded. Time limit exceeded! Please take over steering! The parking procedure was ended because a
time limit of 180 seconds for parking
was exceeded. Park Assist cancelled! System error The parking procedure is not possible because a fault exists on the vehicle. Have the fault rectified by a specialist workshop. Park Assist defective! Service now! The parking procedure is not possible because
a fault exists on the park assist. Have
the fault rectified by a specialist workshop.
s2dk.1.book Page 127 Wednesday, April 8, 2009 12:23 PM
