2009 SKODA OCTAVIA TOUR technical data

Wheels and Tyres
175
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Changing wheels aroundIf significantly greater wear is present on the front tyres, we recommend changing the front wheels around with the rear wheels as shown in the diagram
⇒fig. 161
.
You will then obtain approximately the same life for all the tyres. It may be advantageous to swap the tyre
s over “crosswise” when certain types of
wear characteristic arise on
the running surface of the tyres (but not in the case of
unidirectional tyres). Specialist garages are familiar with details. We recommend that you change the wheels around every 10 000 km in order to achieve even wear on all wheels and to obtain optimal tyre life.New tyres and wheelsTyres and wheel rims are important design
elements. One should therefore use the
tyres and wheel rims which have been released for use by Škoda Auto. They are exactly matched to the vehicle type and th
erefore contribute significantly to good
road holding and safe driving characteristics
⇒
.
Only fit radial tyres of the same type on
all 4 wheels, size (rolling circumference)
and, if possible, the same tread pattern on one axle. The specialist garages have access to the most current information about which tyres we have released
for use on your vehicle.
We recommend that you have any work rela
ting to tyres or wheels carried out by a
specialist garage
. Specialist garages have all of the necessary special tools and
replacement parts available plus the requir
ed specialist knowledge and are also in
a position to properly dispose of the old tyres. A large number of specialist garages also have an attractive range of tyres and wheels available. The tyre/wheel combinations which are appr
oved for your vehicle are indicated in
your vehicle documents. Approval and lice
nsing may differ according to the legis-
lation prevailing in individual countries. Proper knowledge of the tyre data makes it easier for you to select the correct type of tyre. Tyres do, for example, have the following
inscription
on their walls:
195 / 65 R 15 91 T
What this means is: The following
speed restrictions
apply to tyres.
Fig. 161 Changing wheels around
195
Tyre wid th i n m m
65
Height/width ratio in %
R
Code letter for the type of tyre -
R adial
15
Diameter of wheel in inches
91
Load index
T
Speed symbol
Speed symbol
Permissible maximum speed
R
170 km/h
S
180 km/h
T
190 km/h
H
210 km/h
V
240 km/h
W
270 km/h
s2g8.b.book Page 175 Tuesday, April 7, 2009 8:53 AM

Wheels and Tyres
177
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Winter tyresThe handling of your vehicle will be significantly improved when driving on wintry roads if you fit winter tyres. Summer tyres do not offer the same grip on ice, snow and at temperatures below 7 °C because of
their construction (width, rubber blend,
tread pattern). This partic
ularly applies to vehicles
which are equipped with
low-
profile tyres
or high-speed tyres
(code index H or V on wall of tyre).
Winter tyres must be mounted on all four wheels to obtain the best handling char- acteristics. You must only fit those types of winter tyre which are approved for your vehicle. The permissible
sizes of winter tyres
are stated in your vehicle documents. Approvals
may differ because of national legislation. Please remember that the tyres should be in
flated to 20 kPa (0.2 bar) more than is
the case for summer tyres
⇒page 173, fig. 159
.
Winter tyres no longer
offer the same winter performance once the
tyre tread
has
worn down to a depth of about 4 mm. Ageing
also causes winter tyres to lose most of their winter performance properties
- even in cases where the remaining tread depth is still clearly more than 4 mm. Speed restrictions
apply to winter tyres as well as to summer tyres
⇒page 175,
⇒
.
You can fit winter tyres of a lower speed ca
tegory to your vehicle provided that you
also do not drive faster than the permis
sible maximum speed fo
r such tyres, even
if the possible maximum speed of your ve
hicle is higher. The corresponding tyre
category can damage the tyres when ex
ceeding the permissi
ble maximum speed.
Please pay attention to the notes if
you decide to fit winter tyres
⇒page 173.
You can also fit so-called “all-year tyres” instead of winter tyres.Please contact your specialist garage if
there are any points which are not clear who
will be able to provide you with information regarding the maximum speed for your tyres.
WARNING
You must on no account drive your car at more than the permissible maximum speed for your winter tyres - risk of an accident resulting from tyre damage and loss of control over your car.
For the sake of the environment
Fit your summer tyres on again in good ti
me since summer tyres offer you better
grip and handling on roads which are free of snow and ice as well as ar tempera-tures below 7 °C - the braking distance is shorter, there is less tyre noise, tyre wear is reduced and fuel consumption is reduced.
Note
Please observe the various differing legal requirements regarding tyres.Snow chainsSnow chains must only be mounted on the front wheels. When driving on wintry roads, snow chains
improve not only traction, but also the
braking performance. For technical reasons, it is only permissi
ble to fit snow chains with the following
wheel/tyre combinations: Only use
fine-link snow chains
. They must not project more than 15 mm -
including the chain lock. Remove the
full wheel trims
if you wish to fit snow
chains to the wheels.
Wheel size
Depth (D)
Ty re s i z e
6J x 14
38 mm
175/80
6J x 15
38 mm
195/65
5.5J x 16
36 mm
205/55
s2g8.b.book Page 177 Tuesday, April 7, 2009 8:53 AM

Accessories, changes and
replacement of parts
179
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Accessories, changes and replacement of partsAccessories and replacement partsŠkoda vehicles have been bu
ilt according to the latest discoveries in safety engi-
neering. Thus one should no
t change the condition in which the vehicle was deliv-
ered from the manufacturer without some thought. The following guidelines should be observed when a vehicle is to be retrofitted with accessories, have technical ch
anges made to it or a par t has to be replaced at some
time in the future.•
Advise should always be obtained from a specialist garage
before
buying any
accessories and
before
making any technical changes
⇒
.
•
This is particularly the case when acce
ssories are bought in a foreign country.
•
Škoda Genuine Accessories which have b
een released for use and Skoda orig-
inal parts can be bought from specialist
garages that professionally undertake the
assembly of parts which were purchased there.•
All Škoda original accessories which are listed in the catalogue of original acces-
sories such as sliding/tilting roofs, sp
oilers, wheel rims et
c. are homologized.
•
Radios, aerials and other electrical acce
ssories should only be installed by a
specialist garage.•
The guidelines issued by Škoda Auto must be observed when making technical
changes.•
This is to ensure that no technical damage
occurs to the vehicle, that travelling
and operating safety are maintained and that the chnages are permissible. The specialist garages also undertake this work professionally or refer it to another specialist garage in special cases. Any damage which is done caused by technical changes made without consulting a Skoda dealer is
excluded from the guarantee.
WARNING
•
We advise you, in your own interest, to only use Škoda Genuine Accesso-
ries and Škoda original parts which have
been expressly approved for use on
your Škoda. Reliability, safety and su
itabiliity have been established for
these Škoda original parts.•
We cannot guarantee suitability of installation into your vehicle of other
products despite keeping a constant ey
e on market developments (also not
in the case where there is an attestation or permission can be produced).Technical changesInterference on the electronic components and their software can lead to opera-tional faults. This interference can also impair not directly affected systems because of the networking of the electronic co
mponents. This means that the operating
safety of your vehicle can
be considerably jeopardized,
a greater wear of vehicle
parts can occur and finally the vehi
cle registration documents expire.
We trust that you will understand that
Škoda Auto cannot be liable for damage
resulting from unprofessional work. We therefore recommend that you have all work carried out with Škoda original parts at specialist garages.
WARNING
Work or modifications on your vehicle, which have been carried out unpro-fessionally, can cause operational faults - risk of accident!Vehicles of the group N1The vehicle of the group N1 is a box car wh
ich is designed and manufactured for the
transportation of goods.
WARNING (continued)
s2g8.b.book Page 179 Tuesday, April 7, 2009 8:53 AM

Breakdown assistance
181
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Breakdown assistanceBreakdown assistanceFirst-aid box*, Warning triangle* and bulb set*A space for stowing the first-aid box and the bulb set is located in a well of the plastic part under th
e floor covering of the luggage compartment behind the spare
wheel. A space for the warning triangle is located in the luggage compartment.
Note
•
Pay attention to the use-by-date of the contents of the first-aid box.
•
If you equip your vehi
cle additionally with a warning
triangle or with a first-aid
box, you can purchase these from the range of Škoda Original Accessories.Fire extinguisher*The fire extinguisher is attached with st
raps in a holder under the driver seat.
Please read carefully the
instructions which are atta
ched to the fire extin-
guisher. The fire extinguisher must be checked by an authorised person or company annu- ally (please observe the differing legal requirements).
WARNING
If the fire extinguisher
is not correctly attached,
in case of sudden manoeu-
vres or an accident it can be “thrown” through the interior compartment and cause injuries.
Note
•
The fire extinguisher must comply with
the relevant and valid legal require-
ments.•
Pay attention to the expiration date of the fire extinguisher. If the fire extin-
guisher is used after the expiration date,
its proper function is
no longer assured.
•
The fire extinguisher is only supplied in certain countries within the scope of
delivery.
Fig. 162 Placement of fire extinguisher
s2g8.b.book Page 181 Tuesday, April 7, 2009 8:53 AM

Breakdown assistance
183
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
repair can be undertaken on
the vehicle immediately.
Please read the attached
instructions carefully before the repair. The spray for repairing a tyre is located in
the right front well of the plastic part
behind the spare wheel.Spare wheel*The spare wheel lies in a well under the floor covering of the luggage compartment and is fixed in place using special screws
⇒fig. 165
.
Before removing the spare wheel, you must take out the box with the vehicle tool kit box
⇒page 182, fig. 163
.
One should check the inflation pressure in the spare wheel (at best when generally checking the tyre air pressures - see sign on the fuel filler flap
⇒page 173) to
ensure that the spare wheel is always ready to use. Temporary spare wheel A warning label displayed on the rim of the temporary spare wheel indicates that your vehicle is equipped with a temporary spare wheel. Please observe the following notes when driving with a temporary spare wheel:
•
The warning label must not be covered after installing the wheel.
•
Do not drive faster than 80 km/h with th
is spare wheel and pay particular atten-
tion while driving. Avoid accelerating at full throttle, sharp braking and fast cornering.•
The inflation pressure for this spare wheel is identical to the inflation pressure
of the standard tyres.•
Use this spare wheel only to reach the nearest specialist garage as it is not
intended for continuous use.Changing a wheelPreliminary workThe following steps should be carried out before actually changing the wheel. – If it is necessary to change a wheel, park the vehicle as far away as
possible from the traffic flow. The place you choose should be
level
.
–Have
all the occupants get out.
While changing a wheel, the occu-
pants of the vehicle should not stan
d on the road (e.g. behind a crash
barrier).
– Apply the
handbrake
firmly.
– Shift up into the
1st gear
.
– If a trailer is coupled, uncouple it. – Take the
vehicle tool kit
⇒
page 182 and the
spare wheel*

⇒
page 183 out of the luggage compartment.WARNING
•
If you find yourself in flowing traffic switch on the hazard warning lights
system and place the warning triangle
on the side of the road at the
Fig. 165 Luggage compart- ment: Spare wheel
s2g8.b.book Page 183 Tuesday, April 7, 2009 8:53 AM

Breakdown assistance
185
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Note
•
If you find, when changing the wheel,
that the wheel bolts are corroded and
difficult to turn, the bolts mu
st be replaced before chec
king the tightening torque.
•
Drive cautiously and only at a moderate speed to a workshop where the tight-
ening torque can be checked.Full wheel trim*Pulling off – Hook the clamp found in the vehicle tool kit into the reinforced edge
of the full wheel trim.
– Push the wheel wrench* through the clamp, support the wheel
wrench at the tyre and pull off the wheel trim
⇒
fig. 166
.
Installing – First press the full wheel trim onto the wheel at the valve opening
provided. Then press the full wheel trim into the wheel in such a way that its entire circumference locks correctly in place.
Caution
•
Use the pressure of your hand, do not knock on the full wheel trim! Heavy
knocks mainly on the points where the full wheel trim has not been inserted into the wheel, can result in damage to the guide and centering elements of the full wheel trim.•
Check for yourself that the safety wheel bo
lt* is located in the hole in the area
of the valve before fitting the full wheel tr
im onto a steel wheel which is attached
with a safety wheel bolt*
⇒page 187, “Securing wheels against being stolen*”.
Wheel bolts with caps*Pulling off – Push the plastic clip sufficiently fa
r onto the cap until the inner catches
of the clip are positioned at the collar of the cap and detach the cap.
Installing – Push the caps fully onto the wheel bolts.The caps are located in the we
ll of the luggage compartment.

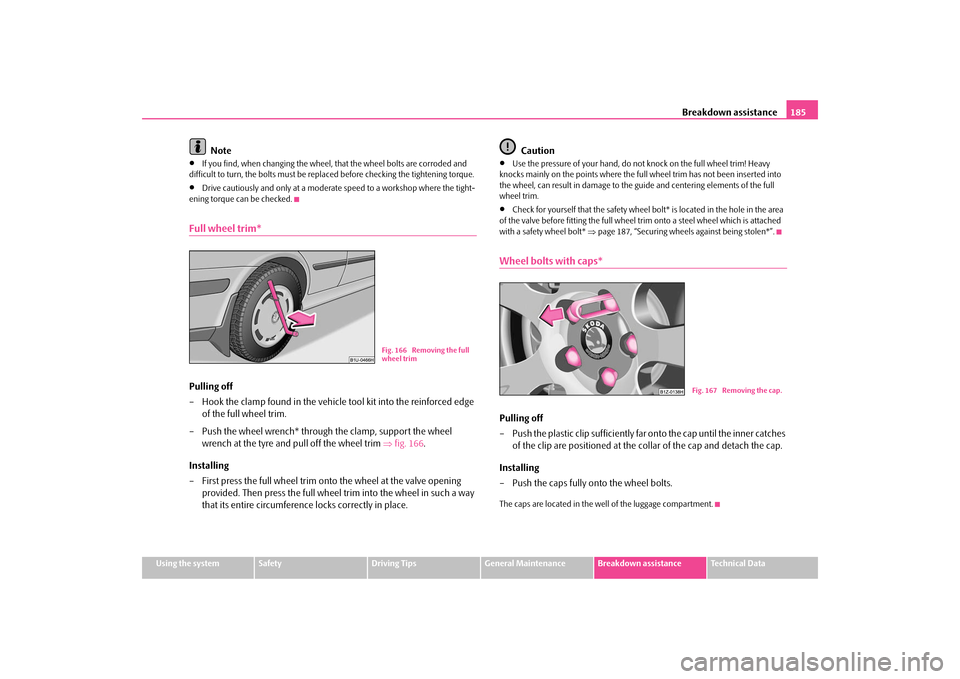

Fig. 166 Removing the full wheel trim
Fig. 167 Removing the cap.
s2g8.b.book Page 185 Tuesday, April 7, 2009 8:53 AM

Breakdown assistance
187
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Raise vehicle You have to raise the vehicle with the lifting jack* in order to be able to take off the wheel.Place the jack* under the vehicle. Re
cesses are located at the lower sill
(front and rear)
⇒
fig. 170
. There is a point under the recess where the
lifting jack* can be po
sitioned, see arrows
⇒
fig. 170
.
– Position the lifting jack* below the jacking point and move it up until
its claw is positioned di
rectly below the vertical web of the lower sill.
– Position the lifting jack* so that the claw grasps the web of the lower
sill and the moving base plate of
the lifting jack is resting flat
against the floor.
– Turn the lifting jack* up further until the wheel is just clear of the
ground.
Ground below the lifting jack which is soft and slippery
can cause the vehicle to
slip off the jack. It is therefore always ne
cessary to place the lifting jack* on a solid
surface or use a wide and stable base. Use
a non-slip base (e.g. a rubber foot mat)
if the
surface is smooth
, such as cobbled stones, a tiled floor, etc.
WARNING
•
Always raise the vehicle with the doors closed - risk of injury!
•
Take suitable measures to prevent the
base of the lifting jack from slip-
ping off - risk of injury!•
Not positioning the lifting jack* at
the specified points can result in
damage to the vehicle. The jack can also sl
ip off if it does not have sufficient
grip - risk of injury!•
It is important to support the vehicle with suitable supporting blocks if
you wish to work under the lifted vehicle - risk of injury!Securing wheels against being stolen* You need a special adapter for slackening the safety wheel bolts.– Pull off the full wheel trim/cap from the wheel hub or cap from the
safety wheel bolt.
– Insert the adapter with its toothed side fully into the inner toothing
of the safety wheel bolt right down in such a way that only the outer hexagon is jutting out
⇒
fig. 171
.
– Insert the wheel wrench fully onto the adapter . – Slacken the wheel bolt, or tighten it firmly
⇒
page 186.
Fig. 170 Changing a wheel: Jacking points for positioning lifting jack
AA
AB
Fig. 171 Safety wheel bolt with adapter
AB
AA
AB
s2g8.b.book Page 187 Tuesday, April 7, 2009 8:53 AM

Breakdown assistance
189
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Start engineIt is important to connect the jump
-start cables in the correct order.
Connecting positive terminals – Attach one end to the positive terminal
⇒
fig. 172
of the
discharged battery .
– Attach the other end to the positive terminal of the battery
supplying the power .
Connecting negative term
inal and engine block
– Attach one end to the negative
terminal of the battery supplying
the power .
– Attach the other end to a solid metal part which is connected
firmly to the engine block, or
to the engine block itself.
Starting engine – Start the engine of the vehicle providing current and run the engine at
idling speed.
– Now start the engine of the vehicle with the discharged battery.
– Interrupt the attempt at starting an engine after 10 seconds if it does
not start right away and wait for about 30 seconds before repeating the attempt.
– Disconnect the cables on the engine in exactly the
reverse order
they
were connected up.
WARNING
•
The non-insulated parts of the terminal clamps must never make contact
with each other. Furthermore, the cable connected to the positive terminal of the battery must not come into contact with electrically conducting parts of the vehicle - risk of a short circuit!•
Do not affix the jump starting cables to the negative terminal of the
discharged battery. There is the risk
of detonating gas seeping out the
battery being ignited by the strong
spark which results from the engine
being started.•
Run the jump-start cables so that th
ey cannot be caught
by any rotating
parts in the engine compartment.•
Do not bend over the batteries - risk of caustic burns!
•
The vent screws of the battery cells must be tightened firmly.
•
Keep any sources of ignition (naked
flame, smouldering cigarettes etc.)
away from the battery - risk of an explosion!Tow-starting and towing vehicleGeneralPlease pay attention to the following in
structions if you are going to use a
tow rope: Driver of the towing vehicle – Do not drive off until the tow rope is taught.
Fig. 172 Jump-starting using the battery from another vehicle: A - flat vehicle battery, B - battery providing current
A1AAA2AB
A3
AB
A4
s2g8.b.book Page 189 Tuesday, April 7, 2009 8:53 AM
