Rear ashtray - low centre consoleOpening ashtray – Grasp the ashtray cover at the lower edge and fold it open in the
direction of arrow
⇒
fig. 114
.
Removing ashtray – Grasp the ashtray at the handle and pull it out in an upward direc-
tion.
Replacing ashtray – Insert the ashtray into the console and press it in.
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!
Rear ashtray - high centre console*Opening ashtray– Press on the top part of the cover of the ashtray in area
⇒
fig. 115
.
Removing ashtray insert – Press the cover of the ashtray down slightly as far as the stop. – Grasp the ashtray insert at the cover and pull it out. Insert ashtray insert – Insert the ashtray insert into the mount and press it in.There is a beverage holder attached to
the inner side of the ashtray cover.
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!
Fig. 114 Low centre console: Rear ashtray
AA
AB
Fig. 115 High centre console: Rear ashtray
AA
AB
se0.1.book Page 97 Friday, April 10, 2009 3:19 PM

Seats and Stowage
99
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
– Connect the plug of the electr
ical appliance to the socket.
You can only use the power socket for the
connection of approved electrical acces-
sories with a power uptake up to 180 watts
. The vehicle battery will be discharged
in the process if the engine is stationary. The same remarks apply here as for
⇒page 98.
Further information
⇒page 244, “Accessorie
s, changes and replacement of
parts”.Storage compartmentsOverviewYou will find the following storage facilities in your vehicle:
WARNING
•
Please do not place anything on top of the dash panel. Such objects
might slide or fall down when driving
(when accelerating or cornering) and
may distract you from concentrating on the traffic situation - risk of acci- dent!•
Ensure that when driving no objects from the centre console of from
other storage possibilities may get into the footwell of the driver. You would then no longer be able to apply the br
akes, operate the clutch or accelerator
- risk of accident!Storage compartment on the front passenger sideOpening and closing the storage compartment on the front passenger side – Press the handle of the lid
⇒
fig. 118
- the lid folds down.
– Raise the lid and press it until the catch is heard to engage.
Storage compartment on the front passenger side
⇒ page 99
Storage compartment on the driver's side
⇒page 100
Storage compartment on the dash panel*
⇒page 101
Storage compartment in front centre console*
⇒page 101
Storage compartment for spectacles*
⇒page 102
Storage compartment in the front doors
⇒page 102
Storage compartment below front passenger seat*
⇒page 103
Front seat armrest with storage compartment*
⇒page 103
Rear armrest with storage compartment*
⇒page 104
Storage compartment in rear centre console*
⇒page 104
Seat backrest with opening for skis*
⇒page 105
Through-loading bag*
⇒page 105
Side compartment*
⇒page 106
Storage compartment behind the rear seats* (Combi)
⇒page 107
Clothes hooks*
⇒page 107
Fig. 118 Dash panel: Storage compartment on the front passenger side
se0.1.book Page 99 Friday, April 10, 2009 3:19 PM

Seats and Stowage
101
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Storage compartment on the dash panel*– Press in the middle of the storage compartment
⇒
fig. 121
- the lid
folds open
Certain model versions are equipped without lid for the storage compartment.
WARNING
•
The storage compartment is not a substitute for the ashtray and must
also not be used for such purposes - risk of fire!•
The pull-out storage compartment mu
st always be kept closed when
driving for safety reasons.•
Do not put any highly inflammable objects or objects which are sensitive
to heat (e.g. lighters, sprays, spectacl
es, carbonated drinks) in the storage
compartment.
Storage compartment in front centre console*– Press on the bottom part of the storage compartment in the area
⇒
fig. 122
- the lid opens.
WARNING
The storage compartment is not a substitute for the ashtray and must also not be used for such purposes - risk of fire!Storage net on the front centre console*
Fig. 121 Dash panel: Storage compartment
Fig. 122 Front centre console: Storage compart-ment
AA
Fig. 123 Front centre console: Storage net
se0.1.book Page 101 Frida
y, April 10, 2009 3:19 PM

Seats and Stowage
103
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Storage compartment below front passenger seat*The storage compartment is foreseen fo
r storing small objects of up to 1.5
kg. in weight. – Tilt the lock to open the flap and pull out the flap
⇒
fig. 126
.
– Tilt the lock to close the flap and press flap close.Front seat armrest with storage compartment*
The armrest is adjustable for height and length. Opening storage compartment – Open the lid of the armrest in the direction of arrow
⇒
page 103,
fig. 127
.
Closing storage compartment – Open the lid up to the stop, then you can fold it downwards. Setting height – First of all fold the lid to the bottom
and lift it in the direction of arrow
into one of the 4 fixed positions.
Adjusting in forward/back direction – Push the lid into the desired position. Opening air inlet – Pull the lock in upward direction
⇒
fig. 128
.
Closing air inlet – Push the lock as far as the stop downwards.
Fig. 126 Front passenger seat: Storage compartmentFig. 127 Armrest: Storage compartment
Fig. 128 Armrest: Cooling of storage compartment
AAAA
se0.1.book Page 103 Frida
y, April 10, 2009 3:19 PM

Seats and Stowage
105
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Seat backrest with opening for skis*After folding open the armrest and the lid, an opening in the seat backrest becomes visible through which you can
push long objects e.g. skis etc.
You can fold open the armrest and the lid from the passenger or luggage compartment. Opening from passenger compartment – Fold down the armrest of the rear seat at the loop
⇒
page 83.
– Pull the handle up to the stop in upward direction and fold open the
lid downwards
⇒
fig. 131
.
Opening from luggage compartment – Push the unlock button downwards
⇒
page 105, fig. 132
and fold
the lid (with armrest) to the front.
Closing – Fold the lid and the armrest up to the stop in upward direction - the lid
must click into place audibly.
Ensure that the armrest is always locked
into place after closing. You can recognize
this on the fact that the red field ab
ove the unlocking button of the luggage
compartment is not visible.Through-loading bag (Unibag)*
Fig. 131 Rear seats: Handle of lidFig. 132 Luggage compart-ment: Unlock button
AA
AA
Fig. 133 Luggage compart-ment: Unlock button
se0.1.book Page 105 Frida
y, April 10, 2009 3:19 PM

Seats and Stowage
107
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
– You can open the compartment by turning the locks in the direction of
arrow.
The CD changer* is housed in this compartment.Storage compartment behind the rear seats* (Combi)Removing – First remove the foldable luggage compartment cover
⇒
page 89.
– Grasp the housing with both hands and remove it by pulling in direc-
tion of arrow
⇒
fig. 136
.
Installing – Push the housing up to the stop into the catch. – Re-insert the foldable luggage compartment cover.
WARNING
Only place small and light objects up to a total weight of 3 kg into the stowage compartment. In the event of a vehicle collision heavy objects
could be thrown out of the compartment - risk of injuries! For this reason, the front part of the luggage compartmen
t cover must always cover over the
stowage compartment.Clothes hooks*The clothes hooks are located on the middl
e pillar and on the handle of the head-
liner above each of the rear doors.
WARNING
•
Ensure that any clothes hanging from the hooks do not impair your
vision to the rear.•
Use the hooks for hanging only light
items of clothing and ensure that
there are no heavy or sharp-e
dged objects in the pockets.
•
The maximum permissable load of the hooks is 2 kg.
•
Do not use clothes hangers for hanging up items of clothing otherwise
this will interfere with the protection offered by the head airbag*.
Fig. 136 Removing the stowage compartment
WARNING (continued)
se0.1.book Page 107 Frida
y, April 10, 2009 3:19 PM

Heating and air conditioning system
109
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
HeatingUsing the system The heating system delivers air into
the interior of the vehicle and
warms it as required.Fig. 139 Heating: Control elementsSetting temperature – Turn the control dial
⇒
fig. 139
to the right in order to increase the
temperature.
– Turn the control dial to the left in order to increase the tempera-
ture.
Controlling blower – Turn the blower switch into one of the positions, 1 to 4, in order to
switch the blower on.
– Turn the blower switch into position 0 in order to switch the blower
off.
– Pressing button causes the recirculating air system
⇒
to be
switched on.
Control for air distribution – You can adjust the direction of the air flow using the air distribution
control
⇒
page 108.
Rear window heater – Press button . Further information
⇒
page 67, “Rear window
heater”.
Auxiliary heating (auxiliary heating)* – Press the button in order to directly switch on/off the auxiliary
heating (auxiliary heating and ve
ntilation). Further information
⇒
page 119, “Auxiliary heating (auxiliary heating and ventilation)*”.
The air inlet in front of the windscreen must
be free of ice, snow or leaves in order
to ensure that the heating and ventilation systems operate properly. The heating effect is dependent upon th
e coolant temperature, thus full heat
output only occurs when the engine has reached its operating temperature. The blower should aways be on to
prevent the windows from misting up.
WARNING
You should not leave recirculated air mode on over a longer period of time, as “stale” air may result in fatigue in the driver and occupants, divert your attention and also cause the windows to mist up. The risk of having an acci- dent increases. Switch recirculated air mode off as soon as the windows begin misting up.
Note
•
The whole heat output will be needed
to unfrost the windscreen and side
windows. No warm air will be fed to the footwell. This can lead to restriction of the heating comfort.
AAAAABAB
A1
AC
A2A3
se0.1.book Page 109 Frida
y, April 10, 2009 3:19 PM

Heating and air conditioning system
111
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

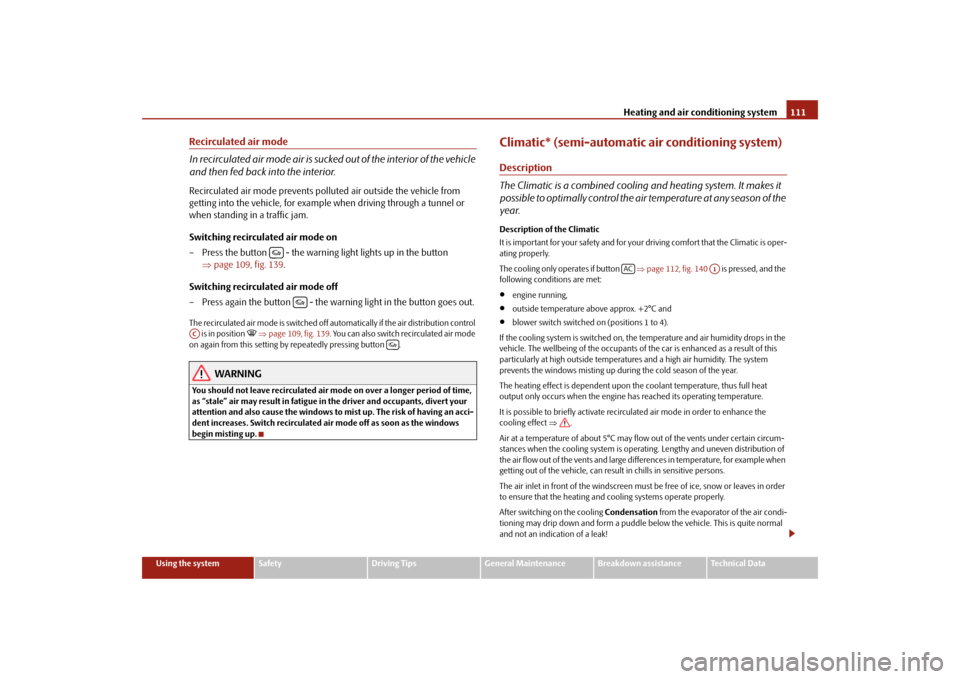

Recirculated air mode In recirculated air mode air is sucked
out of the interior of the vehicle
and then fed back into the interior.Recirculated air mode prevents polluted air outside the vehicle from getting into the vehicle, for example when driving through a tunnel or when standing in a traffic jam. Switching recirculated air mode on – Press the button - the warning light lights up in the button
⇒
page 109, fig. 139
.
Switching recirculated air mode off – Press again the button - the warning light in the button goes out.The recirculated air mode is switched off au
tomatically if the air distribution control
is in position
 ⇒page 109, fig. 139
. You can also switch recirculated air mode
on again from this setting by repeatedly pressing button .
WARNING
You should not leave recirculated air mode on over a longer period of time, as “stale” air may result in fatigue in
the driver and occupants, divert your
attention and also cause the windows to mist up. The risk of having an acci- dent increases. Switch recirculated
air mode off as so
on as the windows
begin misting up.
Climatic* (semi-automatic air conditioning system)Description The Climatic is a combined cooling and heating system. It makes it possible to optimally control the air temperature at any season of the year.Description of the Climatic It is important for your safety and for your driving comfort that the Climatic is oper- ating properly. The cooling only operates if button
⇒page 112, fig. 140
is pressed, and the
following conditions are met:•
engine running,
•
outside temperature above approx. +2°C and
•
blower switch switched
on (positions 1 to 4).
If the cooling system is switched on, th
e temperature and air humidity drops in the
vehicle. The wellbeing of the occupants of
the car is enhanced as a result of this
particularly at high outside temperatur
es and a high air humidity. The system
prevents the windows misting up during the cold season of the year. The heating effect is dependent upon th
e coolant temperature, thus full heat
output only occurs when the engine has reached its operating temperature. It is possible to briefly activate recirc
ulated air mode in order to enhance the
cooling effect
⇒
.
Air at a temperature of about 5°C may flow
out of the vents under certain circum-
stances when the cooling system is operating. Lengthy and uneven distribution of the air flow out of the vents and large differences in temperature, for example when getting out of the vehicle, can resu
lt in chills in sensitive persons.
The air inlet in front of the windscreen must
be free of ice, snow or leaves in order
to ensure that the heating and cooling systems operate properly. After switching on the cooling
Condensation
from the evaporator of the air condi-
tioning may drip down and form a puddle be
low the vehicle. This is quite normal
and not an indication of a leak!


AC

AC
A1
se0.1.book Page 111 Frida
y, April 10, 2009 3:19 PM
