2009 SKODA OCTAVIA technical data

Technical Data
271
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Technical DataTechnical DataGeneral informationThe details given in the official vehicle
registration document
s always take prece-
dence over the details in th
e Owner's Manual. Please refe
r to the official vehicle
registration documents or consult an auth
orised Škoda Service Partner concerning
the engine with which yo
ur vehicle is equipped.
Used abbreviations
PerformancesThe listed performance values were de
termined without pe
rformance-reducing
equipment, e.g. air conditioning system.WeightThe loading capacity is reduced in line with the range of the special equipment. The unloaden weight contains a fu
el tank topped up to 90%. A driver with a weight of
75 kg is also included in the value.
Abbreviation
Importance
kW
Kilowatt, measuring unit
for the engine output
rpm
Engine revolutions per minute
Nm
Newton meter, measuring unit for the engine torque
g/km
discharged quantity of carbon dioxide in grams per driven kilometer
RON
Research octane number, me
asuring unit for the knock-
ing resistance of petrol
TSI
Petrol engine with a turbocharger and a direct fuel injec- tion system
TDI PD
Diesel engine with turbocharger and injection system unit injector
TDI CR
Diesel engine with turbocharger and injection system Common Rail
M5 / M6
5-speed/6-speed manual gearbox
AG6
6-speed automatic gearbox
DQ6/DQ7
6 speed-/7 speed automatic gearbox DSG
DPF
Diesel particle filter
Abbreviation
Importance
se0.1.book Page 271 Frida
y, April 10, 2009 3:19 PM

Technical Data
272
Identification detailsVehicle data sticker The vehicle data sticker
⇒fig. 256
is located on the floor of the luggage compart-
ment and is also stated in the Service schedule. The vehicle data sticker co
ntains the following data:
Vehicle identification number (VIN) Vehicle type Gearbox code, paint number, interior
equipment number, engine output,
engine code Partial description of the vehicle 7GG, 7MB, 7MG - vehicles with DPF
⇒page 200
Vehicle identification number (VIN) The vehicle identification num
ber - VIN (vehicle body number) is stamped into the
engine compartment on the right hand shoc
k absorber dome. This number is also
located on a sign on the lower left hand edge below the windscreen. Engine number The engine number is stamped into the engine block. Type plate (production plate) The type plate is located in the lower area of the left centre column.
Homologation sign The homologation sign is located on the in
side of the bonnet next to the lock. Vehi-
cles for certain countries do no
t have an homologation sign.
Sticker on inside of fuel filler flap The stickers are affixed to the inside of the fuel filler flap and contain the following information:•
The prescribed types of fuel,
•
Tyre s iz e ,
•
Tyre pressure.
Fuel consumption according to the regulations (99/100/EU)Depending on the range of the special equipment, style of driving, traffic situation, weather influences and vehi
cle condition, the consumpt
ion values which in prac-
tice result when using the vehicle ca
n deviate from the indicated values.
Urban traffic The consumption measurement in urban traf
fic begins with starting of the cold
engine. Afterwards the normal
urban traffic is simulated.
Non-urban traffic For the consumption measurement in non-ur
ban traffic the vehicle, as in daily
motoring, is accelerated and braked several times in all gears. The vehicle speed changes within the range from 0 to 120 km/h. Combined traffic The consumption value in the combined traf
fic consists of 37%
from the value for
the urban traffic and of 63% from
the value for the non-urban traffic.
Fig. 256 Vehicle data sticker
A1A2A3A4A5se0.1.book Page 272 Frida
y, April 10, 2009 3:19 PM

Technical Data
273
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
DimensionsDimensions (mm)
OCTAVIA
OCTAVIA RS
COMBI
CO M B I R S
COMBI 4x4
SCOUT
Length
4569
4597
4569
4599
4569
4584
Width
1769
1769
1769
1769
1769
1784
Width including
exterior mirror
2018
2018
2018
2018
2018
2018
Height
1462 1485
a)
1449
b)
a)The value corresponds to the status with rough road package.b)The value corresponds to the status with SPORT package.
1447
14681490
a)
1455
b)
1451
14951520
a)
1533
Clearance
140/164
a)/125
b)
127
140/164
a)/125
b)
128
138/163
a)
179
Wheel base
2578
2578
2578
2578
2578
2578
Tr a c k g a u g e f r o n t / r e a r
1541/1514
1528/1508
1541/1514
1528/1508
1541/1514
1531/1500
se0.1.book Page 273 Frida
y, April 10, 2009 3:19 PM

Technical Data
274
Engine oil specificationsThe grade of engine oil should be selected in accordance with precise specifications.The engine of your vehicle has been fact
ory-filled with a high-grade oil which you
can use throughout the year - exce
pt in extreme climatic regions.
You can mix various oils together with each other when refilling with oil. This does not, however, apply for models with
flexible service intervals (QG1).
Engine oils are, of course, undergoing co
ntinuous further deve
lopment. Thus the
information stated in this Owner's Manual is only correct at the time of publication. Authorised Škoda Service Partners are informed by Škoda Auto about current changes. This why you should always have
engine oil changed by an authorised
Škoda Service Partner. The specifications (VW standards) stated in the following must be indicated sepa- rately or together with other specifications on the bottle. Engine oil specifications for models with flexible service intervals (QG1)
Engine oil specifications for vehicles with fixed service intervals (QG2) If the oils specified above are not available,
oils according to ACEA A2 or ACEA A3
can be used once for refilling. If the oils specified above are not available,
oils according to ACEA B3 or ACEA B4
can be used once for refilling.
Petrol engines
Engine oil specifications
1.4 ltr./59 kW - EU4
VW 503 00, VW 504 00
1.4 ltr./90 kW TSI - EU5
VW 503 00, VW 504 00
1.6 ltr./75 kW - EU4, EU2
VW 503 00, VW 504 00
1.8 ltr./118 kW TSI - EU5, EU2 DDK(1.8 ltr./112 kW TSI - EU5)
VW 504 00
2.0 ltr./147 kW TSI - EU5
VW 504 00
Diesel engines
Engine oil specifications
1.9 ltr./77 kW TDI PD - EU4, EU3
VW 506 01, VW 507 00
1.9 ltr./77 kW TDI PD DPF - EU4
VW 507 00
2.0 ltr./100 kW TDI PD - EU4
VW 506 01, VW 507 00
2.0 ltr./103 kW TDI PD - EU4
VW 506 01, VW 507 00
2.0 ltr./103 kW TDI PD DPF - EU4
VW 507 00
2.0 ltr./125 kW TDI CR - EU5
VW 507 00
Petrol engines
Engine oil specifications
1.4 ltr./59 kW - EU4
VW 501 01, VW 502 00
1.4 ltr./90 kW TSI - EU5
VW 501 01, VW 502 00
1.6 ltr./75 kW - EU4, EU2
VW 501 01, VW 502 00
1.6 ltr./75 kW MultiFuel - EU4, EU2
VW 501 01, VW 502 00
1.8 ltr./118 kW TSI - EU5, EU2 DDK(1.8 ltr./112 kW TSI - EU)
VW 502 00
2.0 ltr./147 kW TSI - EU5
VW 504 00
Diesel engines
Engine oil specifications
1.9 ltr./77 kW TDI PD - EU4, EU3
VW 505 01
1.9 ltr./77 kW TDI PD DPF - EU4
VW 507 00
2.0 ltr./100 kW TDI PD - EU4
VW 505 01
2.0 ltr./103 kW TDI PD - EU4
VW 505 01
2.0 ltr./103 kW TDI PD DPF - EU4
VW 507 00
2.0 ltr./125 kW TDI CR - EU5
VW 507 00
Diesel engines
Engine oil specifications
se0.1.book Page 274 Frida
y, April 10, 2009 3:19 PM
5

Technical Data
275
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Caution
Only the above-mentioned oils
may be used on vehicles with flexible service inter-
vals (QG1). We recommend always refilling with oil of the same specification since this will maintain the properties of the oi
l. In exceptional cases, you must top up
only once engine oil complying with Sp
ecification VW 502 00 (only for petrol
engines) or Specification VW 505 01 (only for diesel engines) to maximum 0.5 litres. You must not use other engine oi
ls - risk of engine damage!
Note
•
Before a long drive we recommend that you purchase and carry with you
engine oil which complies with the specif
ication for your vehicle. Consequently,
you will always have the correct engine oil for refilling.•
We recommend using a preservative fr
om the Škoda original accessories
offered by your Škoda dealer.•
For further information - see Service shedule.
se0.1.book Page 275 Frida
y, April 10, 2009 3:19 PM

Technical Data
276
1.4 ltr./59 kW - EU4Engine Performances Fuel consumption (in ltr./100°km) and CO
2 emission (in g/km)
Power output
kW per rpm
59/5000
Maximum torque
Nm per rpm
132/3800
Number of cylinders/Displacement (cm
3)
4/1390
Fuel - unleaded petrol min. RON
95
OCTAVIA M5
CO M B IM5
Maximum speed
km/h
173
172
Acceleration 0 - 100 km/h
s
14,2
14,3
OCTAVIAM5
COMBIM5
Urban
9,6
9,6
Non-urban
5,6
5,6
Combination
7,0
7,0
CO2 emission - combination
167
167
se0.1.book Page 276 Frida
y, April 10, 2009 3:19 PM

Technical Data
277
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

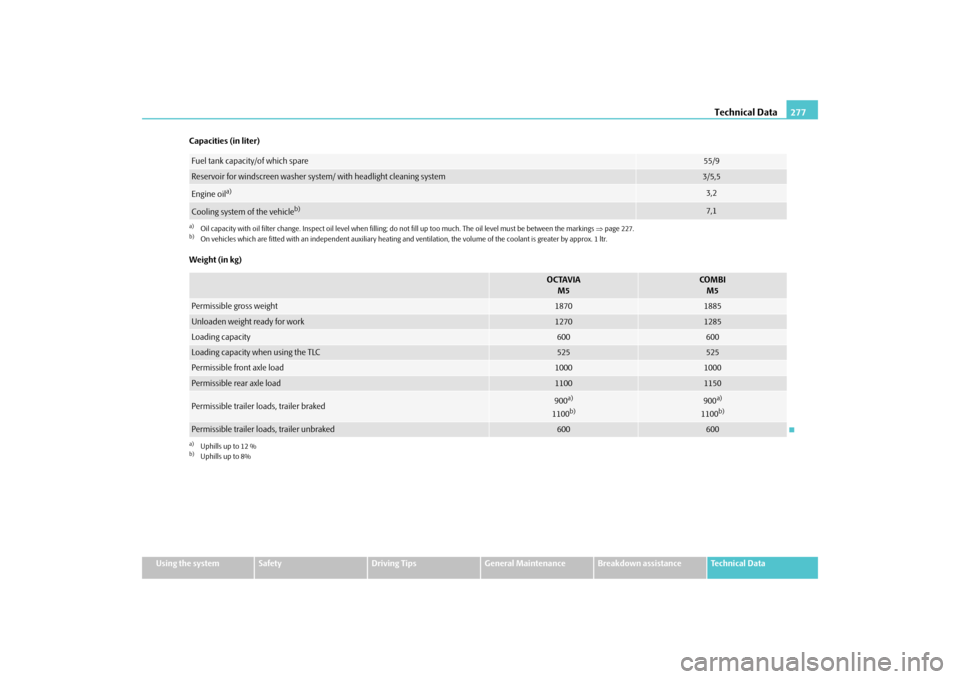

Capacities (in liter) Weight (in kg)Fuel tank capacity/of which spare
55/9
Reservoir for windscreen washer system/ with headlight cleaning system
3/5,5
Engine oil
a)
a)Oil capacity with oil filter change. Inspect oil level when fi
lling; do not fill up too much. The oil level must be between the
markings
⇒page 227.
3,2
Cooling system of the vehicle
b)
b)On vehicles which are fitted with an indepe
ndent auxiliary heating and ventilation, the
volume of the coolant is greater by app
rox. 1 ltr.
7,1
OCTAVIA M5
COMBIM5
Permissible gross weight
1870
1885
Unloaden weight ready for work
1270
1285
Loading capacity
600
600
Loading capacity when using the TLC
525
525
Permissible front axle load
1000
1000
Permissible rear axle load
1100
1150
Permissible trailer loads, trailer braked
900
a)
1100
b)
a)Uphills up to 12 %b)Uphills up to 8%
900
a)
1100
b)
Permissible trailer loads, trailer unbraked
600
600
se0.1.book Page 277 Frida
y, April 10, 2009 3:19 PM

Technical Data
278
1.4 ltr./90 kW TSI - EU5Engine Performances Fuel consumption (in ltr./100°km) and CO
2 emission (in g/km)
Power output
kW per rpm
90/5000
Maximum torque
Nm per rpm
200/1500-4000
Number of cylinders/Displacement (cm
3)
4/1390
Fuel - unleaded petrol min. RON
95
OCTAVIA M6
OCTAVIADQ7
CO M B I M6
COMBIDQ7
Maximum speed
km/h
203
202
202
201
Acceleration 0 - 100 km/h
s
9,7
9,7
9,8
9,8
OCTAVIAM6
OCTAVIADQ7
COM B I M6
COMBIDQ7
Urban
8,5
8,0
8,5
8,0
Non-urban
5,0
5,3
5,0
5,3
Combination
6,3
6,3
6,3
6,3
CO2 emission - combination
148
147
148
147
se0.1.book Page 278 Frida
y, April 10, 2009 3:19 PM
