2009 SKODA OCTAVIA set clock

Contents3
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
ContentsLayout of this Owner's Manual
(explanations)
. . . . . . . . . . . . . . . . . . . . . . . . . .
Using the system
. . . . . . . . . . . . . . . . . . . . . .
Cockpit
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The brief instruction
. . . . . . . . . . . . . . . . . . . . . . . . . .
Basic functions and important information . . . . .
Instruments and Indicator/Warning Lights
. . .
General view of the instrument cluster . . . . . . . . .
Engine revolutions counter . . . . . . . . . . . . . . . . . . . .
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Coolant temperature gauge . . . . . . . . . . . . . . . . . . .
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Counter for distance driven . . . . . . . . . . . . . . . . . . .
Service Interval Display . . . . . . . . . . . . . . . . . . . . . . .
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multi-functional indicator (onboard computer)*
Information display* . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto Check Control* . . . . . . . . . . . . . . . . . . . . . . . . . .
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Unlocking and locking
. . . . . . . . . . . . . . . . . . . . . . . .
Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing the battery of the radio remote control
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . . . . .
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Central locking system . . . . . . . . . . . . . . . . . . . . . . . .
Remote control* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Synchonisation of the remote control . . . . . . . . . .
Anti-theft alarm system* . . . . . . . . . . . . . . . . . . . . . . Power windows* . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric sliding/tilting roof* . . . . . . . . . . . . . . . . . . . .
Lights and Visibility
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wiper and wash system . . . . . . . . . . . .
Rear-view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seats and Stowage
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjusting front seats electrically* . . . . . . . . . . . . . .
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Middle rear head restraint . . . . . . . . . . . . . . . . . . . . .
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
luggage compartment . . . . . . . . . . . . . . . . . . . . . . . .
Net partition (Combi)* . . . . . . . . . . . . . . . . . . . . . . . .
The roof rack* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Note holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ashtray* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter*, power sockets . . . . . . . . . . . . . . .
Storage compartments . . . . . . . . . . . . . . . . . . . . . . . .
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage compartment on the front passenger side
Cooling of storage compartment on front
passenger side* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage compartment on the driver's side . . . . . .
Storage compartment on the dash panel* . . . . . .
Storage compartment in front centre console* . .
Storage net on the front centre console* . . . . . . .
Storage compartment for spectacles* . . . . . . . . . .
Storage compartment in the front doors . . . . . . . . Storage compartment below front passenger
seat* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front seat armrest with storage compartment* .
Rear seat armrest with storage compartment* . .
Storage compartment in rear centre console* . .
Seat backrest with opening for skis* . . . . . . . . . . . .
Through-loading bag (Unibag)* . . . . . . . . . . . . . . .
Side compartment* . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage compartment behind the rear seats*
(Combi) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clothes hooks* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Heating and air conditioning system
. . . . . . . . .
Air outlet vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Climatic* (semi-automatic air conditioning
system) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Climatronic* (automatic air conditioning) . . . . . .
Auxiliary heating (auxiliary heating and
ventilation)* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting-off and Driving
. . . . . . . . . . . . . . . . . . . . . .
Setting steering wheel position . . . . . . . . . . . . . . . .
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching off the engine . . . . . . . . . . . . . . . . . . . . . .
Shifting (manual gearbox) . . . . . . . . . . . . . . . . . . . . .
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear parking aid* . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front and rear parking aid* . . . . . . . . . . . . . . . . . . . .
Cruise control system (CCS)* . . . . . . . . . . . . . . . . . .
Automatic gearbox
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic gearbox* . . . . . . . . . . . . . . . . . . . . . . . . . . 6
7
9
9
11
11
17
17
18
18
18
18
19
20
21
21
26
28
31
42
42
42
43
44
44
49
50
5152
55
58
58
65
67
69
72
75
75
76
79
80
81
84
84
91
93
95
96
96
98
99
99
99
100
100
101
101
101
102
102103
103
104
104
105
105
106
107
107
108
108
109
111
115
119
122
122
123
124
125
125
126
127
128
129
132
132
se0.1.book Page 3 Friday, April 10, 2009 3:19 PM

Instruments and Indicator/Warning Lights
17
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Instruments and Indicator/Warning LightsGeneral view of the instrument cluster
Engine revolutions counter
⇒page 18
Speedometer
⇒page 18
Coolant temperature gauge
⇒page 18
Display− with counter for distance driven
⇒page 19
− with Service Interval Display
⇒page 20
− with digital clock
⇒page 21
− with Multi-functional indicator*
⇒page 21
− with Information display*
⇒page 26
Button for the selection of the mode (t
urn button) / the setting (press button):
− Set hours / minutes − Activating / deactivating the
second speed in mph or km/h*
− Service interval - Display of the remaining number of days, kilometres or miles to the next Inspection Service / Reset*
1)
− Reset trip counter for distance driven − Resetting Service Interval Display − Activate / deactivate display mode Fuel gauge
⇒page 18
Fig. 18 Instrument cluster
A1A2A3A4A5
1)Valid for countries where the values are indicated in British measuring units.A6
se0.1.book Page 17 Friday, April 10, 2009 3:19 PM

Instruments and Indicator/Warning Lights
21
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Digital clockYou can set the time with the rotary knob
⇒page 17, fig. 18
.
Select the information which you wish to change by turning the button and carry out the change of the selected information by pressing the button. On vehicles which are fitted out with the information display*, it is possible to set the time in the menu
Time
⇒page 29.
WARNING
The clock should not be adjusted while driving for safety reasons but only when the vehicle is stationary!Multi-functional indicator (onboard computer)*IntroductionThe multi-functional indica
tor appears in the display
⇒fig. 21
or in the information
display
⇒page 26 depending on the equipment fitted to your vehicle.
The multi-functional indicator offers
you a range of useful information.
On vehicles which are fitted out with inform
ation display*, it is possible to switch
off the display of some information.
Note
•
In certain national versions
the displays appear in the Imperial system of meas-
ures.•
If the display of the second speed is acti
vated in mph, the current speed* is not
indicated in km/h on the display.MemoryThe multi-functional indicator is equi
pped with two automatic memories. The
selected memory is displayed in the middle of the display field
⇒fig. 21
.
The data of the single-trip memo
ry (memory 1) is shown if a
1 appears in the
display. A
2 shown in the display means that da
ta relates to the total distance
memory (memory 2). Switching over the memory with the help of the button
⇒page 22, fig. 22
on the
windscreen wiper lever or with the help
of the button on the multifunction
steering wheel*
⇒page 23.
The outside temperature
⇒page 23
Driving time
⇒page 24
Current fuel consumption
⇒page 24
Average fuel consumption
⇒page 24
Range
⇒page 24
Distance driven
⇒page 24
Average speed
⇒page 25
Current speed*
⇒page 25
Warning against excessive speeds*
⇒page 25A5
A5
Fig. 21 Multi-functional indicatorABAD
se0.1.book Page 21 Friday, April 10, 2009 3:19 PM

Instruments and Indicator/Warning Lights
29
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Meaning of the red symbols: Three
successive warning signals will
sound if a red symbol appears.
Yellow symbolsCheck the relevant function
as soon as possible.
The meaning of the yellow symbols: One
warning signal will sound
if a yellow symbol appears.
If several operational faults of priority 2 exist, the symbols appear one after the other and are each illumi
nated for about 5 seconds.
Set-upYou can change certain settings by means
of the information display. The current
setting is shown on the information display in the respective menu at the top below the line
⇒fig. 34
.
You can select the following information (d
epending on the equipment installed on
the vehicle):•
MFD Data (MFA DATA)
•
Convenience
•
Lights & Vision (Lights & Vision)
•
Time
•
Winter tyres
•
Language
•
Units
•
Assistant (Assistant)
•
Alternative speed displayed (Second speed)
•
Tra v e l m o d e
•
Service Interval (Service)
•
Factory Setting
•
Back

Engine oil pressure too low
⇒ page 35

Check engine oil level, engine oil sensor faulty
⇒ page 40

Brake pad worn
⇒page 39
Fig. 33 Information display: Brake pad worn
Fig. 34 Setting the clock
se0.1.book Page 29 Friday, April 10, 2009 3:19 PM

Starting-off and Driving
122

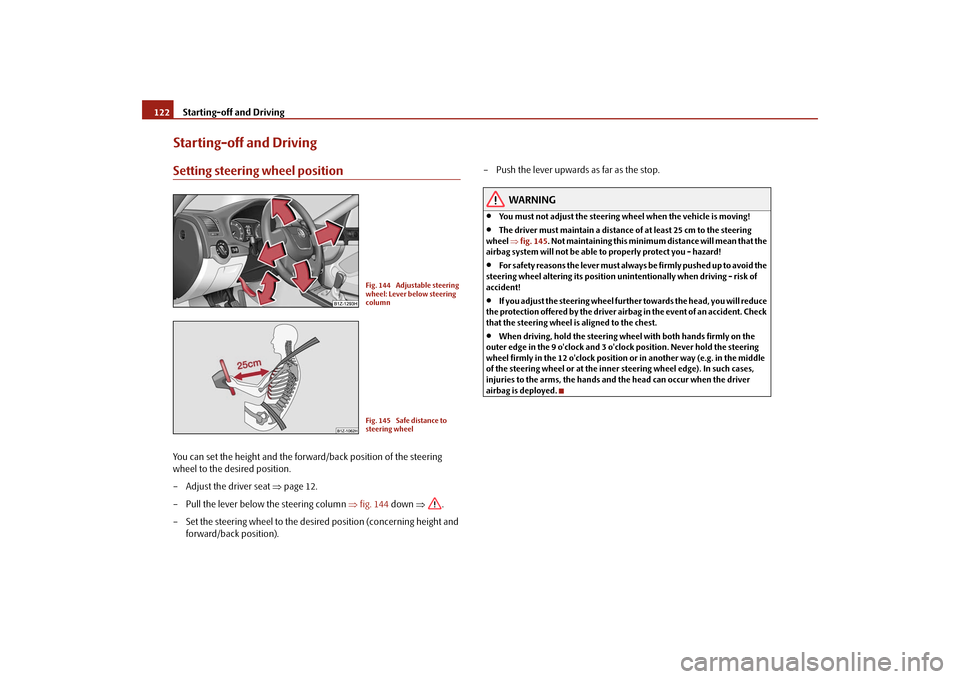

Starting-off and DrivingSetting steering wheel positionYou can set the height and the forward/back position of the steering wheel to the desired position. – Adjust the driver seat
⇒
page 12.
– Pull the lever below the steering column
⇒
fig. 144
down
⇒
.
– Set the steering wheel to the desired position (concerning height and
forward/back position).
– Push the lever upwards as far as the stop.
WARNING
•
You must not adjust the steering wh
eel when the vehicle is moving!
•
The driver must maintain a distance of at least 25 cm to the steering
wheel
⇒fig. 145
. Not maintaining this minimum distance will mean that the
airbag system will not be able to properly protect you - hazard!•
For s afe ty re a so ns t he le ve r m ust al wa y s b e fi rm ly pus he d up to a voi d the
steering wheel alteri
ng its position unintentionally when driving - risk of
accident!•
If you adjust the steering wheel furthe
r towards the head, you will reduce
the protection offered by the driver airb
ag in the event of an accident. Check
that the steering wheel is aligned to the chest.•
When driving, hold the steering wheel
with both hands firmly on the
outer edge in the 9 o'clock and 3 o'clock position. Never hold the steering wheel firmly in the 12 o'clock position or in another way (e.g. in the middle of the steering wheel or at the inner
steering wheel edge). In such cases,
injuries to the arms, the hands and
the head can occur when the driver
airbag is deployed.
Fig. 144 Adjustable steering wheel: Lever below steering columnFig. 145 Safe distance to steering wheel
se0.1.book Page 122 Frida
y, April 10, 2009 3:19 PM

Passive Safety
165
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
For your own safety and to reduce the risk of injury in the event of an accident, we recommend the following setting:•
Adjust the steering wheel so that the distance between the steering wheel and
your chest is at least 25 cm
⇒page 164, fig. 167
.
•
Position the driver seat in the forward/back direction so that you are able to
press the pedals with your
legs at a slight angle .
•
Adjust the backrest so that you are able
to reach the highest point of the steering
wheel with your arms at a slight angle.•
Adjust the head restraint so that the top edge of the head restraint is at the same
level as the upper part of your head
⇒fig. 168
.
•
Fasten the seat belt correctly
⇒page 170, “How are seat belts correctly
fastened?”. Manual driver seat adjustment
⇒page 12, “Adjusting the front seats”.
Electrical driver seat adjustment
⇒page 76, “Adjusting front seats electrically*”.
WARNING
•
The front seats and the head restraints must always be adjusted to match
the body size of the seat occupant as well as the seat belts must always be correctly fastened in order to provide an optimal protection for you and your occupants.
•
The driver must maintain a distance of at least 25 cm to the steering
wheel
⇒page 164, fig. 167
. Not maintaining this minimum distance will
mean that the airbag system will not be able to properly protect you - hazard!•
When driving, hold the steering wheel
with both hands firmly on the
outer edge in the 9 o'clock and 3 o'clock position. Never hold the steering wheel firmly in the 12 o'clock position or in another way (e.g. in the middle of the steering wheel or
at the inner steering wheel edge). In such cases,
injuries to the arms, the hands and
the head can occur when the driver
airbag is deployed.•
The backrests must not be angled to
o far back when driving otherwise
this will affect proper operation of the seat belts and of the airbag system - risk of injury!•
Ensure that there are no objects in the footwell as any objects may get
behind the pedals during a driving or
braking manoeuvre. You would then
no longer be able to operate the clutch, to brake or accelerate.Correct seated position for the front passenger The front passenger must maintain a distance of at least 25 cm from the dash panel so that the airbag offers the greatest possible safety when an airbag is deployed.For the safety of the front passenger and to
reduce the risk of injury in the event of
an accident, we recommend the following setting:•
Adjust the front passenger seat as far as possible to the rear.
•
Adjust the head restraint so that the top edge of the head restraint is at the same
level as the upper part of your head
⇒fig. 168
.
•
Fasten the seat belt correctly
⇒page 170, “How are seat belts correctly
fastened?”. In exceptional cases the front pass
enger airbag can be deactivated
⇒page 181,
“Deactivating an airbag”.
Fig. 168 The correct head restraint adjustment for the driver
WARNING (continued)
se0.1.book Page 165 Frida
y, April 10, 2009 3:19 PM

Index299
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data Power window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Power windows
Button in front passenger door and in rear doors
53
Buttons on the driver's door . . . . . . . . . . . . . . . . 52
Central locking system . . . . . . . . . . . . . . . . . . . . . 54
RRadiator fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Rear armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83, 104
Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Rear window
heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Rear window heater . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Rear-view mirror
Exterior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Recharge battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Synchronisation . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Replacing fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Replacing the wiper blades . . . . . . . . . . . . . . . . . . . . . 71
Roof aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Running in the car . . . . . . . . . . . . . . . . . . . . . . . . . . . 201SSafe securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163Safety information
Engine compartment . . . . . . . . . . . . . . . . . . . . . 225
Safety wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Saving electrical energy . . . . . . . . . . . . . . . . . . . . . . . 202
Seat belt height adjuster . . . . . . . . . . . . . . . . . . . . . . 171
Seat belt warning light . . . . . . . . . . . . . . . . . . . . . . . . 170
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168, 172
Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
fastening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Height adjustment . . . . . . . . . . . . . . . . . . . . . . . . 171
Safety information . . . . . . . . . . . . . . . . . . . . . . . . 169
taking off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Seat heaters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Selector lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Selector lever lock
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Selector lever positions . . . . . . . . . . . . . . . . . . . . . . . 134
Selector lever-emergency unlocking . . . . . . . . . . . 138
Service Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Service Interval Display . . . . . . . . . . . . . . . . . . . . . . . . 20
Setting temperature
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Shifting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Stability system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
after fuel tank has run empty . . . . . . . . . . . . . . 125
Diesel engines . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Petrol engines . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Steering
active driver-steering recommendation . . . . 195
Steering force assistance . . . . . . . . . . . . . . . . . . . . . 198
Storage compartment
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Storage compartments . . . . . . . . . . . . . . . . . . . . . . . . 99
Storage facilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Sun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Sun screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Switching lights on and off . . . . . . . . . . . . . . . . . . . . 58
Switching off the engine . . . . . . . . . . . . . . . . . . . . . . 125
TTaking care of your vehicle . . . . . . . . . . . . . . . . . . . 211
TCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142, 152
Temperature
outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
the first 1 500 kilometres . . . . . . . . . . . . . . . . . . . . . 201
The roof luggage rack system . . . . . . . . . . . . . . . . . . 93
Thickness of brake pads
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Tilting roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
Top Tether . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
se0.1.book Page 299 Friday, April 10, 2009 3:19 PM
