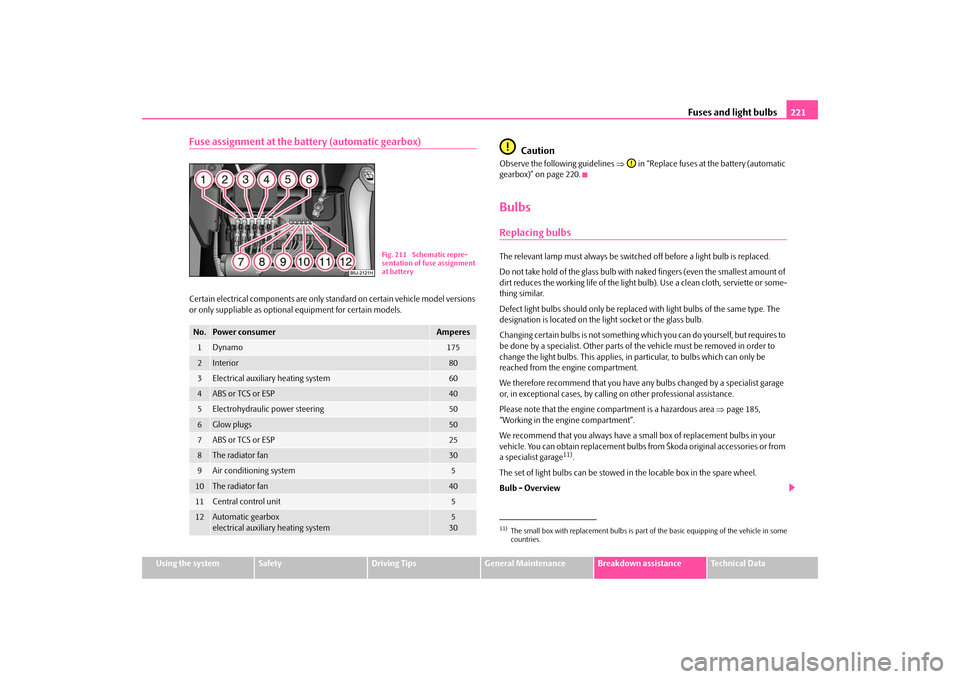

Fuse assignment at the battery (automatic gearbox)Certain electrical components are only standard on certain vehicle model versions
or only suppliable as optional equipment for certain models.
Caution
Observe the following guidelines ⇒ in “Replace fuses at the battery (automatic
gearbox)” on page 220.BulbsReplacing bulbsThe relevant lamp must always be switched off before a light bulb is replaced.
Do not take hold of the glass bulb with naked fingers (even the smallest amount of
dirt reduces the working life of the light bulb). Use a clean cloth, serviette or some-
thing similar.
Defect light bulbs should only be replaced with light bulbs of the same type. The
designation is located on the light socket or the glass bulb.
Changing certain bulbs is not something which you can do yourself, but requires to
be done by a specialist. Other parts of the vehicle must be removed in order to
change the light bulbs. This applies, in particular, to bulbs which can only be
reached from the engine compartment.
We therefore recommend that you have any bulbs changed by a specialist garage
or, in exceptional cases, by calling on other professional assistance.
Please note that the engine compartment is a hazardous area ⇒page 185,
“Working in the engine compartment”.
We recommend that you always have a small box of replacement bulbs in your
vehicle. You can obtain replacement bulbs from Škoda original accessories or from
a specialist garage
11).
The set of light bulbs can be stowed in the locable box in the spare wheel.
Bulb - Overview
No.
Power consumer
Amperes
1
Dynamo
175
2
Interior
80
3
Electrical auxiliary heating system
60
4
ABS or TCS or ESP
40
5
Electrohydraulic power steering
50
6
Glow plugs
50
7
ABS or TCS or ESP
25
8
The radiator fan
30
9
Air conditioning system
5
10
The radiator fan
40
11
Central control unit
5
12
Automatic gearbox
electrical auxiliary heating system
5
30
Fig. 211 Schematic repre-
sentation of fuse assignment
at battery
11)The small box with replacement bulbs is part of the basic equipping of the vehicle in some
countries.
s3f4.1.book Page 221 Thursday, June 18, 2009 11:07 AM

Fuses and light bulbs223
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
– Open the bonnet.
– For a vehicle with petrol engine remove the activated charcoal filter
system before replacing the bulb in the right front headlight
⇒fig. 213.Positions of the light bulbs in the front headlight ⇒page 222, fig. 212.
- low beam and main beam
- parking lights
- Turn signal light (at the front)
Switching on the low beam and main beam– Open the bonnet.
– Remove the protective cap ⇒page 222, fig. 212.
– For headlights with module (halogen lamp H7) ⇒fig. 214 turn the
connector with the halogen lamp to the left up to the stop and
remove.
– For headlights with reflector (halogen lamp H4) pull off the connector
from the lamp, release the sprung wire clamp and pull out the halogen
lamp towards the rear.
– Replace the halogen lamp H7, insert the connector with the new
halogen lamp and turn to the right up to the stop.
– Replace the halogen lamp H4, insert into the opening in the reflector
(with the fixing lugs in the recesses), secure with the sprung wire
clamp, position the protective cap and mount the connector.
– We recommend that you have the headlight setting checked by a
Skoda Service Partner after replacing the light bulb.
Fig. 213 Removing the acti-
vated charcoal filter system
AAABAC
Fig. 214 Removing the light
bulb for the low beam and
main beam light
AA
s3f4.1.book Page 223 Thursday, June 18, 2009 11:07 AM

Fuses and light bulbs225
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
– Screw on the light glass slightly.Rear light unit– Open the boot lid.
– Hold tight the rear light unit with one hand and unscrew the plastic nut
with the other hand ⇒fig. 217.
– Grip the rear light unit and remove it carefully with loosening move-
ments at an angle to the rear. Do not pull the grommet with the cables
out of the body.– Replace the defective light bulb ⇒page 225.
– When re-installing, first insert the rear light unit with the screw into
the opening of the body ⇒fig. 218.
– Carefully press the rear light unit into the body in such a way that the
pins engage into the supports of the body.
– Hold the rear light unit tight with one hand, screw on the nut with the
other hand and tighten it ⇒fig. 217.
Caution
When removing and installing the rear light unit make sure not to damage the
paintwork of the vehicle and the rear light unit.
Note
For slackening and tightening the plastic nut use a coin.Changing light bulbs in the rear light unit– To replace a light bulb, turn the bulb connector of the light bulb to the
left (in the direction of the arrows on the housing) and take it out of the
housing.
Fig. 217 Remove the rear
light unitFig. 218 Install the rear light
unit
AA
AB
Fig. 219 Rear light unit:
Fitting position of the bulbs
s3f4.1.book Page 225 Thursday, June 18, 2009 11:07 AM

Technical Data227
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Technical DataTechnical DataGeneral informationThe details given in the official vehicle registration documents always take prece-
dence over the details in the Owner's Manual. Please refer to the official vehicle
registration documents or consult a specialist garage concerning the engine with
which your vehicle is equipped.Used abbreviationsPerformancesThe listed performance values were determined without performance-reducing
equipment, e.g. air conditioning system.
WeightThe loading capacity is reduced in line with the range of the special equipment. The
unloaden weight contains a fuel tank topped up to 90%. A driver with a weight of
75 kg is also included in the value.Identification detailsVehicle data sticker
The vehicle data sticker ⇒fig. 221 is located on the floor of the luggage compart-
ment and is also stated in the Service schedule.
The vehicle data sticker contains the following data:
Vehicle identification number (VIN)
Vehicle type
Gearbox code, paint number, interior equipment number, engine output,
engine code
Abbreviation
Importance
kW
Kilowatt, measuring unit for the engine output
rpm
Engine revolutions per minute
Nm
Newton meter, measuring unit for the engine torque
CO2 in g/km
discharged quantity of carbon dioxide in grams per driven kilom-
eter
RON
Research octane number, measuring unit for the knocking resist-
ance of petrol
DPF
Diesel particle filter
M5
5-speed manual gearbox
AG6
6-speed automatic gearbox
Fig. 221 Vehicle data sticker
A1A2A3
s3f4.1.book Page 227 Thursday, June 18, 2009 11:07 AM

Technical Data 228Partial description of the vehicle
7GG, 7MB, 7MG - vehicles with DPF ⇒page 162
Vehicle identification number (VIN)
The vehicle identification number - VIN (vehicle body number) is stamped into the
engine compartment on the right hand shock absorber dome. This number is also
located on a sign on the lower left hand edge below the windscreen (together with
a VIN bar code).
Engine number
The engine number is stamped into the engine block.
Type plate (production plate)
The type plate is located in the engine compartment at the front on the left hand
shock absorber dome.
Homologation sign
The homologation sign is located on the lock carrier. Vehicles for certain countries
do not have an homologation sign.
Sticker on inside of fuel filler flap
The sticker is affixed to the inside of the fuel filler flap. They contain the following
data:
•
the prescribed type of fuel;
•
tyre size;
•
Tyre pressure.
Fuel consumption according to the regulations (99/100/EU)Depending on the range of the special equipment, style of driving, traffic situation,
weather influences and vehicle condition, the consumption values which in prac-
tice result when using the vehicle can deviate from the indicated values.Urban traffic
The consumption measurement in urban traffic begins with starting of the cold
engine. Afterwards the normal urban traffic is simulated.
Non-urban traffic
For the consumption measurement in non-urban traffic the vehicle, as in daily
motoring, is accelerated and braked several times in all gears. The vehicle speed
changes within the range from 0 to 120 km/h.
Combined traffic
The consumption value in the combined traffic consists of 37% from the value for
the urban traffic and of 63% from the value for the non-urban traffic.
Note
•
Please note that the information stated in the official vehicle registration
documents always takes priority.
A4A5s3f4.1.book Page 228 Thursday, June 18, 2009 11:07 AM

Technical Data229
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
DimensionsDimensions (mm)
FA B I A
COMBI
SCOUT
Length
3992
4239
4250
Width
1642
1642
1658
Width including exterior mirror
1886
1886
1886
Height
1498/1513
a)/1484
b)
a)The value corresponds to the status with rough road package.b)The value corresponds to the status with sport chassis.
1498/1513
a)/1484
b)
1542
Clearance
134
135
135
Wheel base
2462
2462
2462
Tr a c k g a u g e f r o n t / r e a r
1436/1426
1432/1422
c)
1420/1410
d)
c)This value is valid for vehicles with 1.6 ltr./77 kW engine.d)This value is valid for vehicles with 1.9 ltr./77 kW°TDI°PD engine.
1436/1426
1432/1422
c)
1420/1410
d)
1430/1420
s3f4.1.book Page 229 Thursday, June 18, 2009 11:07 AM

Technical Data 230Engine oil specificationsThe grade of engine oil should be selected in accordance with
precise specifications.The engine of your vehicle has been factory-filled with a high-grade oil which you
can use throughout the year - except in extreme climatic regions.
You can mix various oils together with each other when refilling with oil. This does
not, however, apply for models with flexible service intervals (QG1).
Engine oils are, of course, undergoing continuous further development. Thus the
information stated in this Owner's Manual is only correct at the time of publication.
Specialist garages are informed by Škoda Auto about current changes. We recom-
mend having this oil change undertaken by a specialist garage.
Engine oil specifications for vehicles with fixed service intervals (QG0, QG2)
Engine oil specifications for models with flexible service intervals (QG1)
Caution
Only the above-mentioned oils may be used on vehicles with flexible service inter-
vals (QG1). We recommend always refilling with oil of the same specification since
this will maintain the properties of the oil. In exceptional cases, you must top up
only once engine oil complying with Specification VW 502 00 (only for petrol
engines) or Specification VW 505 01 (only for diesel engines) to maximum 0.5 litres.
You must not use other engine oils - risk of engine damage!
Note
•
Before a long drive we recommend that you purchase and carry with you
engine oil which complies with the specification for your vehicle. Consequently,
you will always have the correct engine oil for refilling.
•
We recommend using a preservative from the Škoda original accessories
offered by your Škoda dealer.
•
For further information - see Service shedule.
Engine oil specifications
Petrol engines
VW 501 01
VW 502 00
VW 504 00
ACEA A2
a) or A3
a)
a)Only to be used in exceptional cases if the oils specified above are not available.Diesel engines
VW 505 01
b)
VW 507 00
c)
b)Only for engines without diesel particle filter ⇒page 34.c)Only for engines with diesel particle filter ⇒page 34.
Engine oil specifications
Petrol engines
VW 504 00
alternative VW 503 00
Diesel engines
VW 507 00
alternative VW 506 01
a)
a)Only for engines without diesel particle filter ⇒page 34.
s3f4.1.book Page 230 Thursday, June 18, 2009 11:07 AM

Technical Data231
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
1.2 ltr./44 kW - EU 4/EU 2DDKEngine
Performances
Fuel consumption (in ltr./100°km) and CO
2 emission (in g/km)
Power output
kW per rpm
44/5200
Maximum torque
Nm per rpm
108/3000
Number of cylinders/Displacement (cm
3)
3/1198
Fuel - unleaded petrol min. RON
95
FA B I A
COMBI
Maximum speed
km/h
155
156
Acceleration 0 - 100 km/h
s
16,5
16,8
Urban
7,8
Non-urban
4,8
Combination
5,9
CO2 emission - combination
140
s3f4.1.book Page 231 Thursday, June 18, 2009 11:07 AM
