•Never park where the hot exhaust system could ignite inflammable
materials, such as dry grass, low bushes, spilt fuel e

Driving145
Safety First
Operating instructions
Practical tips
Technical Data
•Never park where the hot exhaust system could ignite inflammable
materials, such as dry grass, low bushes, spilt fuel etc.•Never allow vehicle occupants to remain in the vehicle when it is
locked. They would be unable to open the vehicle from the inside, and
could become trapped in the vehicle in an emergency. In the event of an
emergency, locked doors will delay assistance to occupants.•Never leave children alone in the vehicle. They could set the vehicle in
motion, for example, by releasing the handbrake or the gear lever.•Depending on weather conditions, it may become extremely hot or cold
inside the vehicle. This can be fatal.
Hill-start assist*
This function is only included in vehicles with ESP.This device helps when starting uphill.
These are the basic operation conditions: doors closed, brake pedal pressed
down and vehicle in neutral. The system gets activated on engaging gear.
After removing your foot from the brake pedal, the braking force is maintained
for a few seconds to prevent the vehicle from moving backward when putting
into gear. This short space of time is enough to start the vehicle with ease.
This system also works when reversing uphill.
WARNING
•If you do not start the vehicle immediately after taking your foot off the
brake pedal, the vehicle may start to roll back under certain conditions.
Depress the brake pedal or use the hand brake immediately.
•If the engine stalls, depress the brake pedal or use the hand brake
immediately.•When following a line of traffic uphill, if you want to prevent the vehicle
from rolling back accidentally when starting off, hold the brake pedal down
for a few seconds before starting off.Note
The Official Service or a specialist workshop can tell you if your vehicle is
equipped with this system.Acoustic parking aid system*Rear parking aid
The parking aid system will use an acoustic signal to warn of
the approach of any object towards the rear of the vehicle.Description
The acoustic parking aid system will measure the distance between the rear
of the vehicle and any possible obstacle using four ultrasonic sensors located
on the rear bumper. The measuring range of the sensors starts approximately
and depending on the nature of the obstacle at a distance of:•side of the rear bumper: 0.6 m•middle of the rear bumper: 1.6 m
Activation
The system is activated by engagement of the reverse gear. A brief acoustic
signal confirms the activation and correct function of the system.
WARNING (continued)
WARNING (continued)
Ibiza ST_EN.book Seite 145 Dienstag, 12. Januar 2010 4:03 16

Page 147 of 250

Seat Ibiza ST 2009 Owners manual Driving
146Reverse gear
The distance warning will begin as soon as an obstacle is detected by the
system. The frequency of the bleeps emitted by the system will increase
rapidly as the vehicle appro

Driving
146Reverse gear
The distance warning will begin as soon as an obstacle is detected by the
system. The frequency of the bleeps emitted by the system will increase
rapidly as the vehicle approaches the obstacle.
Within a short distance of about 30cm, a continuous signal sounds (stop
signal). The driver should not reverse any further.
Models with a factory-fitted towing bracket: When the vehicle is less than
0.35 m away from the obstacle the warning tone will sound continuously. The
driver should then not reverse any further.
The warning tone decreases by 30% after 3 seconds from the start of the
system.
Provided that it is not in continuous mode, the tone on the parking aid system
stops when it detects a wall parallel to the vehicle.
Trailer towing
For factory-fitted vehicles eith a towing bar, the parking aid system will not be
activated by the engagement of the reverse gear when pulling a trailer, as the
trailer's electric connector will be plugged into the vehicle.
Possible faults
If a continuous bleep sounds for some seconds when the reverse gear is
engaged, this indicates that there is a fault in the parking aid system.
If the fault continues until the ignition is turned off, the acoustic signal
warning of the fault will not be emitted every time the system is reactivated
(by engaging the reverse gear). Thus, the system ready indication will not
sound either. Have the fault repaired by an Authorised Service Centre as soon
as possible.
If there is no ready signal or no acoustic warning signal, then the parking aid
loudspeaker is faulty and may not warn of obstacles.
To ensure that the system works properly, the sensors must be kept clean and
free of ice and snow.
WARNING
•The sensors have blind spots in which obstacles may not be detected.•Always look out for small children and animals because the system will
not always detect them. Always pay attention when reversing to avoid acci-
dents.•The parking aid is not a replacement for driver awareness. The driver
must take full responsibility for parking and other manoeuvres.Caution
•Please note that low obstacles detected by the system may no longer be
registered by the sensors as the car moves closer, so the system will not give
any further warning. Certain kinds of obstacles (such as wire fences, chains,
thin posts or trailer draw bars, high kerbs or painted railings etc) may not
always be detected by the system, so there is a risk of damaging the vehicle
in such cases.•In some cases, obstacles with uniform edges and bumps may not be
detected immediately by the system due to their geometry. Take special care
of this type of obstacle such as corners, rectangular objects, etc.., these can
cause damage to the vehicle.•Be especially careful when manoeuvring into a corner between two
perpendicular walls. Survey the approach of the wall to the side of the vehicle
(using the mirrors)•The parking aid system does not replace use of the mirrors for manoeu-
vres.•Distant ultra-sonic sources (hammers, tyres, construction machinery,
other vehicles with PDC) may interfere with the operation of the system.•Periodic cleaning of the sensors, take care not to damage or scratch them.
When cleaning with high pressure washers or steam cleaners, the sensors
should be sprayed for only a very short period and from a distance of more
than 10 cm.
Ibiza ST_EN.book Seite 146 Dienstag, 12. Januar 2010 4:03 16

Page 154 of 250

Seat Ibiza ST 2009 Owners manual Intelligent technology153
Safety First
Operating instructions
Practical tips
Technical Data
T h e T C S is s w i tch e d o n a u t o m a t i ca ll y w h e n t h e e n g i n e is s ta r t e d

Intelligent technology153
Safety First
Operating instructions
Practical tips
Technical Data
T h e T C S is s w i tch e d o n a u t o m a t i ca ll y w h e n t h e e n g i n e is s ta r t e d . I f n e ce s sa r y,
it may be turned on or off by briefly pushing the ESP button on the centre
console.
When the TCS is switched off, the warning lamp flashes slowly. The TCS
should normally be left switched on at all times. Only in exceptional circum-
stances, when the slipping of the wheels is required, can they be discon-
nected using the ESP button, for example.
•With compact temporary spare wheel.•When using the snow chains.•When driving in deep snow or on loose surfaces•When the vehicle is bogged-down, to free it by “rocking.”
The TCS should be switched on again afterwards as soon as possible.WARNING
•It must be remembered that TCS cannot defy the laws of physics. This
should be kept in mind, particularly on slippery and wet roads and when
towing a trailer.•Always adapt your driving style to suit the condition of the roads and
the traffic situation. Do not let the extra safety afforded by TCS tempt you
into taking any risks when driving, this can cause accidents.Caution
•In order to ensure that TCS function correctly, all four wheels must be
fitted with the same tyres. Any differences in the rolling radius of the tyres can
cause the system to reduce engine power when this is not desired.•Modifications to the vehicle (e.g. to the engine, the brake system, running
gear or any components affecting the wheels and tyres) could affect the effi-
ciency of the ABS and TCS.
XDS*
Driveshaft differentialWhen taking a bend, the driveshaft differential mechanism allows the outer
wheel to turn at a higher speed than the inner wheel. In this way, the wheel
that is turning faster (outer wheel) receives less drive torque than the inner
wheel. This may mean that in certain situations the torque delivered to the
inner wheel is too high, causing the wheels to spin. On the other hand, the
outer wheel is receiving a lower drive torque than it could transmit. This
causes an overall loss of lateral grip on the front axle, resulting in understeer
or “lengthening” of the trajectory.
By using the ESP sensors and signals, the XDS system is able to detect and
correct this effect.
Through the ESP, the XDS brakes the inner wheel, thereby counteracting the
excess drive torque in this wheel. This means that the driver's desired trajec-
tory is much more precise,
The XDS system operates in combination with the ESP and is always active,
even when the traction control, TCS, is disconnected.Electronic Stability Programme (ESP)*General notes
The Electronic Stability Programme increases the vehicle's
stability on the road.The Electronic Stability Programme helps reduce the danger of skidding.
The Electronic Stability Programme (ESP) consists of ABS, EDL and TCS.
Ibiza ST_EN.book Seite 153 Dienstag, 12. Januar 2010 4:03 16

Page 155 of 250

Seat Ibiza ST 2009 Owners manual Intelligent technology
154Electronic Stability Programme (ESP)*
ESP reduces the danger of skidding by braking the wheels individually.
The system uses the steering wheel angle and road speed to calcul

Intelligent technology
154Electronic Stability Programme (ESP)*
ESP reduces the danger of skidding by braking the wheels individually.
The system uses the steering wheel angle and road speed to calculate the
changes of direction desired by the driver, and constantly compares them
with the actual behaviour of the vehicle. If the desired course is not being
maintained (for instance, if the car is starting to skid), then the ESP compen-
sates automatically by braking the appropriate wheel.
The forces acting on the braked wheel bring the vehicle back to a stable
condition. If the vehicle tends to oversteer, the system will act on the front
wheel on the outside of the turn.
WARNING
•It must be remembered that ESP cannot defy the laws of physics. This
should be kept in mind, particularly on slippery and wet roads and when
towing a trailer.•Always adapt your driving style to suit the condition of the roads and
the traffic situation. Do not let the extra safety afforded by ESP tempt you
into taking any risks when driving, this can cause accidents.Caution
•In order to ensure that ESP functions correctly, all four wheels must be
fitted with the same tyres. Any differences in the rolling radius of the tyres can
cause the system to reduce engine power when this is not desired.•Modifications to the vehicle (e.g. to the engine, the brake system, running
gear or any components affecting the wheels and tyres) could affect the effi-
ciency of the ABS, EDL, ESP and TCS.
Anti-lock brake system (ABS)The anti-lock brake system prevents the wheels locking during braking
⇒ page 152.Electronic differential lock (EDL)*
The electronic differential lock helps prevent the loss of trac-
tion caused if one of the driven wheels starts spinning.EDL helps the vehicle to start moving, accelerate and climb a gradient in slip-
pery conditions where this may otherwise be difficult or even impossible.
The system will control the revolutions of the drive wheels using the ABS
sensors (in case of an EDL fault the warning lamp for ABS lights up)
⇒ page 59.
At speeds of up to approximately 80 km/h, it is able to balance out differ-
ences in the speed of the driven wheels of approximately 100 rpm caused by
a slippery road surface on one side of the vehicle. It does this by braking the
wheel which has lost traction and distributing more driving force to the other
driven wheel via the differential.
To prevent the disc brake of the braking wheel from overheating, the EDL cuts
out automatically if subjected to excessive loads. The vehicle will continue to
function normally without EDL. For this reason, the driver is not informed that
the EDL has been switched off.
The EDL will switch on again automatically when the brake has cooled down.
WARNING
•When accelerating on a slippery surface, for example on ice and snow,
press the accelerator carefully. Despite EDL, the driven wheels may start to
spin. This could impair the vehicle's stability.
Ibiza ST_EN.book Seite 154 Dienstag, 12. Januar 2010 4:03 16

Page 211 of 250

Seat Ibiza ST 2009 Owners manual If and when
210The individual electrical circuits are protected by fuses. The fuses are located
behind a cover at the left-hand end of the dash panel. When the steering
wheel is on the right, the fu

Page 212 of 250

Seat Ibiza ST 2009 Owners manual If and when211
Safety First
Operating instructions
Practical tips
Technical Data
14
Left-hand AFS headlights
15
15
Right-hand AFS headlights
15
16
12V power socket in luggage compartment
15
17
Number

Page 246 of 250

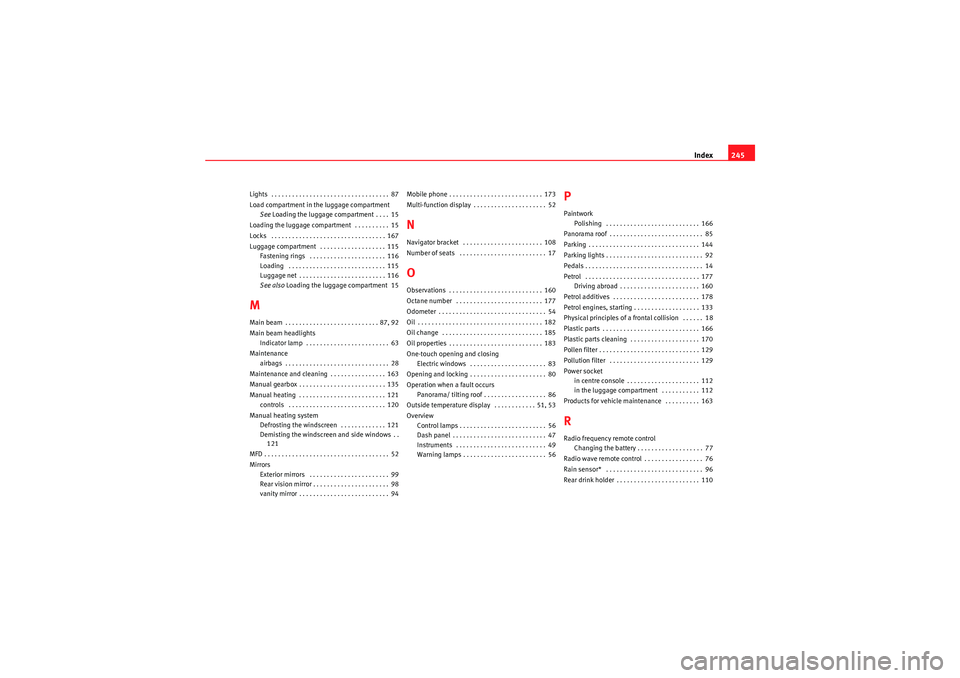

Seat Ibiza ST 2009 Owners manual Index245
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Load compartment in the luggage compartment
See Loading the luggage compartment . . . . 15
Loading the luggage c

Index245
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Load compartment in the luggage compartment
See Loading the luggage compartment . . . . 15
Loading the luggage compartment . . . . . . . . . . 15
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Luggage compartment . . . . . . . . . . . . . . . . . . . 115 Fastening rings . . . . . . . . . . . . . . . . . . . . . . 116
Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Luggage net . . . . . . . . . . . . . . . . . . . . . . . . . 116
See also Loading the luggage compartment 15MMain beam . . . . . . . . . . . . . . . . . . . . . . . . . . . 87, 92
Main beam headlights
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . . 63
Maintenance airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Maintenance and cleaning . . . . . . . . . . . . . . . . 163
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . 135
Manual heating . . . . . . . . . . . . . . . . . . . . . . . . . 121 controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Manual heating system Defrosting the windscreen . . . . . . . . . . . . . 121
Demisting the windscreen and side windows . .121
MFD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Mirrors Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . 99
Rear vision mirror . . . . . . . . . . . . . . . . . . . . . . 98
vanity mirror . . . . . . . . . . . . . . . . . . . . . . . . . . 94 Mobile phone . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Multi-function display . . . . . . . . . . . . . . . . . . . . . 52
NNavigator bracket . . . . . . . . . . . . . . . . . . . . . . . 108
Number of seats . . . . . . . . . . . . . . . . . . . . . . . . . 17OObservations . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Octane number . . . . . . . . . . . . . . . . . . . . . . . . . 177
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
One-touch opening and closing
Electric windows . . . . . . . . . . . . . . . . . . . . . . 83
Opening and locking . . . . . . . . . . . . . . . . . . . . . . 80
Operation when a fault occurs Panorama/ tilting roof . . . . . . . . . . . . . . . . . . 86
Outside temperature display . . . . . . . . . . . . 51, 53
Overview Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . 56
Dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . 56
PPaintworkPolishing . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Panorama roof . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177 Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 160
Petrol additives . . . . . . . . . . . . . . . . . . . . . . . . . 178
Petrol engines, starting . . . . . . . . . . . . . . . . . . . 133
Physical principles of a frontal collision . . . . . . 18
Plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Plastic parts cleaning . . . . . . . . . . . . . . . . . . . . 170
Pollen filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Pollution filter . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Power socket in centre console . . . . . . . . . . . . . . . . . . . . . 112
in the luggage compartment . . . . . . . . . . . 112
Products for vehicle maintenance . . . . . . . . . . 163RRadio frequency remote control Changing the battery . . . . . . . . . . . . . . . . . . . 77
Radio wave remote control . . . . . . . . . . . . . . . . . 76
Rain sensor* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Rear drink holder . . . . . . . . . . . . . . . . . . . . . . . . 110
Ibiza ST_EN.book Seite 245 Dienstag, 12. Januar 2010 4:03 16

Page: < prev 1-8 9-16

open bonnet interior lights steering wheel adjustment adblue fuel fill door release jacking points
