2009 Seat Ibiza SC Owner's manual

Unlocking and locking79
Safety First
Controls and equipment
Practical tips
Technical Data
Ta i l g a t eUnlocking and locking
The operation of the tailgate opening system is electric. It is
activated by using the handle on the tailgate
Opening the tailgate
– Pull on the release lever and lift the tailgate ⇒fig. 45 . The tail-
gate will open automatically.
Closing the tailgate
– Grip the tailgate by one of the two handles on the interior lining and close it, pushing slightly.The system may or may not operate depending on the situation of the vehicle.
If the tailgate is locked then it cannot be opened, however if it is unlocked
then the opening system is operative and the boot may be opened.
To change the locking / unlocking status, press the button or the button
⇒ page 75, fig. 43 on the remote control key.
A warning appears in the instrument panel if the tailgate is open or not prop-
erly closed.* An audible warning is also given if the tailgate is opened while
the vehicle is moving faster than 6 km/h.*
Fig. 45 Tailgate: opening
from the outside
Fig. 46 Detail of the
inside of the tailgate:
hand grip

A1
IbizaSC_EN.book Seite 79 Mittwoch, 16. September 2009 12:11 12

Unlocking and locking
80
WARNING
•Always close the tailgate properly. Risk of accident or injury.•The tailgate must not be opened when the reverse or rear fog lights are
lit. This may damage the pilot lights•Do not close the tailgate by pushing it down with your hand on the rear
window. The glass could smash. Risk of injury!•Ensure the tailgate is locked after closing it. If not, it may open unex-
pectedly while driving.•Never allow children to play in or around the vehicle. A locked vehicle
can be subjected to extremely high and low temperatures, depending on
the time of year, thus causing serious injuries/illness. It could even have
fatal consequences. Close and lock both the tailgate and all the other doors
when you are not using the vehicle.•Closing the tailgate without observing and ensuring it is clear could
cause serious injury to you and to third parties. Make sure that no one is in
the path of the tailgate.•Never drive with the tailgate open or half-closed, exhaust gases may
penetrate into the interior of the vehicle. Danger of poisoning!•If you only open the tailgate, do not leave the key inside. The vehicle
will not be opened if the key is left inside.
Emergency opening
This allows the vehicle to be opened if the central locking
does not operate (for example, if the battery is flat)There is a groove in the boot allowing access to the emergency
opening mechanism.
Opening the tailgate from inside the luggage compartment
– Insert the key blade in the groove and unlock the locking system, turning the key from right to left, as shown by the arrow
⇒fig. 47 .
Fig. 47 Tailgate: emer-
gency open
IbizaSC_EN.book Seite 80 Mittwoch, 16. September 2009 12:11 12

Unlocking and locking81
Safety First
Controls and equipment
Practical tips
Technical Data
WindowsOpening or closing the windows electrically*
All electric windows can be operated using the controls on the
driver door.Opening and closing the windows
– Press the button to open a window.
– Pull button to close a window ⇒ .Always close the windows fully if you park the vehicle or leave it unattended
⇒.
You can use the electric windows for approx. 10 minutes after switching off
the ignition if neither the driver door nor the front passenger door has been
opened and the key has not been removed from the ignition. Buttons on the driver's door
Button for window in front left door
Button for window in front right door
WARNING
•Incorrect use of the electric windows can result in injury.•Never close the tailgate without observing and ensuring it is clear, to do
otherwise could cause serious injury to you and third parties. Make sure
that no one is in the path of a window.•Always take the vehicle key with you when you leave the vehicle.•Never leave children or disabled persons in the vehicle, particularly if
they have access to the keys. The misuse of the keys, for example, by chil-
dren, may result in serious injury and accident.•The engine may accidentally be started and be out of control.•If the ignition is switched on, the electric equipment could be activated
with risk of injury, for example, in the electric windows.•The doors can be locked using the remote control key. This could make
assistance difficult in an emergency.•Always take the key with you when you leave the vehicle.•The electric windows are only deactivated on switching the ignition off
and opening any of the doors.Note
If the window is not able to close because it is stiff or because of an obstruc-
tion, the window will automatically open again ⇒ page 82. If this happens,
check why the window could not be closed before attempting to close it
again.
Fig. 48 Detail of driver
door: controls for the front
windows.


A1A2
IbizaSC_EN.book Seite 81 Mittwoch, 16. September 2009 12:11 12

Unlocking and locking

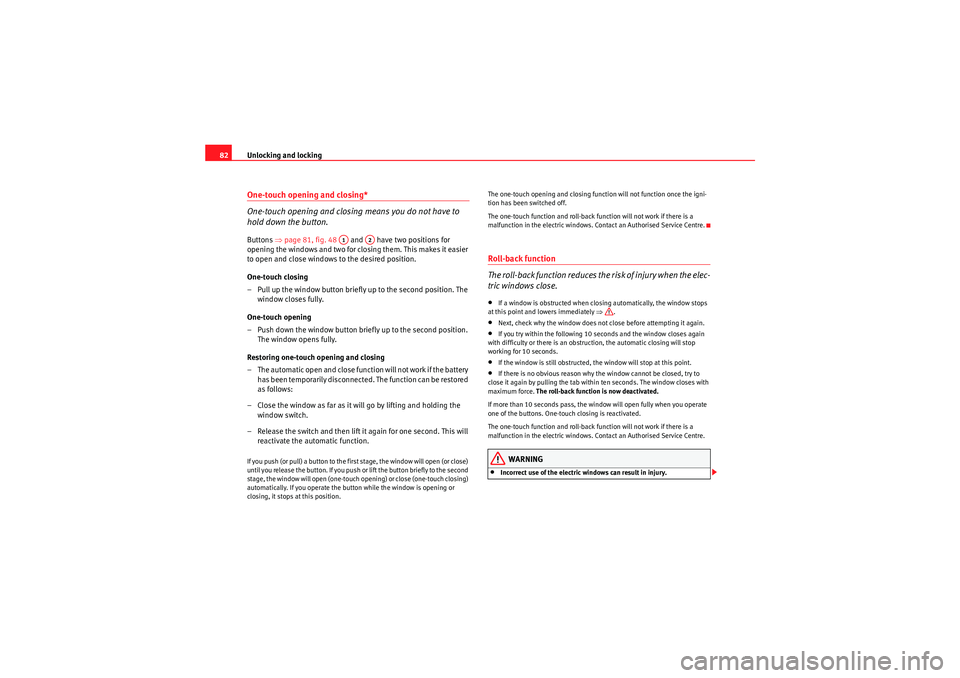

82One-touch opening and closing*
One-touch opening and closing means you do not have to
hold down the button.Buttons ⇒page 81, fig. 48 and have two positions for
opening the windows and two for closing them. This makes it easier
to open and close windows to the desired position.
One-touch closing
– Pull up the window button briefly up to the second position. The window closes fully.
One-touch opening
– Push down the window button briefly up to the second position. The window opens fully.
Restoring one-touch opening and closing
– The automatic open and close function will not work if the battery has been temporarily disconnected. The function can be restored
as follows:
– Close the window as far as it will go by lifting and holding the window switch.
– Release the switch and then lift it again for one second. This will reactivate the automatic function.If you push (or pull) a button to the first stage, the window will open (or close)
until you release the button. If you push or lift the button briefly to the second
s t a ge , t h e wi n d o w w i ll o p e n ( o n e - t o u ch o p e n i ng ) o r c l o s e ( o n e - t o u ch c l o s i n g )
automatically. If you operate the button while the window is opening or
closing, it stops at this position. The one-touch opening and closing function will not function once the igni-
tion has been switched off.
The one-touch function and roll-back function will not work if there is a
malfunction in the electric windows. Contact an Authorised Service Centre.
Roll-back function
The roll-back function reduces the risk of injury when the elec-
tric windows close.•If a window is obstructed when closing automatically, the window stops
at this point and lowers immediately ⇒.•Next, check why the window does not close before attempting it again.•If you try within the following 10 seconds and the window closes again
with difficulty or there is an obstruction, the automatic closing will stop
working for 10 seconds.•If the window is still obstructed, the window will stop at this point.•If there is no obvious reason why the window cannot be closed, try to
close it again by pulling the tab within ten seconds. The window closes with
maximum force. The roll-back function is now deactivated.
If more than 10 seconds pass, the window will open fully when you operate
one of the buttons. One-touch closing is reactivated.
The one-touch function and roll-back function will not work if there is a
malfunction in the electric windows. Contact an Authorised Service Centre.WARNING
•Incorrect use of the electric windows can result in injury.
A1
A2
IbizaSC_EN.book Seite 82 Mittwoch, 16. September 2009 12:11 12

Unlocking and locking83
Safety First
Controls and equipment
Practical tips
Technical Data
•Always take the key with you when leaving the vehicle, even if you only
intend to be gone for a short time. Please ensure that children are never left
alone inside the vehicle.•The electric windows will work until the ignition has been switched off
and one of the front doors has been opened.•Closing the windows without observing and ensuring it is clear could
cause serious injury to you and third parties. Make sure that no one is in
the path of a window.•Never allow people to remain in the vehicle when you close the vehicle
from the outside. The windows cannot be opened even in an emergency.•The roll-back function does not prevent fingers or other parts of the
body getting pinched against the window frame and cause injury.
Convenience opening and closing* Using the door lock
– Hold the key in the door lock of the driver door in either the locking or the unlocking position until all windows are either
opened or closed.
– Release the key to interrupt this function.
Using the remote control
– Keep the locking/unlocking button pressed for the electrical window risers to open/close; if you stop pressing the button, the
window raising/lowering function is stopped.
– If the automatic raising is stopped and immediately after, the opening button is kept pressed, the window risers will lower. – Once the windows are completely closed, the indicators will
flash.
Panoramic tilting roof*Opening and closing th e sliding/tilting roof
The panoramic/tilting roof is opened and closed by using the
switch when the ignition is switched on.Closing the panoramic/tilting sunroof
– Press and hold button ⇒fig. 49 ⇒ , the roof starts to
close until the button is released.
WARNING (continued)
Fig. 49 Panoramic/tilting
sunroof
AB
IbizaSC_EN.book Seite 83 Mittwoch, 16. September 2009 12:11 12

Unlocking and locking
84

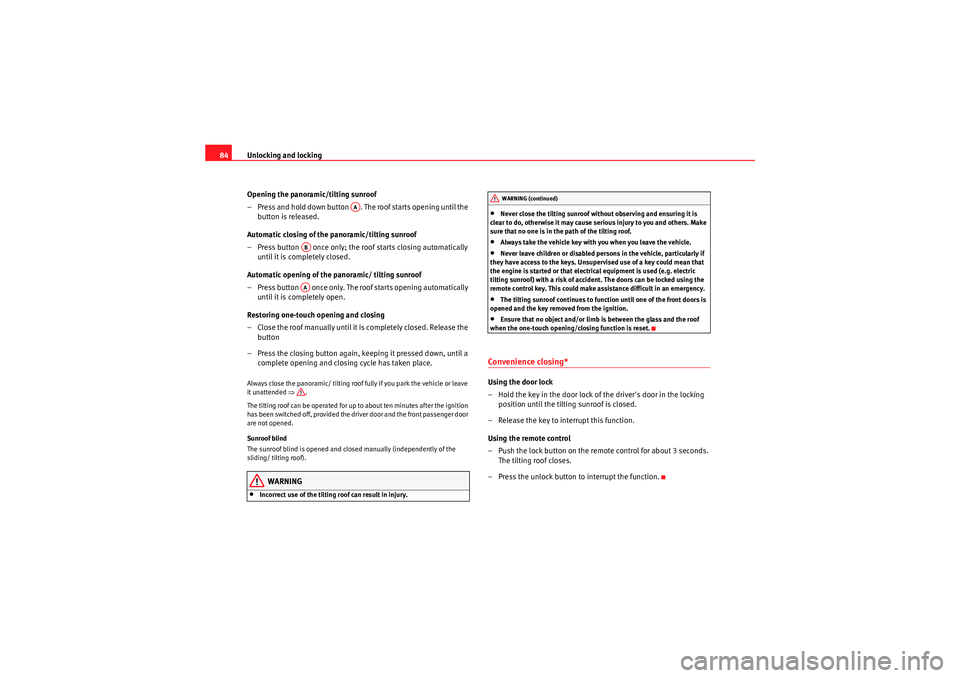

Opening the panoramic/tilting sunroof
– Press and hold down button . The roof starts opening until the button is released.
Automatic closing of the panoramic/tilting sunroof
– Press button once only; the roof starts closing automatically until it is completely closed.
Automatic opening of the panoramic/ tilting sunroof
– Press button once only. The roof starts opening automatically until it is completely open.
Restoring one-touch opening and closing
– Close the roof manually until it is completely closed. Release the button
– Press the closing button again, keeping it pressed down, until a complete opening and closing cycle has taken place.Always close the panoramic/ tilting roof fully if you park the vehicle or leave
it unattended ⇒ .
The tilting roof can be operated for up to about ten minutes after the ignition
has been switched off, provided the driver door and the front passenger door
are not opened.
Sunroof blind
The sunroof blind is opened and closed manually (independently of the
sliding/ tilting roof).
WARNING
•Incorrect use of the tilting roof can result in injury.
•Never close the tilting sunroof without observing and ensuring it is
clear to do, otherwise it may cause serious injury to you and others. Make
sure that no one is in the path of the tilting roof.•Always take the vehicle key with you when you leave the vehicle.•Never leave children or disabled persons in the vehicle, particularly if
they have access to the keys. Unsupervised use of a key could mean that
the engine is started or that electrical equipment is used (e.g. electric
tilting sunroof) with a risk of accident. The doors can be locked using the
remote control key. This could make assistance difficult in an emergency.•The tilting sunroof continues to function until one of the front doors is
opened and the key removed from the ignition.•Ensure that no object and/or limb is between the glass and the roof
when the one-touch opening/closing function is reset.
Convenience closing*Using the door lock
– Hold the key in the door lock of the driver's door in the locking position until the tilting sunroof is closed.
– Release the key to interrupt this function.
Using the remote control
– Push the lock button on the remote control for about 3 seconds. The tilting roof closes.
– Press the unlock button to interrupt the function.
AA
ABAA
WARNING (continued)
IbizaSC_EN.book Seite 84 Mittwoch, 16. September 2009 12:11 12

Unlocking and locking85
Safety First
Controls and equipment
Practical tips
Technical Data
Roll-back function of the panoramic/ tilting roof*The panoramic/ tilting roof has a roll-back function which prevents larger
objects getting trapped when the roof is closed. The roll-back function does
not prevent fingers getting pinched against the roof opening. The tilting
sunroof stops and opens again immediately if it is obstructed when closing.Operation in case of breakdown
In case of a breakdown, the sunroof may be closed manually.– Remove the plastic cover by inserting a screwdriver into the rear section.
– Insert an Allen key (4 mm) into th e opening as far as possible and
close the roof.
Fig. 50 Emergency opera-
tion of the panoramic/
tilting roof
IbizaSC_EN.book Seite 85 Mittwoch, 16. September 2009 12:11 12

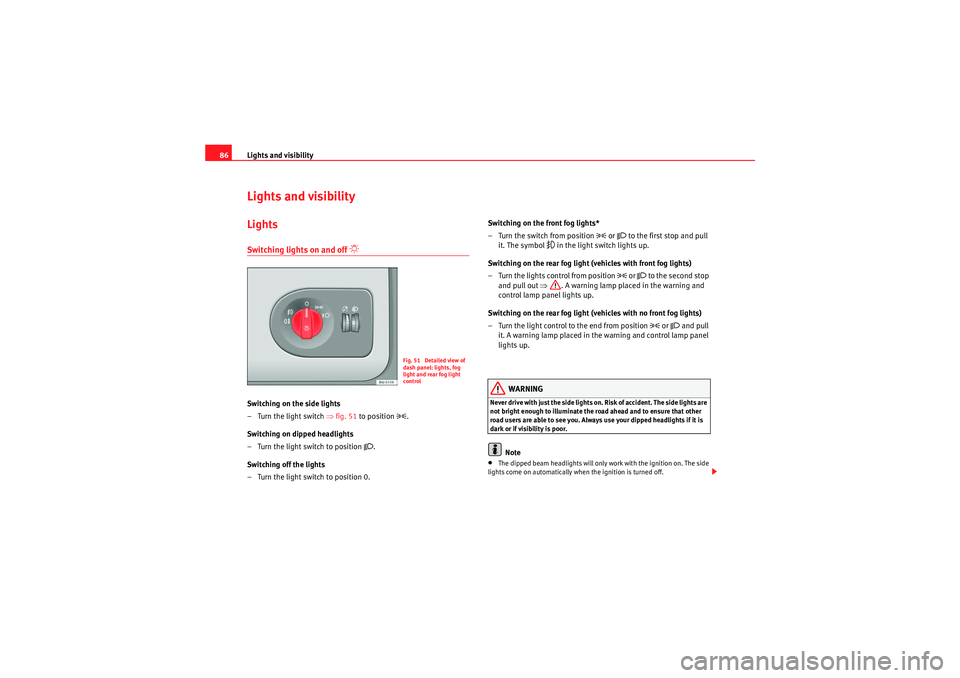

Lights and visibility
86Lights and visibilityLightsSwitching lights on and off

Switching on the side lights
–Turn the light switch ⇒ fig. 51 to position
.
Switching on dipped headlights
– Turn the light switch to position
.
Switching off the lights
– Turn the light switch to position 0. Switching on the front fog lights*
– Turn the switch from position
 or  to the first stop and pull
it. The symbol
 in the light switch lights up.
Switching on the rear fog light (vehicles with front fog lights)
– Turn the lights control from position
 or  to the second stop
and pull out ⇒ . A warning lamp placed in the warning and
control lamp panel lights up.
Switching on the rear fog light (vehicles with no front fog lights)
– Turn the light control to the end from position  or  and pull
it. A warning lamp placed in th e warning and control lamp panel
lights up.
WARNING
Never drive with just the side lights on. Risk of accident. The side lights are
not bright enough to illuminate the road ahead and to ensure that other
road users are able to see you. Always use your dipped headlights if it is
dark or if visibility is poor.
Note
•The dipped beam headlights will only work with the ignition on. The side
lights come on automatically when the ignition is turned off.
Fig. 51 Detailed view of
dash panel: lights, fog
light and rear fog light
control
IbizaSC_EN.book Seite 86 Mittwoch, 16. September 2009 12:11 12
