If and when

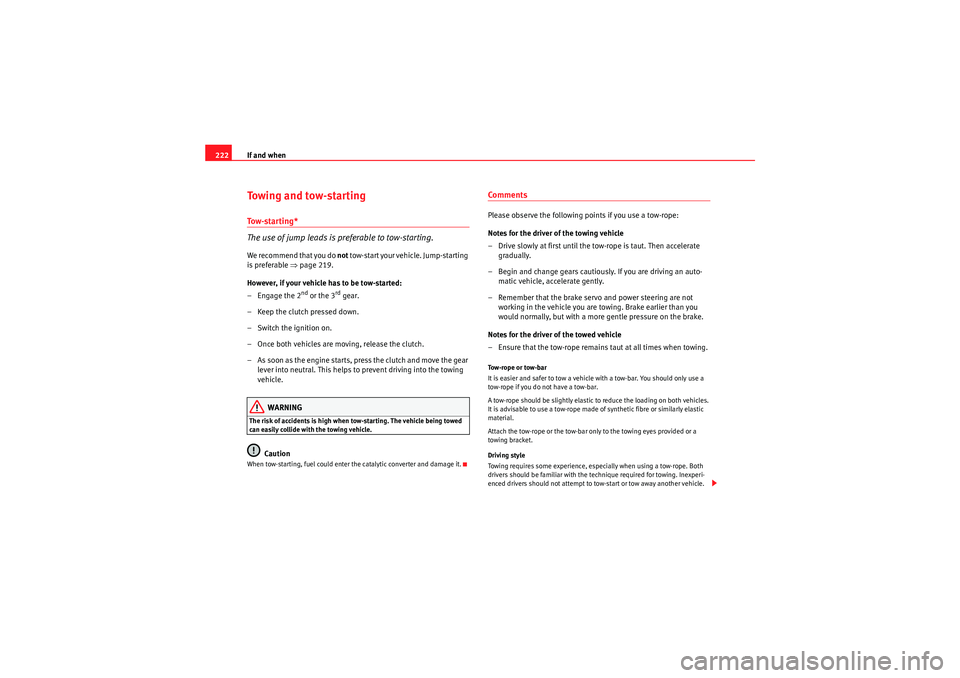

222Towing and tow-startingTo w - s t a r t i n g *
The use of jump leads is preferable to tow-starting.We recommend that you do not tow-start your vehicle. Jump-starting
is preferable ⇒ page 219.
However, if your vehicle has to be tow-started:
– Engage the 2
nd or the 3
rd gear.
– Keep the clutch pressed down.
– Switch the ignition on.
– Once both vehicles are moving, release the clutch.
– As soon as the engine starts, press the clutch and move the gear lever into neutral. This helps to prevent driving into the towing
vehicle.
WARNING
The risk of accidents is high when tow-starting. The vehicle being towed
can easily collide with the towing vehicle.
Caution
When tow-starting, fuel could enter the catalytic converter and damage it.
CommentsPlease observe the following points if you use a tow-rope:
Notes for the driver of the towing vehicle
– Drive slowly at first until the tow-rope is taut. Then accelerate gradually.
– Begin and change gears cautiously. If you are driving an auto- matic vehicle, accelerate gently.
– Remember that the brake servo and power steering are not working in the vehicle you are towing. Brake earlier than you
would normally, but with a more gentle pressure on the brake.
Notes for the driver of the towed vehicle
– Ensure that the tow-rope remains taut at all times when towing.Tow-rope or tow-bar
It is easier and safer to tow a vehicle with a tow-bar. You should only use a
tow-rope if you do not have a tow-bar.
A tow-rope should be slightly elastic to reduce the loading on both vehicles.
It is advisable to use a tow-rope made of synthetic fibre or similarly elastic
material.
Attach the tow-rope or the tow-bar only to the towing eyes provided or a
towing bracket.
Driving style
Towing requires some experience, especially when using a tow-rope. Both
drivers should be familiar with the technique required for towing. Inexperi-
enced drivers should not attempt to tow-start or tow away another vehicle.
Ibiza_EN.book Seite 222 Montag, 14. September 2009 6:19 18
Index
250Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 164
External aerial . . . . . . . . . . . . . . . . . . . . . . . . . . 171FFabric trim cleaning . . . . . . . . . . . . . . . . . . . . . 168
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Fog lights with cornering function . . . . . . . . . . . 89
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Description . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Front ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Front cup holder* . . . . . . . . . . . . . . . . . . . . . . . 110
Front interior light . . . . . . . . . . . . . . . . . . . . . . . . 93
Front passenger airbag deactivation . . . . . . . . . 36
Front reading light . . . . . . . . . . . . . . . . . . . . . . . . 94
Front seat adjustment Lumbar support . . . . . . . . . . . . . . . . . . . . . . 104
Frontal airbags Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Fuel Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Fuel level Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Fuel reserve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Fuel Tank Opening the fuel tank flap . . . . . . . . . . . . . 175
Fuel tank See Fuel reserve . . . . . . . . . . . . . . . . . . . . . . 62 Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
GG 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Gear shift pattern . . . . . . . . . . . . . . . . . . . . . . . 132
General overview of the engine compartment 230
Glove compartment . . . . . . . . . . . . . . . . . . . . . . 107
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . 131
warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 58HHandbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140Warning lamp . . . . . . . . . . . . . . . . . . . . 61, 141
Hazard warning lights . . . . . . . . . . . . . . . . . . . . . 91
head restraints Adjusting . . . . . . . . . . . . . . . . . . . . . . . 102, 103
adjustment of the head restraint angle . . . 103
Removing . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Headlight flashers . . . . . . . . . . . . . . . . . . . . . . . . 92
Headlight range control . . . . . . . . . . . . . . . . . . . 88
Headlights Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 158
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Washer system . . . . . . . . . . . . . . . . . . . . . . . 98
Heated front seats . . . . . . . . . . . . . . . . . . . . . . . 105
Heated wing mirrors* . . . . . . . . . . . . . . . . . . . . . 99
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Heating system . . . . . . . . . . . . . . . . . . . . . . . . . 117
High pressure cleaners . . . . . . . . . . . . . . . . . . . 163 Hill-start assist . . . . . . . . . . . . . . . . . . . . . . . . . 142
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
How to jump start description . . . . . . . . . . . . . 220
IIdentification number . . . . . . . . . . . . . . . . . . . . 226
Ignition key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Indicators
indication lamp . . . . . . . . . . . . . . . . . . . . . . . 64
Instrument and switch lighting . . . . . . . . . . . . . 88
Instrument lighting . . . . . . . . . . . . . . . . . . . . . . . 47
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Interior monitor and anti-towing alarm* Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Intermittent wipe, windscreen . . . . . . . . . . . . . . 95
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 44JJump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 219KKeys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75LLeather cleaning . . . . . . . . . . . . . . . . . . . . . . . . 168
Ibiza_EN.book Seite 250 Montag, 14. September 2009 6:19 18
