Seats and stowage
144Ashtrays*, cigarette lighter* and electrical
sockets*Ashtray* Opening and closing the ashtray
– To open the ashtray, lift the cover ⇒fig. 116 .
– To close, push the cover down.
Emptying the ashtray
– Extract the ashtray and empty it.
WARNING
Never put paper in the ashtray. Hot ash could ignite the paper in the
ashtray and cause a fire.
Cigarette lighter* – Press on the cigarette lighter ⇒fig. 117 to activate it ⇒.
– Wait for the lighter to pop out slightly.
– Pull out the cigarette lighter and light the cigarette on the glowing coil.
WARNING
•
Improper use of the cigarette lighter can lead to serious injuries or start
a fire.
•
Using the lighter carefully. Carelessness or negligence when using the
cigarette lighter can cause burns, risk of injury.
•
The lighter only works when the ignition is turned on or the engine is
running. To avoid the risk of fire, never leave children alone inside the
vehicle.
Fig. 116 Ashtray located
in the front drink holder
Fig. 117 The cigarette
lighter is located in the
electric socket on the
front of the centre console
AlteaXL_EN.book Seite 144 M ontag, 2. Februar 2009 12:26 12

Seats and stowage145
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Electrical sockets*
Electrical equipment can be connected to any of the 12 volt
sockets.
Electrical accessories may be connected to the 12 volt socket in the front
centre console ⇒fig. 118 of the passenger compartment and that of the
boot* ⇒ fig. 119. The appliances co nnected to each power point must not
exceed a power rating of 120 Watt.
WARNING
The current power points and the connected accessories will only operate
when the ignition is on or when the engine is running. Improper use of the
sockets or electrical accessories can lead to serious injuries or cause a fire.
To avoid the risk of injury, never le ave children alone inside the vehicle.
Note
•
The use of electrical appliances with the engine switched off will cause a
battery discharge.
•
Before using any electrical accessories, see the instructions on
⇒ page 208.
Fig. 118 Socket, centre
console, frontFig. 119 Socket, luggage
compartment
AlteaXL_EN.book Seite 145 M ontag, 2. Februar 2009 12:26 12

Seats and stowage
146Auxiliary audio connection (AUX-IN)*–Lift the AUX. cover ⇒ fig. 120.
– Insert the pin as far as possible (see Radio manual).
AUX RSE connection*This connector may be used as an audio input (red and white connectors) or
audio and video connector (red, white and yellow connectors). For more
details about the use of this audio and video source, see the RSE manual.
Fig. 120 Auxiliary audio
connection
Fig. 121 AUX RSE
connection
AlteaXL_EN.book Seite 146 Montag, 2. Februar 2009 12:26 12

Seats and stowage147
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
MEDIA-IN* connectorFor information concerning the use of this equipment, please see the Radio
handbook.First-aid kit, warning triangle, fire
extinguisherWarning triangle and first-aid kit*The warning triangle and the first aid kit may be located in the stowage
compartment on the floor of the boot, under the carpet.
The first aid kit may be located in the stowage compartment drawer on the
boot floor under the carpet or in the stowage compartment in the boot side
lining, depending on the version.
Note
•
The warning triangle and the first ai d box do not belong to the standard
vehicle equipment.
•
The first aid kit must comply with legal requirements.
•
Observe the expiry date of the conten ts of the first aid kit. You should
purchase a new first-aid kit as soon as possible after the shelf-life date of the
first-aid kit has expired.
•
Before acquiring accessories and em ergency equipment see the instruc-
tions on ⇒page 208.
Fire extinguisherThe fire extinguisher* is attached to the luggage compartment carpet by
velcro.
Note
•
The fire extinguisher does not belong to the standard vehicle equipment.
•
The fire extinguisher must comp ly with legal requirements.
•
Ensure that the fire extinguisher is fully functional. The fire extinguisher
should, therefore, be checked regularly. The sticker on the fire extinguisher
will inform you of the next date for checking.
•
Before acquiring accessories and em ergency equipment see the instruc-
tions on ⇒page 208.
Fig. 122 Connection in
central armrest compart-
ment
AlteaXL_EN.book Seite 147 M ontag, 2. Februar 2009 12:26 12

Seats and stowage
148Luggage compartmentStowing luggage
All luggage must be securely stowed.Please observe the following points to ensure the vehicle handles
well at all times:
– Distribute the load as evenly as possible.
– Place heavy objects as far forward in the luggage compartment
as possible.
– Secure luggage in the luggage compartment with suitable straps on the fastening rings*.
WARNING
•
Loose luggage and other loose items in the vehicle can cause serious
injuries.
•
Loose objects in the luggage compartment can suddenly move and
change the way the vehicle handles.
•
During sudden manoeuvres or accidents, loose objects in the
passenger compartment can be flung forward, injuring vehicle occupants.
•
Always store objects in the luggage compartment and secure with suit-
able straps. This is especially important for heavy objects.
•
When you transport heavy objects, always take in account that a
change in the centre of gravity can also cause changes in vehicle handling.
•
Please observe information on safe driving ⇒page 7, “Safe driving”.
Caution
Hard objects on the shelf could chafe against the wires of the heating
element in the rear window and cause damage.
Note
The ventilation slots in front of the rear side windows must not be covered as
this would prevent stale air being extracted from the vehicle.
AlteaXL_EN.book Seite 148 M ontag, 2. Februar 2009 12:26 12

Seats and stowage149
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Luggage compartment cover
Using the luggage compartment cover
– Use the handle to pull the cover back until you hear a “click”
⇒fig. 123.
– Press the area marked “PRESS”, and the cover is retrieved auto- matically.
To remove the luggage compartment cover
– Press the side pin in the direction of the arrow, lift the cover and remove it ⇒fig. 124.
– Follow the instructions in reverse to fit it.
WARNING
Do not place heavy or hard objects on the open stowage compartment,
because they will endanger the ve hicle occupants in case of sudden
braking.
Caution
•
Before closing the tailgate, ensure th at the stowage compartment tray is
correctly fitted.
•
An overloaded boot could mean that the rear stowage tray is not correctly
seated and it may be bent or damaged.
•
If the boot is overloaded, remove the tray.Note
•
Ensure that, when placing items of clothing on the luggage compartment
cover, rear visibility is not reduced.

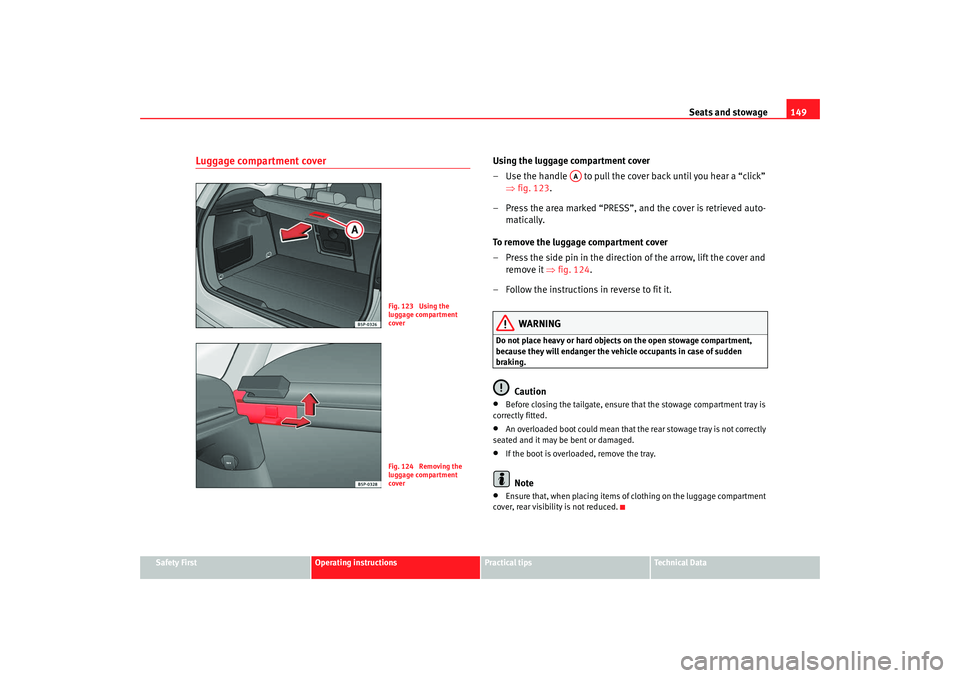

Fig. 123 Using the
luggage compartment
coverFig. 124 Removing the
luggage compartment
cover
AA
AlteaXL_EN.book Seite 149 M ontag, 2. Februar 2009 12:26 12

Seats and stowage
150Partition net*
The partition grille prevents loose objects in the luggage
compartment from being thrown forward into the passenger
compartment (e.g. under sudden braking).
– Pull the net from underneath between the seatback and the
folding tray and fit it to the allotments on the roof, first to the
right then to the left ⇒fig. 125.
– Hook the belts into the front anchor rings to tense the net ⇒fig. 126.Roof carrier*Please observe the following points if you intend to carry loads on the roof:•
For safety reasons, only luggage racks and accessories approved by SEAT
should be used.
•
It is essential that you follow the assembly instructions included with the
bars exactly, being especially careful to position front and rear luggage
compartment cover bars on the special housings on the longitudinal bars.
You must also respect their position acco rding to the direction of travel indi-
cated in the assembly manual. Not following these instructions may lead to
marks on the longitudinal bars.
•
Distribute the load evenly. A maximum load of 40 kg only is permitted for
each roof carrier system support bar, the load must be distributed evenly
along the entire length. However, the maximum load permitted for the entire
roof (including the support system) of 75 kg must not be exceeded nor should
the total weight of the vehicle be exceeded. See the chapter on “Technical
Data”.
•
When transporting heavy or large objects on the roof, any change in the
normal vehicle behaviour due to a change in the centre of gravity or an
increased wind resistance must be taken into account. For this reason, a suit-
able speed and driving style must be used.
•
For those vehicles fitted with a sunroof*, ensure that it does not interfere
with the load on the roof carrier system when opened.
Fig. 125 Separation netFig. 126 Anchor rings for
the separation net
AlteaXL_EN.book Seite 150 M ontag, 2. Februar 2009 12:26 12
