2009 SATURN VUE odometer

Instrument Panel
Instrument Panel OverviewInstrument Panel Overview.....3-4
Hazard Warning Flashers.......3-5
Horn....................................3-5
Tilt Wheel............................3-6
Turn Signal/Multifunction
Lever.................................3-6
Turn and Lane-Change
Signals...............................3-6
Headlamp High/Low-Beam
Changer.............................3-7
Flash-to-Pass........................3-7
Windshield Wipers.................3-7
Rainsense™ II Wipers...........3-8
Windshield Washer................3-8
Rear Window Wiper/Washer. . . .3-9
Cruise Control......................3-9
Exterior Lamps....................3-12
Wiper Activated
Headlamps........................3-12Daytime Running
Lamps (DRL)....................3-13
Automatic Headlamp
System.............................3-13
Fog Lamps.........................3-14
Instrument Panel
Brightness.........................3-14
Dome Lamp........................3-14
Entry Lighting......................3-14
Reading Lamps...................3-15
Electric Power
Management.....................3-15
Battery Run-Down
Protection.........................3-16
Accessory Power Outlet(s). . . .3-16
Climate ControlsClimate Control System........3-17
Automatic Climate
Control System..................3-20
Outlet Adjustment................3-24
Passenger Compartment
Air Filter...........................3-24
Warning Lights, Gages,
and Indicators
Warning Lights, Gages,
and Indicators...................3-26
Instrument Panel Cluster.......3-27
Speedometer and
Odometer.........................3-28
Trip Odometer.....................3-28
Tachometer........................3-28
Safety Belt Reminders..........3-28
Airbag Readiness Light.........3-29
Passenger Airbag
Status Indicator.................3-30
Charging System Light.........3-31
Brake System
Warning Light....................3-31
Antilock Brake System
(ABS) Warning Light...........3-32
Power Steering
Warning Lights..................3-33
Traction Control System
(TCS) Warning Light...........3-33
StabiliTrak
®Indicator Light. . . .3-33
Instrument Panel 3-1
ProCarManuals.com

Speedometer and
Odometer
The speedometer shows the
vehicle’s speed in both miles per
hour (mph) and kilometers per
hour (km/h).
The odometer shows how far
the vehicle has been driven, in
either miles or kilometers.
If the vehicle needs a new odometer
installed, the new one is set to the
mileage total of the old odometer.
If it cannot, it will be set at zero and
a label must be put on the driver’s
door to show the old mileage reading
when the new odometer was
installed. If the mileage is unknown,
the label should then indicate that the
previous mileage is unknown.
Trip Odometer
The trip odometer can record
the number of miles, used in the
United States, or kilometers, used in
Canada, traveled for up to two trips.
Cycle between the odometer and
trip odometers A and B by pressing
the reset button located in the
lower right area of the speedometer.
Press the reset button to tell how
many miles or kilometers have been
recorded on either Trip A or Trip B
since the trip odometer was last
set back to zero.
To reset each trip odometer to zero,
press and hold the reset button.
The reset button resets only the trip
odometer that is being displayed.
Each trip odometer must be reset
individually.
Tachometer
The tachometer displays the
engine speed in revolutions per
minute (rpm).
Safety Belt Reminders
Driver Safety Belt Reminder
Light
When the engine is started,
a chime sounds for several seconds
to remind the driver to fasten their
safety belt, unless it is already
buckled.
The safety belt light comes on
and stays on for several seconds,
then ashes for several more.
This chime and light are repeated
if the driver safety belt remains
unbuckled and the vehicle is
in motion. If the driver safety belt
is already buckled, neither the
chime nor the light comes on.
3-28 Instrument Panel
ProCarManuals.com

DIC Buttons
The buttons are the trip/fuel,
vehicle information, customization,
and set/reset buttons. The button
functions are detailed in the
following pages.
3(Trip/Fuel):Press this
button to display the odometer,
trip odometer, fuel range, average
economy, fuel used, and elapsed
time. Some vehicles also display
instantaneous economy. The
compass and outside temperature
will also be shown in the display.
The temperature will be shown
in °F or °C depending on the units
selected.
T(Vehicle Information):Press
this button to display the oil life,
units, tire pressure readings
for vehicles with the Tire Pressure
Monitor System (TPMS), Remote
Keyless Entry (RKE) transmitter
programming, compass zone
setting, compass recalibration on
vehicles with this feature, coolant
temperature, and battery voltage.
U(Customization):Press this
button to customize the feature
settings on your vehicle. SeeDIC
Vehicle Customization on page 3-57
for more information.
V(Set/Reset):Press this button
to set or reset certain functions
and to turn off or acknowledge
messages on the DIC.
Trip/Fuel Menu Items
3(Trip/Fuel):Press this button
to scroll through the following
menu items:
Odometer
Press the trip/fuel button until
ODOMETER displays. This display
shows the distance the vehicle
has been driven in either miles (mi)
or kilometers (km). Pressing the
trip odometer reset stem will
also display the odometer.
To switch between English and
metric measurements, see “Units”
later in this section.
Instrument Panel 3-43
ProCarManuals.com

Trip Odometer
Press the trip/fuel button until
TRIP A or TRIP B displays.
This display shows the current
distance traveled in either miles (mi)
or kilometers (km) since the last
reset for the trip odometer. Pressing
the trip odometer reset stem will
also display the trip odometer.
Each trip odometer can be reset
to zero separately by pressing
the set/reset button while the trip
odometer is displayed. You can
also reset the trip odometer while
it is displayed by pressing and
holding the trip odometer reset stem.
Fuel Range
Press the trip/fuel button until
FUEL RANGE displays. This
display shows the approximate
number of remaining miles (mi)
or kilometers (km) the vehicle
can be driven without refueling.
The display will show LOW if
the fuel level is low.The fuel range estimate is based
on an average of the vehicle’s fuel
economy over recent driving history
and the amount of fuel remaining
in the fuel tank. This estimate will
change if driving conditions change.
For example, if driving in traffic and
making frequent stops, this display
may read one number, but if the
vehicle is driven on a freeway, the
number may change even though
the same amount of fuel is in the fuel
tank. This is because different driving
conditions produce different fuel
economies. Generally, freeway
driving produces better fuel economy
than city driving. Fuel range cannot
be reset.
If the vehicle is low on fuel, the
FUEL LEVEL LOW message will be
displayed. See “FUEL LEVEL LOW”
underDIC Warnings and Messages
on page 3-49.Average Fuel Economy
Press the trip/fuel button until
AVERAGE FUEL ECONOMY
displays. This display shows
the approximate average miles
per gallon (mpg) or liters per
100 kilometers (L/100 km). This
number is calculated based on the
number of mpg (L/100 km) recorded
since the last time this menu item
was reset. To reset the AVERAGE
FUEL ECONOMY, press and hold
the set/reset button. The display will
show zero.
Fuel Used
Press the trip/fuel button until
FUEL USED displays. This display
shows the number of gallons (gal) or
liters (L) of fuel used since the last
reset of this menu item. To reset
the fuel used information, press
and hold the set/reset button while
FUEL USED is displayed.
3-44 Instrument Panel
ProCarManuals.com

If the DIC display does not show a
heading, for example, N for North,
or the heading does not change after
making turns, there may be a strong
magnetic eld interfering with the
compass. Such interference may
be caused by a magnetic CB or cell
phone antenna mount, a magnetic
emergency light, magnetic note pad
holder, or any other magnetic item.
Turn off the vehicle, move the
magnetic item, then turn on the
vehicle and calibrate the compass.
To calibrate the compass, use the
following procedure:
Compass Calibration Procedure
1. Before calibrating the compass,
make sure the compass is set to
the variance zone in which the
vehicle is located. See “Compass
Variance (Zone) Procedure”
earlier in this section.Do not operate any switches
such as window, sunroof, climate
controls, seats, etc. during the
calibration procedure.
2. Press the vehicle information
button until PRESS
VTO
CALIBRATE COMPASS
displays.
3. Press the set/reset button to start
the compass calibration.
4. The DIC will display
CALIBRATING COMPASS:
TURN IN CIRCLES. Drive the
vehicle in tight circles at less than
5 mph (8 km/h) to complete the
calibration. The DIC will display
COMPASS CALIBRATION
COMPLETE for a few seconds
when the calibration is complete.
The DIC display will then return to
the previous menu.
DIC Warnings and
Messages
Messages are displayed on the DIC
to notify the driver that the status
of the vehicle has changed and that
some action may be needed by
the driver to correct the condition.
Multiple messages may appear
one after another.
Some messages may not require
immediate action, but you can
press any of the DIC buttons,
or the trip odometer reset stem
on the instrument panel cluster to
acknowledge that you received the
messages and to clear them from
the display.
Some messages cannot be cleared
from the DIC display because they
are more urgent. These messages
require action before they can be
cleared. Take any messages that
appear on the display seriously
and remember that clearing the
messages will only make the
messages disappear, not correct
the problem.
Instrument Panel 3-49
ProCarManuals.com

Wheel Replacement
Replace any wheel that is bent,
cracked or badly rusted or corroded.
If wheel nuts keep coming loose, the
wheel, wheel bolts and wheel nuts
should be replaced. If the wheel
leaks air, replace it (except some
aluminum wheels, which can
sometimes be repaired). See your
dealer/retailer if any of these
conditions exist.
Your dealer/retailer will know the
kind of wheel you need.
Each new wheel should have the
same load-carrying capacity,
diameter, width, offset and be
mounted the same way as the one
it replaces.
If you need to replace any of your
wheels, wheel bolts or wheel
nuts, replace them only with new
Saturn original equipment parts.
This way, you will be sure to have
the right wheel, wheel bolts and
wheel nuts for your vehicle.{CAUTION
Using the wrong replacement
wheels, wheel bolts, or wheel
nuts on your vehicle can be
dangerous. It could affect the
braking and handling of your
vehicle, make your tires lose air
and make you lose control. You
could have a collision in which
you or others could be injured.
Always use the correct wheel,
wheel bolts, and wheel nuts for
replacement.
Notice:The wrong wheel can
also cause problems with bearing
life, brake cooling, speedometer
or odometer calibration, headlamp
aim, bumper height, vehicle
ground clearance, and tire or tire
chain clearance to the body and
chassis.
SeeChanging a Flat Tire on
page 5-64for more information.
Used Replacement Wheels
{CAUTION
Putting a used wheel on your
vehicle is dangerous. You cannot
know how it has been used or
how far it has been driven. It
could fail suddenly and cause a
crash. If you have to replace a
wheel, use a new Saturn original
equipment wheel.
Tire Chains
{CAUTION
Do not use tire chains. There is
not enough clearance. Tire chains
used on a vehicle without the
proper amount of clearance can
cause damage to the brakes,
suspension or other vehicle parts.
(Continued)
5-62 Service and Appearance Care
ProCarManuals.com

Maintenance Record
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. SeeMaintenance Requirements on page 6-1. Any additional
information from Owner Checks and Services on page 6-10 can be added on the following record pages. You should
retain all maintenance receipts.
Maintenance Record
Date Odometer
Reading Serviced By Maintenance
Ior
Maintenance II Services Performed
Maintenance Schedule 6-17
ProCarManuals.com

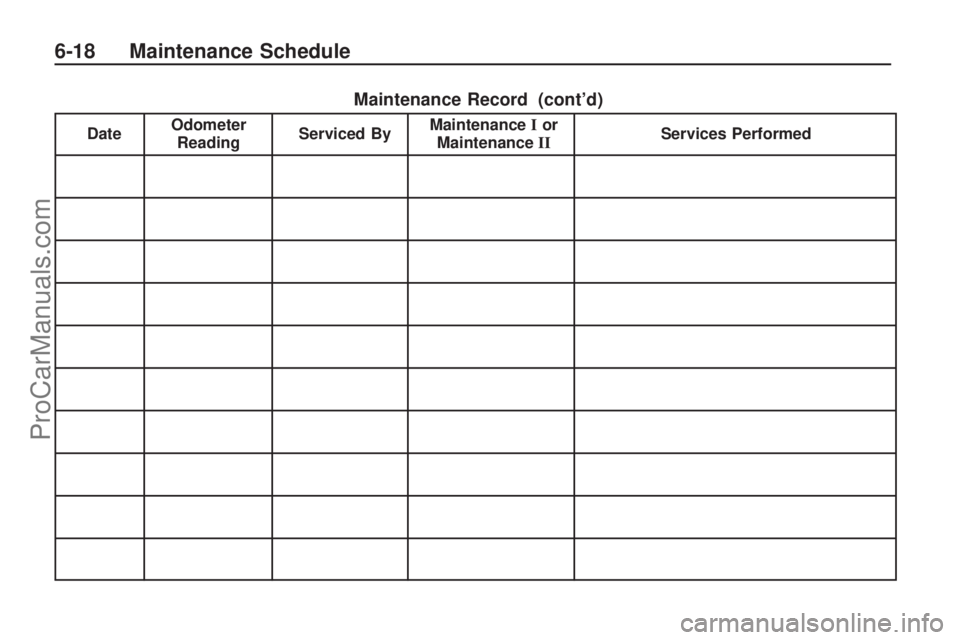

Maintenance Record (cont’d)
DateOdometer
Reading Serviced By Maintenance
Ior
Maintenance II Services Performed
6-18 Maintenance Schedule
ProCarManuals.com
