2009 SATURN OUTLOOK Owners Manual

Maintenance
Schedule
Maintenance ScheduleIntroduction..........................6-1
Maintenance Requirements.....6-1
Your Vehicle and the
Environment........................6-1
Using the Maintenance
Schedule............................6-2
Scheduled Maintenance.........6-3
Additional Required Services. . . .6-6
Maintenance Footnotes..........6-7
Owner Checks and Services. . . .6-9
At Each Fuel Fill...................6-9
At Least Once a Month........6-10
At Least Once a Year..........6-10
Recommended Fluids and
Lubricants.........................6-12
Maintenance
Replacement Parts.............6-14
Engine Drive Belt Routing.....6-15
Maintenance Record............6-16
Maintenance
Schedule
Introduction
Important: Keep engine oil at the
proper level and change as
recommended.
Maintenance
Requirements
Notice:Maintenance intervals,
checks, inspections, replacement
parts, and recommended uids
and lubricants as prescribed in
this manual are necessary to
keep this vehicle in good working
condition. Any damage caused
by failure to follow scheduled
maintenance might not be covered
by the vehicle warranty.
Your Vehicle and the
Environment
Proper vehicle maintenance not only
helps to keep the vehicle in good
working condition, but also helps the
environment. All recommended
maintenance is important. Improper
vehicle maintenance can even affect
the quality of the air we breathe.
Improper uid levels or the wrong tire
ination can increase the level of
emissions from the vehicle. To help
protect the environment, and to keep
the vehicle in good condition, be sure
to maintain the vehicle properly.
Maintenance Schedule 6-1
ProCarManuals.com

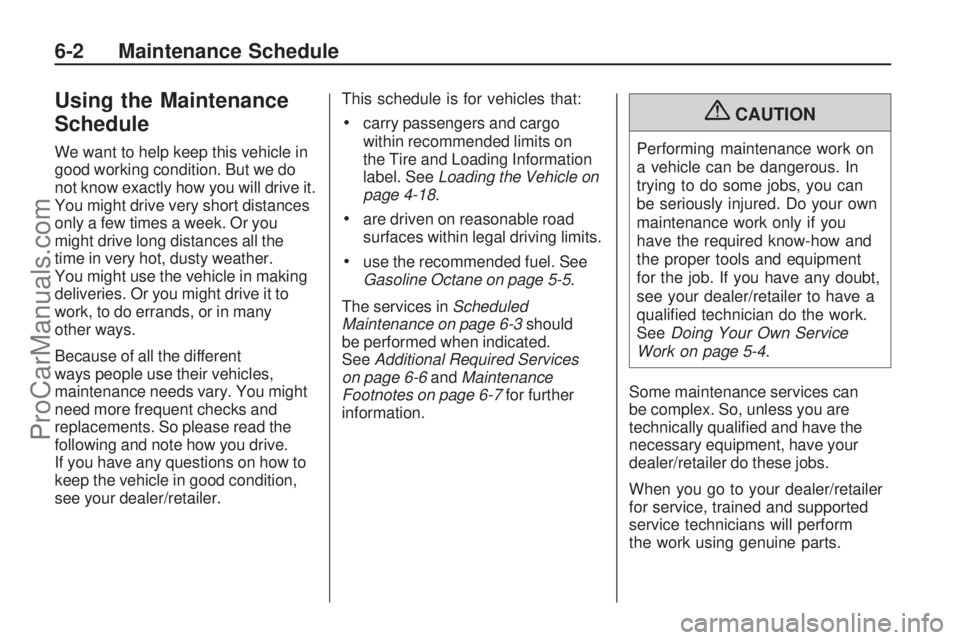

Using the Maintenance
Schedule
We want to help keep this vehicle in
good working condition. But we do
not know exactly how you will drive it.
You might drive very short distances
only a few times a week. Or you
might drive long distances all the
time in very hot, dusty weather.
You might use the vehicle in making
deliveries. Or you might drive it to
work, to do errands, or in many
other ways.
Because of all the different
ways people use their vehicles,
maintenance needs vary. You might
need more frequent checks and
replacements. So please read the
following and note how you drive.
If you have any questions on how to
keep the vehicle in good condition,
see your dealer/retailer.This schedule is for vehicles that:
carry passengers and cargo
within recommended limits on
the Tire and Loading Information
label. SeeLoading the Vehicle on
page 4-18.
are driven on reasonable road
surfaces within legal driving limits.
use the recommended fuel. See
Gasoline Octane on page 5-5.
The services inScheduled
Maintenance on page 6-3should
be performed when indicated.
SeeAdditional Required Services
on page 6-6andMaintenance
Footnotes on page 6-7for further
information.
{CAUTION
Performing maintenance work on
a vehicle can be dangerous. In
trying to do some jobs, you can
be seriously injured. Do your own
maintenance work only if you
have the required know-how and
the proper tools and equipment
for the job. If you have any doubt,
see your dealer/retailer to have a
qualied technician do the work.
SeeDoing Your Own Service
Work on page 5-4.
Some maintenance services can
be complex. So, unless you are
technically qualied and have the
necessary equipment, have your
dealer/retailer do these jobs.
When you go to your dealer/retailer
for service, trained and supported
service technicians will perform
the work using genuine parts.
6-2 Maintenance Schedule
ProCarManuals.com

To purchase service information,
seeService Publications Ordering
Information on page 7-15.
Owner Checks and Services on
page 6-9tells what should be
checked, when to check it, and what
can easily be done to help keep
the vehicle in good condition.
The proper replacement parts,
uids, and lubricants to use
are listed inRecommended Fluids
and Lubricants on page 6-12
andMaintenance Replacement
Parts on page 6-14. When the
vehicle is serviced, make sure these
are used. All parts should be
replaced and all necessary repairs
done before you or anyone else
drives the vehicle. We recommend
the use of genuine parts from
your dealer/retailer.Scheduled Maintenance
When the CHANGE ENGINE
OIL SOON message displays,
service is required for the vehicle.
Have the vehicle serviced as
soon as possible within the next
600 miles (1 000 km). It is possible
that, if driving under the best
conditions, the engine oil life system
might not indicate that vehicle
service is necessary for over a year.
However, the engine oil and lter
must be changed at least once
a year and at this time the system
must be reset. Your dealer/retailer
has trained service technicians
who will perform this work using
genuine parts and reset the system.If the engine oil life system is ever
reset accidentally, service the vehicle
within 3,000 miles (5 000 km) since
the last service. Remember to reset
the oil life system whenever the oil
is changed. SeeEngine Oil Life
System on page 5-15for information
on the Engine Oil Life System and
resetting the system.
When the CHANGE ENGINE OIL
SOON message appears, certain
services, checks, and inspections
are required. Required services
are described in the following
for “MaintenanceI” and
“MaintenanceII.” Generally, it is
recommended that the rst service
be MaintenanceI, the second
service be MaintenanceII, and then
alternate MaintenanceIand
MaintenanceIIthereafter. However,
in some cases, MaintenanceIImay
be required more often.
Maintenance Schedule 6-3
ProCarManuals.com

MaintenanceI—Use
Maintenance Iif the CHANGE
ENGINE OIL SOON message
displays within 10 months since the
vehicle was purchased or
Maintenance IIwas performed. Maintenance
II—Use
Maintenance IIif the previous
service performed was
Maintenance I. Always use
Maintenance IIwhenever the message displays 10 months or
more since the last service or if the
message has not come on at all for
one year.
Scheduled Maintenance
Service
MaintenanceIMaintenance II
Change engine oil and lter. See Engine Oil on page 5-13. Reset oil life
system. See Engine Oil Life System on page 5-15 .An Emission Control
Service. ••
Visually check for any leaks or damage. See footnote (g). ••
Inspect engine air cleaner lter. If necessary, replace lter. See Engine Air
Cleaner/Filter on page 5-17 .See footnote (l). •
Rotate tires and check ination pressures and wear. See Tire Inspection and
Rotation on page 5-52 and “Tire Wear Inspection” in At Least Once a Month
on page 6-10. ••
6-4 Maintenance Schedule
ProCarManuals.com

Scheduled Maintenance (cont’d)
ServiceMaintenanceIMaintenance II
Inspect brake system. See footnote (a). ••
Check engine coolant and windshield washer uid levels and add uid as
needed. ••
Perform any needed additional services. See “Additional Required Services” in
this section. ••
Inspect suspension and steering components. See footnote (b). •
Inspect engine cooling system. See footnote (c). •
Inspect wiper blades. See footnote (d). •
Inspect restraint system components. See footnote (e). •
Lubricate body components. See footnote (f). •
Inspect throttle system. See footnote (j). •
Maintenance Schedule 6-5
ProCarManuals.com

Additional Required Services
The following services should be performed at the rst maintenance service (Ior II) after the indicated miles
(kilometers) shown for each item.
Additional Required Services
Service and Miles (Kilometers) 25,000
(40 000) 50,000
(80 000) 75,000
(120 000) 100,000
(160 000) 125,000
(200 000) 150,000
(240 000)
Inspect fuel system for damage or
leaks. • •••••
Inspect exhaust system for loose or
damaged components. • •••••
Replace engine air cleaner lter. See
Engine Air Cleaner/Filter on page 5-17 .•••
Change automatic transmission uid
(severe service). See footnote (h). •••
Change automatic transmission uid
(normal service). •
All-wheel-drive vehicles: Change
transfer case uid (severe service).
See footnote (m). •••
All-wheel-drive vehicles: Change
transfer case uid (normal service). •
6-6 Maintenance Schedule
ProCarManuals.com

Additional Required Services (cont’d)
Service and Miles (Kilometers)25,000
(40 000) 50,000
(80 000) 75,000
(120 000) 100,000
(160 000) 125,000
(200 000) 150,000
(240 000)
Replace spark plugs and inspect spark
plug wires. An Emission Control
Service. •
Engine cooling system service
(or every ve years, whichever occurs
rst). An Emission Control Service.
See footnote (i). •
Inspect engine accessory drive belt.
An Emission Control Service.
See footnote (k). •
Maintenance Footnotes
(a)
Visually inspect brake lines and
hoses for proper hook-up, binding,
leaks, cracks, chafing, etc. Inspect
disc brake pads for wear and rotors
for surface condition. Inspect other
brake parts, including calipers,
parking brake, etc. Check parking
brake adjustment. (b)
Visually inspect front and rear
suspension and steering system for
damaged, loose, or missing parts
or signs of wear. Inspect power
steering lines and hoses for proper
hook-up, binding, leaks, cracks,
chafing, etc. (c)
Visually inspect hoses and have
them replaced if they are cracked,
swollen, or deteriorated. Inspect all
pipes, fittings and clamps; replace
with genuine parts as needed.
To help ensure proper operation, a
pressure test of the cooling system
and pressure cap and cleaning
the outside of the radiator and
air conditioning condenser is
recommended at least once a year.
Maintenance Schedule 6-7
ProCarManuals.com

(d)Inspect wiper blades for wear,
cracking, or contamination. Clean
the windshield and wiper blades,
if contaminated. Replace wiper
blades that are worn or damaged.
See Windshield Wiper Blade
Replacement on page 5-38 and
Windshield, Backglass, and Wiper
Blades on page 5-88 for more
information.
(e)Make sure the safety belt
reminder light and safety belt
assemblies are working properly.
Look for any other loose or damaged
safety belt system parts. If you see
anything that might keep a safety belt
system from doing its job, have it
repaired. Have any torn or frayed
safety belts replaced. Also see
Checking the Restraint Systems
on page 1-61.(f)Lubricate all key lock cylinders,
hood latch assemblies, secondary
latches, pivots, spring anchor
and release pawl, hood and door
hinges, rear folding seats, and
liftgate hinges. More frequent
lubrication may be required when
exposed to a corrosive environment.
Applying silicone grease on
weatherstrips with a clean cloth will
make them last longer, seal
better, and not stick or squeak.
(g)A fluid loss in any vehicle
system could indicate a problem.
Have the system inspected
and repaired and the fluid level
checked. Add fluid if needed.(h)Change automatic transmission
fluid if the vehicle is mainly driven
under one or more of these
conditions:
In heavy city traffic where the
outside temperature regularly
reaches 90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer
towing.
Uses such as found in taxi, police,
or delivery service.
(i)Drain, flush, and refill cooling
system. This service can be
complex; you should have your
dealer/retailer perform this service.
See Engine Coolant on page 5-19 for
what to use. Inspect hoses. Clean
radiator, condenser, pressure cap,
and filler neck. Pressure test the
cooling system and pressure cap.
6-8 Maintenance Schedule
ProCarManuals.com
