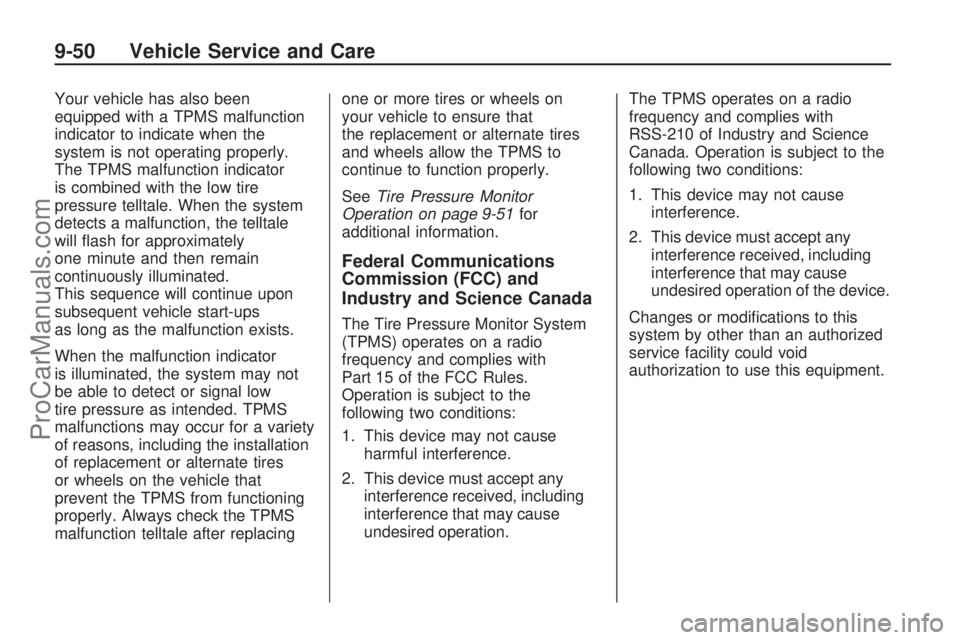

2009 SATURN ASTRA service indicator

Your vehicle has also been
equipped with a TPMS malfunction
indicator to indicate when the
system is not operating properly.
The TPMS malfunction indicator
is combined with the low tire
pressure telltale. When the system
detects a malfunction, the telltale
will ash for approximately
one minute and then remain
continuously illuminated.
This sequence will continue upon
subsequent vehicle start-ups
as long as the malfunction exists.
When the malfunction indicator
is illuminated, the system may not
be able to detect or signal low
tire pressure as intended. TPMS
malfunctions may occur for a variety
of reasons, including the installation
of replacement or alternate tires
or wheels on the vehicle that
prevent the TPMS from functioning
properly. Always check the TPMS
malfunction telltale after replacingone or more tires or wheels on
your vehicle to ensure that
the replacement or alternate tires
and wheels allow the TPMS to
continue to function properly.
SeeTire Pressure Monitor
Operation on page 9-51for
additional information.
Federal Communications
Commission (FCC) and
Industry and Science Canada
The Tire Pressure Monitor System
(TPMS) operates on a radio
frequency and complies with
Part 15 of the FCC Rules.
Operation is subject to the
following two conditions:
1. This device may not cause
harmful interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation.The TPMS operates on a radio
frequency and complies with
RSS-210 of Industry and Science
Canada. Operation is subject to the
following two conditions:
1. This device may not cause
interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation of the device.
Changes or modications to this
system by other than an authorized
service facility could void
authorization to use this equipment.
9-50 Vehicle Service and Care
ProCarManuals.com

Tire Pressure Monitor
Operation
This vehicle may have a Tire
Pressure Monitor System (TPMS).
The TPMS is designed to warn
the driver when a low tire pressure
condition exists. TPMS sensors
are mounted onto each tire and
wheel assembly, excluding the
spare tire. The TPMS sensors
monitor the air pressure in the
vehicle’s tires and transmit tire
pressure readings to a receiver
located in the vehicle.
When a low tire pressure condition
is detected, the TPMS illuminates
the low tire pressure warning
light located in the instrument
panel cluster.The low tire pressure warning light
comes on at each ignition cycle
until the tires are inated to
the correct ination pressure.
The low tire pressure warning light
may come on in cool weather
when the vehicle is rst started, and
then turn off as you start to drive.
This could be an early indicator that
the air pressure in the tire(s) are
getting low and need to be inated
to the proper pressure.
You must begin driving before the
TPMS system is operational.
TPMS sensors need to be installed
onto the full-size tire and wheel
assemblies, and the tires adjusted
to the manufacturers’ recommended
tire pressure amount.
A Tire and Load Information label is
attached to the vehicle, and
shows the size of the vehicle’s
original equipment tires and
the correct ination pressure for the
tires when they are cold. See
Loading the Vehicle on page 8-30,
for an example of the Tire andLoad Information label and its
location on the vehicle. Also see
Inflation - Tire Pressure on
page 9-47.
The vehicle’s TPMS can warn you
about a low tire pressure condition
but it does not replace normal
tire maintenance. SeeTire
Inspection and Rotation on
page 9-52andTires on page 9-40.
Notice:Liquid tire sealants
could damage the Tire Pressure
Monitor System (TPMS) sensors.
Sensor damage caused by
using a tire sealant is not covered
by your warranty. Do not use
liquid tire sealants.
Each TPMS sensor has a unique
identication code. Any time
you replace one or more of the
TPMS sensors or rotate the
vehicle’s tires, the identication
codes are automatically learned by
the TPMS. This occurs within a
few moments of driving the vehicle
over 19 mph (31 km/h).
Vehicle Service and Care 9-51
ProCarManuals.com

When It Is Time for
New Tires
Various factors, such as
maintenance, temperatures, driving
speeds, vehicle loading, and
road conditions inuence when you
need new tires.
One way to tell when it is time for
new tires is to check the treadwear
indicators, which will appear
when the tires have only 1/16 inch
(1.6 mm) or less of tread remaining.You need new tires if any of the
following statements are true:You can see the indicators at
three or more places around
the tire.
You can see cord or fabric
showing through the tire’s rubber.
The tread or sidewall is cracked,
cut, or snagged deep enough to
show cord or fabric.
The tire has a bump, bulge,
or split.
The tire has a puncture, cut, or
other damage that cannot be
repaired well because of the size
or location of the damage.
The rubber in tires degrades over
time, even if they are not being
used. This is also true for the spare
tire, if the vehicle has one. Multiple
conditions affect how fast this
aging takes place, including
temperatures, loading conditions,
and ination pressure maintenance.With proper care and maintenance
tires typically wear out before
they degrade due to age. If you are
unsure about the need to replace
the tires as they get older, consult
the tire manufacturer for more
information.
Buying New Tires
GM has developed and matched
specic tires for your vehicle.
The original equipment tires installed
on your vehicle, when it was new,
were designed to meet General
Motors Tire Performance Criteria
Specication (TPC Spec) system
rating. If you need replacement tires,
GM strongly recommends that
you get tires with the same TPC
Spec rating. This way, your vehicle
will continue to have tires that
are designed to give the same
performance and vehicle safety,
during normal use, as the
original tires.
9-54 Vehicle Service and Care
ProCarManuals.com

A
Accessories and
Modications...................... 9-3
Accessory Power Outlets......4-10
Adding Equipment to Your
Airbag-Equipped Vehicle....1-36
Additives, Fuel.....................8-34
Add-On Electrical
Equipment.......................9-34
Air Cleaner/Filter, Engine.......9-11
Air Conditioning..................... 7-1
Airbag
Passenger Status
Indicator.......................4-15
Readiness Light................4-14
System, Replacing Parts
After a Crash................1-37
Airbag System.....................1-24
Adding Equipment to Your
Airbag-Equipped
Vehicle........................1-36
Check.............................1-37
How Does an Airbag
Restrain?.....................1-28
Passenger Sensing
System........................1-30Airbag System (cont.)
Servicing Your
Airbag-Equipped
Vehicle........................1-35
What Makes an Airbag
Inate?........................1-28
What Will You See After
an Airbag Inates?........1-29
When Should an Airbag
Inate?........................1-27
Where Are the Airbags?.....1-26
Antenna, Fixed Mast............6-24
Antilock Brake
System (ABS)..................8-18
Antilock Brake, System
Warning Light...................4-17
Appearance Care
Chemical Paint Spotting.....9-80
Exterior Cleaning..............9-76
Finish Damage.................9-79
Interior Cleaning...............9-73
Sheet Metal Damage........9-79
Underbody Maintenance....
9-80
Appointments, Scheduling
Service...........................12-8Audio System........................ 6-1
Audio Steering Wheel
Controls.......................6-23
Fixed Mast Antenna..........6-24
Radio Reception...............6-24
Theft-Deterrent Feature......6-23
Audio System(s).................... 6-2
Automatic Transmission
Fluid...............................9-12
Operation.......................... 8-6
B
Battery...............................9-25
Run-Down Protection.......... 5-4
Brake Fluid.........................9-22
Brakes...............................9-22
System Warning Light.......4-16
Braking...............................8-17
Break-In, New Vehicle............ 8-2
Bulb Replacement
Daytime Running Lamp....... 5-2
Bulb Replacement
Center High-Mounted
Stoplamp (CHMSL)........9-29
Fog Lamp ......................... 5-2
Front Turn Signal Lamps . . . 9-28
INDEX i-1
ProCarManuals.com

Horn .................................... 4-4
How to Wear Safety Belts
Properly..........................1-12
Hydraulic Clutch...................9-12
I
Ignition Positions................... 8-2
Immobilizer........................... 2-8
Immobilizer Operation............. 2-8
Infants and Young Children,
Restraints........................1-40
Ination - Tire Pressure.........9-47
Instrument Panel
Brightness......................... 5-3
Cluster............................4-12
Overview........................... 4-2
J
Jump Starting......................9-69
K
Keyless Entry System............ 2-3
Keys.................................... 2-2
L
Labeling, Tire Sidewall..........9-42
Lamp
Malfunction Indicator.........4-18
Lamps
Dome ............................... 5-3
Exterior, Off Reminder.......4-23
Reading............................ 5-3
Lap-Shoulder Belt................1-18
LATCH System
Replacing Parts After a
Crash..........................1-50
LATCH System for Child
Restraints........................1-46
License Plate Lamps............9-33
Liftgate
Carbon Monoxide............... 2-6
Light
Airbag Readiness.............4-14
Antilock Brake System
(ABS) Warning..............4-17
Brake System Warning......4-16
Charging System..............4-16
Cruise Control..................4-23Light (cont.)
Door Ajar.........................4-23
Engine Coolant
Temperature Warning.....4-18
Fog Lamp ........................4-22
Highbeam On...................4-23
Low Fuel Warning.............4-24
Low Oil Level...................4-22
Oil Pressure.....................4-21
Passenger Airbag Status
Indicator.......................4-15
Safety Belt Reminders.......4-13
Service Vehicle Soon........4-23
StabiliTrak
®Indicator.........4-17
Tire Pressure...................4-18
Winter Driving Mode..........4-22
Lighting
Entry................................ 5-3
Lights
Exterior Lamps................... 5-1
Flash-to-Pass..................... 4-8
High/Low Beam Changer..... 4-8
Loading Your Vehicle............8-30
INDEX i-5
ProCarManuals.com

Locks
Door ................................. 2-5
Power Door ....................... 2-6
Rear Door Security Locks.... 2-6
Loss of Control....................8-22
Low Fuel Warning Light........4-24
Lower Anchors and Tethers
for Children......................1-46
Lumbar Seat Adjustment......... 1-3
M
Maintenance Replacement
Parts.............................11-14
Maintenance Schedule
Additional Required
Services.......................11-6
At Each Fuel Fill..............11-9
At Least Once a
Month........................11-10
At Least Once a Year......11-10
Introduction......................11-1
Maintenance Footnotes......11-8
Maintenance Record........11-16
Maintenance Replacement
Parts.........................11-14Maintenance Schedule (cont.)
Maintenance
Requirements...............11-1
Owner Checks and
Services.......................11-9
Recommended Fluids
and Lubricants............11-12
Scheduled Maintenance.....11-3
Using..............................11-2
Your Vehicle and the
Environment.................11-2
Malfunction Indicator Lamp....4-18
Manual Seats........................ 1-2
Manual Transmission
Fluid...............................9-12
Operation.......................... 8-9
Message
DIC Warnings and
Messages....................4-36
Mirrors
Manual Rearview Mirror.....2-11
Outside...........................2-11
Outside Power Mirrors.......2-12
MyGMLink.com....................12-4
N
Navigation System,
Privacy..........................12-17
New Vehicle Break-In............. 8-2
Notices and Cautions............... iii
O
Odometer...........................4-13
Odometers, Trip...................4-13
Off-Road Recovery...............8-21
Oil
Engine.............................. 9-7
Low Oil Level Light...........4-22
Pressure Light..................4-21
Oil, Engine Oil Life System..... 9-9
Older Children, Restraints......1-38
OnStar, Privacy..................12-17
OnStar
®System, see
OnStar®Manual...............4-38
Outlet Adjustment.................. 7-4
Outlets
Accessory Power..............4-10
Outside
Mirrors............................2-11
Power Mirrors..................2-12
i-6 INDEX
ProCarManuals.com

Owner Checks and
Services..........................11-9
Owner Checks, Service.......... 9-4
Owners, Canadian.................... ii
P
Paint, Damage.....................9-79
Park
Shifting Into.....................8-11
Shifting Out of..................8-12
Park Brake..........................8-10
Parking
Over Things That Burn......8-13
Parking Your Vehicle............8-13
Passenger Airbag Status
Indicator..........................4-15
Passenger Sensing System . . . 1-30
Passing..............................8-22
Perchlorate Materials
Requirements, California...... 9-3
Power
Door Locks........................ 2-6
Retained Accessory............ 8-3
Steering Fluid...................9-20
Windows.........................2-10
Pressure Cap......................9-18Privacy.............................12-16
Event Data Recorders.....12-16
Navigation System..........12-17
OnStar..........................12-17
Radio Frequency
Identication................12-17
R
Radio Frequency Identication
(RFID), Privacy...............12-17
Radio(s)............................... 6-2
Radios
Reception........................6-24
Theft-Deterrent.................6-23
Reading Lamps..................... 5-3
Rear Door Security Locks....... 2-6
Rear Heated Seats................ 1-6
Rear Seat Operation.............. 1-7
Rear Windshield Washer/
Wiper............................... 4-9
Rearview Mirrors..................2-11
Reclining Seatbacks............... 1-3
Recommended Fluids and
Lubricants......................11-12
Recreational Vehicle Towing . . . 9-73
Remote Keyless Entry (RKE)
System............................. 2-3Remote Keyless Entry (RKE)
System, Operation.............. 2-4
Removing the Flat Tire and
Installing the Spare Tire.....9-63
Removing the Spare Tire
and Tools........................9-62
Replacement Bulbs..............9-34
Replacing LATCH System
Parts After a Crash...........1-50
Reporting Safety Defects
Canadian Government.....12-14
Saturn...........................12-14
United States
Government................12-14
Restraint System Check
Replacing Airbag System
Parts After a Crash........1-37
Replacing Safety Belt
System Parts After a
Crash..........................1-23
Retained Accessory Power...... 8-3
Roadside
Assistance Program..........12-6
Rocking Your Vehicle to
Get it Out ........................8-29
Routing, Engine Drive Belt....11-15
Running the Vehicle While
Parked............................8-14
INDEX i-7
ProCarManuals.com

S
Safety Belt Reminders..........4-13
Safety Belts.......................... 1-8
Care of ...........................1-23
Check.............................1-22
How to Wear Safety
Belts Properly...............1-12
Lap-Shoulder Belt.............1-18
Replacing Parts After a
Crash..........................1-23
Safety Belt Extender.........1-22
Safety Belt Use During
Pregnancy....................1-22
Scheduled Maintenance........11-3
Seats
Head Restraints................. 1-5
Heated Seats - Rear........... 1-6
Height Adjuster.................. 1-2
Lumbar Adjustment............. 1-3
Rear Seat Operation........... 1-7
Reclining Seatbacks............ 1-3
Securing Child
Restraints................1-51, 1-53Service................................ 9-2
Accessories and
Modications.................. 9-3
Adding Equipment to the
Outside of the Vehicle..... 9-4
California Perchlorate
Materials Requirements.... 9-3
California Proposition 65
Warning......................... 9-3
Doing Your Own Work........ 9-4
Engine Soon Lamp...........4-18
Owner Checks................... 9-4
Publications Ordering
Information.................12-15
Vehicle Soon Light............4-23
Service, Scheduling
Appointments...................12-8
Servicing Your
Airbag-Equipped Vehicle....1-35
Sheet Metal Damage............9-79
Shifting Into Park.................8-11
Shifting Out of Park..............8-12
Signals, Turn and
Lane-Change..................... 4-8Spare Tire
Compact.........................9-68
Installing..........................9-63
Removing........................9-62
Storing............................9-66
Specications, Capacities......10-2
Speedometer.......................4-13
StabiliTrak
®Indicator Light.....4-17
StabiliTrak®System..............8-19
Starting the Engine................ 8-3
Steering..............................8-20
Steering Wheel Controls,
Audio..............................6-23
Steering Wheel, Tilt Wheel...... 4-4
Storage Areas
Cupholders........................ 3-1
Glove Box......................... 3-1
Sunglasses Storage
Compartment.................. 3-1
Stuck in Sand, Mud, Ice, or
Snow..............................8-29
Sun Visors..........................2-11
Sunroof..............................2-12
i-8 INDEX
ProCarManuals.com
