MULTIMEDIA CONNECTION UNIT
Fault finding – Introduction86D
BIC
Vdiag No.: 14
Faults
Faults are declared as either present or stored (depending on whether they appeared in a certain context and have
disappeared since, or whether they remain present but have not been diagnosed within the current context).
The present or stored status of faults should be taken into consideration when the diagnostic tool is used after the
+ after ignition feed has been switched on (without any of the system components being activated).
For a present fault, apply the procedure described in the Interpretation of faults section.
For a stored fault, note the faults displayed and apply the Notes section.
If the fault is confirmed when the instructions are applied, the fault is present. Deal with the fault.
If the fault is not confirmed, check:
–the electrical lines which correspond to the fault,
–the connectors on these lines (corrosion, bent pins, etc.),
–the resistance of the component detected as faulty,
–the condition of the wires (melted or split insulation, wear).
Conformity check
The aim of the conformity check is to check the data that does not display a fault on the diagnostic tool when the
data is inconsistent. Therefore, this stage is used to:
–carry out fault finding on faults that do not have a fault display, and which may correspond to a customer
complaint.
–check that the system is operating correctly and that there is no risk of a fault recurring after repairs.
This section gives the fault finding procedures for statuses and parameters and the conditions for checking them.
If a status is not behaving normally or a parameter is outside the permitted tolerance values, consult the
corresponding fault finding page.
Customer complaints - Fault finding chart
If the test with the diagnostic tool is OK but the customer complaint is still present, the fault should be processed by
Customer Complaints.
A synopsis of the general procedure to follow is provided on the following page in the form of a flow chart.

86D -4V1 MR-413-X44-86D000$010.mif
MULTIMEDIA CONNECTION UNIT
Fault finding – Introduction86D
BIC
Vdiag No.: 14
4. FAULT FINDING PROCEDURE
Check the battery charge and
condition of the fuses
Print the system fault finding log
(available on CLIP and in the Repair
Manual or Technical Note)
Connect CLIP
See ALP no. 1
Read the faults
Deal with present faults
Dealing with
stored faults
Conformity check
Use fault finding charts (ALPs)
Dialogue with
computer?
Faults
present
The cause is
still present
The cause is
still presentThe cause is
still present
Contact the Techline with the
completed fault finding log
no
nono
no no
yes
yes
yes
Fault
solvedFault
solved Fault
solved

86D -6V1 MR-413-X44-86D000$010.mif
MULTIMEDIA CONNECTION UNIT
Fault finding – Introduction86D
BIC
Vdiag No.: 14
1. Visual inspection of the connection:
–Check that the connector is connected correctly and that the male and female parts of the connection are
correctly coupled.
2. Visual inspection of the area around the connection:
–Check the condition of the mounting (pin, strap, adhesive tape, etc.) if the connectors are attached to the
vehicle.
–Check that there is no damage to the wiring trim (sheath, foam, adhesive tape, etc.) near the wiring.
–Check that there is no damage to the electrical wires at the connector outputs, in particular on the insulating
material (wear, cuts, burns, etc.).
Disconnect the connector to continue the checks.
3. Visual inspection of the plastic casing:
–Check that there is no mechanical damage (casing crushed, split, broken, etc.), in particular to the fragile
components (lever, lock, sockets, etc.).
–Check that there is no heat damage (casing melted, darker, deformed, etc.).
–Check that there are no stains (grease, mud, liquid, etc.).
4. Visual inspection of the metal contacts:
(The female contact is called CLIP. The male contact is called TAB).
–Check that there are no bent contacts (the contact is not inserted correctly and can come out of the back of
the connector). The contact comes out of the connector when the wire is gently pulled.
–Check that there is no damage (folded tabs, clips open too wide, blackened or melted contact, etc.).
–Check that there is no oxidation on the metal contacts.
Visual inspection of the sealing:
(Only for watertight connectors)
–Check for the seal on the connection (between the 2 parts of the connection).
–Check the seal at the back of the connectors:
–For unit seals (1 for each wire), check that the unit seals are present on each electrical wire and that they
are correctly positioned in the opening (level with the housing). Check that plugs are present on openings
which are not used.
–For a grommet seal (one seal which covers the entire internal surface of the connector), check that the seal
is present.
–For gel seals, check for gel in all of the sockets without removing the excess or any protruding sections (it
does not matter if there is gel on the contacts).
–For hotmelt sealing (heat-shrink sheath with glue), check that the sheath has contracted correctly on the rear
of the connectors and the electrical wires, and that the hardened glue comes out of the side of the wire.
–Check that there is no damage to any of the seals (cuts, burns, significant deformation, etc.).
If a fault is detected, consult Technical Note 6015A, Repairing electrical wiring.

86D-18
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults using command RZ001 Fault memory.
Deal with any other faults.
V1 MR-413-X44-86D000$090.mif
86D
BIC
Vdiag No.: 14

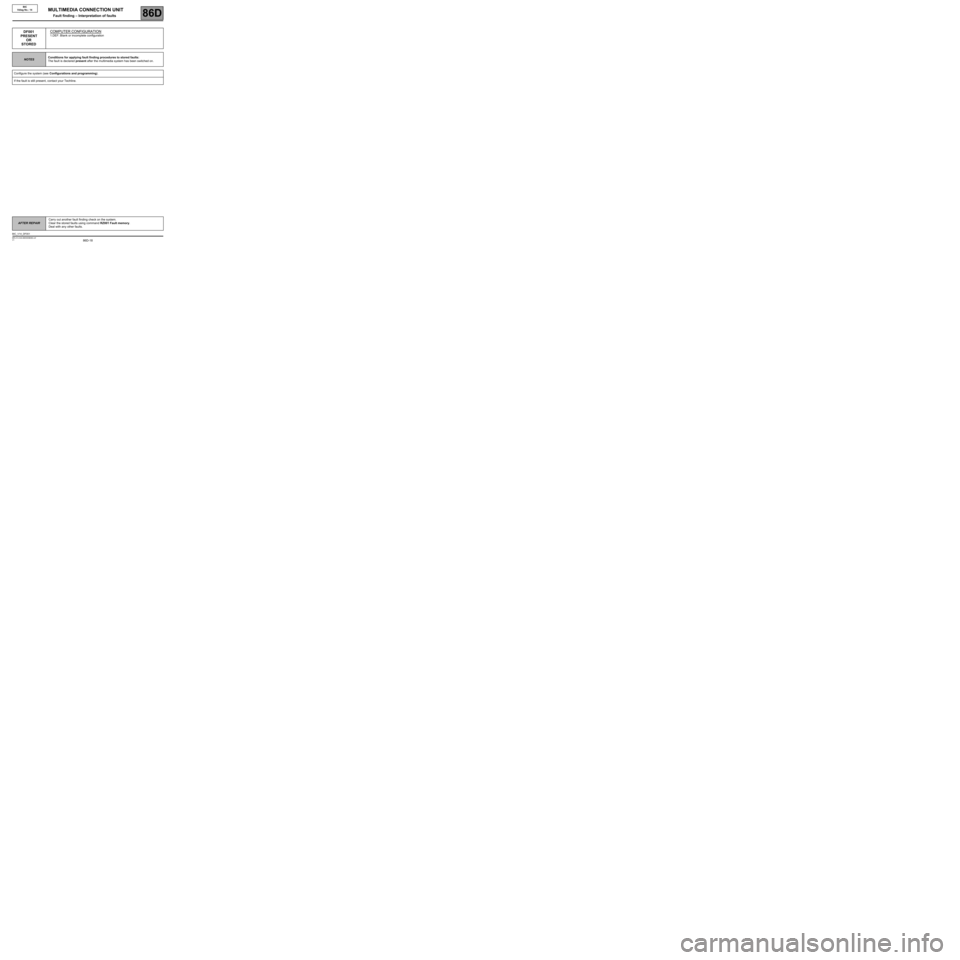

DF001
PRESENT
OR
STOREDCOMPUTER CONFIGURATION
1.DEF: Blank or incomplete configuration
NOTESConditions for applying fault finding procedures to stored faults:
The fault is declared present after the multimedia system has been switched on.
Configure the system (see Configurations and programming).
If the fault is still present, contact your Techline.
BIC_V14_DF001
MULTIMEDIA CONNECTION UNIT
Fault finding – Interpretation of faults

86D-19
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults using command RZ001 Fault memory.
Deal with any other faults.
V1 MR-413-X44-86D000$090.mif
MULTIMEDIA CONNECTION UNIT
Fault finding – Interpretation of faults86D
BIC
Vdiag No.: 14
DF002
PRESENT
OR
STOREDCOMPUTER
1.DEF: Internal electronic fault
NOTESConditions for applying fault finding procedures to stored faults:
The fault is declared present after the multimedia system has been switched on.
If the vehicle is equipped with a Navigation computer (only on Clio III), replace the multimedia connection unit (see
MR 392, Mechanical, 83C, On-board telematics system, Multimedia network interface unit: Removal -
Refitting).
If the vehicle is not equipped with a Navigation computer, replace the display (see MR 392 (Clio III) or MR 411
(New Twingo), Mechanical, 86A, Radio, Display: Removal - Refitting).
If the fault is still present, contact your Techline.
BIC_V14_DF002

86D-20
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults using command RZ001 Fault memory.
Deal with any other faults.
V1 MR-413-X44-86D000$090.mif
MULTIMEDIA CONNECTION UNIT
Fault finding – Interpretation of faults86D
BIC
Vdiag No.: 14
DF003
PRESENT
OR
STOREDSCREEN
DEF: No communication with display
NOTESConditions for applying fault finding procedures to stored faults:
The fault is declared present after the multimedia system has been switched on.
If the fault is present, the display does not operate.
If the vehicle is equipped with a Navigation computer (only on Clio III), replace the multimedia connection unit (see
MR 392, Mechanical, 83C, On-board telematics system, Multimedia network interface unit: Removal -
Refitting).
If the vehicle is not equipped with a Navigation computer, replace the display (see MR 392 (Clio III) or MR 411
(New Twingo), Mechanical, 86A, Radio, Display: Removal - Refitting).
If the fault persists, contact your Techline.
BIC_V14_DF003

86D-21
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults using command RZ001 Fault memory.
Deal with any other faults.
V1 MR-413-X44-86D000$090.mif
MULTIMEDIA CONNECTION UNIT
Fault finding – Interpretation of faults86D
BIC
Vdiag No.: 14
DF005
PRESENT
OR
STOREDSUPPLY
1.DEF: Excess voltage
2.DEF: Undervoltage
NOTESConditions for applying fault finding procedures to stored faults:
The fault is declared present after the multimedia system has been switched on.
Special notes:
The undervoltage fault appears if the computer feed voltage is less than or equal to
7.5 V for at least 1 second.
The overvoltage fault appears if the computer feed voltage is greater than or equal to
18.5 V for at least 1 second.
Use the Wiring Diagrams Technical Note for Clio III or New Twingo.
For a vehicle equipped with a Navigation computer, use component 1714, Multimedia
connection unit, for fault finding on the Multimedia interface unit.
Otherwise use component 653, display computer.
1.DEF
NOTESNone.
Check the battery and perform an alternator supply test (see 16A, Starting, Charging).
BIC_V14_DF005

86D-22
AFTER REPAIRCarry out another fault finding check on the system.
Clear the stored faults using command RZ001 Fault memory.
Deal with any other faults.
V1 MR-413-X44-86D000$090.mif
MULTIMEDIA CONNECTION UNIT
Fault finding – Interpretation of faults86D
BIC
Vdiag No.: 14
DF005
CONTINUED
2.DEFNOTESNone.
Remove the card from the reader or the key from the ignition, then check the condition of the battery.
Check the battery: leaks, incorrectly fitted, loosened battery terminal, and corrosion.
Check the earth connections of the vehicle: battery/chassis, engine/chassis, starter/engine, alternator/engine,
gearbox/chassis.
If the fault is detected, resolve the abnormal contact fault.
Check the battery and perform an alternator supply test (see 16A, Starting, Charging).
Check the condition of fuse F48 (15 A) for New Twingo or fuses F14 (5 A), F2 (20 A), and unit fuse 710 (15 A) for
Clio III.
Check the connection and condition of the connectors of the display computer, component code 653 or of the
multimedia connection unit computer, component code 1714, depending on the vehicle equipment.
If the connectors are faulty and if there is a repair procedure (see Technical Note 6015A, Repairing electrical
wiring, Wiring: Precautions for repair), repair the connector, otherwise replace the wiring.
Disconnect the computer connector and check the conformity of the following connections:
–BCP4 between components 260 and 653 or 1714,
–BPT between components 645 and 653 or 1714,
–BPT3 between components 260 and 653 or 1714,
–NAM between component 653 or 1714 and earth.
If the connection or connections are faulty and there is a repair procedure (see Technical Note 6015A, Electrical
wiring repair, Wiring: Precautions for repair), repair the wiring, otherwise replace it.
