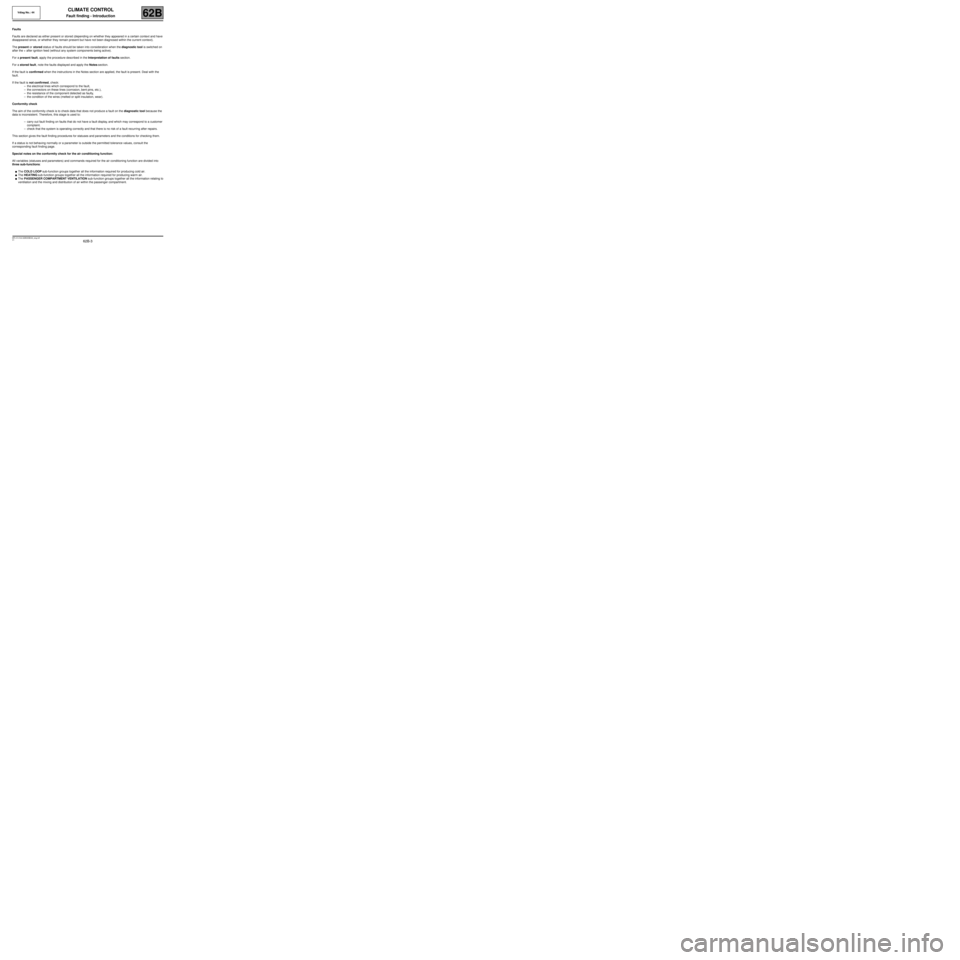

2009 RENAULT TWINGO display

62B-3
MR-413-X44-62B000$046_eng.mif
V1
CLIMATE CONTROL
Fault finding - Introduction

Vdiag No.: 44
62B
Faults
Faults are declared as either present or stored (depending on whether they appeared in a certain context and have
disappeared since, or whether they remain present but have not been diagnosed within the current context).
The present or stored status of faults should be taken into consideration when the diagnostic tool is switched on
after the + after ignition feed (without any system components being active).
For a present fault, apply the procedure described in the Interpretation of faults section.
For a stored fault, note the faults displayed and apply the Notes section.
If the fault is confirmed when the instructions in the Notes section are applied, the fault is present. Deal with the
fault.
If the fault is not confirmed, check:
–the electrical lines which correspond to the fault,
–the connectors on these lines (corrosion, bent pins, etc.),
–the resistance of the component detected as faulty,
–the condition of the wires (melted or split insulation, wear).
Conformity check
The aim of the conformity check is to check data that does not produce a fault on the diagnostic tool because the
data is inconsistent. Therefore, this stage is used to:
–carry out fault finding on faults that do not have a fault display, and which may correspond to a customer
complaint.
–check that the system is operating correctly and that there is no risk of a fault recurring after repairs.
This section gives the fault finding procedures for statuses and parameters and the conditions for checking them.
If a status is not behaving normally or a parameter is outside the permitted tolerance values, consult the
corresponding fault finding page.
Special notes on the conformity check for the air conditioning function:
All variables (statuses and parameters) and commands required for the air conditioning function are divided into
three sub-functions:
●The COLD LOOP sub-function groups together all the information required for producing cold air.
●The HEATING sub-function groups together all the information required for producing warm air.
●The PASSENGER COMPARTMENT VENTILATION sub-function groups together all the information relating to
ventilation and the mixing and distribution of air within the passenger compartment.

62B-17
MR-413-X44-62B000$230_eng.mif
V1
62B
CLIMATE CONTROL
Fault finding - Function
GENERAL INFORMATION:
The climate control function which is fitted to the new Twingo depends on the three computers: injection, UCH and
climate control (DISTRIBUTED FUNCTION).
Fault finding on the air conditioning is performed in two different ways using the diagnostic tool.
The first procedure consists of performing fault finding on each computer which allows dialogue to be established
with just one computer (select the climate control computer).
The second procedure consists of performing fault finding on each function which allows communication with all
three computers belonging to the CLIMATE CONTROL function.
DESCRIPTION OF THE OPERATION OF THE CLIMATE CONTROL COMPUTER:
The climate control computer controls the passenger compartment ventilation, the distribution motor, the mixing
motor and the recirculation motor.
The climate control computer also controls the interior temperature sensor.
The sensor and the three motors are connected to the climate control computer by wire connections. The climate
control computer controls the passenger compartment ventilation using a modulated control signal (square pulse
signal) sent to a power module (MVPE) by a wire connection.
All other signals used by the climate control computer or transmitted by this computer to other computers are sent on
the multiplex network.
The production of cold air (cold loop) and hot air (heating) is controlled by the other two computers involved in the
CLIMATE CONTROL function (UCH and engine injection computer).
Special notes on operation:
–When the engine is stopped, the passenger compartment fan rotates more slowly than when the engine is
running.
–If any of the actuators are faulty, the air conditioning can no longer control them, but the setting requests are still
displayed on the control panel: warning lights light up, display of symbols on the control panel (distribution motor
position, passenger compartment blower speed, AC symbol, etc.).

Vdiag No.: 44
MR-413-X44-62B000$230_eng.mif

62B-22
MR-413-X44-62B000$322_eng.mif
V1
62B
CLIMATE CONTROL
Fault finding - Configuration and programming
CLIMATE CONTROL COMPUTER CONFIGURATION
The climate control computer has three configuration functions. These configurations need to be set after replacing
the computer.
These three configurations are important as they ensure that climate control is optimised within the vehicle (better
control compared to automatic air conditioning). If these configurations are not entered correctly, cold air and warm
air production will be severely affected.
These configurations can be accessed in repair mode by the diagnostic tool and can only be entered using
the fault finding by computer menu as opposed to the fault finding by function menu.
These configurations can also be read using the diagnostic tool in repair mode to ensure they have been correctly
set. Configurations can be read in fault finding by computer mode and fault finding by function mode.
Configuration Option Configuration reading
CF044Vehicle type – New TwingoLC013Vehicle type
CF024Geographical zone– Zone 1
– Zone 2LC046Geographical zone
CF117Type of heating
resistors – None
– 900 WLC044Type of heating
resistors
WARNING
–The "ZONE 1" configuration must be selected for HOT AND HUMID COUNTRIES which correspond to the
technical and legislative criteria available on the Shared World Information.
–The "ZONE 2" configuration must be selected for TEMPERATE COUNTRIES which correspond to the
technical and legislative criteria available on the Shared World Information.
Note:
In hot and humid climates, when the heating and air conditioning system is in operation, condensation
may form on the outside of the windscreen.
The "ZONE 1" configuration corrects this customer complaint.
Note:
In fault finding by function mode, the diagnostic tool can also display the configuration readings of the other
computers involved in the air conditioning function. All of the air conditioning function configurations (of the
injection computer and UCH computer) are listed (See 62C, Air conditioning).

Vdiag No.: 44
MR-413-X44-62B000$322_eng.mif

62B-25
MR-413-X44-62B000$414_eng.mif
V1
62B
CLIMATE CONTROL
Fault finding - Interpretation of faults
DF001
PRESENT
OR
STOREDCOMPUTER
1. DEF: Internal electronic fault
NOTESConditions for running fault finding on a present or stored fault:
Apply this fault finding procedure if the fault reappears as present or stored after the
ignition is switched of f and on again.
Switch off the ignition and wait for the immobiliser warning light (Power-latch) to come one,
–Switch on the ignition again.
–Start the engine and switch on the air conditioning.
If the fault recurs, contact the Techline.
If the fault does not reappear: leave the climate control switched on and select various ventilation and air
distribution settings to check that the system is operating correctly.
–Check that no fault is displayed.
If the fault is still present, contact the Techline.
AFTER REPAIRFollow the instructions to confirm repair.
If the computer was replaced (at the request of the Techline), reconfigure the
computer (see Configurations and programming).
Deal with any other faults.
CLIM_V44_DF001

Vdiag No.: 44
MR-413-X44-62B000$414_eng.mif

62B-32
MR-413-X44-62B000$460_eng.mif
V1
62B
CLIMATE CONTROL
Fault finding - Conformity check
SUB-FUNCTION: PASSENGER COMPARTMENT VENTILATION
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(fault reading and configuration checks).
Application conditions: engine stopped with ignition on (12 V APC), AIR
CONDITIONING OFF (air conditioning compressor not activated).
Note:
–Read the parameters when the vehicle is cold (in the morning) to check the
conformity of the temperature parameters (without thermometer). The two
temperatures should be practically the same (as should the coolant temperature
given by the injection system).
–The invalid values given in this check correspond to the value sent by the diagnostic
tool (substitute value) when the sensor in question is faulty. A sensor fault can be
detected when these invalid values are displayed (this is an important point for
sensors on which fault finding cannot be performed, e.g. exterior temperature
sensor).
Delayed illumination of the exterior temperature sensor LCD indicates that an invalid
value has been received concerning the exterior temperature sensor.
FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
Passenger
compartment
blowerET141:Passenger
compartment
blowerRUNNING
or
STOPPED
After a user requestIn the event of a fault, refer to the
interpretation of this status.
PR019:Passenger
compartment
fan PWM settingSpeed 0 = 0 %
Speed 8 = 100 %
Note:
The PWM signal is a
modulated control
voltage used to control
the air conditioning
blower power module.If there is a fault or for more
information (to find the
intermediate speed
percentages), refer to the
interpretation of this
parameter.
Note:
If the parameter varies correctly,
but the passenger compartment
blower unit does not operate:
consult ALP 5 "Air flow fault"
Air flapsPR012:Mixing flap
positionFrom 0 % (“Maximum
cold” position: 15 ˚C)
to 100 % (“Maximum
hot” position: 27 ˚C).In the event of a fault, see the
interpretation of this
parameter.
ET062:Recirculation
flap positionOPEN if the flap is in the
external air position.
CLOSED if the flap is in
the recirculation
position.In the event of a fault, refer to the
interpretation of this status.
PR011:Distribution flap
positionFrom 0 % (Air vent
position)
to 100 % (De-icing
position)In the event of a fault, see the
interpretation of this
parameter.
CLIM_V44_CCONF

Vdiag No.: 44
MR-413-X44-62B000$460_eng.mif

62B-33
MR-413-X44-62B000$460_eng.mif
V1

Vdiag No.: 44CLIMATE CONTROL
Fault finding - Conformity check62B
SUB-FUNCTION: PASSENGER COMPARTMENT VENTILATION (CONTINUED)
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(fault reading and configuration checks).
Application conditions: engine stopped with ignition on (12 V APC), CLIMATE
CONTROL OFF (air conditioning compressor not engaged).
FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
TemperaturesPR001: Interior
temperatureX = interior
temperature ± 5 ˚C
(invalid value: 87.5 ˚C)In the event of a fault, see the
interpretation of this parameter.
PR002: External
temperatureX = exterior
temperature ± 5 ˚C
(invalid value: 215 ˚C)In the event of a fault, see the
interpretation of this parameter
Note:
This parameter is displayed via the
climate control computer but is
generated by the UCH.
Motor activationAC001:Passenger
compartment
blowerWhen this command is
run the passenger
compartment blower
comes on.In the event of a fault, refer to the
interpretation of this command.
AC002:Recirculation
motor: exterior airThis command is used to
actuate the air
recirculation motor to
check that it is working.In the event of a fault, refer to the
interpretation of this command.
AC003:Recirculation
motor:
recirculationThis command is used to
actuate the air
recirculation motor to
check that it is working.In the event of a fault, refer to the
interpretation of this command.
AC007:Distribution
motor: de-icingThis command is used to
activate the ventilation/
de-icing distribution flap
to check that it is working.In the event of a fault, refer to the
interpretation of this command.
AC006:Distribution
motor: air ventThis command is used to
activate the ventilation/
de-icing distribution flap
to check that it is working.In the event of a fault, refer to the
interpretation of this command.
AC004:Mixer motor:
maximum coldThis command is used to
activate the mixing flap to
check that it is working.In the event of a fault, refer to the
interpretation of this command.
AC005:Mixer motor:
maximum hotIn the event of a fault, refer to the
interpretation of this command.

62B-34
MR-413-X44-62B000$460_eng.mif
V1

Vdiag No.: 44CLIMATE CONTROL
Fault finding - Conformity check62B
COLD LOOP SUB-FUNCTION
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(fault reading and configuration checks).
Application conditions: engine stopped with ignition on (12 V APC), CLIMATE
CONTROL OFF (air conditioning compressor not engaged).
FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
Request to engage
the compressorET140:Air conditioning
requestINACTIVEIn the event of a fault, refer to the
interpretation of this status.
Passenger
compartment
blowerET141:Passenger
compartment
blowerRUNNING
or
STOPPED
After a user requestIn the event of a fault, refer to the
interpretation of this status.
CompressorET020:Compressor
controlINACTIVEIn the event of a fault, refer to the
interpretation of this status.
TemperaturesPR001:Interior
temperatureX = interior
temperature ± 5 ˚C
(invalid value: 87.5 ˚C)In the event of a fault, see the
interpretation of this
parameter.
PR002:External
temperatureX = exterior
temperature ± 5 ˚C
(invalid value: 215 ˚C)In the event of a fault, see the
interpretation of this
parameter
Note:
This parameter is displayed via
the climate control computer but
is generated by the UCH.
Air flapsPR012:Mixing flap
positionFrom 0 % (“Maximum
cold” position: 15 ˚C)
to 100 % (“Maximum
hot” position: 27 ˚C).In the event of a fault, see the
interpretation of this
parameter.

62B-35
MR-413-X44-62B000$460_eng.mif
V1

Vdiag No.: 44CLIMATE CONTROL
Fault finding - Conformity check62B
HEATING SUB-FUNCTION
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool
(fault reading and configuration checks).
Application conditions: engine stopped with ignition on (12 V APC), CLIMATE
CONTROL OFF (air conditioning compressor not engaged).
FunctionParameter or Status
checked or ActionDisplay and Notes Fault finding
Heated rear screenET086:Heated rear
screen: manual
modeINACTIVE In the event of a fault, refer to the
interpretation of this status.
ET085:Heated rear
screen:
automatic modeINACTIVE In the event of a fault, refer to the
interpretation of this status.
Passenger
compartment
ventilatorET141:Passenger
compartment
ventilatorRUNNING
or
STOPPED
After a user requestIn the event of a fault, refer to the
interpretation of this status.
Air mixing motorPR012:Mixing flap
positionFrom 0 % (“Maximum
cold” position: 15 ˚C)
to 100 % (“Maximum
hot” position: 27 ˚C).In the event of a fault, see the
interpretation of this
parameter.
HeatingPR045:Current heating
resistor power0 WIn the event of a fault, see the
interpretation of this
parameter.
TemperaturePR001:Interior
temperatureX = interior
temperature ± 5 ˚C
(invalid value: 87.5 ˚C)In the event of a fault, see the
interpretation of this
parameter.
PR002:External
temperatureX = exterior
temperature ± 5 ˚C
(invalid value: 215 ˚C)In the event of a fault, consult the
interpretation of this
parameter.
Note:
This parameter is displayed via
the climate control computer but
is generated by the UCH.
PR004:Coolant
temperatureX = engine coolant
temperature in ˚CIn the event of a fault, see the
interpretation of this
parameter.
