2009 RENAULT TWINGO lock

10A-31
ENGINE AND CYLINDER BLOCK ASSEMBLY
Oil filter: Removal - Refitting
K4M
10A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aPosition the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
aDisconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
aRemove the engine undertray.
aPosition oil recovery tray under the engine.II - REMOVAL OPERATION
aRemove the oil filter using the (Mot. 1329) (1) .
REFITTING
I - REFITTING PREPARATION OPERATION
aUsing SURFACE CLEANER (see Vehicle: Parts
and consumables for the repair) (04B, Consum-
ables - Products), clean and degrease the cylinder
block joint faces.
aparts always to be replaced: Oil filter.
aLubricate the oil filter seal with new engine oil.
II - REFITTING OPERATION
aFit a new oil filter.
aTighten the oil filter until it makes contact.
aTighten the oil filter three-quarters of a turn using the
(Mot. 1329).
III - FINAL OPERATION
aRemove the oil recovery tray. Special tooling required
Mot. 1329Oil filter removing tool (76
mm diameter)
Equipment required
oil recovery tray
IMPORTANT
Wear leaktight gloves (Nitrile type) for this opera-
tion.
WARNING
Always check the oil level using the dipstick.
Do not exceed the maximum level on the dipstick
(could destroy the engine).
Correct the engine oil level if necessary before
deliver ing the vehicle to the customer.
Note:
When topping up the engine oil, always leave at
least 10 minutes before checking the level with a
dipstick.
When removing the oil filter, check that the oil filter
seal is not still stuck to the cylinder block or oil filter
mounting.
132364
WARNING
The joint faces must be clean, dr y and free from
grease (avoid finger marks).

10A-32
ENGINE AND CYLINDER BLOCK ASSEMBLY
Oil filter: Removal - Refitting
K4M
10A
aWipe any oil run-off with a cloth.
aTop up the engine oil with oil recommended by the
manufacturer (see Engine oil: Specifications)
(Technical Note 6013A, 04A, Lubricants).
aConnect the battery (see Battery: Removal - Refit-
ting) (80A, Battery).
aStart the engine and wait until the oil pressure warn-
ing light goes out on the instrument panel.
aCheck for leaks from the oil filter.
aRefit the engine undertray.
aWait at least 10 minutes.
aCheck the oil level using the dipstick.
aAdjust the engine oil level if necessary.WARNING
Always check the oil level using the dipstick.
Do not exceed the maximum level on the dipstick
(could destroy the engine).
Correct the engine oil level if necessary before
delivering the vehicle to the customer.

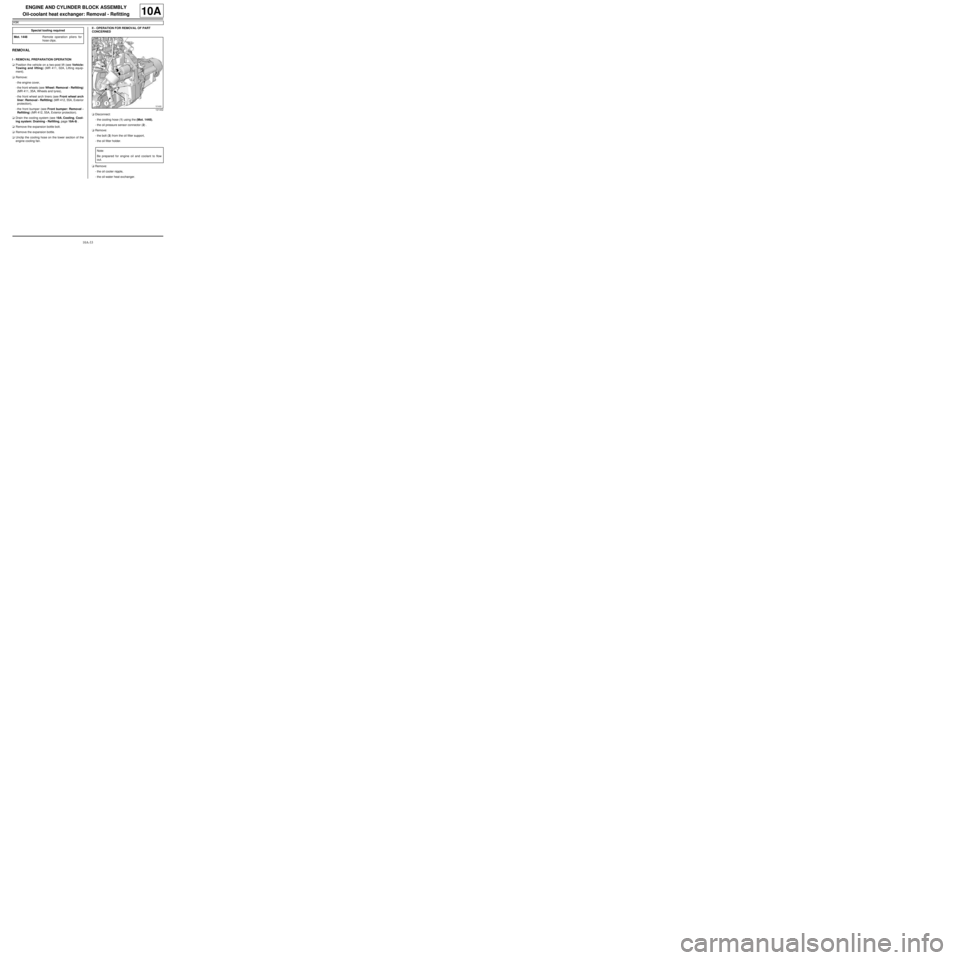

10A-33
ENGINE AND CYLINDER BLOCK ASSEMBLY
Oil-coolant heat exchanger: Removal - Refitting
K9K
10A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aPosition the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (MR 411, 02A, Lifting equip-
ment).
aRemove:
-the engine cover,
-the front wheels (see Wheel: Removal - Refitting)
(MR 411, 35A, Wheels and tyres),
-the front wheel arch liners (see Front wheel arch
liner: Removal - Refitting) (MR 412, 55A, Exterior
protection),
-the front bumper (see Front bumper: Removal -
Refitting) (MR 412, 55A, Exterior protection).
aDrain the cooling system (see 19A, Cooling, Cool-
ing system: Draining - Refilling, page 19A-9) .
aRemove the expansion bottle bolt.
aRemove the expansion bottle.
aUnclip the cooling hose on the lower section of the
engine cooling fan.II - OPERATION FOR REMOVAL OF PART
CONCERNED
aDisconnect:
-the cooling hose (1) using the (Mot. 1448),
-the oil pressure sensor connector (2) .
aRemove:
-the bolt (3) from the oil filter support,
-the oil filter holder.
aRemove:
-the oil cooler nipple,
-the oil-water heat exchanger. Special tooling required
Mot. 1448Remote operation pliers for
hose clips .
121432
Note:
Be prepared for engine oil and coolant to flow
out.

10A-34
ENGINE AND CYLINDER BLOCK ASSEMBLY
Oil-coolant heat exchanger: Removal - Refitting
K9K
10A
REFITTING
I - REFITTING PREPARATION OPERATION
aUsing the buffing pads, clean the pressure faces of
the oil-water heat exchanger and the cylinder block.
aFit new seals on the oil-water heat exchanger with
soapy water.
aCheck the condition of the oil-water heat exchanger
nipple seals.
II - REFITTING OPERATION FOR PART
CONCERNED
aCoat the nipple with high resistance thread lock.
aRefit:
-the coolant-oil heat exchanger,
-the oil-coolant heat exchanger nipple.
aFit a new seal on the oil filter holder.
aRefit:
-the oil filter holder,
-the oil filter mounting bolt.
aTighten the oil filter mounting bolt.
aConnect:
-the oil pressure sensor connector,
-the cooling hose using the (Mot. 1448).
III - FINAL OPERATION
aClip the cooling hose on to the lower section of the
engine cooling fan.
aPosition the expansion bottle.
aRefit the expansion bottle bolt.aFill the cooling system (see 19A, Cooling, Cooling
system: Draining - Refilling, page 19A-9) .
aRefit:
-the front bumper (see Front bumper: Removal -
Refitting) (MR 412, 55A, Exterior protection),
-the front wheel arch liners (see Front wheel arch
liner: Removal - Refitting) (MR 412, 55A, Exterior
protection),
-the front wheels (see Wheel: Removal - Refitting)
(MR 411, 35A, Wheels and tyres),
-the engine cover. WARNING
The joint faces must be clean, dr y and free from
grease (avoid finger marks).
WARNING
The gaskets must always be replaced with new
gaskets.
Note:
The oil-water heat exchanger nipple seals cannot
be separated; the entire assembly must be
replaced.

10A-35
ENGINE AND CYLINDER BLOCK ASSEMBLY
Oil-coolant heat exchanger: Removal - Refitting
D4F, and 780 or 782
10A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aPosition the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
aRemove:
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
-the front right-hand wheel arch liner (see Front
wheel arch liner: Removal - Refitting) (55A, Ex-
terior protection),
-the oil filter (see 10A, Engine and cylinder block
assembly, Oil filter: Removal - Refitting, page
10A-29) .II - OPERATION FOR REMOVAL OF PART
CONCERNED
aFit the tool (Ms. 583) onto the oil-coolant heat ex-
changer hoses (1) .
aRelease the clips (2) using the (Mot. 1448).
aConnect the oil-coolant heat exchanger hoses.
aRemove:
-the nipple (3) from the oil-coolant heat exchanger,
-the oil-water heat exchanger. Special tooling required
Ms. 583Pipe clamps .
Mot. 1448Remote operation pliers for
hose clips .
Tightening torquesm
oil-coolant heat
exchanger nipple30 N.m
IMPORTANT
Wear leaktight gloves (Nitrile type) for this opera-
tion.121726
121402

10A-36
ENGINE AND CYLINDER BLOCK ASSEMBLY
Oil-coolant heat exchanger: Removal - Refitting
D4F, and 780 or 782
10A
REFITTING
I - REFITTING PREPARATION OPERATION
aparts always to be replaced: coolant-engine oil
heat exchanger seal on the cylinder block.
aUse a GREY ABRASIVE PAD (see Vehicle: Parts
and consumables for the repair) (04B, Consum-
ables - Products) to clean the bearing faces of the
oil-coolant heat exchanger and the cylinder block.
II - REFITTING OPERATION FOR PART
CONCERNED
aCoat the nipple with HIGH STRENGTH THREAD-
LOCK (see Vehicle: Parts and consumables for
the repair) (04B, Consumables - Products).
aRefit:
-the oil-coolant heat exchanger,
-the oil-coolant heat exchanger nipple.
aTorque tighten the oil-coolant heat exchanger nip-
ple (30 N.m).
aConnect the oil-coolant heat exchanger hoses.
aRefit the clips using the (Mot. 1448).
aRemove the tools (Ms. 583).
III - FINAL OPERATION
aRefit:
-the oil filter (see 10A, Engine and cylinder block
assembly, Oil filter: Removal - Refitting, page
10A-29) ,
-the front right-hand wheel arch liner (see Front
wheel arch liner: Removal - Refitting) (55A, Ex-
terior protection),
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres).
aFill and bleed the cooling system (see 19A, Cool-
ing, Cooling system: Draining - Refilling, page
19A-9) . WARNING
To ensure proper sealing, the gasket surfaces
must be clean, dry and not greasy (avoid any fin-
ger marks).

10A-37
ENGINE AND CYLINDER BLOCK ASSEMBLY
Conrod bearing shell: Removal - Refitting
K9K
10A
REMOVAL
I - REMOVAL PREPARATION OPERATION
aPosition the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
aRemove the engine undertray.
aDrain the oil from the engine (see 10A, Engine and
cylinder block assembly, Engine oil: Draining -
Refilling, page 10A-22) .
aRemove the oil filter (see 10A, Engine and cylinder
block assembly, Oil filter: Removal - Refitting,
page 10A-29) .
aRemove the lower engine tie-bar (see 19D, Engine
mounting, Lower engine tie-bar: Removal - Refit-
ting, page 19D-18) .
aStrap the radiator to the vehicle using safety
strap(s).
aRemove the front axle subframe (see Front axle
subframe: Removal - Refitting) (31A, Front axle
components).
aRemove the relay bearing of the front right-hand
wheel driveshaft. Special tooling required
Mot. 1914Tool for fitting G9 con rod
bear ing shells
Mot. 1920Tool for fitting F9 / K9 con rod
bear ing shells
Equipment required
safety strap(s)
component jack
indelible pencil
torque wrench
Diagnostic tool
Tightening torquesm
con rod cap bolts20 N.m + 45˚ ±± ± ±
6˚
oil pump bolts25 N.m
IMPORTANT
To avoid all risk of damage to the systems, apply
the safety and cleanliness instructions and opera-
tion recommendations before carrying out any
repair (see Vehicle: Precautions for the repair) .
IMPORTANT
Wear leaktight gloves (Nitrile type) for this opera-
tion.
123838

10A-38
ENGINE AND CYLINDER BLOCK ASSEMBLY
Conrod bearing shell: Removal - Refitting
K9K
10A
aDisconnect the oil level sensor connector (if
equipped) (2) .
aRemove the catalytic converter upstream stay (3) .a
Undo the bolts of the engine oil sump.
aFit a component jack to support the engine oil
sump.
aRemove the bolts from the engine oil sump.
aDetach the engine oil sump, while supporting it with
the component jack.
123834
112328
140940
WARNING
Failure to observe the following procedure may
damage the oil pump strainer.
