36B
POWER – ASSISTED STEERING
Fault finding – Fault summary table
Tool fault Diagnostic tool titleAssociated
DTCCustomer complaints and warning
light coming on
DF001Motor thermal protection5660Steering assistance intermittent
reduction (no warning light or buzzer)
DF002Computer5640No assistance on start-up or sudden
loss of assistance with EPAS fault
warning light, STOP warning light and
buzzer
DF017Motor circuit5630Sudden loss of assistance with EPAS
fault warning light, STOP warning light
and buzzer
DF023+ after ignition feed5622Gradual loss of assistance with EPAS
fault warning light, STOP warning light
and buzzer
DF028Engine speed zero5621Incorrect level of assistance (no warning
light or buzzer)
DF037Battery voltage5650Sudden loss of assistance with EPAS
fault warning light, STOP warning light
and buzzer
DF038Angle sensor5610Loss of "active return" function with no
warning light
DF039Torque sensor circuit5603Sudden loss of assistance with EPAS
fault warning light, STOP warning light
and buzzer
DF043Vehicle speed5620Incorrect level of assistance (no warning
light or buzzer)
DF048Torque sensor circuit5602Sudden loss of assistance with EPAS
fault warning light, STOP warning light
and buzzer
DF050Torque sensor circuit signal 25601Sudden loss of assistance with EPAS
fault warning light, STOP warning light
and buzzer
DF054Torque sensor5600Sudden loss of assistance with EPAS
fault warning light, STOP warning light
and buzzer
EPAS
Vdiag No.: 04 - 08
MR-413-X44-36B000$469.mif

36B-16
MR-413-X44-36B000$469.mif
V2
EPAS
Vdiag No.: 04 - 08
36B
DF001
PRESENT
OR
STOREDMOTOR THERMAL PROTECTION
DEF: Operating temperature too high
NOTESConditions for applying the fault finding procedure to stored faults:
Apply this fault finding procedure even if the fault is stored.
Notes:
This fault does not indicate a system failure, but indicates overheating either of the
Electric Power-Assisted Steering (EPAS) motor or of the computer during repeated
manoeuvres.This fault may appear after the steering wheel is moved repeatedly
(parking) and causes a gradual reduction in steering but the fault warning light does
not come on.
Use the diagnostic tool to check the conformity of PR129 Motor power (60 A) and PR130 Motor power (45 A)
(zero in absence of PR001 Torque applied to steering wheel).
Contact the Techline in the event of any nonconformity.
Check the conformity of the computer and steering column (45 or 60 A) in relation to the table below:
Left-hand drive Right-hand drive
Torque sensor wiring harness blue black
Motor wiring45 Agreen black
Motor wiring60 Ablue grey
45 A 60 A
Computer label yellow white
In the event of a nonconformity, consult "RENAULT NET" to repair the vehicle according to the technical vehicle
definition.
Disconnect the battery then allow the electric power-assisted steering to cool down.
Reconnect the battery, clear the faults, start the vehicle and check the operation of the electric power-assisted
steering by turning the steering wheel full lock to the left or right.
The fault should not recur in the next 30 seconds.
If the fault recurs as present or stored, contact the Techline.
AFTER REPAIRDeal with any other faults.
Clear the stored faults.
Check that the EPAS is working.
DAE_V04_DF001 /DAE_V08_DF001
POWER – ASSISTED STEERING
Fault finding – Interpretation of faults

36B-22
MR-413-X44-36B000$469.mif
V2
POWER – ASSISTED STEERING
Fault finding – Interpretation of faults36B
EPAS
Vdiag No.: 04

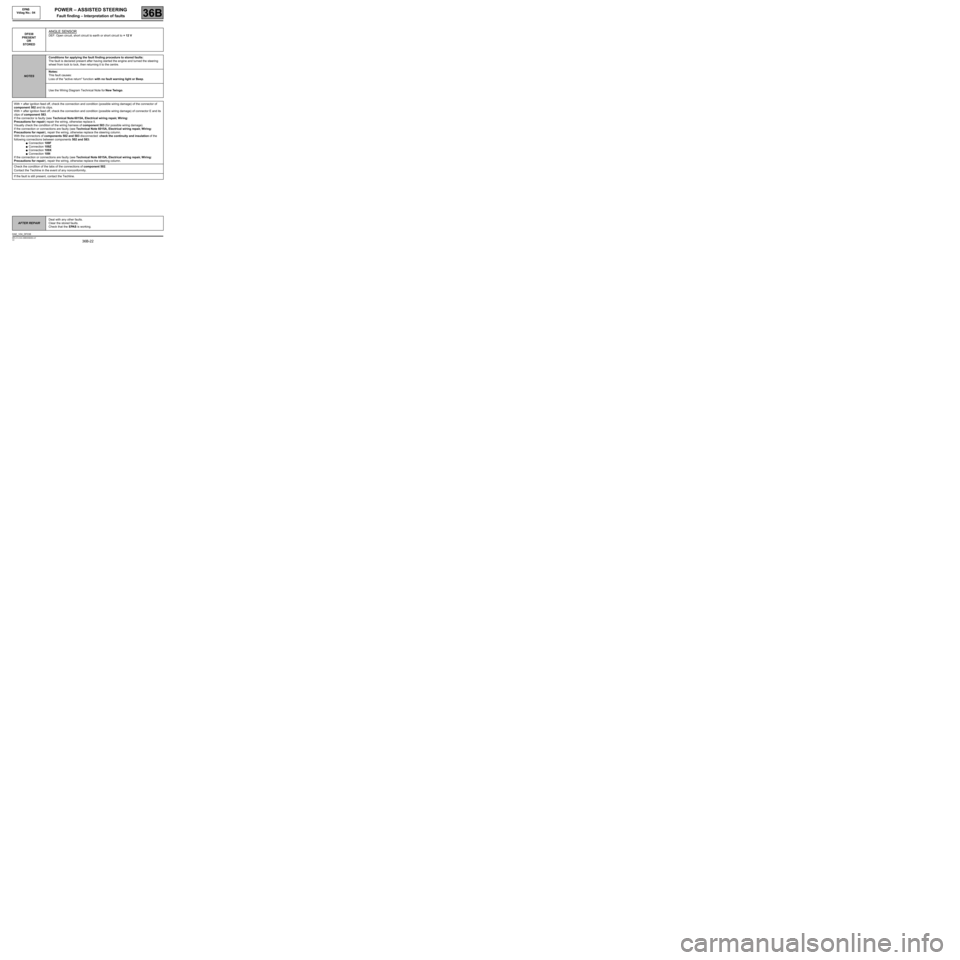

DF038
PRESENT
OR
STOREDANGLE SENSOR
DEF: Open circuit, short circuit to earth or short circuit to + 12 V
NOTESConditions for applying the fault finding procedure to stored faults:
The fault is declared present after having started the engine and turned the steering
wheel from lock to lock, then returning it to the centre.
Notes:
This fault causes:
Loss of the "active return" function with no fault warning light or Beep.
Use the Wiring Diagram Technical Note for New Twingo.
With + after ignition feed off, check the connection and condition (possible wiring damage) of the connector of
component 502 and its clips.
With + after ignition feed off, check the connection and condition (possible wiring damage) of connector E and its
clips of component 583.
If the connector is faulty (see Technical Note 6015A, Electrical wiring repair, Wiring:
Precautions for repair) repair the wiring, otherwise replace it.
Visually check the condition of the wiring harness of component 583 (for possible wiring damage).
If the connection or connections are faulty (see Technical Note 6015A, Electrical wiring repair, Wiring:
Precautions for repair), repair the wiring, otherwise replace the steering column.
With the connectors of components 502 and 583 disconnected: check the continuity and insulation of the
following connections between components 502 and 583:
●Connection 109F
●Connection 109Z
●Connection 109X
●Connection 109I
If the connection or connections are faulty (see Technical Note 6015A, Electrical wiring repair, Wiring:
Precautions for repair), repair the wiring, otherwise replace the steering column.
Check the condition of the tabs of the connections of component 502.
Contact the Techline in the event of any nonconformity.
If the fault is still present, contact the Techline.
AFTER REPAIRDeal with any other faults.
Clear the stored faults.
Check that the EPAS is working.
DAE_V04_DF038

36B-23
MR-413-X44-36B000$469.mif
V2
POWER – ASSISTED STEERING
Fault finding – Interpretation of faults
EPAS
Vdiag No.: 04 - 08
36B
DF039
DF048
DF050
DF054
PRESENT
OR
STOREDTORQUE SENSOR CIRCUIT
TORQUE SENSOR CIRCUIT
TORQUE SENSOR CIRCUIT SIGNAL 2
TORQUE SENSOR
CO.O: Open circuit or short circuit to earth
NOTESConditions for applying the fault finding procedure to stored faults:
The fault is declared present after having started the engine and turned the steering
wheel from lock to lock, then returning it to the centre.
Notes:
This fault causes:
Sudden loss of steering assistance with illumination of the Fault warning light +
STOP + Beep.
Use the Wiring Diagram Technical Note for New Twingo.
With + after ignition feed off, check the connection and condition (possible wiring damage) of connector C and
its clips of component 502.
If the connector is faulty (see Technical Note 6015A, Electrical wiring repair, Wiring: Precautions for repair)
repair the wiring, otherwise replace it.
Visually check the condition of the wiring harness of component 850 (for possible wiring damage).
If the connection or connections are faulty (see Technical Note 6015A, Electrical wiring repair, Wiring:
Precautions for repair), repair the wiring, otherwise replace the steering column.
With the connectors of components 502 and 850 disconnected, check the continuity and insulation of the
following connections between components 502 and 850.
●Connection 109K
●Connection 109M
●Connection 109N
●Connection 109P
If the connection or connections are faulty (see Technical Note 6015A, Electrical wiring repair, Wiring:
Precautions for repair), repair the wiring, otherwise replace the steering column.
With + after ignition feed off, disconnect and check the condition and conformity of connector C and its clips.
Visually check the condition of the torque sensor wiring harness.
In the event of a nonconformity, replace the steering column.
Check the condition of the connection pins of components 502 and 850.
Contact the Techline in the event of any nonconformity.
If the fault is still present, contact the Techline.
AFTER REPAIRDeal with any other faults.
Clear the stored faults.
Check that the EPAS is working.
DAE_V04_DF039/DAE_V08_DF039/DAE_V04_DF048/DAE_V08_DF048
DAE_V04_DF050/DAE_V08_DF050/DAE_V04_DF054/DAE_V08_DF054

36B-26
MR-413-X44-36B000$536.mif
V2
POWER – ASSISTED STEERING
Fault finding – Conformity check
EPAS
Vdiag No.: 04 - 08
36B
SUB-FUNCTION: ASSISTANCE
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool.
Application conditions: ignition on, engine stopped, no movement of
the steering wheel, front wheels set straight ahead.
FunctionParameter or Status
Checked or ActionDisplay and notes Fault finding
Power supplyPR032:Feed voltage0 VIn the event of a fault on this
parameter, apply the fault finding
procedure of DF037 Battery voltage.
Wire informationPR003:Vehicle speed0 mphIn the event of a fault, apply the
interpretation of parameter PR003.
PR004:Engine speed0 rpmIn the event of a fault, apply the
interpretation of parameter PR004.
Steering wheel
angle
(Vdiag 04 only)ET020:Steering
wheel angle
sensor
programmingNot programmedIn the event of a fault, apply the
interpretation of status ET020.
PR121:Steering
wheel angle- 5˚ < X < 5˚In the event of a fault, apply the
interpretation of parameter PR121.
FaultsET021:Motor thermal
protection
indicatorNot activeIn the event of a fault, apply the
interpretation of status ET021.
ET025:Fault indicatorOffIn the event of a fault, apply the
interpretation of status ET025.

36B-29
MR-413-X44-36B000$536.mif
V2
POWER – ASSISTED STEERING
Fault finding – Conformity check
EPAS
Vdiag No.: 04 - 08
36B
SUB-FUNCTION: ASSISTANCE
NOTESOnly carry out this conformity check after a complete check with the diagnostic tool.
Application conditions: engine at idle speed, no movement of the steering
wheel, front wheels straight ahead.
FunctionParameter or Status
Checked or ActionDisplay and notes Fault finding
Power supplyPR032:Feed voltage12 < X < 16 VIn the event of a fault on this
parameter, apply the fault finding
procedure of DF037 Battery
voltage.
Wire informationPR003: Vehicle speed0 mphIn the event of a fault, apply the
interpretation of parameter
PR003.
PR004:Engine speed850 +/- 50 rpmIn the event of a fault, apply the
interpretation of parameter
PR004.
Steering wheel
angle (Vdiag 04
only)ET020:Steering wheel
angle sensor
programmingNot programmedIn the event of a fault, apply the
interpretation of status ET020.
PR121:Steering wheel
angle- 5˚ < X < 5˚In the event of a fault, apply the
interpretation of parameter
PR121.
FaultsET021:Motor thermal
protection
indicatorNot activeIn the event of a fault, apply the
interpretation of status ET021.
ET025:Fault indicatorOffIn the event of a fault, apply the
interpretation of status ET025.

36B-32
MR-413-X44-36B000$670.mif
V2
36B
POWER – ASSISTED STEERING
Fault finding – Interpretation of statuses

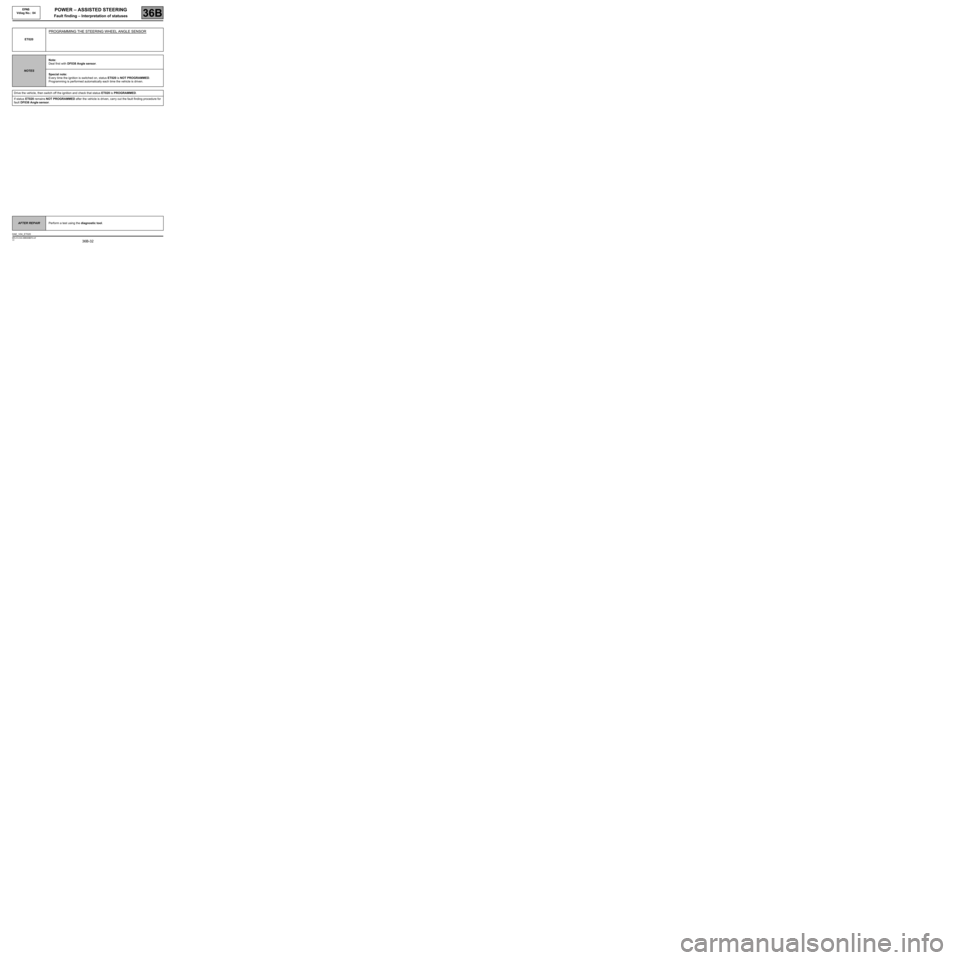

ET020
PROGRAMMING THE STEERING WHEEL ANGLE SENSOR
NOTESNote:
Deal first with DF038 Angle sensor.
Special note:
Every time the ignition is switched on, status ET020 is NOT PROGRAMMED.
Programming is performed automatically each time the vehicle is driven.
Drive the vehicle, then switch off the ignition and check that status ET020 is PROGRAMMED.
If status ET020 remains NOT PROGRAMMED after the vehicle is driven, carry out the fault finding procedure for
fault DF038 Angle sensor.
AFTER REPAIRPerform a test using the diagnostic tool.
DAE_V04_ET020
EPAS
Vdiag No.: 04
MR-413-X44-36B000$670.mif

36B-36
MR-413-X44-36B000$804.mif
V2
36B
POWER – ASSISTED STEERING
Fault finding – Interpretation of parameters
PR001
TORQUE APPLIED TO THE STEERING WHEEL
NOTESNone.
This parameter indicates the torque applied by the driver to the steering column.
If the parameter does not conform with the values indicated in the Conformity check, consult the interpretation of
fault DF054 Torque sensor.
AFTER REPAIRPerform a test using the diagnostic tool.
DAE_V04_PR001/DAE_V08_PR001
EPAS
Vdiag No.: 04 - 08
