1.1
ENG_UD14656_4Sommaire 1 (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1
Section 1: Getting to know your vehicle
Key/radio frequency remote control: general information, use, deadlockin\
g . . . . . . . . . . . . . . . . . . . 1.2
RENAULT card: general information, use, deadlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.7
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 1.13
Automatic locking when driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . 1.18
Engine immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . 1.19
Headrests - Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . 1.20
Seat belts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.24
Additional methods of restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . 1.28
to the front seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . 1.28
to the rear seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . 1.32
side restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . 1.33
Child safety: general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . 1.35
Choosing a child seat mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . 1.37
Fitting a child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . 1.39
Deactivating/activating the front passenger air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.46
Driving position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.48
Instrument panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.52
Trip computer and warning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . 1.59
Time and external temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . 1.69
Steering wheel/Power-assisted steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . 1.71
Rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . 1.72
Audible and visual signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . 1.74
Exterior lighting and signals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . 1.75
Headlight beam adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . 1.80
Wash/Wipe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.81
Fuel tank (filling with fuel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . 1.84

Downloaded from www.Manualslib.com manuals search engine
children .................................................(up to the end of the DU)doors/tailgate ........................................(up to the end of the DU)child safety............................................(up to the end of the DU)locking the doors ..................................(up to the end of the DU)keys ......................................................(up to the end of the DU)
1.2
ENG_UD14657_2Clé / télécommande à radiofréquence : généralité\
s (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1
JauneNoirNoir texte
Key/radio frequency remote control: general information, use, deadlockin\
g
Radio frequency remote
control unit
B or C
2 Locking the doors and tailgate.
3 Unlocking the doors and tailgate.
KEY/RADIO FREQUENCY REMOTE CONTROL: general information (1/2)
2
3
1
4
5
C
2
3
1
4
4 Locking/unlocking the tailgate only (for remote control units with three buttons).
5 Locking/unlocking the key insert for
remote control B.
To release the insert from its hous
-
ing, press button 4; it will come out automatically.
To return it to its housing, push the
insert until it is stored.
Advice
Avoid leaving the remote control in hot, cold or humid areas.
Key A
1 Coded key for ignition switch, doors and fuel filler cap.
1
B
Key 1 must not be used for any function other than those described in the handbook (removing a cap from a bottle, etc.).
A

Downloaded from www.Manualslib.com manuals search engine
JauneNoirNoir texte

1.3
ENG_UD14657_2Clé / télécommande à radiofréquence : généralité\
s (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1

KEY/RADIO FREQUENCY REMOTE CONTROL: general information (2/2)
Driver’s responsibilityNever leave your vehi- cle with the key inside and never leave a child (or a pet) unsupervised, even for a short while.They may pose a risk to themselves or to others by starting the engine, activating equipment such as the electric windows or by locking the doors.Risk of serious injury.
Radio frequency remote
control operating range
This varies according to the environ- ment. It is therefore important when handling the remote control to ensure that you do not lock or unlock the ve- hicle by inadvertently pressing the but- tons.
Interference
The presence of certain objects (metal objects, mobile telephones, or an area
with strong electromagnetic radiation, etc.) close to the key may create inter- ference and affect the operation of the system.
Replacement and additional keys or remote controls.
You must only contact an approved Dealer:
– If you need to replace a key it will
be necessary to take the vehicle and all of its keys to an approved Dealer in order to initialise the system.
– depending on the vehicle, you
have the option of using up to four remote controls.
Remote control unit failure
Make sure that the correct battery type is being used, and that the battery is in good condition and in- serted correctly. These batteries should have a service life of approx- imately two years.
Refer to Section 5: “Radio frequency remote control: batteries” for the battery changing procedure.

Downloaded from www.Manualslib.com manuals search engine
RENAULT carduse ..................................................(up to the end of the DU)doors/tailgate ........................................(up to the end of the DU)locking the doors ..................................(up to the end of the DU)children ..................................................................(current page)
1.7
ENG_UD10511_1Cartes Renault : généralités (X85 - B85 - C85 - S85 - K85 - Re\
nault)ENG_NU_853-3_BCSK85_Renault_1
RENAULT card: general information, use, deadlocking
The RENAULT card is used
for:
– locking/unlocking the doors and lug- gage compartment (doors, luggage compartment) and the fuel filler flap (see the following pages);
– starting the engine; refer to the in
- formation on “Starting the engine” in Section 2.
Battery life
It is supplied by a battery which should be replaced when the message “Change card battery” appears on the instrument panel (refer to the informa- tion on the “RENAULT card: Battery” in Section 5).
Range of the RENAULT card
This varies according to the environ- ment. It is therefore important when handling the RENAULT card to ensure that you do not lock or unlock the ve- hicle by inadvertently pressing the but- tons.
1 Unlocking the doors and tailgate.
2 Locking all doors and tailgate.
3 Locking/unlocking the luggage com- partment lid.
4 Emergency key.
RENAULT CARD: general information (1/2)
2
1
3
4
Driver’s responsibilityNever leave your vehicle with the RENAULT card inside and never leave a child (or a pet) unsupervised, even for a short while.They may pose a risk to themselves or to others by starting the engine, activating equipment such as the electric windows or by locking the doors.Risk of serious injury.
Advice
Avoid leaving the card in hot, cold or humid areas.
Do not keep the RENAULT card in a place where it could be bent or dam- aged accidentally, such as in a back pocket of a garment.

Downloaded from www.Manualslib.com manuals search engine
child safety.............................................................(current page)children ..................................................................(current page)
JauneNoirNoir texte
1.11
ENG_UD12573_2Carte Renault en mode mains libres : utilisation (X85 - B85 - C85 - S85\
- K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1
If you wish to check that the doors are locked after locking with the RENAULT card or buttons on the handles, you have approximately three seconds to try the door handles without unlocking them.
After this delay, the hands-free mode is activated once again and any move- ment of the handle will unlock the doors.
If a door or the tailgate is open or not properly shut, or if a card is in the reader, the doors or tailgate lock then quickly unlock and the hazard warning lights and indicator lights do not flash.
Locking the vehicle
With the RENAULT card in your pos- session and with the doors and tailgate
closed, press button 4 located on one
of the handles 2 or button 5 on the tail- gate.
The indicator lights and hazard warning lights flash twice to indicate that the doors have locked.
Note: the RENAULT card must be within the vehicle's access zone to be able to use the buttons for locking.
HANDS-FREE RENAULT CARD: use (2/2)
245
Driver’s responsibility
Never leave your vehicle with the RENAULT card inside and never leave a child (or a pet) unsupervised, even for a short while.They may pose a risk to themselves or to others by starting the engine, activating equipment such as the electric windows or by locking the door\
s.Risk of serious injury.

Downloaded from www.Manualslib.com manuals search engine
doors/tailgate ........................................(up to the end of the DU)locking the doors ..................................(up to the end of the DU)child safety............................................(up to the end of the DU)children .................................................(up to the end of the DU)lights-on warning buzzer........................................(current page)closing the doors ..................................(up to the end of the DU)opening the doors .................................(up to the end of the DU)

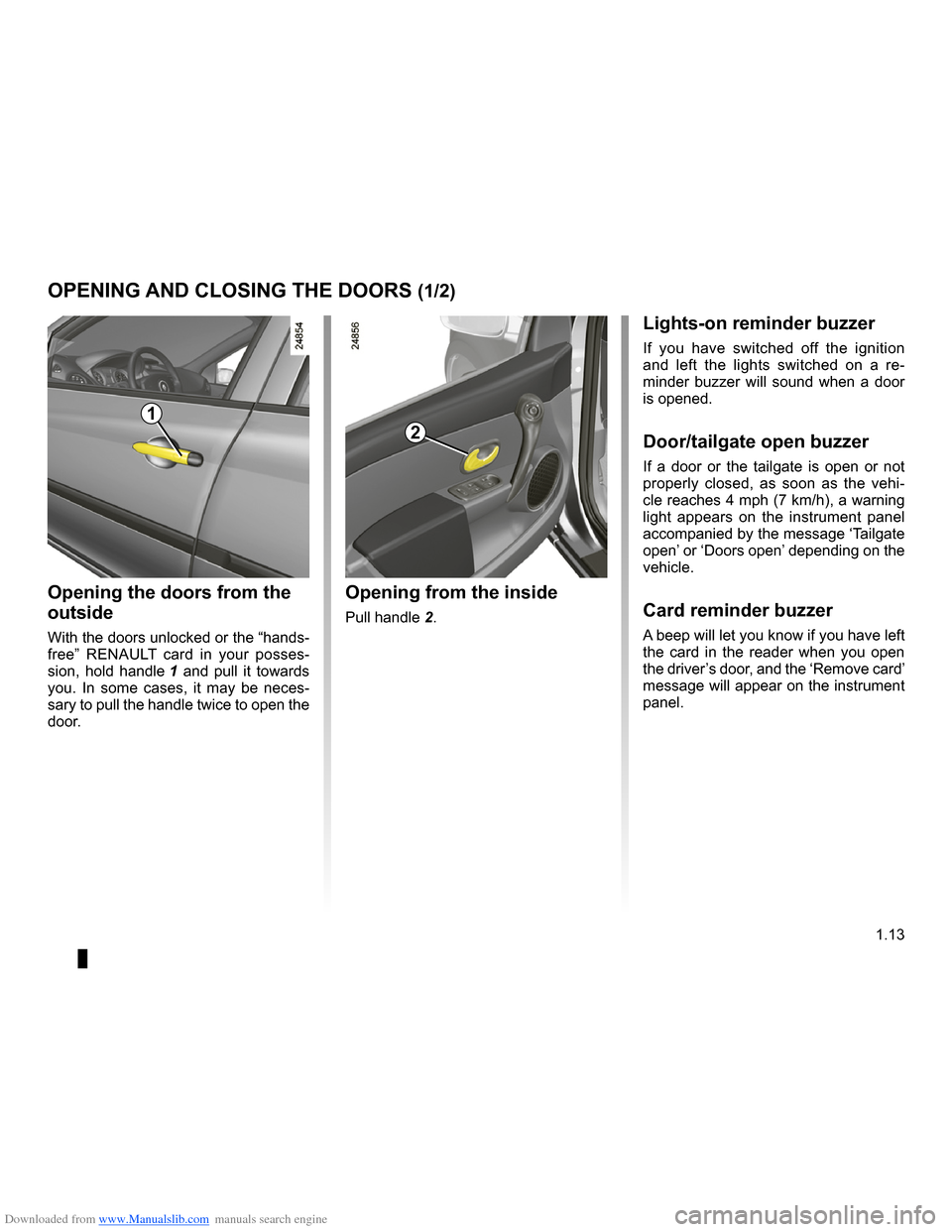

1.13
ENG_UD10515_1Ouverture et fermeture des portes (X85 - B85 - C85 - S85 - K85 - Renaul\
t)ENG_NU_853-3_BCSK85_Renault_1
Doors
Lights-on reminder buzzer
If you have switched off the ignition and left the lights switched on a re- minder buzzer will sound when a door is opened.
Door/tailgate open buzzer
If a door or the tailgate is open or not properly closed, as soon as the vehi- cle reaches 4 mph (7 km/h), a warning light appears on the instrument panel accompanied by the message ‘Tailgate open’ or ‘Doors open’ depending on the vehicle.
Card reminder buzzer
A beep will let you know if you have left the card in the reader when you open the driver’s door, and the ‘Remove card’ message will appear on the instrument panel.
Opening from the inside
Pull handle 2.
Opening the doors from the
outside
With the doors unlocked or the “hands- free” RENAULT card in your posses-
sion, hold handle 1 and pull it towards you. In some cases, it may be neces- sary to pull the handle twice to open the door.
OPENING AND CLOSING THE DOORS (1/2)
1
2

Downloaded from www.Manualslib.com manuals search engine
1.14
ENG_UD10515_1Ouverture et fermeture des portes (X85 - B85 - C85 - S85 - K85 - Renaul\
t)ENG_NU_853-3_BCSK85_Renault_1
Child safety
Vehicles fitted with switch 3
Press switch 3 to inhibit operation of the rear electric windows and opening of the rear doors from the inside. The indicator light in the switch lights up.
Other cases
Lower lever 4 and check from the inside that the doors are securely locked, to prevent the rear doors being opened from the inside.
OPENING AND CLOSING THE DOORS (2/2)
3
4
Driver’s responsibilityNever leave your vehicle with the RENAULT card or remote control inside and never leave a child (or a pet) unsuper- vised, even for a short while.They may pose a risk to themselves or to others by starting the engine, activating equipment such as the electric win- dows or by locking the doors.Risk of serious injury.
Safety of rear occupantsThe driver can authorise operation of the rear doors and, depending on the ve- hicle, the electric windows by press-
ing switch 3; the integrated indicator light goes out.
Depending on the vehicle, in the event of a fault:
– a beep sounds;
– a message is displayed on the in
- strument panel;
– the integrated indicator does not light up.If the battery has been disconnected,
press switch 3 on the side with the symbol, to lock the rear doors.

Downloaded from www.Manualslib.com manuals search engine
JauneNoirNoir texte

1.23
ENG_UD14659_2Sièges avant (X85 - B85 - C85 - S85 - K85 - Renault)ENG_NU_853-3_BCSK85_Renault_1

Access to the rear seatsthree door version
Lift handle 6, tilt the seatback and slide the seat forwards.
To return the seat to its original position (memorised position depending on ve- hicle):
– slide the seat backwards until it
locks;
– lift the seatback until it locks.
Make sure the seat is correctly locked in position.
FRONT SEATS (2/2)
6
When a person, an object or a child seat prevents the front seats from lock- ing, perform the following operations:
– ask all of the passengers to leave the vehicle and remove any bulky objects from the rear seats;
– lock the seat(s) in the initial position again;
– move the seat(s) forwards in order to create sufficient space;
– ask the passengers to get back into the vehicle, and refit the child seat or objects on the rear seats.1
Do not move handle 1 and handle 6 at the same time.
Check that no object or person prevents the front seat from locking. If so, r e m o v e a n y o b s t a c l e s behind the front seats. Adjust the seat to allow sufficient room in the rear. The rear occupants/objects should then return to the vehicle.
Repeat the above until the seat is locked correctly.
Risk of seat moving on its runners during vehicle acceleration or brak- ing.
