Parking on Hills
{CAUTION
Parking the vehicle on a hill
with the trailer attached can be
dangerous. If something goes
wrong, the rig could start to move.
People can be injured, and both
the vehicle and the trailer can be
damaged. When possible, always
park the rig on a at surface.
To park your rig on a hill:
1. Apply your regular brakes, but
do not shift into P (Park) for an
automatic transmission or into
gear for a manual transmission,
yet. When parking uphill, turn
your wheels away from the curb.
When parking downhill, turn your
wheels into the curb.
2. Have someone place chocks
under the trailer wheels.3. When the chocks are in place,
release the regular brakes until
the chocks absorb the load.
4. Reapply the regular brakes.
Then apply your parking
brake and shift into P (Park)
for an automatic transmission
or R (Reverse) for a manual
transmission.
5. Release the regular brakes.
When You Are Ready to Leave
After Parking on a Hill
1. Apply your regular brakes and
hold the pedal down while you:
start your engine
shift the transmission
into gear
release the parking brake
2. Let up on the brake pedal.
3. Drive slowly until the trailer is
clear of the chocks.
4. Stop and have someone pick up
and store the chocks.
Maintenance When Trailer
Towing
Your vehicle will need service more
often when you are pulling a trailer.
See the Maintenance Schedule
for more on this. Things that are
especially important in trailer
operation are automatic transmission
uid (do not overll), engine oil, drive
belt, cooling system and brake
system. Each of these is covered in
this manual, and the Index will help
nd them quickly. If you are trailering,
it is a good idea to review this
information before starting your trip.
Check periodically to see that all
hitch nuts and bolts are tight.
Engine Cooling When Trailer
Towing
The cooling system could
temporarily overheat during severe
operating conditions. SeeEngine
Overheating on page 9-22.
9-82 Vehicle Service and Care
2009 - Pontiac Vibe Owner Manual

Service and
Maintenance
Service and Maintenance
Introduction.......................11-1
Maintenance
Requirements..................11-2
Your Vehicle and the
Environment....................11-2
How This Section is
Organized.......................11-2
Part A: Scheduled
Maintenance Services......11-3
Using the Maintenance
Schedule.........................11-3
Scheduled Maintenance. . . .11-4
Part B: Owner Checks
and Services.................11-12
At Each Fuel Fill.............11-12
At Least Once a Month. . .11-13
At Least Twice a Year. . . .11-13
At Least Once a Year.....11-13
Part C: Periodic
Maintenance
Inspections
....................11-16
Steering, Suspension and
Front Drive Axle Boot
and Seal Inspection
.......11-16
Exhaust System
Inspection......................11-16
Fuel System Inspection. . .11-16
Engine Cooling System
Inspection......................11-17
Throttle System
Inspection......................11-17
Brake System
Inspection......................11-17
Part D: Recommended
Fluids and Lubricants. . . .11-18
Part E: Maintenance
Record..........................11-20
Service and
Maintenance
Introduction
Important: Keep engine oil at
the proper level and change as
recommended.
Have you purchased the GM
Protection Plan? The Plan
supplements the vehicle warranties.
See the Warranty and Owner
Assistance booklet or your
dealer/retailer for details.
Service and Maintenance 11-1
2009 - Pontiac Vibe Owner Manual

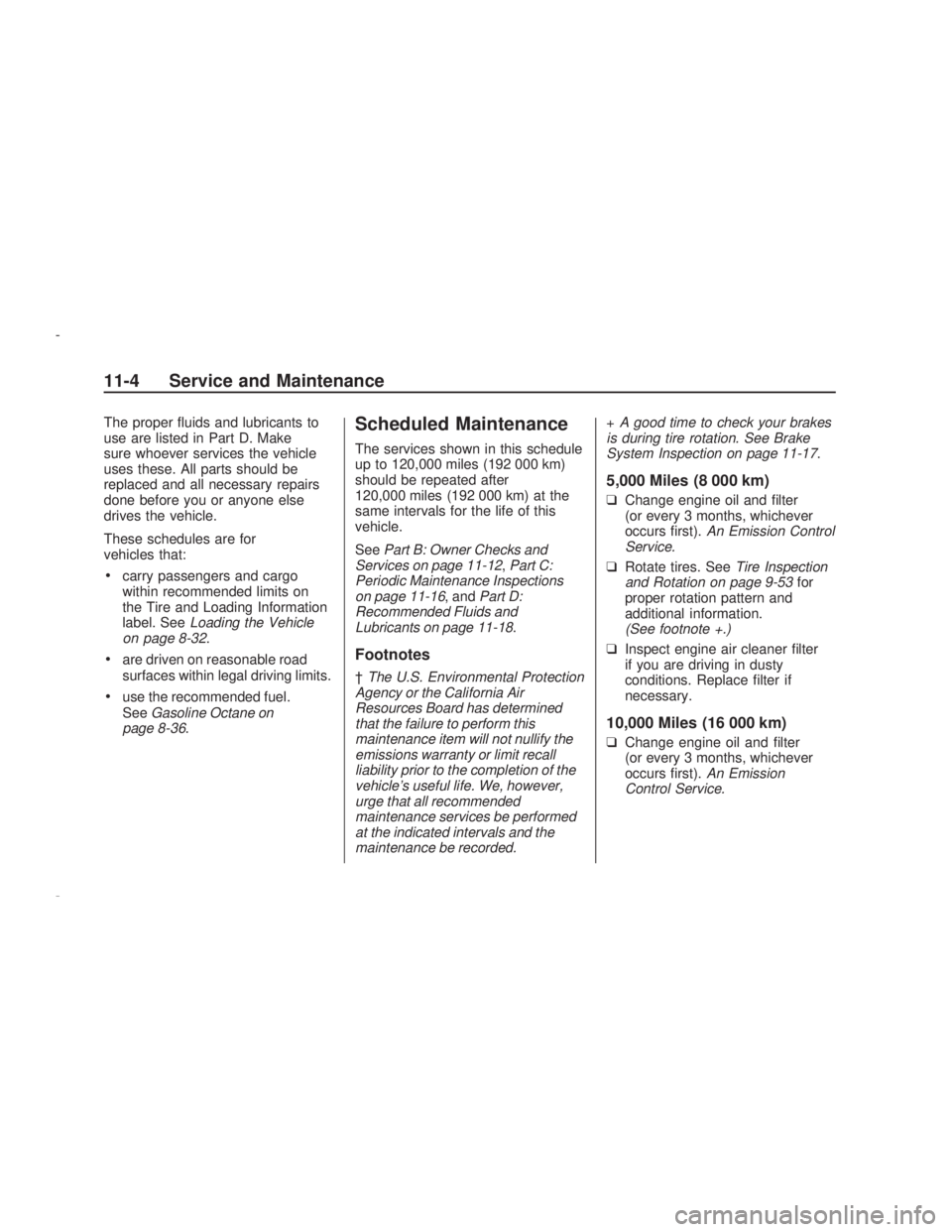

The proper uids and lubricants to
use are listed in Part D. Make
sure whoever services the vehicle
uses these. All parts should be
replaced and all necessary repairs
done before you or anyone else
drives the vehicle.
These schedules are for
vehicles that:
carry passengers and cargo
within recommended limits on
the Tire and Loading Information
label. SeeLoading the Vehicle
on page 8-32.
are driven on reasonable road
surfaces within legal driving limits.
use the recommended fuel.
SeeGasoline Octane on
page 8-36.
Scheduled Maintenance
The services shown in this schedule
up to 120,000 miles (192 000 km)
should be repeated after
120,000 miles (192 000 km) at the
same intervals for the life of this
vehicle.
SeePart B: Owner Checks and
Services on page 11-12,Part C:
Periodic Maintenance Inspections
on page 11-16, andPart D:
Recommended Fluids and
Lubricants on page 11-18.
Footnotes
†The U.S. Environmental Protection
Agency or the California Air
Resources Board has determined
that the failure to perform this
maintenance item will not nullify the
emissions warranty or limit recall
liability prior to the completion of the
vehicle’s useful life. We, however,
urge that all recommended
maintenance services be performed
at the indicated intervals and the
maintenance be recorded.+A good time to check your brakes
is during tire rotation. See Brake
System Inspection on page 11-17.
5,000 Miles (8 000 km)
❑Change engine oil and lter
(or every 3 months, whichever
occurs rst).An Emission Control
Service.
❑Rotate tires. SeeTire Inspection
and Rotation on page 9-53for
proper rotation pattern and
additional information.
(See footnote +.)
❑Inspect engine air cleaner lter
if you are driving in dusty
conditions. Replace lter if
necessary.
10,000 Miles (16 000 km)
❑Change engine oil and lter
(or every 3 months, whichever
occurs rst).An Emission
Control Service.
11-4 Service and Maintenance
2009 - Pontiac Vibe Owner Manual

❑Check restraint system. Make
sure the safety belt reminder
light and safety belt assemblies
are working properly. Look for
any other loose or damaged
safety belt system parts. If you
see anything that might keep
a safety belt system from
doing its job, have it repaired.
Have any torn or frayed safety
belts replaced. Also see
Airbag System Check on
page 1-35.
❑Replace passenger compartment
air lter.
❑Inspect fuel tank, cap, cap
gasket, and lines for damage
or leaks (or every 24 months,
whichever occurs rst). Replace
parts as needed.An Emission
Control Service. (See footnote †.)
❑Change manual transmission
uid every 30,000 miles
(48 000 km) only if your vehicle
is used to tow a trailer.35,000 Miles (56 000 km)
❑Change engine oil and lter
(or every 3 months, whichever
occurs rst).An Emission
Control Service.
❑Rotate tires. SeeTire Inspection
and Rotation on page 9-53for
proper rotation pattern and
additional information.
(See footnote +.)
❑Inspect engine air cleaner lter
if you are driving in dusty
conditions. Replace lter if
necessary.
40,000 Miles (64 000 km)
❑Change engine oil and lter
(or every 3 months, whichever
occurs rst).An Emission
Control Service.
❑Rotate tires. SeeTire Inspection
and Rotation on page 9-53for
proper rotation pattern and
additional information.
(See footnote +.)❑Inspect engine air cleaner lter
if you are driving in dusty
conditions. Replace lter if
necessary.
45,000 Miles (72 000 km)
❑Change engine oil and lter
(or every 3 months, whichever
occurs rst).An Emission
Control Service.
❑Rotate tires. SeeTire Inspection
and Rotation on page 9-53for
proper rotation pattern and
additional information.
(See footnote +.)
❑Inspect engine air cleaner lter
if you are driving in dusty
conditions. Replace lter if
necessary.
❑Inspect passenger compartment
air lter.
50,000 Miles (80 000 km)
❑Change engine oil and lter
(or every 3 months, whichever
occurs rst).An Emission
Control Service.
11-6 Service and Maintenance
2009 - Pontiac Vibe Owner Manual

❑Rotate tires. SeeTire Inspection
and Rotation on page 9-53for
proper rotation pattern and
additional information.
(See footnote +.)
❑Inspect engine air cleaner lter
if you are driving in dusty
conditions. Replace lter if
necessary.
55,000 Miles (88 000 km)
❑Change engine oil and lter
(or every 3 months, whichever
occurs rst).An Emission
Control Service.
❑Rotate tires. SeeTire Inspection
and Rotation on page 9-53for
proper rotation pattern and
additional information.
(See footnote +.)
❑Inspect engine air cleaner lter
if you are driving in dusty
conditions. Replace lter if
necessary.
60,000 Miles (96 000 km)
❑Change engine oil and lter
(or every 3 months, whichever
occurs rst).An Emission
Control Service.
❑Rotate tires. SeeTire Inspection
and Rotation on page 9-53for
proper rotation pattern and
additional information.
(See footnote +.)
❑Replace engine air cleaner lter
(or every 24 months, whichever
occurs rst). SeeEngine Air
Cleaner/Filter on page 9-12
for more information.
❑Check restraint system. Make
sure the safety belt reminder
light and safety belt assemblies
are working properly. Look for
any other loose or damaged
safety belt system parts. If you
see anything that might keep
a safety belt system from
doing its job, have it repaired.
Have any torn or frayed safety
belts replaced. Also seeAirbag
System Check on page 1-35.❑Replace passenger compartment
air lter.
❑Inspect engine accessory drive
belts (or every 48 months,
whichever occurs rst). Visually
inspect belt for fraying, excessive
cracks, or obvious damage.
Replace belt if necessary.
An Emission Control Service.
❑Inspect for tappet noise and
engine vibration. Adjust valve
clearance to factory specications
if necessary (or every 48 months,
whichever occurs rst).
An Emission Control Service.
❑Inspect fuel tank, cap, cap gasket,
and lines for damage or leaks
(or every 24 months, whichever
occurs rst). Replace parts as
needed.An Emission Control
Service. (See footnote †.)
❑Change manual transmission uid
every 30,000 miles (48 000 km)
only if your vehicle is used to tow
a trailer.
Service and Maintenance 11-7
2009 - Pontiac Vibe Owner Manual

❑Rotate tires. SeeTire Inspection
and Rotation on page 9-53
for proper rotation pattern
and additional information.
(See footnote +.)
❑Inspect engine air cleaner lter
if you are driving in dusty
conditions. Replace lter if
necessary.
85,000 Miles (136 000 km)
❑Change engine oil and lter
(or every 3 months, whichever
occurs rst).An Emission
Control Service.
❑Rotate tires. SeeTire Inspection
and Rotation on page 9-53
for proper rotation pattern
and additional information.
(See footnote +.)
❑Inspect engine air cleaner lter
if you are driving in dusty
conditions. Replace lter if
necessary.
90,000 Miles (144 000 km)
❑Change engine oil and lter
(or every 3 months, whichever
occurs rst).An Emission
Control Service.
❑Rotate tires. SeeTire Inspection
and Rotation on page 9-53for
proper rotation pattern and
additional information.
(See footnote +.)
❑Replace engine air cleaner lter
(or every 24 months, whichever
occurs rst). SeeEngine Air
Cleaner/Filter on page 9-12
for more information.
❑Check restraint system. Make
sure the safety belt reminder
light and safety belt assemblies
are working properly. Look for
any other loose or damaged
safety belt system parts. If you
see anything that might keepa safety belt system from
doing its job, have it repaired.
Have any torn or frayed
safety belts replaced. Also
seeAirbag System Check on
page 1-35.
❑Replace passenger compartment
air lter.
❑Inspect engine accessory drive
belts (or 12 months since last
inspection).An Emission
Control Service.
❑Inspect fuel tank, cap, cap
gasket, and lines for damage
or leaks (or every 24 months,
whichever occurs rst). Replace
parts as needed.An Emission
Control Service. (See footnote †.)
❑Change manual transmission
uid every 30,000 miles
(48 000 km) only if your vehicle
is used to tow a trailer.
Service and Maintenance 11-9
2009 - Pontiac Vibe Owner Manual

150,000 Miles (240 000 km)
❑Drain, ush, and rell the cooling
system (or every 5 years,
whichever occurs rst).
This service can be complex;
you should have your dealer/
retailer perform this service.
SeeEngine Coolant on page 9-18
for what to use. Inspect hoses.
Clean radiator, condenser,
pressure cap, and neck. Pressure
test cooling system and pressure
cap.An Emission Control Service.
Part B: Owner Checks
and Services
These owner checks and services
should be performed at the intervals
specied to help ensure vehicle
safety, dependability, and emission
control performance.
Be sure any necessary repairs are
completed at once. Whenever
any uids or lubricants are added to
the vehicle, make sure they are
the proper ones, as shown in Part D.
At Each Fuel Fill
It is important to perform these
underhood checks at each fuel fill.
Engine Oil Level Check
Notice:It is important to check
the engine oil regularly and keep it
at the proper level. Failure to keep
the engine oil at the proper level
can cause damage to the engine
not covered by the vehicle
warranty.Check the engine oil level and add
the proper oil if necessary. See
Engine Oil on page 9-9.
Engine Coolant Level Check
Check the engine coolant level
and add DEX-COOL®coolant
mixture if necessary. SeeEngine
Coolant on page 9-18.
Windshield Washer Fluid
Level Check
Check the windshield washer uid
level in the windshield washer
uid reservoir and add the proper
uid if necessary. SeeWindshield
Washer Fluid on page 9-24.
Hood Latch Operation Check
Pull the primary hood latch release
handle inside the vehicle. The
secondary latch should keep the
hood from opening all the way when
the primary latch is released. Make
sure the hood closes rmly.
SeeHood Release on page 9-5.
11-12 Service and Maintenance
2009 - Pontiac Vibe Owner Manual

Starter Switch Check
{CAUTION
When you are doing this
inspection, the vehicle could move
suddenly. If the vehicle moves,
you or others could be injured.
1. Before starting this check, be
sure there is enough room
around the vehicle.
2. Firmly apply both the parking
brake and the regular brake.
SeeParking Brake on page 8-12.
Do not use the accelerator
pedal, and be ready to turn off
the engine immediately if it starts.3. For automatic transmission
vehicles, try to start the engine in
each gear. The vehicle should
start only in P (Park) or
N (Neutral). If the vehicle starts
in any other position, contact
your dealer/retailer for service.
For manual transmission
vehicles, put the shift lever
in Neutral, push the clutch pedal
down halfway, and try to start
the engine. The vehicle should
start only when the clutch
pedal is pushed down all the
way to the oor. If the vehicle
starts when the clutch pedal
is not pushed all the way down,
contact your dealer/retailer
for service.
Automatic Transmission Shift
Lock Control System Check
{CAUTION
When you are doing this
inspection, the vehicle could move
suddenly. If the vehicle moves,
you or others could be injured.
1. Before starting this check, be
sure there is enough room
around the vehicle. It should be
parked on a level surface.
2. Firmly apply the parking brake.
SeeParking Brake on page 8-12.
Be ready to apply the regular
brake immediately if the vehicle
begins to move.
3. With the engine off, turn the
ignition to ON/RUN, but do
not start the engine. Without
applying the regular brake,
try to move the shift lever out
of P (Park) with normal effort.
If the shift lever moves out
of P (Park), contact your
dealer/retailer for service.
11-14 Service and Maintenance
2009 - Pontiac Vibe Owner Manual
