2009 OPEL CORSA display

7
In Brief
1Side air vents .............................. 3120
2 Parking lamps, dipped beam ... 3106
Instrument illumination .............. 3112
Fog tail lamp .............................. 3108
Fog lamps 3 ............................... 3108
Headlamp range
adjustment 3 .............................. 3109
3 Turn signal ..................................... 311
Headlamp flash
dipped beam, main beam .......... 311
Interior lighting 3 ........................3111
Parking lamps 3 ......................... 3112
Cruise control 3 .......................... 3158
4 Steering wheel
remote control 3......................... 3116
5 Horn ................................................ 312
Driver’s airbag ............................... 367
6 Instruments .................................... 382
7 Windscreen wipers,
windscreen washer system,
rear window washer system ......... 312
Trip computer 3 ............................ 399 8
Centre air vents .......................... 3120
9 Central information display for
time, date, outside temperature,
infotainment system 3,
check control 3 ............................. 392
Trip computer 3 ............................ 399
Climate control system 3 .......... 3126
10 Left seat
heater 3 ......................... 348
Steering wheel heater 3................ 349
Tyre pressure loss
monitoring system 3................... 3162
Central locking button .................. 332
Warning lights ............................... 312
Passenger airbag off switch ........ 373
Ultrasonic parking sensor .......... 3160
Electronic stability 3 ................... 3157
Right seat heater 3....................... 348
11 Front passenger airbag .............. 367
12 Glove compartment ..................... 380 13
Infotainment system 3 ............... 3116
14 Climate control .......................... 3118
15 Accessory socket 3 ....................... 378
Cigarette lighter 3 ....................... 378
16 Ashtray ......................................... 379
17 Ignition switch .......................................
with steering wheel lock .............. 316
18 Accelerator pedal ........... 3147, 3148
19 Brake pedal ........ 3148, 3163, 3165
20 Clutch pedal 3............................ 3142
21 Steering wheel ad justment ........... 35
22 Rel

easing the bonnet .................. 3188
Back to overview

9
In Brief
1Side air vents .............................. 3120
2 Front passenger airbag ............... 367
3 Left seat heater 3 .........................348
Steering wheel heater 3................ 349
Tyre deflation
detection system 3..................... 3162
Central locking button .................. 332
Warning light ................................. 312
Passenger airbag off switch ......... 373
Ultrasonic parking sensor ......... 3160
Electronic stability 3 ................... 3157
Right seat heater 3........................ 348
4 Central information display for
time, date, outside temperature,
infotainment system 3,
check control 3 ............................. 392
Trip computer 3 ........................... 399,
Climate control system 3 ......... 3126
5 Centre air vents ......................... 3120
6 Turn signal ..................................... 311
Headlamp flash
dipped beam, main beam .......... 311
Ambient lighting 3...................... 3111
Parking lamps 3 ......................... 3112
Cruise control 3 .......................... 3158 7
Steering wheel
remote control 3.......................... 3116
8 Instruments ...
................................. 382
9 Horn ................................................ 312
Driver’s airbag .............................. 367
10 Windscreen wipers,
windscreen washer system,
rear window washer system ......... 312
Trip computer 3 ............................ 399
11 Parking lamps, dipped beam .... 3106
Instrument illum ination .............. 3112
Fog tail lamp ............................... 3108
Fog lamps 3 ................................ 3108
Headlamp range
adjustment 3 .............................. 3109
12 Ignition switch
with steering wheel lock .............. 316 13
Accelerator pedal ........... 3147, 3148
14 Brake pedal ........ 3148, 3163, 3165
15 Clutch pedal 3............................ 3142
16 Steering wheel ad justment ........... 35
17 Ashtray ......................................... 379
18 Accessory socket 3 ....................... 378
Cigarette lighter 3 ....................... 378
19 Climate control .......................... 3118
20 Infotainment system 3 .............. 3116
21 Glove compartment .................... 380
22 Rel
easing the bonnet .................. 3188
Back to overview

19
In Brief
Picture no: 18185s.tif
Curtain airbag system 3
The curtain airbag system triggers in case
of a side-on collision and provides a safety
barrier in the head area on the respective
side of the vehicle. This reduces the risk of
injury to the head considerably in case of a
side-on collision.
Airbag system 369.
Picture no: 18294s.tif
Airbag systems which can be
deactivated for the front
passenger *
3
The front and side airbag systems 3 for
the front passenger must be deactivated
if a child restraint system is to be fitted
to the passenger seat. The curtain airbag
system 3, the belt tensioners and all driver
airbag systems remain active when the
systems for the front passenger are
deactivated. The passenger airbag
systems are active in the as-delivered
condition.
Airbag systems which can be
deactivated 375.
Picture no: S0013209.tif
Operating menus via the
information display
3
The menu options are selected via the
menus and the arrow keys or the
multifunction button of the infotainment
system 3 or the left adjusting wheel 3 on
the steering wheel. The relevant menu
options appear on the display.
Selection using arrow keys 3:
Press right or left arrow key.
Back to overview

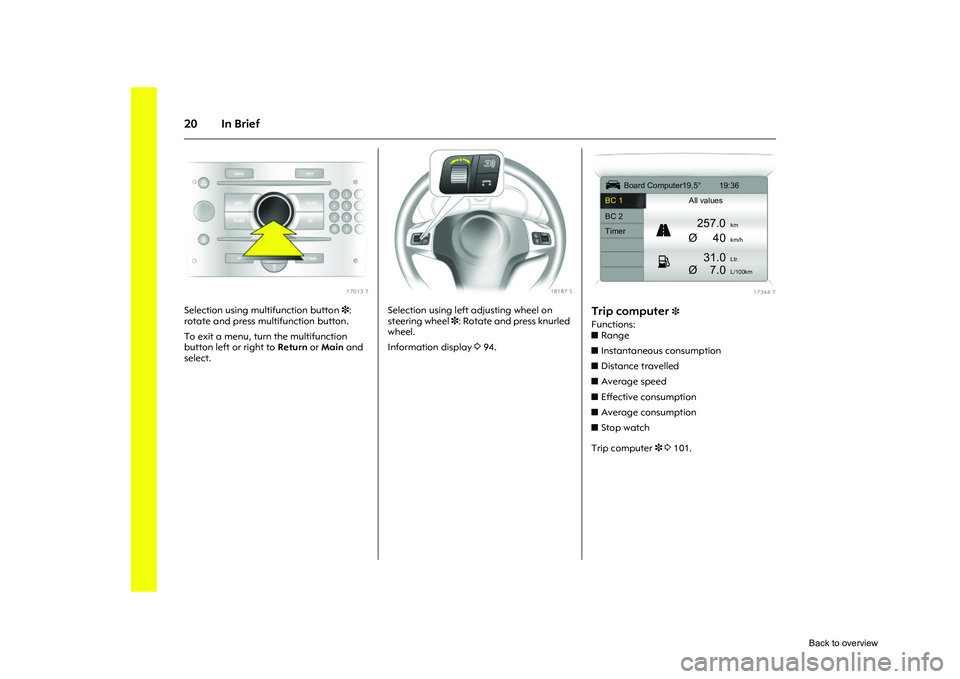

20 In Brief
Picture no: 17013t.tif
Selection using multifunction button 3:
rotate and press multifunction button.
To exit a menu, turn the multifunction
button left or right to Return or Main and
select.
Picture no: 18187s.tif
Selection using left adjusting wheel on
steering wheel 3: Rotate and press knurled
wheel.
Information display 394.
Picture no: 17344t.tif
Trip computer
3
Functions:
z Range
z Instantaneous consumption
z Distance travelled
z Average speed
z Effective consumption
z Average consumption
z Stop watch
Trip computer 33101.
Ü
Board Computer19,5° 19:36
BC 1 All values
BC 2
257.0
km
Timer
Ø40
km/h
31.0
Ltr.
Ø
7.0
L/100km
1
8
Back to overview

21
In Brief
Picture no: 18435s.tif
Check control
3
The check control software monitors
zRemote control battery.
z Important exterior lighting lamps,
including cables and fuses.
Check control 33104.
Picture no: 18188s.tif
Steering wheel remote control
3
The functions of the infotainment system 3
and the information display can be
operated using the buttons and adjusting
wheels on the steering wheel.
Further information is available in the
infotainment system operating
instructions.
Steering wheel remote control 3 3 118,
Infotainment system 3 118.
Picture no: 18471s.tif
AUX input
3
An external audio source such as a
portable CD player can be connected via
the AUX input with a 3.5 mm jack plug.
AUX input 3 3 119.
Brakelightcheck right
OK
Back to overview

39
Keys, doors, windows, sun roof
Picture no: 18287s.tif
Child safety locks
3
Turn rotary knob at rear door lock from
vertical position using key: door cannot be
opened from the inside.
Personalised key
Store personalised settings or
vehicle-specific functions in the
vehicle key If the vehicle is used by a number of drivers,
each driver can store his or her own
preferred settings and vehicle functions
using their key. These settings and
functions are then activated when the
relevant key is used.
A total of up to five vehicle keys can be
programmed separately and used. Automatically saved settings
The last settings selected
z
the climate control system 3,
z the information display 3,
z the infotainment system 3,
z the instrument illumination,
are automatically stored depending on the
vehicle key used.
Different settings are stored for each
vehicle key. Use of a specific vehicle key will
activate the settings associated with it.
The settings are stored once more every
time the vehicle is locked.
9
Warning
Use the child safety lock whenever chil-
dren are occupying the rear seats.
Back to overview

40 Keys, doors, windows, sun roofProgrammable functions
The vehicle-specific functions P1 to P7
listed in the following table can be
activated and deactivated.
The setting selected is automatically stored
depending on the vehicle key used.
Different settings are stored for each
vehicle key. Use of a specific vehicle key will
activate the settings associated with it.
A total of up to five vehicle keys can be
programmed separately.
Programming permits the technical
prerequisite of the relevant function. To
activate and deactivate the functions and
set the functions, please see the relevant
sections. For page re ferences, see the
following table.
Programming:

z Turn the ignition off, the key must be in
the ignition lock,
Picture no: 18401s.tif
zPull turn signal st alk and wiper stalk
simultaneously to the steering wheel
until you hear a confirmation signal
(approx. 3 seconds),
z The kilometre display shows P1,
Picture no: 18411s.tif
zPush the turn signal stalk (left) up
or down and select the desired
function P1- P7 , see the following table,
Back to overview

50 Seats, Interior
Picture no: 18532t.tif
Seat position
zSit with your buttocks as far back against
the backrest as possible. Adjust the
distance between your feet and the
pedals so that your legs are slightly
angled when pressing the pedals. Slide
the passenger seat as far back as
possible. z
Sit with your shou lders as far back
against the backrest as possible. Set the
backrest rake so that you can easily
reach the steering wheel with your arms
slightly bent. Maintain contact between
your shoulders and the backrest when
turning the steering wheel. Do not angle
the backrest too far back. We
recommend a maximum rake of
approx. 25.
z Adjust the steering wheel 35.
z Set seat height 3 high enough to have a
clear field of vision on all sides and of all
display instruments. There should be at
least six inches of clearance between
your head and the headlining. Your
thighs should rest lightly on the seat
without pressing into it.
z Adjust the head restraint.
z Adjust the height of the seat belt 363.
Picture no: 18250s.tif
Heated front seats 3
Two buttons beneath the centre air vents
for the left and right seats.
When the ignition is switched on, the
heating of the front seats is activated by
pressing the corresponding button ß.
LED in button ß on: relevant front seat
heating on.
No LED on: front seat heating is off.
Seat heating is op erational when the
engine is running.
9
Warning
Only drive with the seat correctly
adjusted.
Back to overview
