Fuses and the most important
circuits they protectFuse box in engine compartment
The fuse box is at the front left side of the
engine compartment.
To open, disengage the cover, fold cover
up and remove.
Picture no: 18589s.tif Picture no:
No. Circuit
1 Starter
2 Air conditioning system
3 Diesel fuel filter heater
4 Horn
5 Manual transmission automated,
automatic transmission
6 Engine control unit
7 Fog lamps
8 Engine cooling
9 Engine cooling
No. Circuit
10 Automated manual transmission
11 Glow plugs, ignition system
12 Headlamp range adjustment,
Adaptive Forward Lighting
13 Air conditioning system
14 Automated manual transmission
15 Main beam (right)
16 Main beam (left)
17 Main relay
18 Engine control unit
Back to overview
210 Self-help, vehicle care
Picture no: 18272s.tif

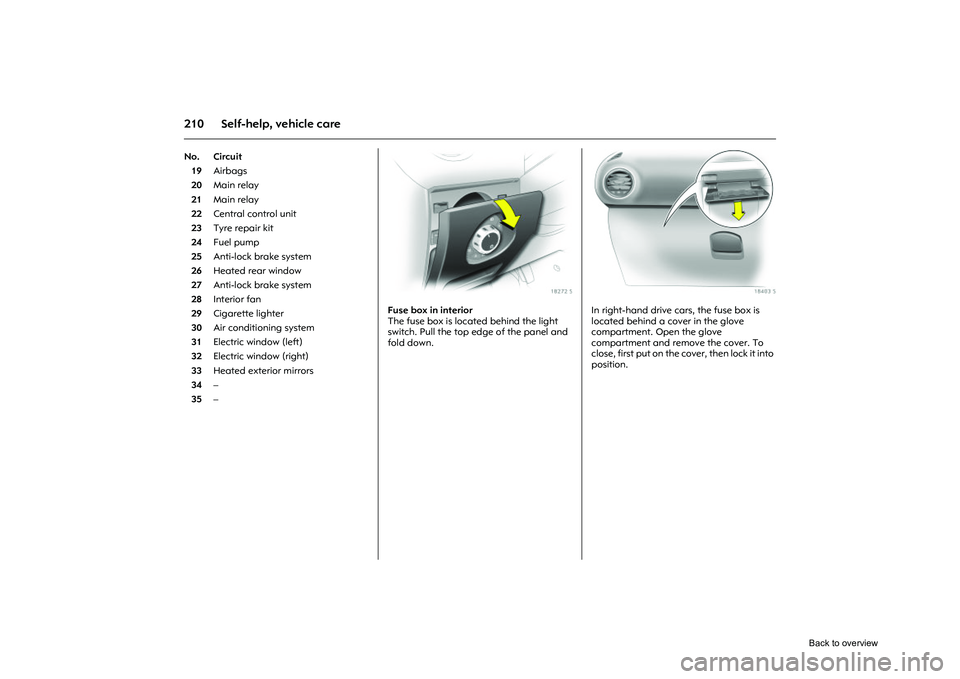

Fuse box in interior
The fuse box is located behind the light
switch. Pull the top edge of the panel and
fold down.
Picture no: 18403s.tif
In right-hand drive cars, the fuse box is
located behind a cover in the glove
compartment. Open the glove
compartment and remove the cover. To
close, first put on the cover, then lock it into
position.
No. Circuit
19 Airbags
20 Main relay
21 Main relay
22 Central control unit
23 Tyre repair kit
24 Fuel pump
25 Anti-lock brake system
26 Heated rear window
27 Anti-lock brake system
28 Interior fan
29 Cigarette lighter
30 Air conditioning system
31 Electric window (left)
32 Electric window (right)
33 Heated exterior mirrors
34 –
35 –
