2009 NISSAN VERSA HATCHBACK fog light

1. Engine hood (P. 3-22)
2. Windshield wiper and washer switch
(P. 2-17)
3. Windshield (P. 8-20)
4. Moonroof (if so equipped) (P. 2-32)
5. Power windows (P. 2-29)
6. Door locks, keyfob, NISSAN Intelligent
Key ™ (if so equipped) , keys
(P. 3-4, 3-7, 3-3, 3-2)
7. Mirrors (P. 3-29)
8. Tire pressure (P. 8-34)
9. Flat tire (P. 6-2)
10. Tire chains (P. 8-41)
11. Headlight and turn signal switch
(P. 2-19)
12. Replacing bulbs (P. 8-29)
13. Fog light switch (if so equipped)
(P. 2-19)
14. Tie down hook (if so equipped)
(P. 6-13)
See the page number indicated in paren-
theses for operating details.
WII0101
EXTERIOR FRONT
Illustrated table of contents0-3
REVIEW COPY—2009 Versa(vrs)
Owners Manual—USA_English(nna)
09/10/08—debbie


1. Outside mirror control switch
(if so equipped) (P. 3-29)
2. Headlight/fog light (if so equipped)/turn
signal switch (P. 2-19)3. Steering wheel switch for audio control
and Bluetoothhands-free phone sys-
tem (if so equipped) (P. 4-27, 4-29)
4. Driver’s supplemental air bag/horn
(P. 1-36, 2-22)
5. Meters and gauges (P. 2-3)6. Cruise control main/set switches
(if so equipped) (P. 5-24)
7. Windshield wiper/washer switch
(P. 2-17, 2-18)
8. Audio system (if so equipped) (P. 4-10)
9. Storage bin (P. 2-23)
10. Center ventilator (P. 4-2)
11. Passenger’s supplemental air bag
(P. 1-36)
12. Side ventilator (P. 4-2)
13. Glove box (P. 2-26)
14. Hazard warning flasher switch (P. 2-22)
15. Cup holders (P. 2-25)
16. Shift selector (P. 5-14)
17. Defroster switch (P. 2-19)
18. Climate control (P. 4-3)
19. Passenger air bag status light (P. 1-44)
20. Ignition switch (P. 5-7)
21. Tilt steering (P. 3-28)
22. Hood release lever (P. 3-22)
23. Fuel-filler lid release lever (P. 3-26)
24. Fuse block (P. 8-23)
25. Instrument brightness control (P. 2-21)
See the page number indicated in paren-
theses for operating details.
WIC1286
INSTRUMENT PANEL
Illustrated table of contents0-7
REVIEW COPY—2009 Versa(vrs)
Owners Manual—USA_English(nna)
09/10/08—debbie


2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges................................2-3
Speedometer and odometer.....................2-3
Tachometer....................................2-4
Fuel gauge . ...................................2-5
Warning/indicator lights and audible reminders.......2-6
Checking bulbs................................2-7
Warning lights.................................2-7
Indicator lights................................2-11
Audible reminders.............................2-13
Security systems.................................2-14
Vehicle security system (if so equipped)..........2-14
NISSAN vehicle immobilizer system.............2-15
Windshield wiper and washer switch...............2-17
Switch operation..............................2-17
Rear window wiper and washer switch
(if so equipped)..................................2-18
Rear window and outside mirror (if so equipped)
defroster switch..................................2-19
Headlight and turn signal switch....................2-19
Headlight control switch........................2-19
Daytime running light system (Canada only)......2-20
Instrument brightness control . ..................2-21Turn signal switch.............................2-21
Fog light switch (if so equipped)................2-21
Hazard warning flasher switch.....................2-22
Horn............................................2-22
Power outlet.....................................2-23
Storage.........................................2-23
Map pockets..................................2-23
Storage trays.................................2-24
Sunglasses holder (if so equipped)..............2-25
Cup holders..................................2-25
Glove box....................................2-26
Console box (if so equipped)...................2-27
Covered storage bin...........................2-27
Cargo cover (Hatchback models only)...........2-27
Windows........................................
2-29
Power windows (if so equipped)................2-29
Manual windows (if so equipped)................2-31
Moonroof (if so equipped).........................2-32
Automatic moonroof...........................2-32
Interior light......................................2-34
Map lights (if so equipped)........................2-34
Luggage compartment light (Hatchback)............2-35
Trunk light (Sedan) (if so equipped).................2-35
REVIEW COPY—2009 Versa(vrs)
Owners Manual—USA_English(nna)
09/10/08—debbie


1. Outside mirror control switch
(if so equipped) (P. 3-29)
2. Headlight/fog light (if so equipped)/turn
signal switch (P. 2-19)3. Steering wheel switch for audio control
and Bluetoothhands-free phone sys-
tem (if so equipped) (P. 4-27, 4-29)
4. Driver’s supplemental air bag/horn
(P. 1-36, 2-22)
5. Meters and gauges (P. 2-3)6. Cruise control main/set switches
(if so equipped) (P. 5-24)
7. Windshield wiper/washer switch
(P. 2-17, 2-18)
8. Audio system (if so equipped) (P. 4-10)
9. Storage bin (P. 2-23)
10. Center ventilator (P. 4-2)
11. Passenger’s supplemental air bag
(P. 1-36)
12. Side ventilator (P. 4-2)
13. Glove box (P. 2-26)
14. Hazard warning flasher switch (P. 2-22)
15. Cup holders (P. 2-25)
16. Shift selector (P. 5-14)
17. Defroster switch (P. 2-19)
18. Climate control (P. 4-3)
19. Passenger air bag status light (P. 1-44)
20. Ignition switch (P. 5-7)
21. Tilt steering (P. 3-28)
22. Hood release lever (P. 3-22)
23. Fuel-filler lid release lever (P. 3-26)
24. Fuse block (P. 8-23)
25. Instrument brightness control (P. 2-21)
See the page number indicated in paren-
theses for operating details.
WIC1286
INSTRUMENT PANEL
2-2Instruments and controls
REVIEW COPY—2009 Versa(vrs)
Owners Manual—USA_English(nna)
09/10/08—debbie


INSTRUMENT BRIGHTNESS
CONTROL
The instrument brightness control operates when
the headlight control switch is in the
orposition.
Turn the control to adjust the brightness of instru-
ment panel lights when driving at night.
TURN SIGNAL SWITCH
Turn signal
1Move the lever up or down to signal the
turning direction. When the turn is com-
pleted, the turn signals cancel automatically.
Lane change signal
2To signal a lane change, move the lever up or
down to the point where the indicator light
begins to flash, but the lever does not latch.
FOG LIGHT SWITCH (if so equipped)
To turn the fog lights on, turn the headlight switch
to the
position, then turn the fog light
switch to the
position.
To turn the fog lights off, turn the fog light switch
to the OFF position.
The headlights must be on and the low beams
selected for the fog lights to operate. The fog
lights automatically turn off when the high beam
headlights are selected.
LIC0392LIC0968SIC3020
Instruments and controls2-21
REVIEW COPY—2009 Versa(vrs)
Owners Manual—USA_English(nna)
09/10/08—debbie


— Air flows mainly from foot
outlets.
— Air flows from defroster outlets
and foot outlets.
— Air flows mainly from defroster
outlets.
Temperature control dial
The temperature control dial allows you to adjust
the temperature of the outlet air. To lower the
temperature, turn the dial to the left. To increase
the temperature, turn the dial to the right.
Fresh air
Move the air intake lever to theposition.
The air flow is drawn from outside the vehicle.
Air recirculation
Move the air intake lever to theposition to
recirculate air inside the vehicle.
Use the
selection:
●when driving on a dusty road.
●to prevent traffic fumes from entering pas-
senger compartment.
●for maximum cooling when using the air con-
ditioner.
Air conditioner button
(if so equipped)
Start the engine, turn the fan control dial to the
desired position and push the
button to
turn on the air conditioner. The indicator light
comes on when the air conditioner is operating.
To turn off the air conditioner, push the
button again.
The air conditioner cooling function oper-
ates only when the engine is running.
Rear window defroster switch
For more information about the rear window de-
froster switch, see “Rear window and outside
mirror (if so equipped) defroster switch” in the
“Instruments and controls” section of this manual.
HEATER OPERATION
Heating
This mode is used to direct heated air to the foot
outlets. Some air also flows from the defrost
outlets.
1. Move the air intake lever to the
posi-
tion for normal heating.
2. Turn the air flow control dial to the
position.3. Turn the fan control dial to the desired posi-
tion.
4. Turn the temperature control dial to the de-
sired position between the middle and the
hot position.
Ventilation
This mode directs outside air to the side and
center ventilators.
1. Move the air intake lever to the
posi-
tion.
2. Turn the air flow control dial to the
position.
3. Turn the fan control dial to the desired posi-
tion.
4. Turn the temperature control dial to the de-
sired position.
Defrosting or defogging
This mode directs the air to the defrost outlets to
defrost/defog the windows.
1. Move the air intake lever to the
posi-
tion.
2. Turn the air flow control dial to the
position.
4-4Heater, air conditioner, audio and phone systems
REVIEW COPY—2009 Versa(vrs)
Owners Manual—USA_English(nna)
09/10/08—tbrooks

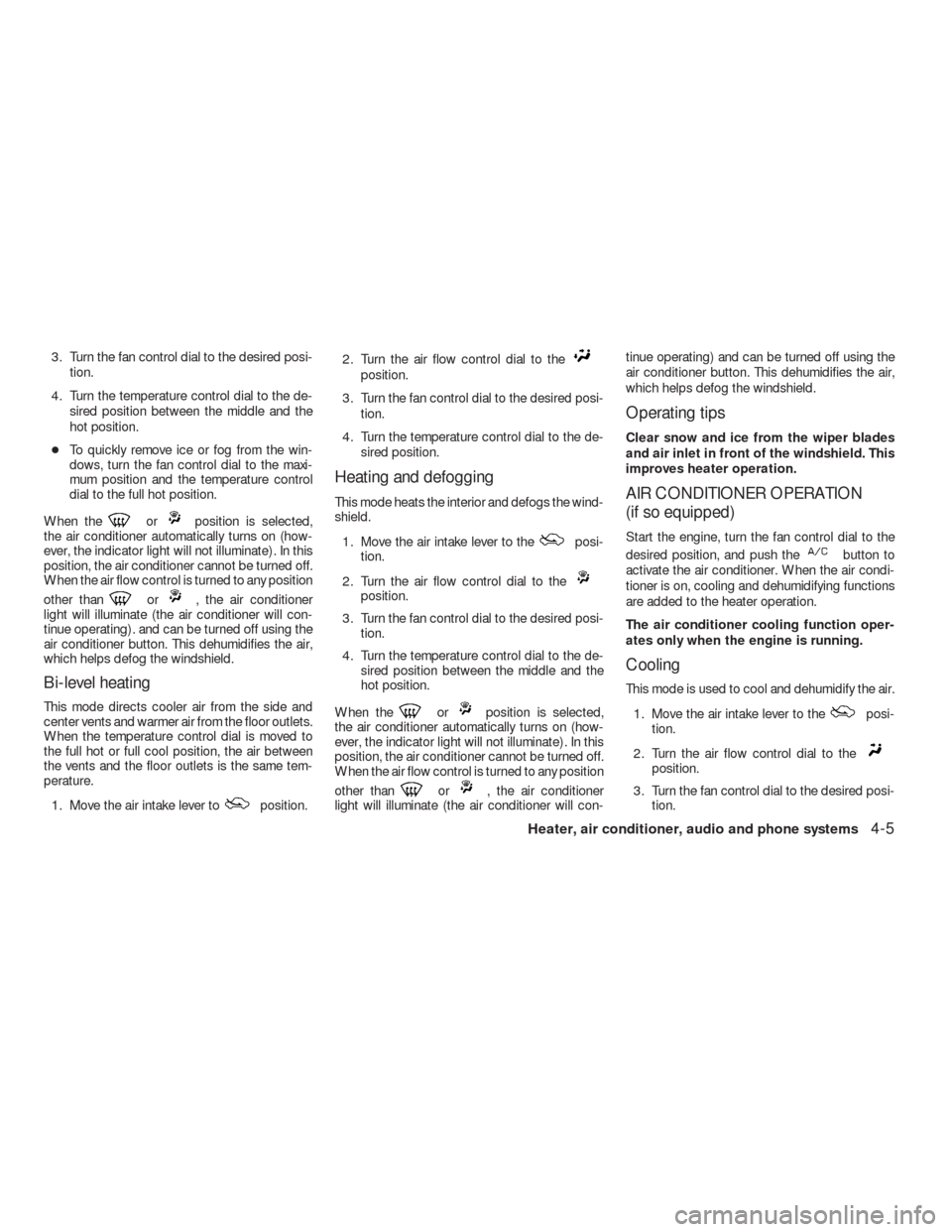

3. Turn the fan control dial to the desired posi-
tion.
4. Turn the temperature control dial to the de-
sired position between the middle and the
hot position.
●To quickly remove ice or fog from the win-
dows, turn the fan control dial to the maxi-
mum position and the temperature control
dial to the full hot position.
When the
orposition is selected,
the air conditioner automatically turns on (how-
ever, the indicator light will not illuminate) . In this
position, the air conditioner cannot be turned off.
When the air flow control is turned to any position
other than
or, the air conditioner
light will illuminate (the air conditioner will con-
tinue operating) . and can be turned off using the
air conditioner button. This dehumidifies the air,
which helps defog the windshield.
Bi-level heating
This mode directs cooler air from the side and
center vents and warmer air from the floor outlets.
When the temperature control dial is moved to
the full hot or full cool position, the air between
the vents and the floor outlets is the same tem-
perature.
1. Move the air intake lever to
position.2. Turn the air flow control dial to the
position.
3. Turn the fan control dial to the desired posi-
tion.
4. Turn the temperature control dial to the de-
sired position.
Heating and defogging
This mode heats the interior and defogs the wind-
shield.
1. Move the air intake lever to the
posi-
tion.
2. Turn the air flow control dial to the
position.
3. Turn the fan control dial to the desired posi-
tion.
4. Turn the temperature control dial to the de-
sired position between the middle and the
hot position.
When the
orposition is selected,
the air conditioner automatically turns on (how-
ever, the indicator light will not illuminate) . In this
position, the air conditioner cannot be turned off.
When the air flow control is turned to any position
other than
or, the air conditioner
light will illuminate (the air conditioner will con-tinue operating) and can be turned off using the
air conditioner button. This dehumidifies the air,
which helps defog the windshield.
Operating tips
Clear snow and ice from the wiper blades
and air inlet in front of the windshield. This
improves heater operation.
AIR CONDITIONER OPERATION
(if so equipped)
Start the engine, turn the fan control dial to the
desired position, and push the
button to
activate the air conditioner. When the air condi-
tioner is on, cooling and dehumidifying functions
are added to the heater operation.
The air conditioner cooling function oper-
ates only when the engine is running.
Cooling
This mode is used to cool and dehumidify the air.
1. Move the air intake lever to the
posi-
tion.
2. Turn the air flow control dial to the
position.
3. Turn the fan control dial to the desired posi-
tion.
Heater, air conditioner, audio and phone systems4-5
REVIEW COPY—2009 Versa(vrs)
Owners Manual—USA_English(nna)
09/10/08—debbie


4. Push thebutton. The indicator light
comes on.
5. Turn the temperature control dial to the de-
sired position.
●For quick cooling when the outside tem-
perature is high, move air intake lever to
the
position. Be sure to return to
the
position for normal cooling.
Dehumidified heating
This mode is used to heat and dehumidify the air.
1. Move the air intake lever to the
posi-
tion.
2. Turn the air flow control dial to the
position.
3. Turn the fan control dial to the desired posi-
tion.
4. Push the
button. The indicator light
comes on.
5. Turn the temperature control dial to the de-
sired position.
Dehumidified defogging
This mode is used to defog the windows and
dehumidify the air.1. Move the air intake lever to the
posi-
tion.
2. Turn the air flow control dial to the
position.
3. Turn the fan control dial to the desired posi-
tion. When the
orposition is
selected, the air conditioner automatically
turns on (however, the indicator light will not
illuminate) . In this position, the air condi-
tioner cannot be turned off. When the air
flow control is turned to any position other
than
or, the air conditioner light
will illuminate (the air conditioner will con-
tinue operating) . and can be turned off using
the air conditioner button. This dehumidifies
the air, which helps defog the windshield.
4. Turn the temperature control dial to the de-
sired position.
Operating tips
●Keep the windows and moonroof closed
while the air conditioner is in operation.
●After parking in the sun, drive for 2 or 3
minutes with the windows open to vent hot
air from the passenger compartment before
closing the windows. This allows the air con-
ditioner to cool the interior more quickly.●The air conditioning system should be
operated for approximately 10 minutes
at least once a month. This helps pre-
vent damage to the system due to lack
of lubrication.
●A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air
is cooled rapidly. This does not indicate a
malfunction.
●If the high temperature warning
light
illuminates in red indicating
engine coolant temperature is over the
normal range, turn the air conditioner
off. See “If your vehicle overheats” in
the “In case of emergency” section of
this manual.
AIR FLOW CHARTS
The following charts show the button and dial
positions forMAXIMUM AND QUICKheating,
cooling or defrosting.The air intake lever
should always be in the
position for
heating and defrosting.
4-6Heater, air conditioner, audio and phone systems
REVIEW COPY—2009 Versa(vrs)
Owners Manual—USA_English(nna)
09/10/08—debbie
